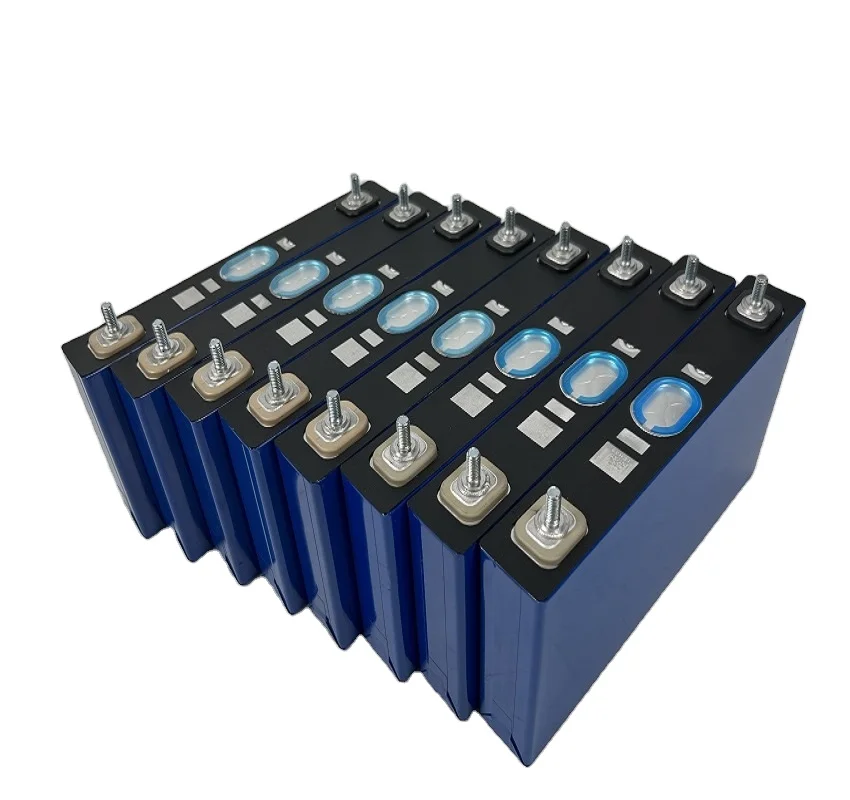

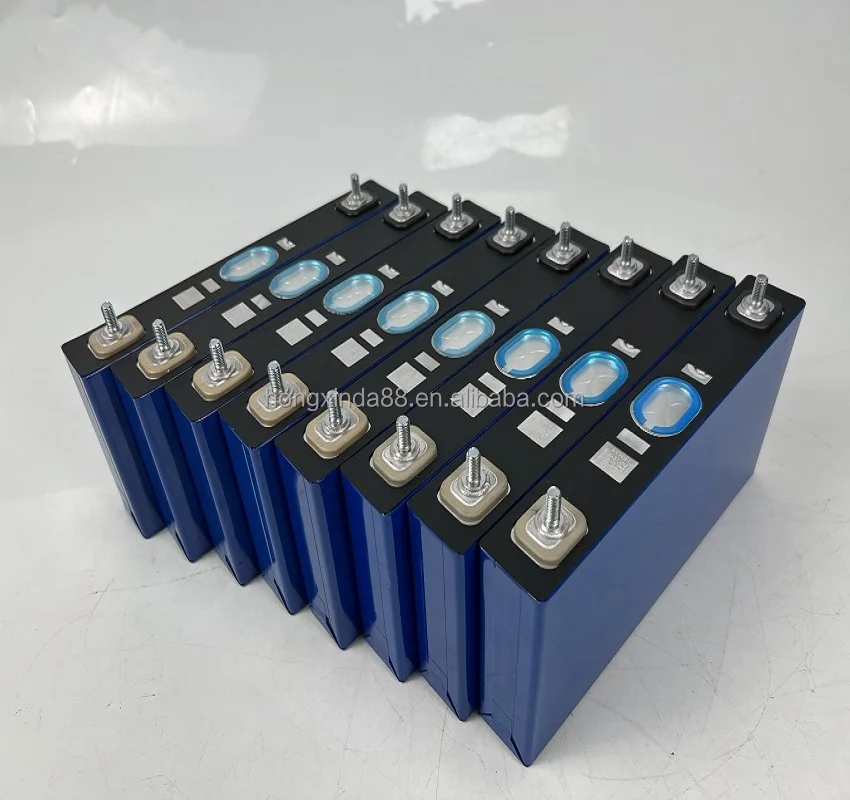

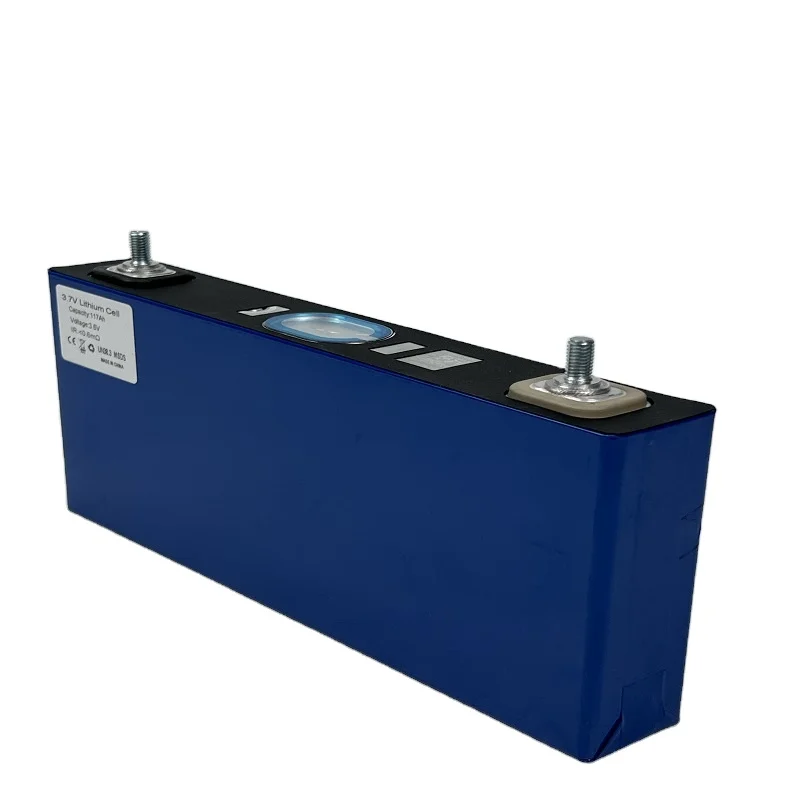

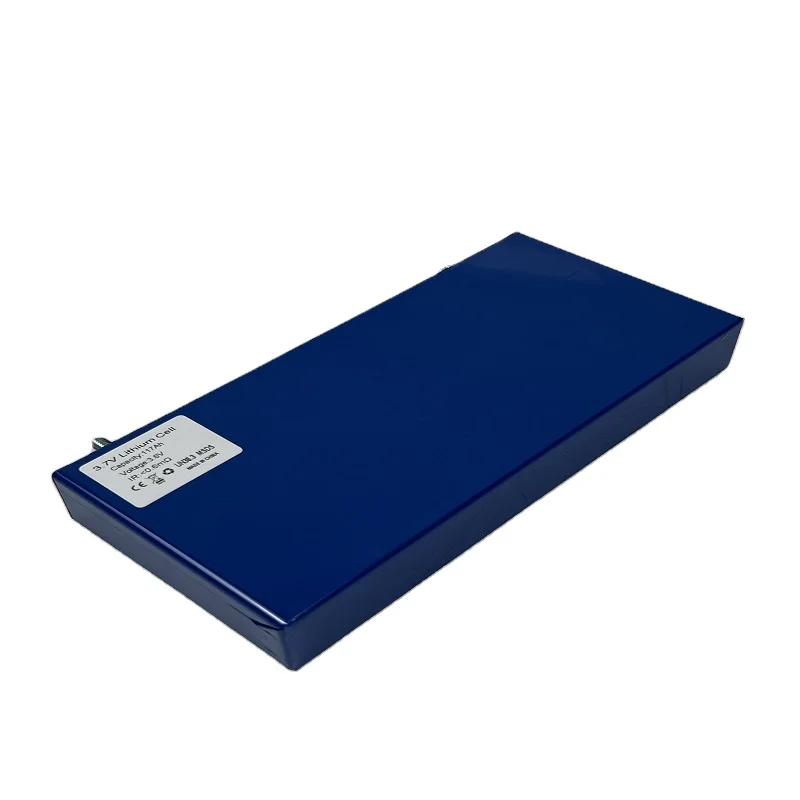

New 3.7V 117Ah 120Ah NMC Rechargeable Prismatic Lithium Ion Battery Cell CATL Battery for EV Power
- Category: >>>
- Supplier: Shenzhen Hongxinda New Energy Co. Ltd.
Share on (1601045032076):
Product Overview
Description
Specification
No. | About Battery |
1 | This item is CATL 3.7V 116Ah, Grade A, Brand new. A our test, the maximum discharge capacity can reach 120Ah. |
2 | The price come with Bus bars and Bolts,one battery will come with one set bus bar and bolt. |
3 | The busbars size:40*20*2mm(cooper plated with nickel) Screw size:M6. |
4 | We will test all the battery Voltage ,Internal resistance and capacity before delivery. |
Material | NCM Lithium Battery |
Model | HME-117Ah |
Nominal Voltage | 3.7V |
Capacity | .Max: 120Ah .Min : 117Ah |
Charging Current | · Standard Charging: 58A (0.5C rate) |
· Max. Charging: 116A (1C rate) | |
Max. Discharging Rate | · Max. Continuous Discharging: 116A(1C) |
· Max. Peak Discharging: 348A(3C) | |
Cut-off Voltage | · Charging: 4.20V |
· Discharging: 2.75V | |
Internal Resistance | ≤ 0.6mΩ (At 0.2C rate, 2.0V cut-off) |
Dimensions | 220*27*102(mm) |
Weight | 1.72±0.02KG |
Terminal | M6 Laser Welded Studs Or customized |
Working Temperature | · Charging: 0℃~45℃ |
· Discharging: -20℃~60℃ | |
Storage Temperature | · ≤1month: -10–45℃ |
· ≤3month: 0–30℃ | |
· ≤6month: 20±5℃ | |
Life Cycle | >2500 times (80% of initial capacity at 0.2C rate, IEC Standard) |
Product Description
Packing & Delivery

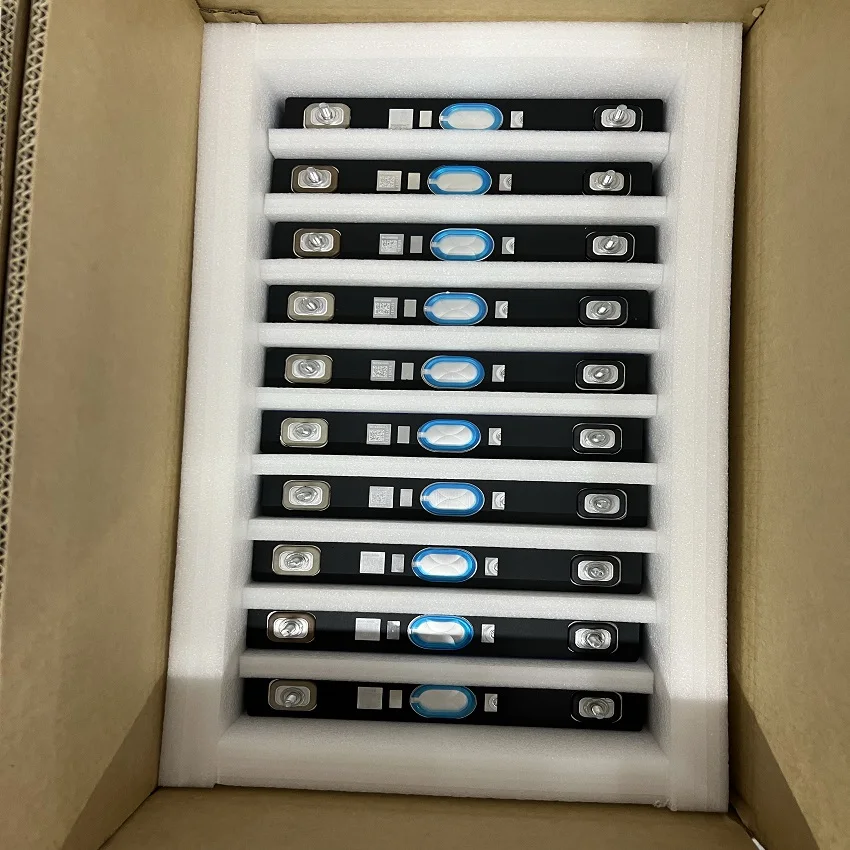

Customized high-strength sponge foam to ensure safe transportation Custom Aviation UN super hard DG carton
Certification
Company Profile

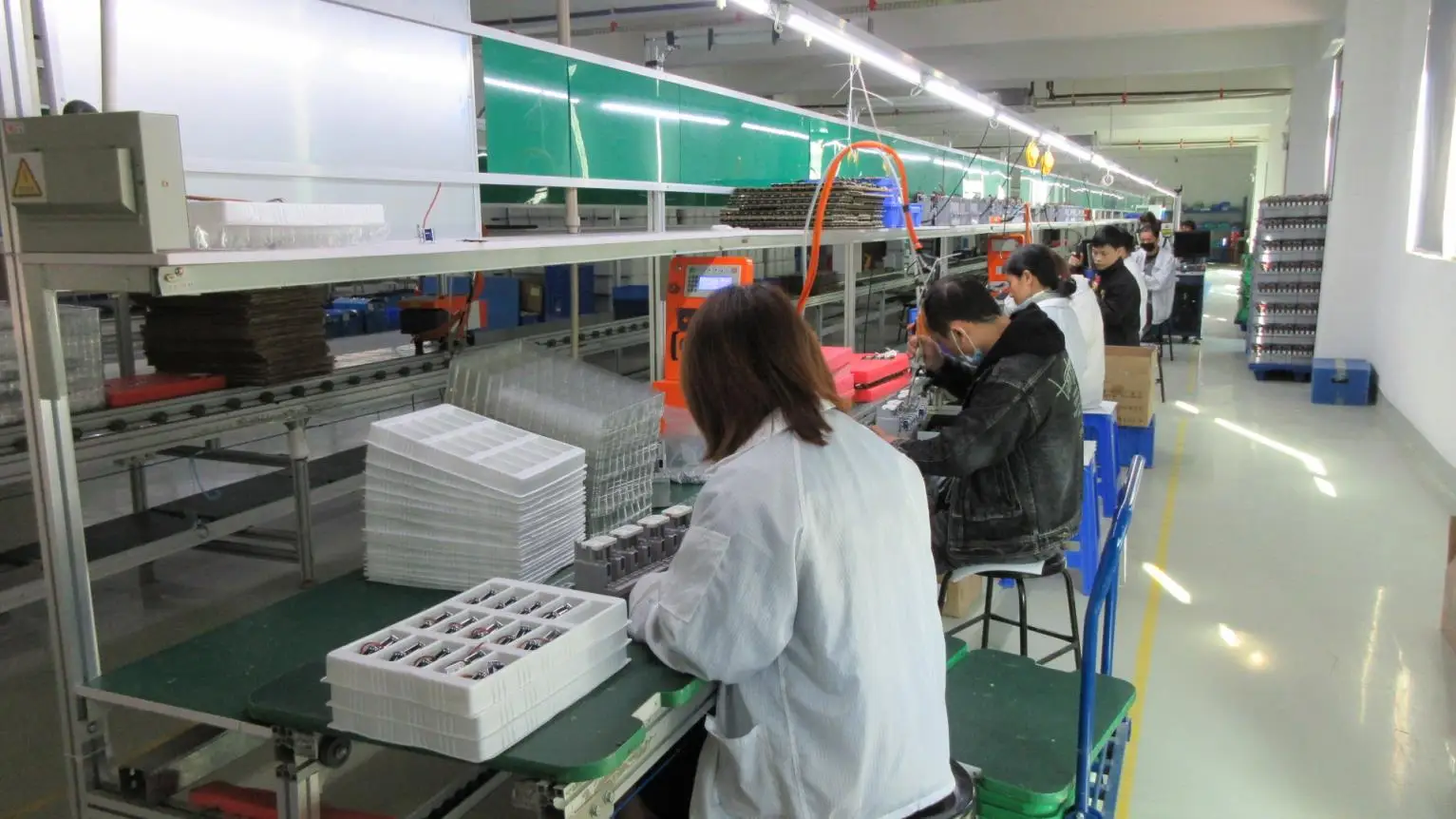

Shenzhen Hongxinda New Energy Co., Ltd. is a high-tech green energy enterprise integrating independent research, development, production and sales of lithium-ion battery modules. The company operates in strict accordance with iso9001-2015 quality management system and has passed ISO14000 system certification. The manufacturing workshop is equipped with advanced production equipment and first-class testing instruments. At the same time, it has a group of professional production and quality management teams, which strictly control every step of the production process and ensure to provide customers with first-class quality products through continuous optimization and improvement of technology. It has a number of lithium battery pack production lines, aging, capacity sharing and other production equipment and a large number of experienced industrial workers.
