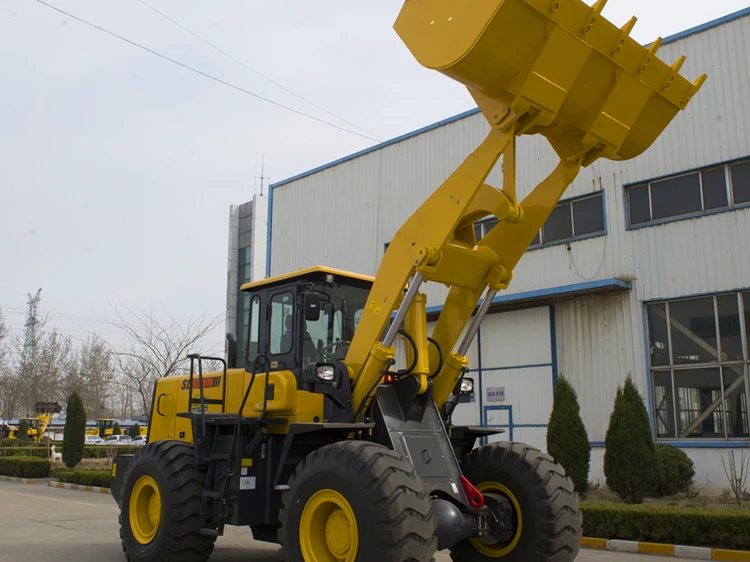

All series SHANTUI Spare Parts SHANTUI Wheel Loader SL20W SL30W SL50W SL60W Parts with competitive price
- Category: >>>
- Supplier: Oriemac Machinery & Equipment (Shanghai) Co. Ltd.Oriemac Ltd.
Share on (1601045089379):
Product Overview
Description
Contact Me
viola
if any interest，please contact me.
Whatsapp/Wechat/Mobile：+86 17816650716
Email：viola@oriemac.com
Product Overview
6 Ton Quick Tach For Wheel Loader Mini Front Wheel Loader Sl60w
The engine adopts environmental-friendly Weichai Deutz WP6G125E22 or FAW Wuxi Diesel CA6DF1D-12GAG2 engine, featuring strong power, reliable performance, and high efficiency and energy-saving. It’s equipped with Shantui’s single-stage single-phase three-element torque converter and fixed shaft power shift transmission for power transmission, featuring good power matching,stable motion, and more powerful operations. The split structures ease the repairs and maintenances. The speed choice of four forward gears and two reverse gears is suitable for diversified severe industrial and mining conditions and realizes faster movement.
Products Specifications
SL60W Technical specifications: | Overall width: 3082 mm | |||||
Overall length: 8351 mm | ||||||
Overall height: 3480 mm | ||||||
GENERAL SPECIFICATIONS | Operating weight | 19500 kg | ||||
Related loading | 6000 kg | |||||
Bucket capacity | 3.5 m3 | |||||
Maximum lifting force | 185 kN | |||||
Static tipping load (full turn) | 12000 kg | |||||
Dumping height | 3238 mm | |||||
Dumping reach | 1218 mm | |||||
ENGINE | Engine model | WEICHAI WD10G240E21 | ||||
Type | In-line, water-cooled, 6-cylinder, direct injection, turbocharged | |||||
Rated power | 175 kW | |||||
Rated speed | 2200 rpm | |||||
Displacement | 9.726 L | |||||
Maximm torque | 920 N·m | |||||
Minimum fuel consumption | 225 g/kW·h | |||||
AXLES AND DRIVES FINAL | DRIVE SYSTEM | Four-wheel drive | ||||
Gradeability | 30° | |||||
Maximum traction | 167 kN | |||||
BRAKE SYSTEM: | Service brakes | Air over oil four-wheel dual-loop disc brake system | ||||
Parking brake | Automatically air-cut brake, disc brake | |||||
STEERING SYSTEM: | Type | Articulated type, full-hydraulic power steering | ||||
Maximum steering angle | 35° each direction | |||||
The center of outside tire | - | |||||
The center of outside bucket | 7200 mm | |||||
TIRES | Type | 23.5-25 16PR | ||||
Pattern level | L3 | |||||
Center distance of tires | 2250 mm | |||||
Wheel base | 3250 mm | |||||
HYDRAULIC SYSTEM | Hydraulic cycle time (rated load in bucket) | Lifting time/ Lifting, dumping and lowering | 6.0/12.0 s | |||

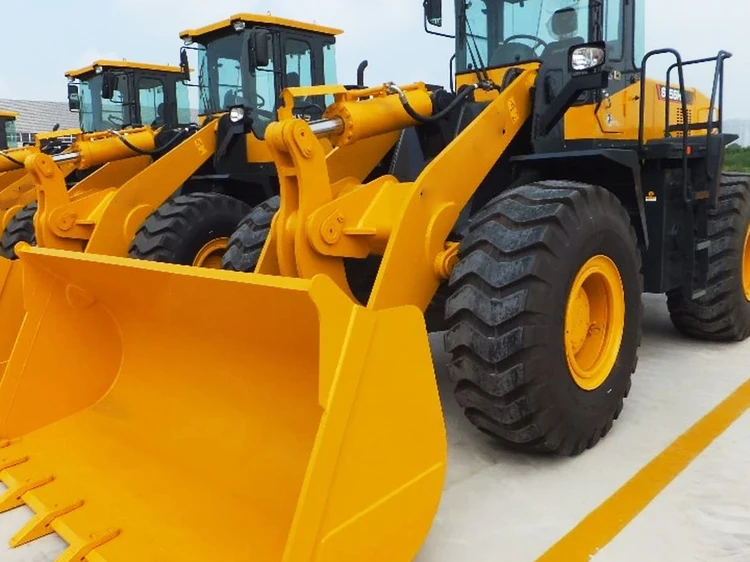

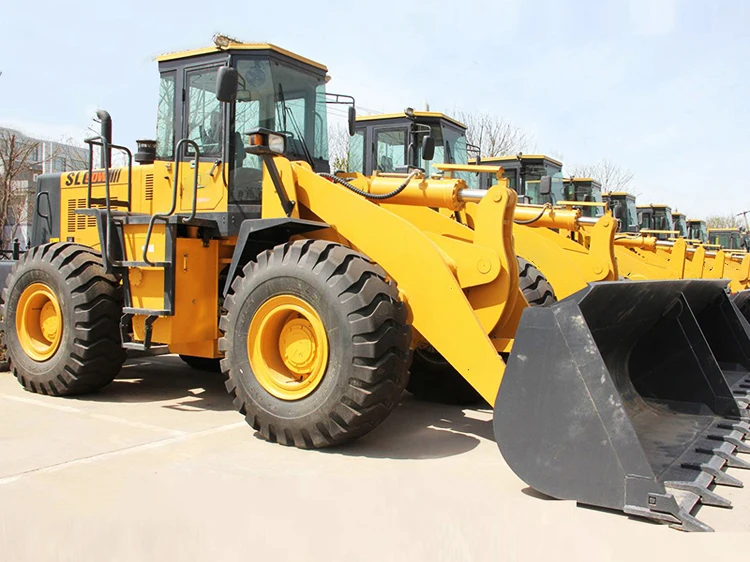

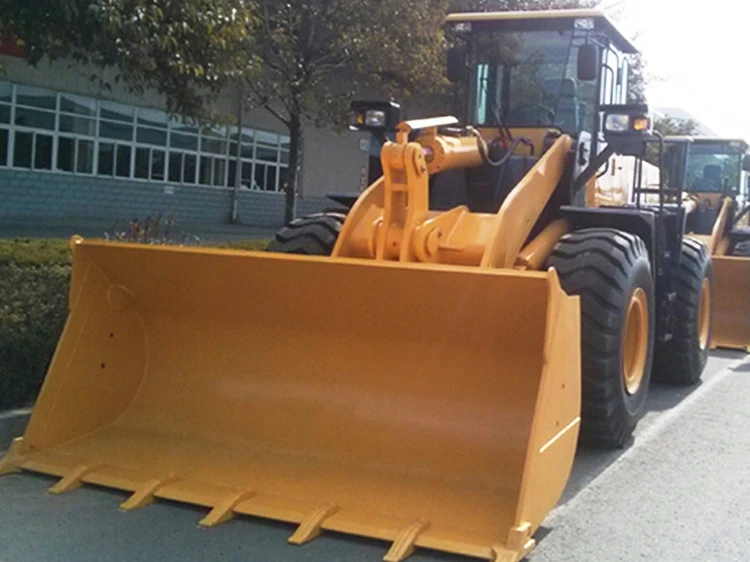

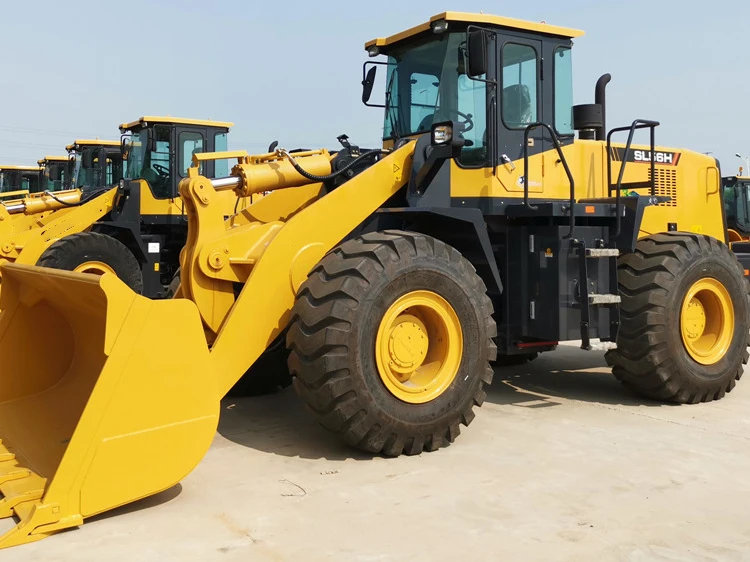

Details Images
