Product Overview

Description

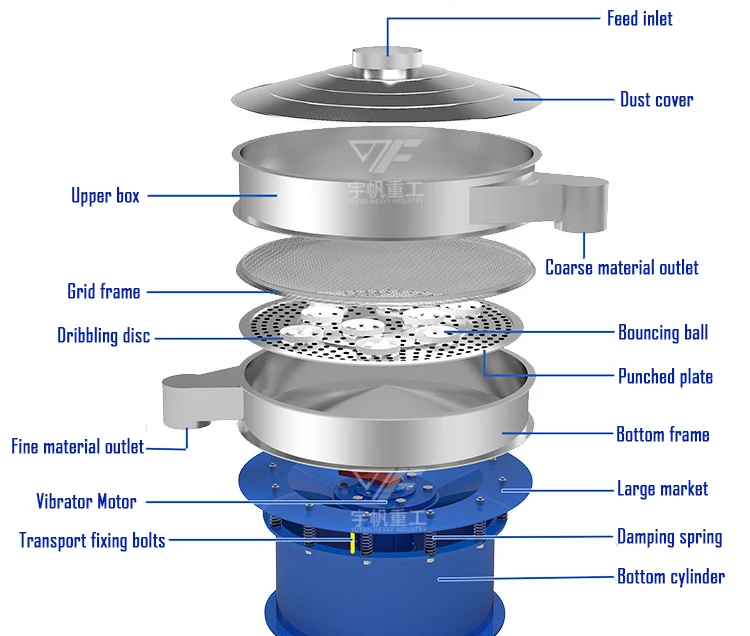

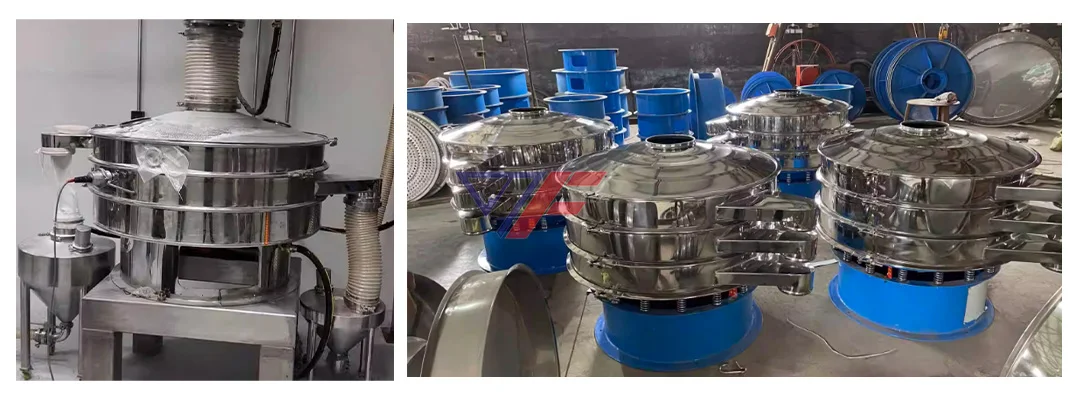

YFS Vibrating Sifter

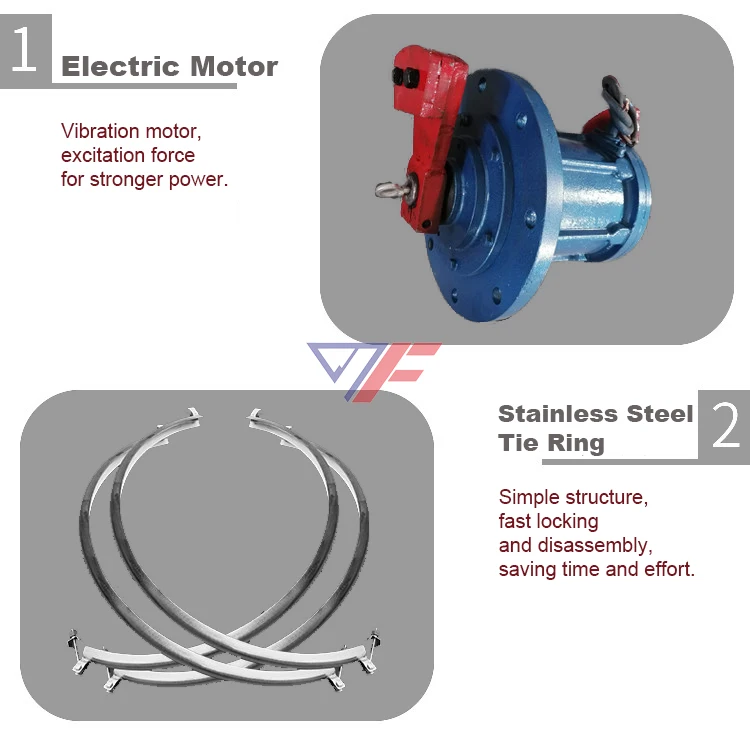

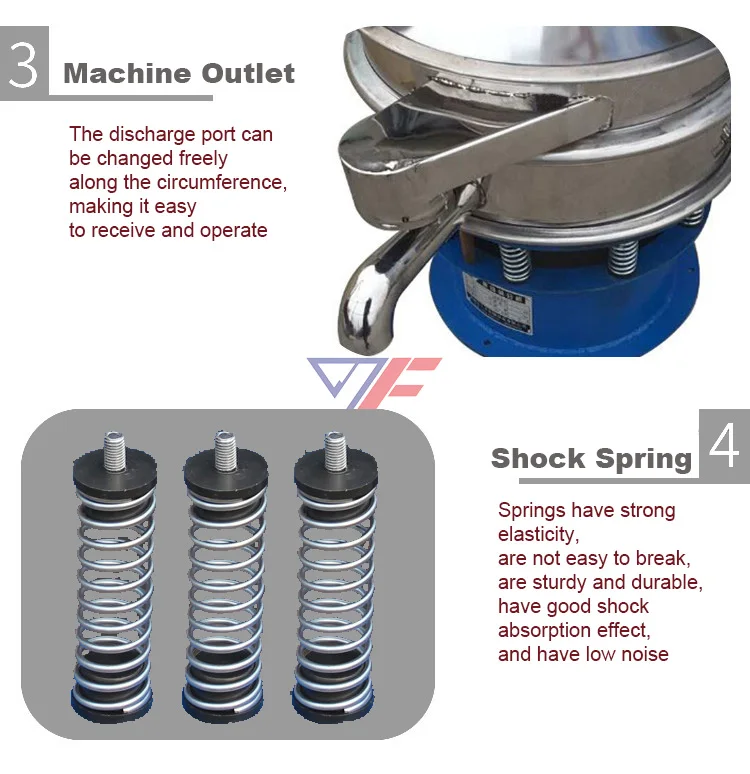

YFS Vibrating Sifter is a kind of mature technology, general and tend to be standardized classic inertia screening equipment. It can meet the requirement of most materials in grading granulated stuffs and screening out powder and liquid in different operation. High screening efficiency, it adopts whole sealing structure design which can avoid polluting effectively. The direction of the outlet port can be changed within 360 degrees. Convenience of installation and service. It can be equipped with screen cloth cleaning device to avoid clogging effectively. The vertical and horizontal movement of the machine, speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.






Model
Diameter
(mm)
Layer
Effective Diameter
Net Specification
Maximum feed size
(mm)
Power
(kw)
YFS4
400
1-4
Φ380
3-500 mesh
<20
0.25
YFS6
600
1-4
Φ600



<20
0.6
YFS8
800
1-4
Φ750



<30
0.6
YFS10
1000
1-5
Φ900



<30
0.8
YFS12
1200
1-5
Φ1100



<30
1.5
YFS15
1500
1-4
Φ1450



<50


2.2






















Application
Food industry: sugar powder, monosodium, starch, milk powder, egg powder, rice powder, bread crumbs, soy milk, sauce, juice, food additive.
Chemical industry: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, industrial medicine, cosmetic, coatings, chinese medicine powder.
Metal, metallurgy industry: copper powder, nickel powder, aluminum powder, ceruse, ore alloy powder, welding powder, battery material, abrasive powder, ire-proof material, alumina.
Other industry: paper-making industry, ceramic industry, mining industry, pharmaceuticals industry etc.














Product packaging




FAQ

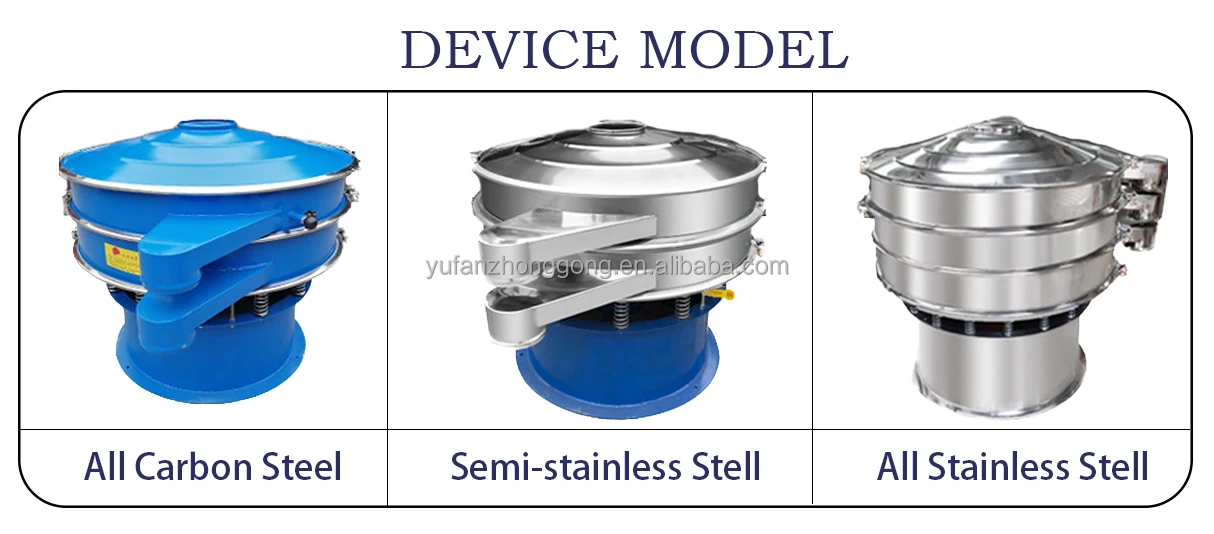

Q: How many kinds of material are supported?
A. All stainless steel (201, 304, 316L)
B. All carbon steel Q235A
C. Contact part Stainless steel.

Q: How to select a suitable vibrating screen?
A. what’s the material and its density?
B. what’s the mesh size? And which size of powder do you need?
C. What’s the percentage of every size in your material?
D. What’s your excepted capacity?

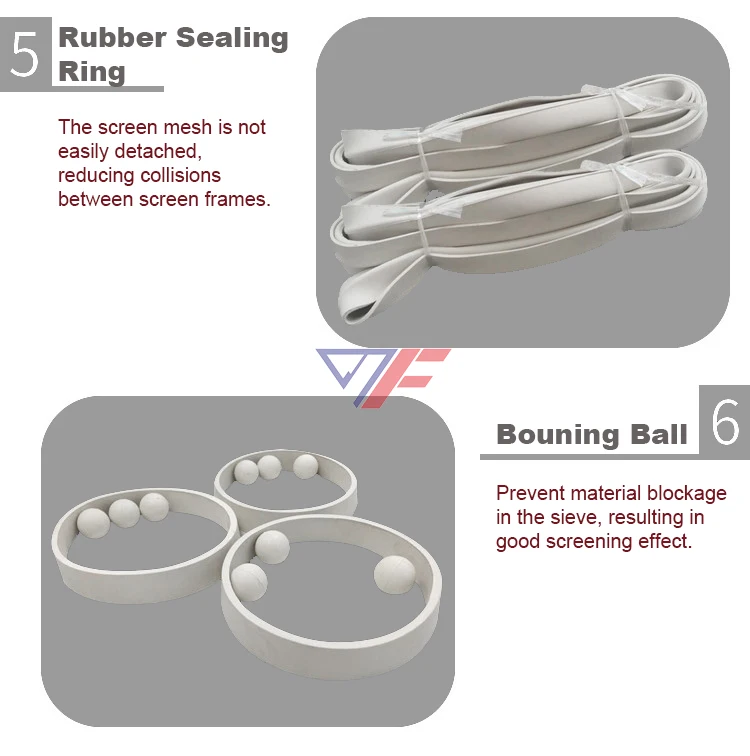

Q: Any self-cleaning devices on the sieving machine?

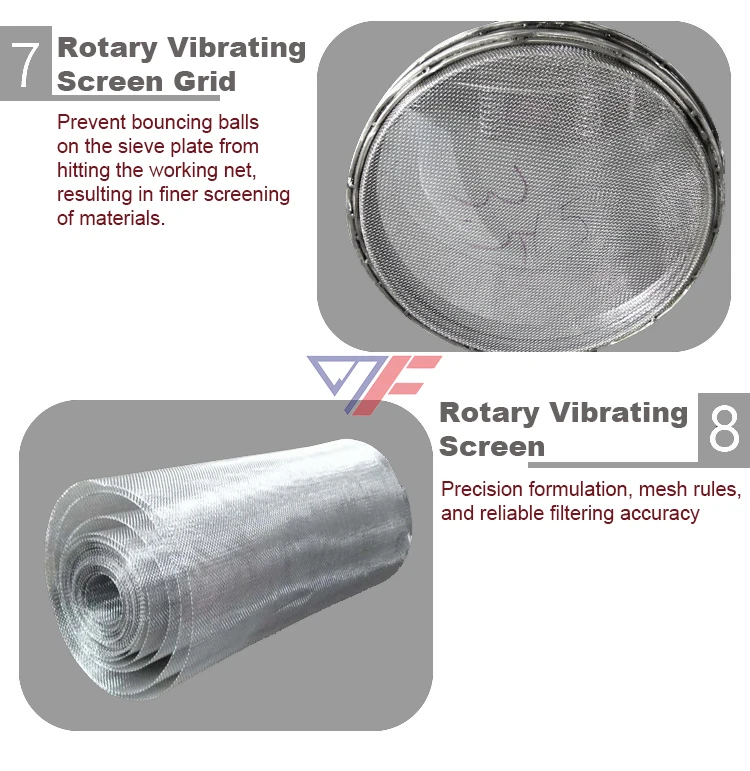

Yeah, Bouncing ball, Ultrasonic system and other self-cleaning devices could be installed.




Henan Unitfine Machinery Co., Ltd

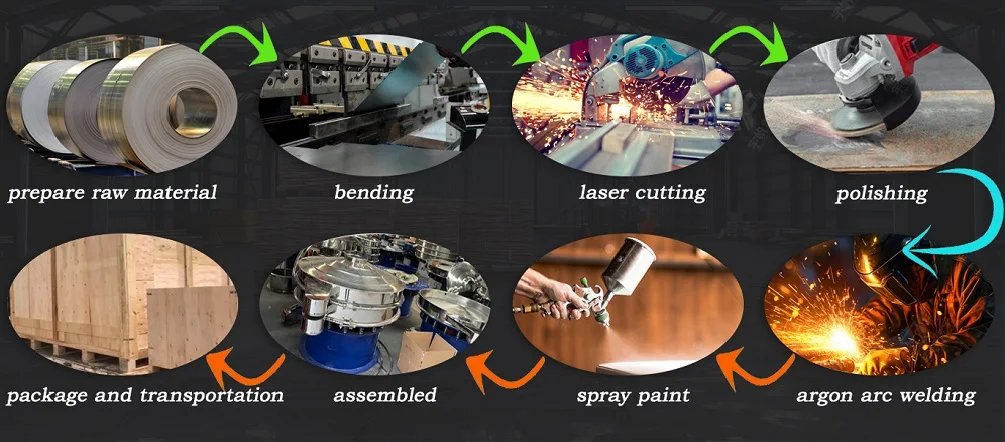

Henan Unitfine Machinery Co., Ltd specializes in the production and manufacturing of screening and conveying equipment. Based in
Xinxiang, the heart of vibration technology in Henan province, we boast over 20 years of expertise in the screening and conveying
field.
We firmly believe that our dedication to delivering top-notch services will make us your ideal partner. Encountering screening challenges? Count on Henan Unitfine.
