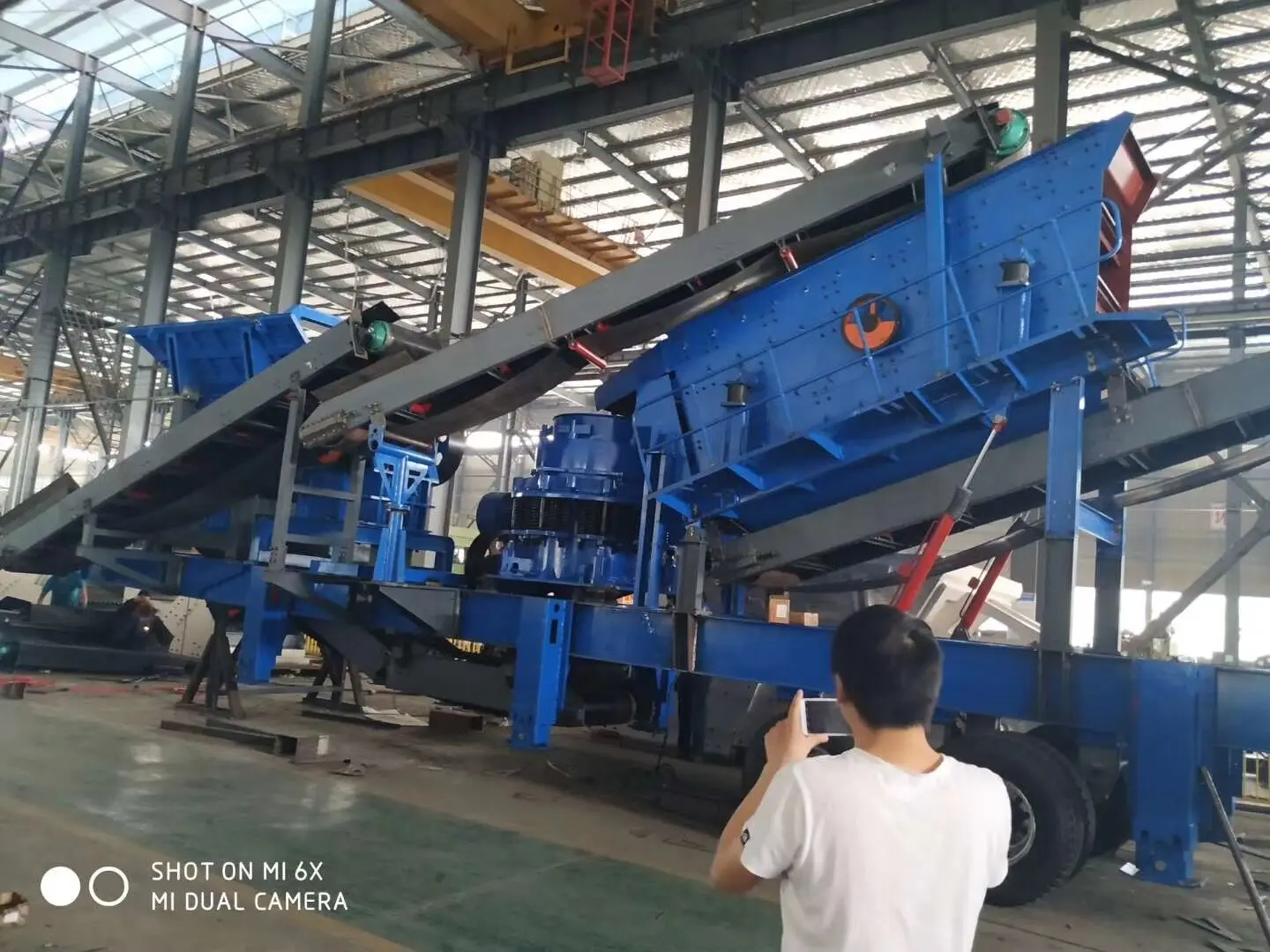

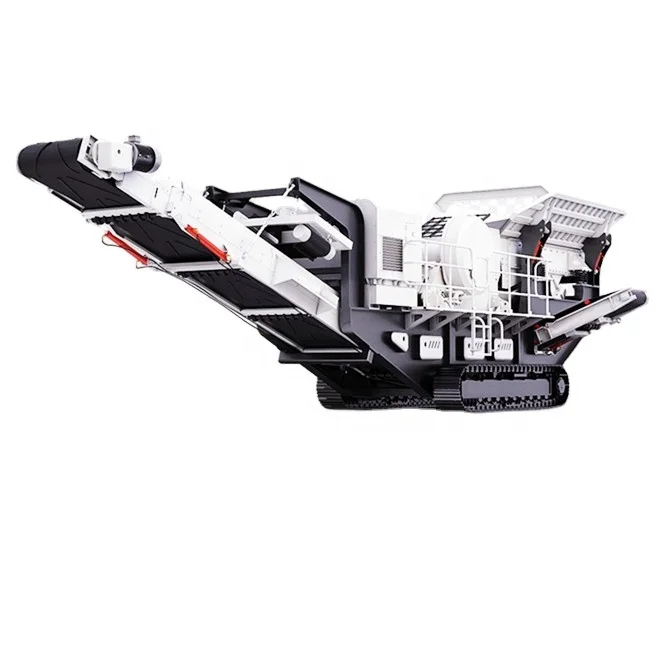

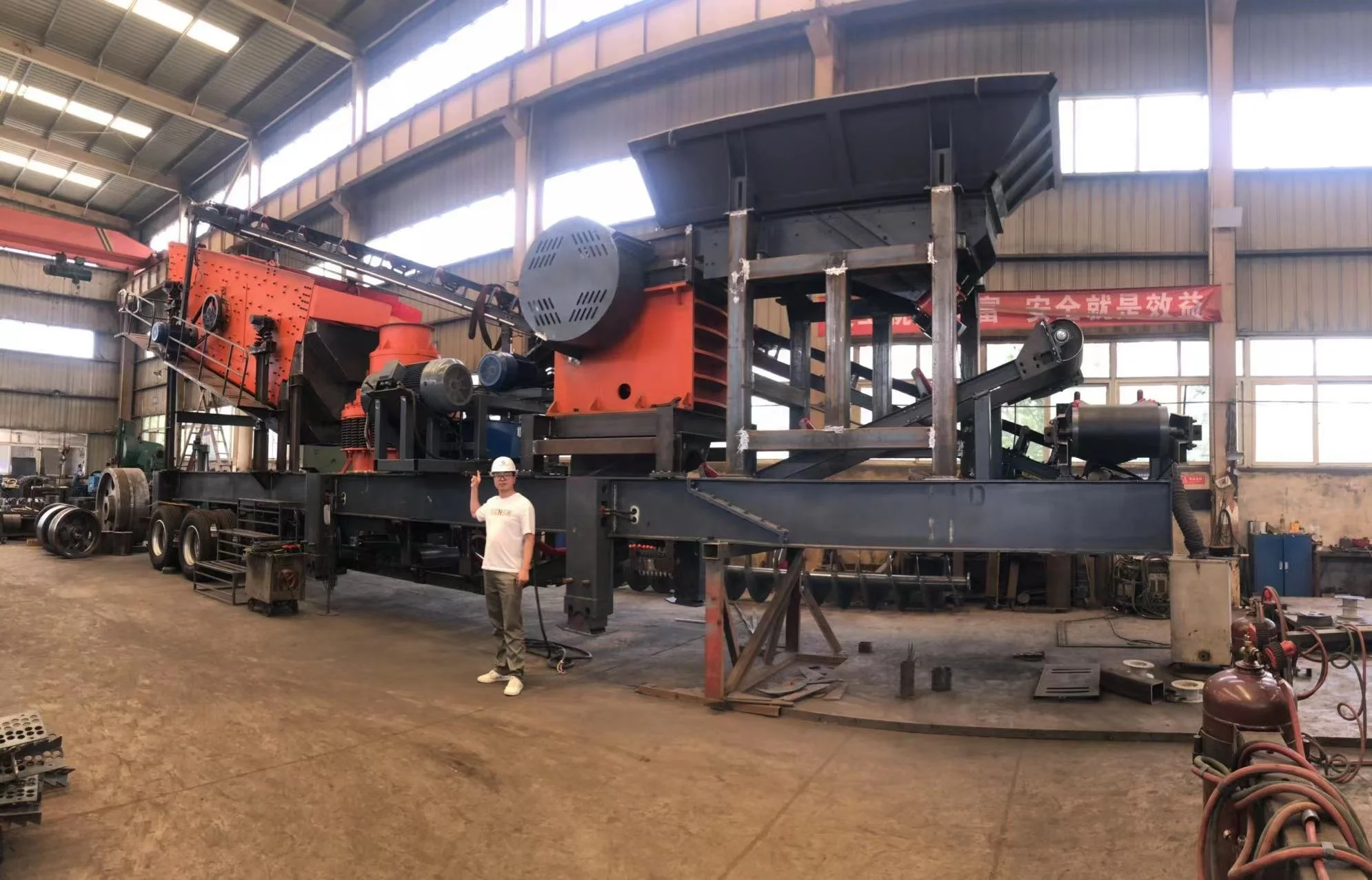

mobile 50 60 tph stone crusher plant with jaw crusher fine crusher
- Category: >>>
- Supplier: Zhengzhou Unique Industrial Equipment Co. Ltd.
Share on (1601045186322):
Product Overview
Description
Product Overview

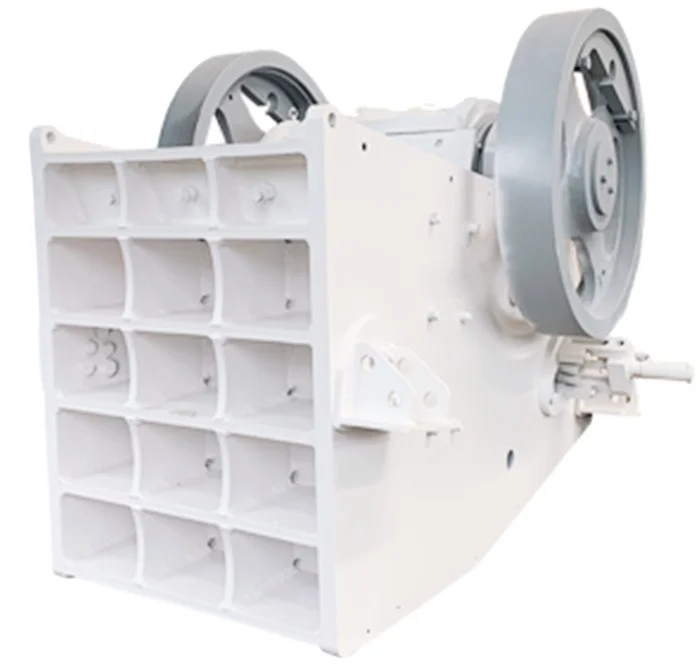

medium jaw crusher 1.5kw jaw crusher for limestone
Jaw crusher are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece.Jaw crusher movement is obtained by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
Advantage of Jaw crusher:
1.High crushing ratio,even final product size.
2.Adjusting wedge makes discharging opening have wide adjustable range,reliable and
convenient, thus it ia capable to meet various requirements of customers.
3.Lubrication system is safe and reliable,easily to replace the spare parts and low maintenance workload.
4.Simple structure,reliable perfomance,low mintenance and low operation cost.
5.Little dust and low noise.

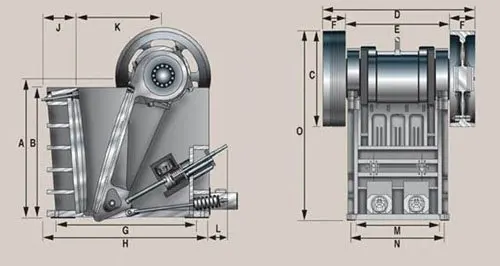

Product Structure
PRODUCT SPECIFICATIONS
Model | Feeding opening size(mm) | Max feeding size (mm) | Discharging opening size (mm) | Capacity (t/h) | Motor power(kw) | Weight (t) |
PE250*400 | 250*400 | 210 | 20-60 | 5-20 | 15 | 2.8 |
PE400*600 | 400*600 | 340 | 40-100 | 16-60 | 30 | 6.65 |
PE500*750 | 500*750 | 425 | 50-100 | 40-110 | 55 | 11.73 |
PE600*900 | 600*900 | 500 | 65-180 | 80-180 | 55-75 | 16.13 |
PE750*1060 | 750*1060 | 630 | 80-180 | 110-320 | 90-110 | 30 |
PE870*1060 | 870*1060 | 750 | 170-270 | 180-360 | 90-110 | 31.22 |
PE900*1200 | 900*1200 | 780 | 95-225 | 220-450 | 110-132 | 49 |
PE1000*1200 | 1000*1200 | 850 | 195-280 | 280-550 | 110-132 | 51 |
PE1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 160-220 | 100.9 |
PEX150*750 | 150*750 | 120 | 18-48 | 8-25 | 15 | 3.5 |
PEX250*750 | 250*750 | 210 | 20-50 | 13-35 | 30 | 4.96 |
PEX250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 |
PEX250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 37-45 | 8.8 |
PEX300*1300 | 300*1300 | 250 | 20-90 | 25-95 | 55-75 | 12.6 |
PRODUCT CONFIGURATION
Motor
Liner Board
Toggle plate

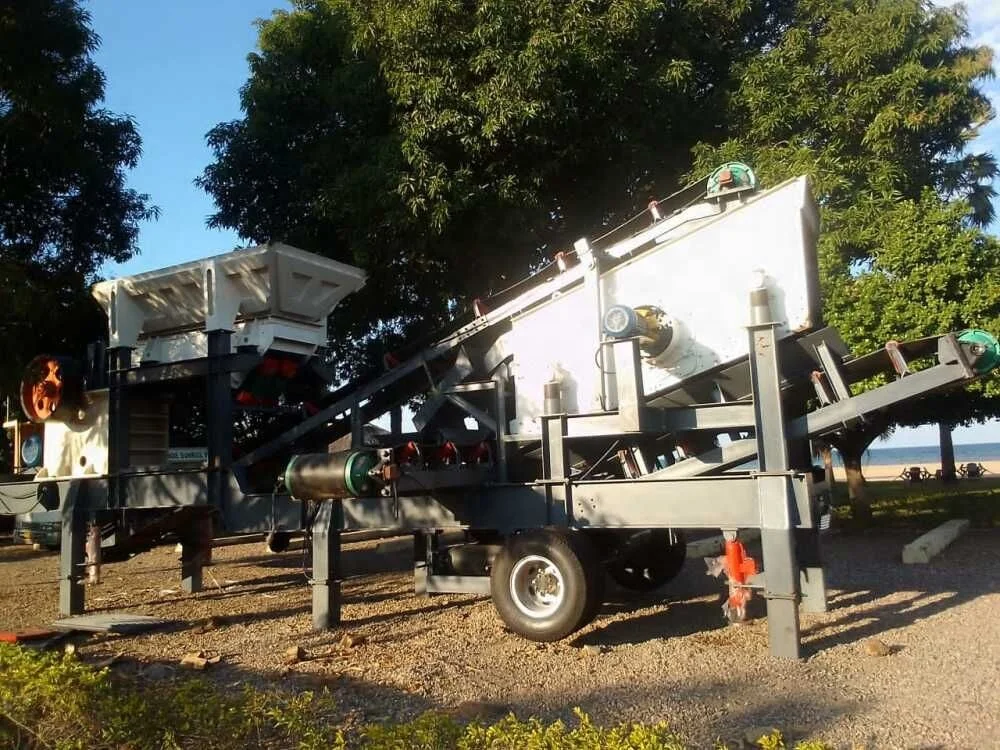

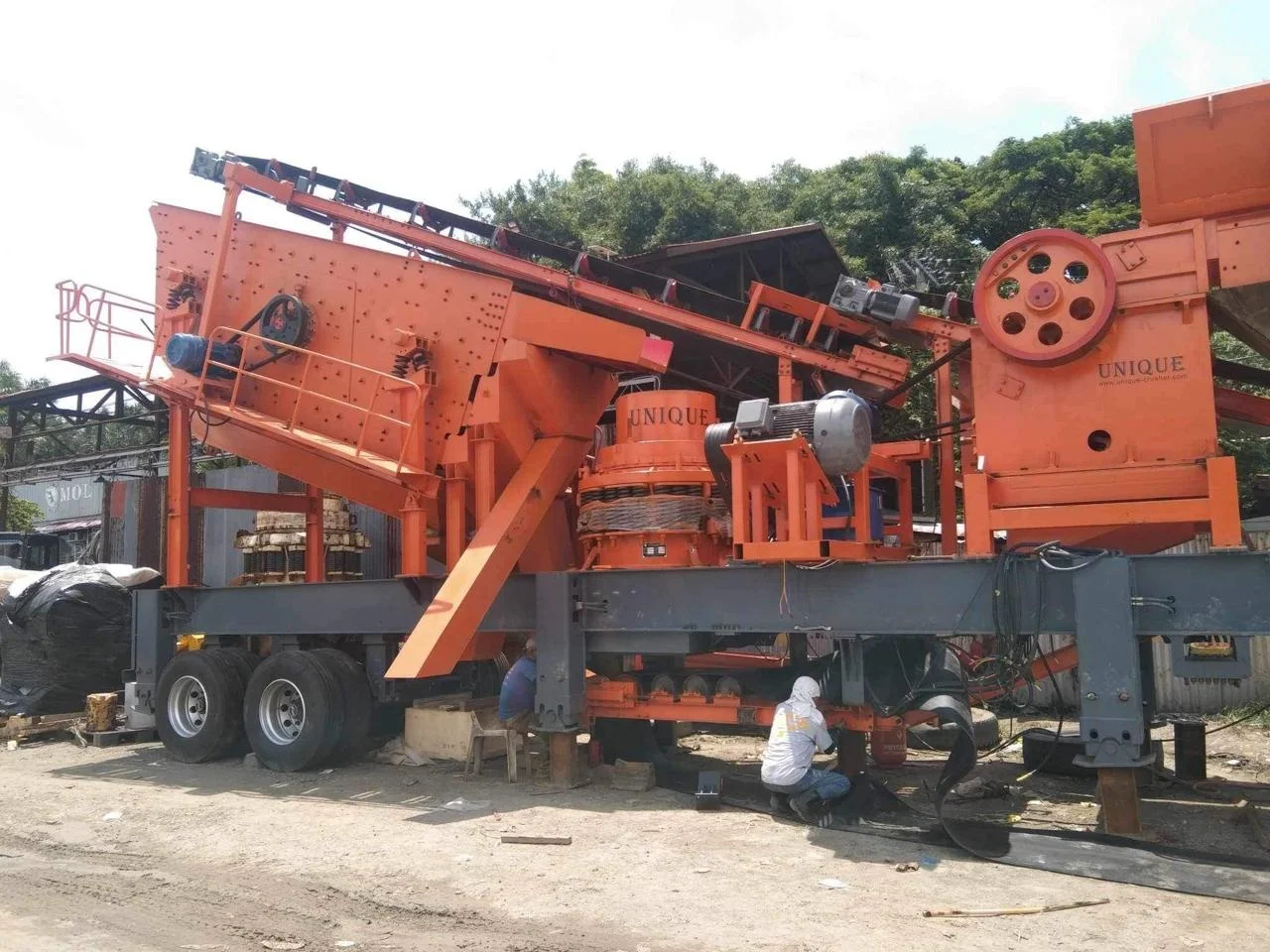

Successful Project
Project in Cameroon
Project in Uganda
Project in India

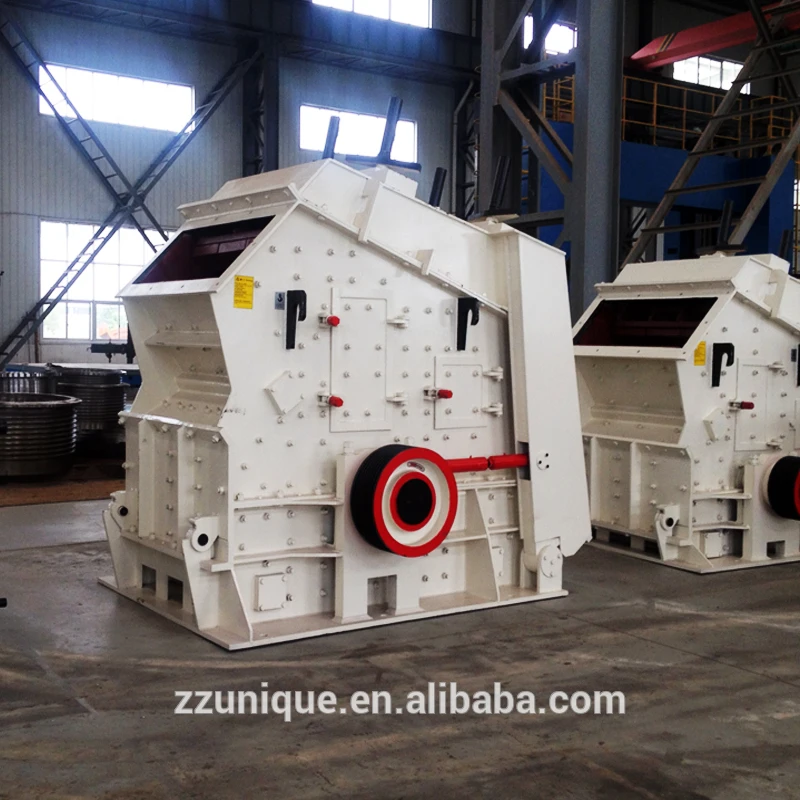

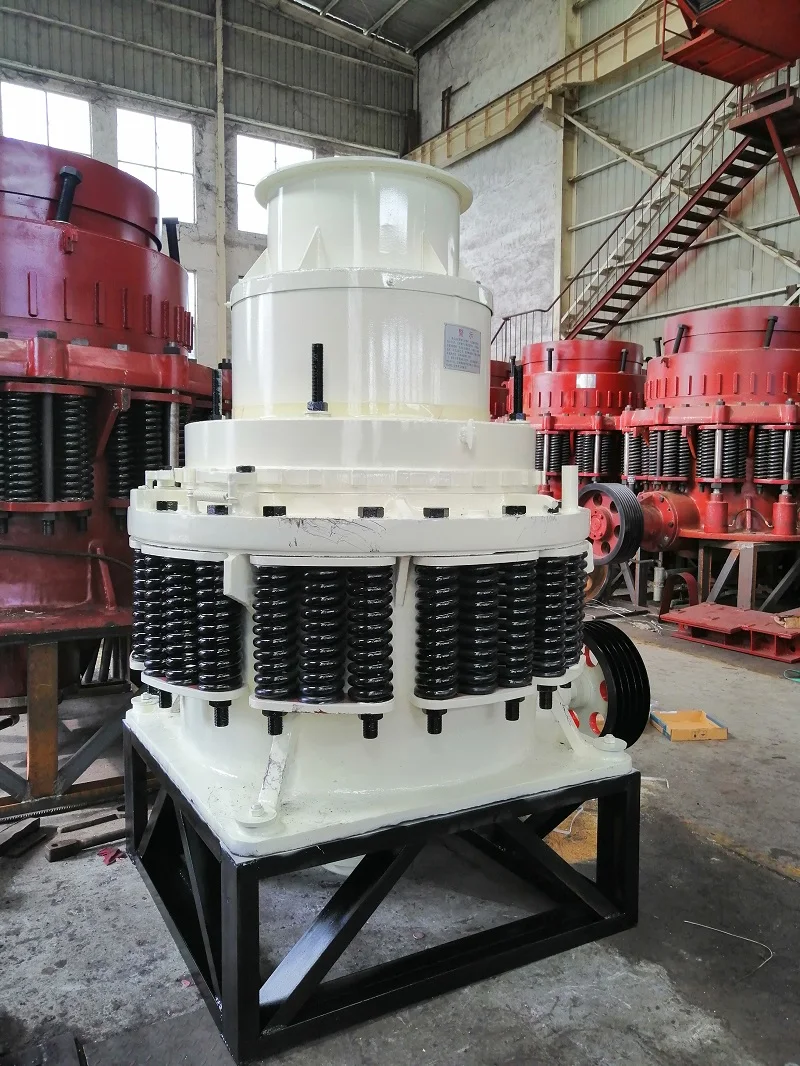

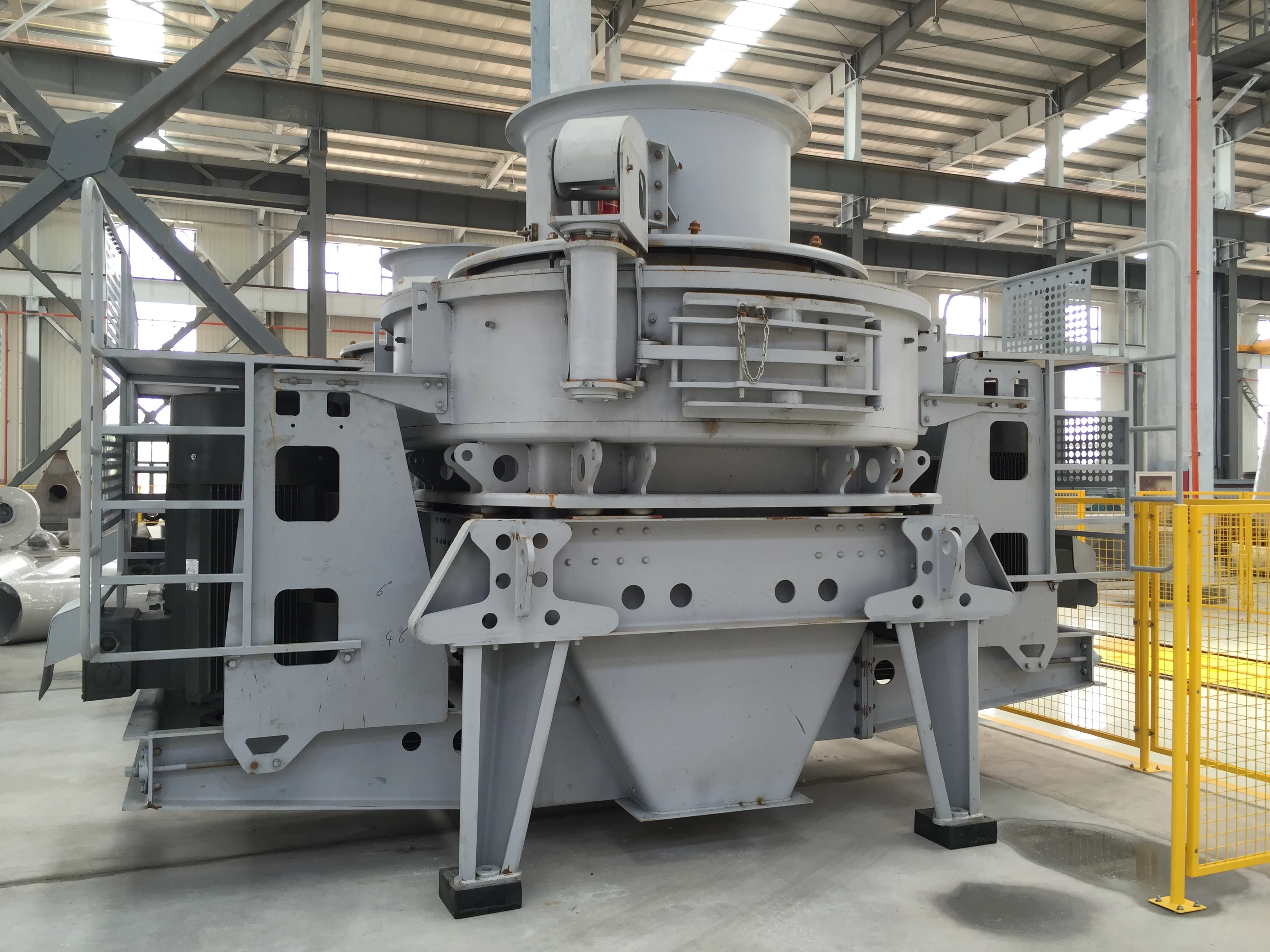

SIMILAR PRODUCTS
Company Profile
Company Information
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Mining Machinery in China.Unique has been dedicated to producing Mining machinery for 30 years. We take pride in manufacturing our mining machinery, and the chance to serve the varied needs of our customers worldwide. Our brand is recognized worldwide for our high quality,reliability, and our customer service.
Customers' Visiting
We currently supply over 60 different countries with our products, include three categories: Stone Crushing & Screening Plants, Portable Crushing Plants, and Complete Crushing Plants. Our primary products are Jaw Crushers, Impact Crushers, Hydraulic Cone Crushers, Spring Cone Crushers, Vibrating Screens, Vibrating Feeders, Portable Crushing Plants and Aggregate Crushing Plants. Our products are available for countless use, meeting all of our customers' special needs.
Packaging and shipping
Packaging and shipping
Packaging Details:
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
