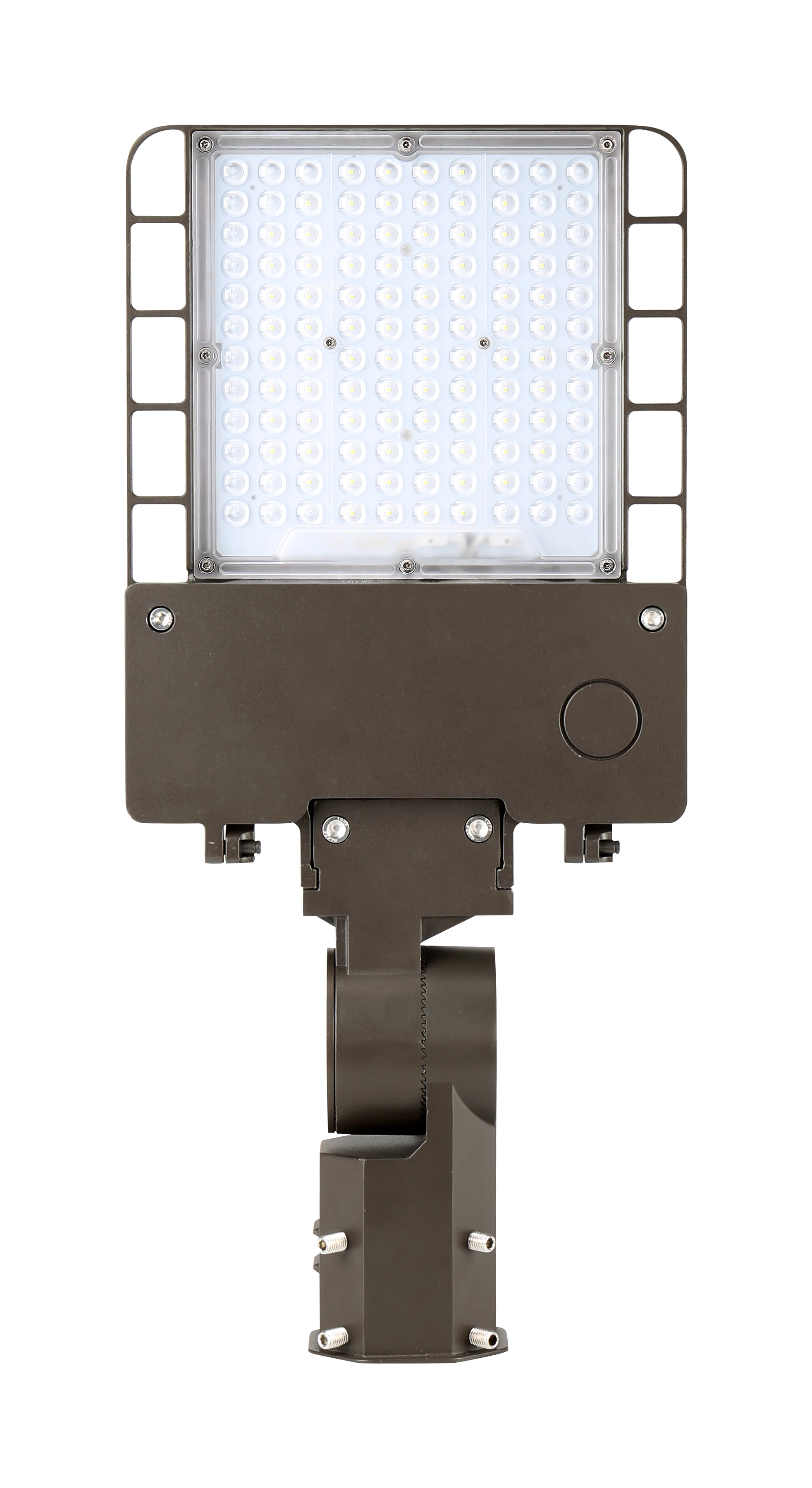

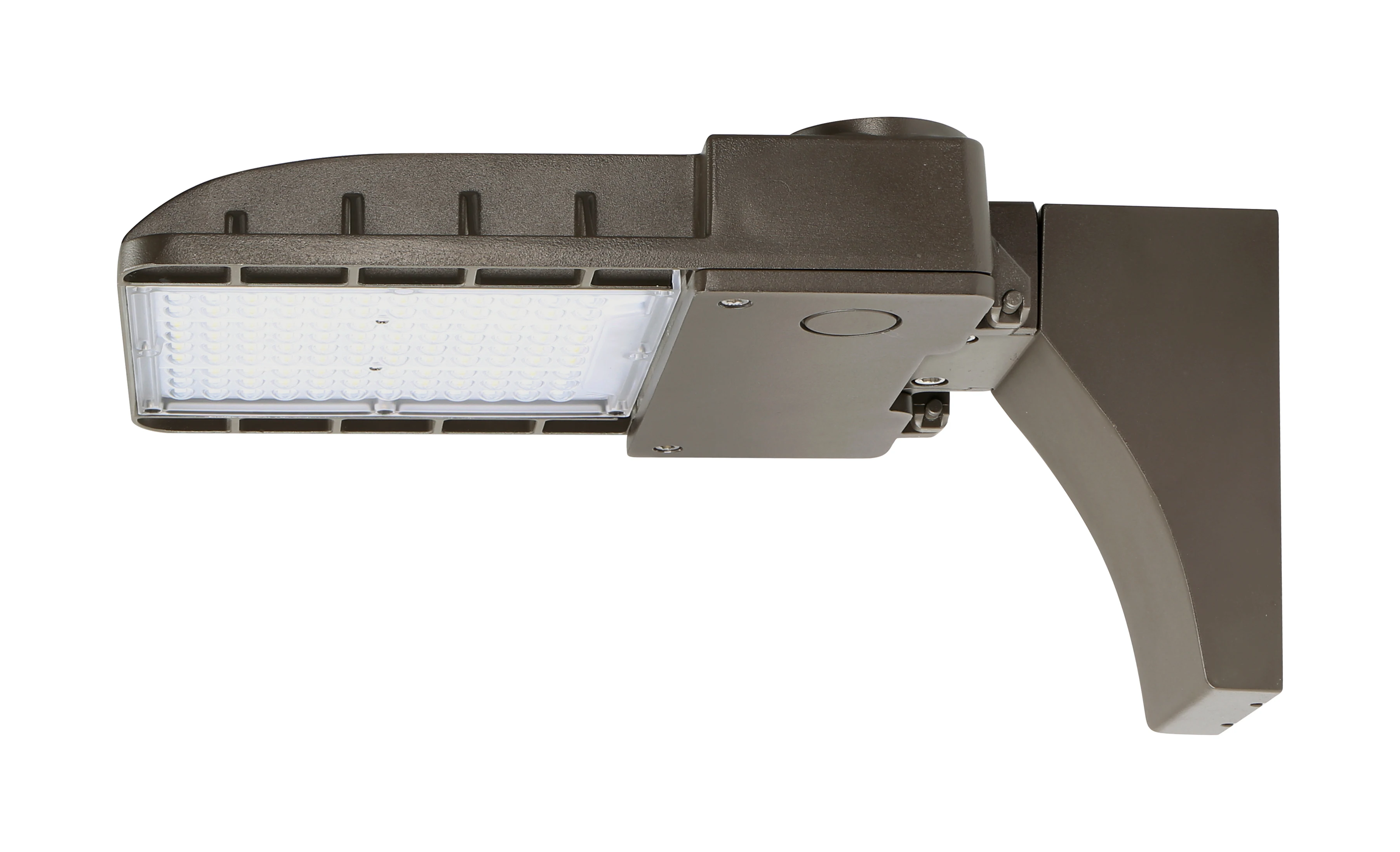

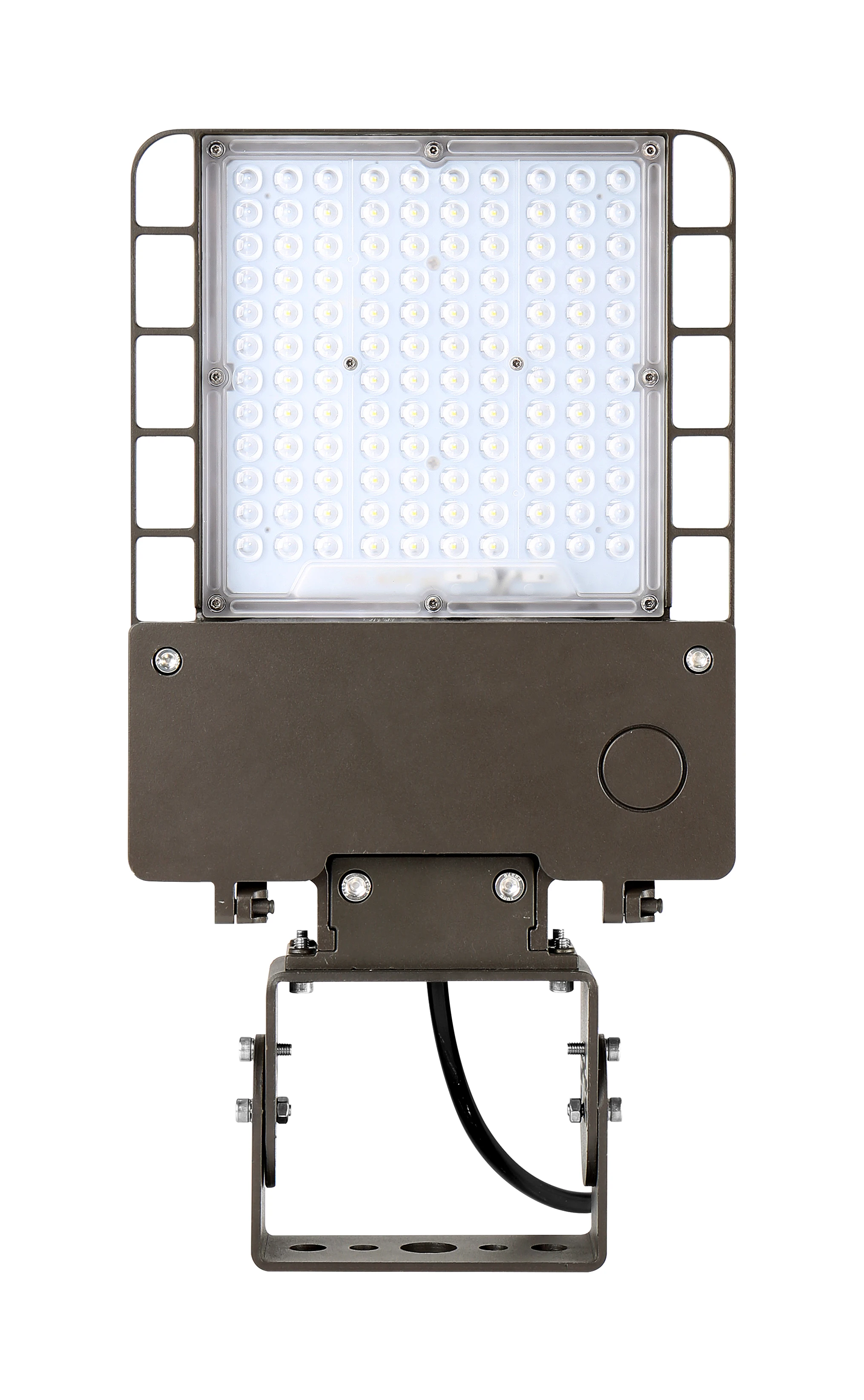

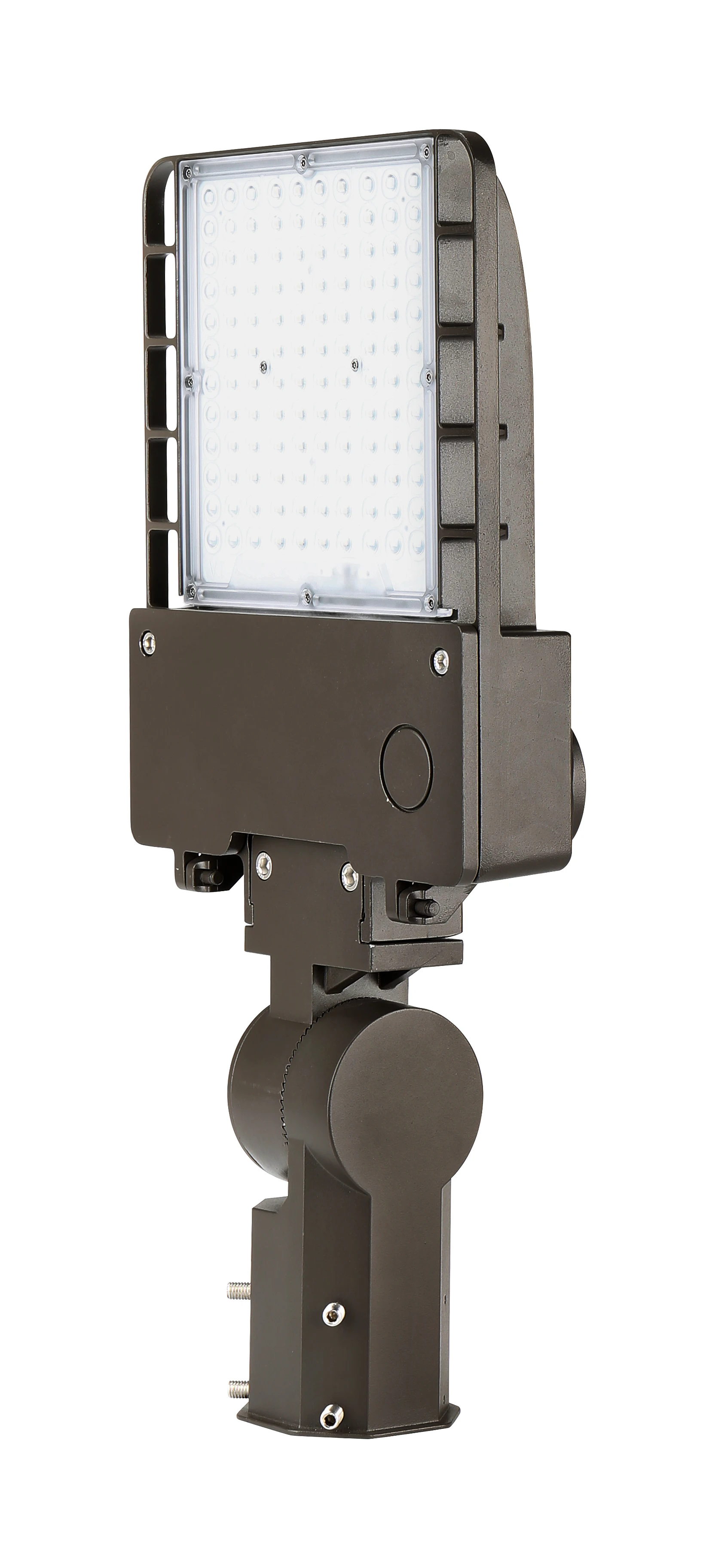

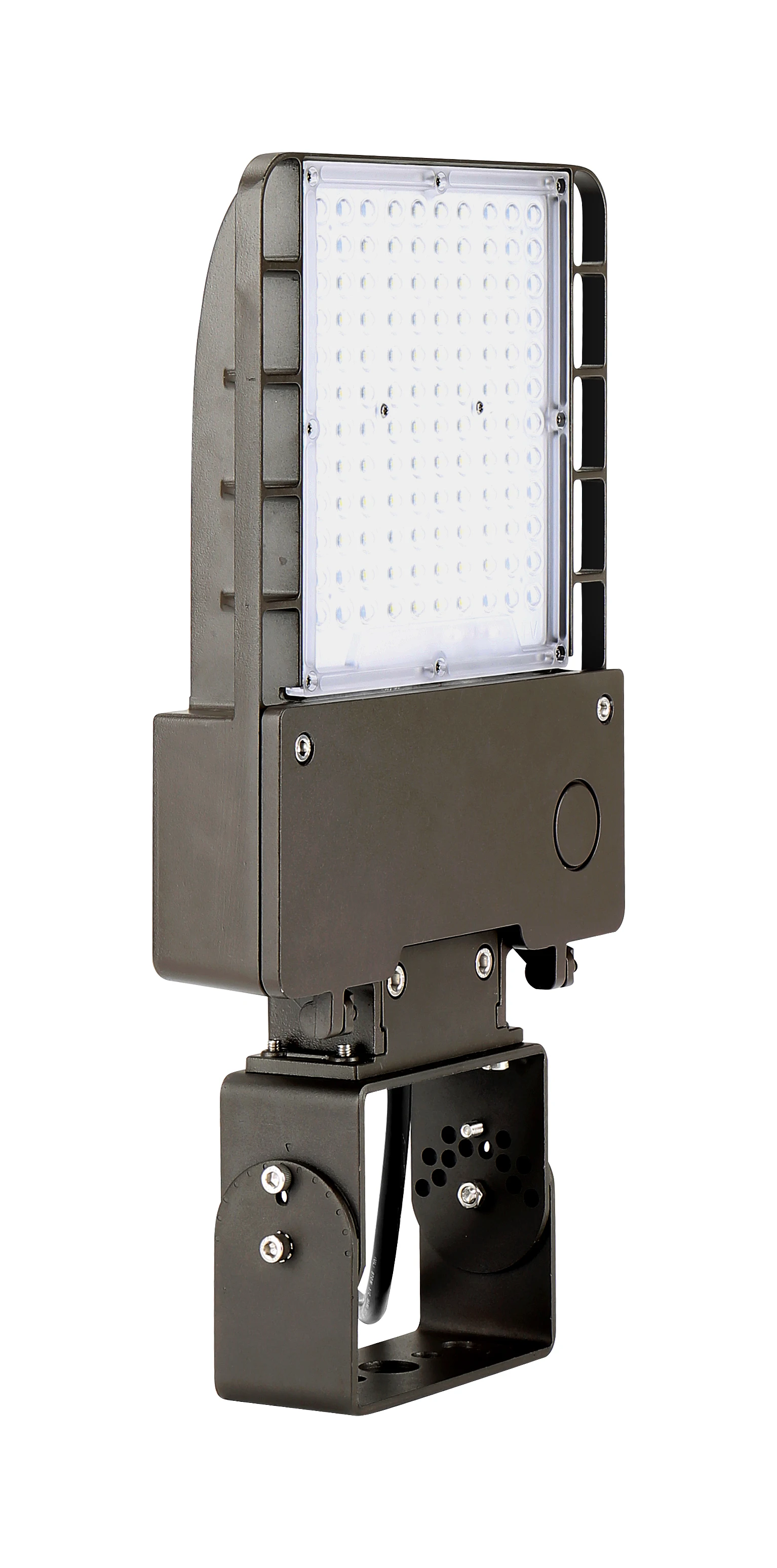

LED area lighting and provides functional, low profile design with excellent operating AREA LIGHT street light
- Category: >>>
- Supplier: Yongkang XXM Industry And Trade Co. Ltd.
Share on (1601045367901):
Product Overview
Description
Products Description
Specifications

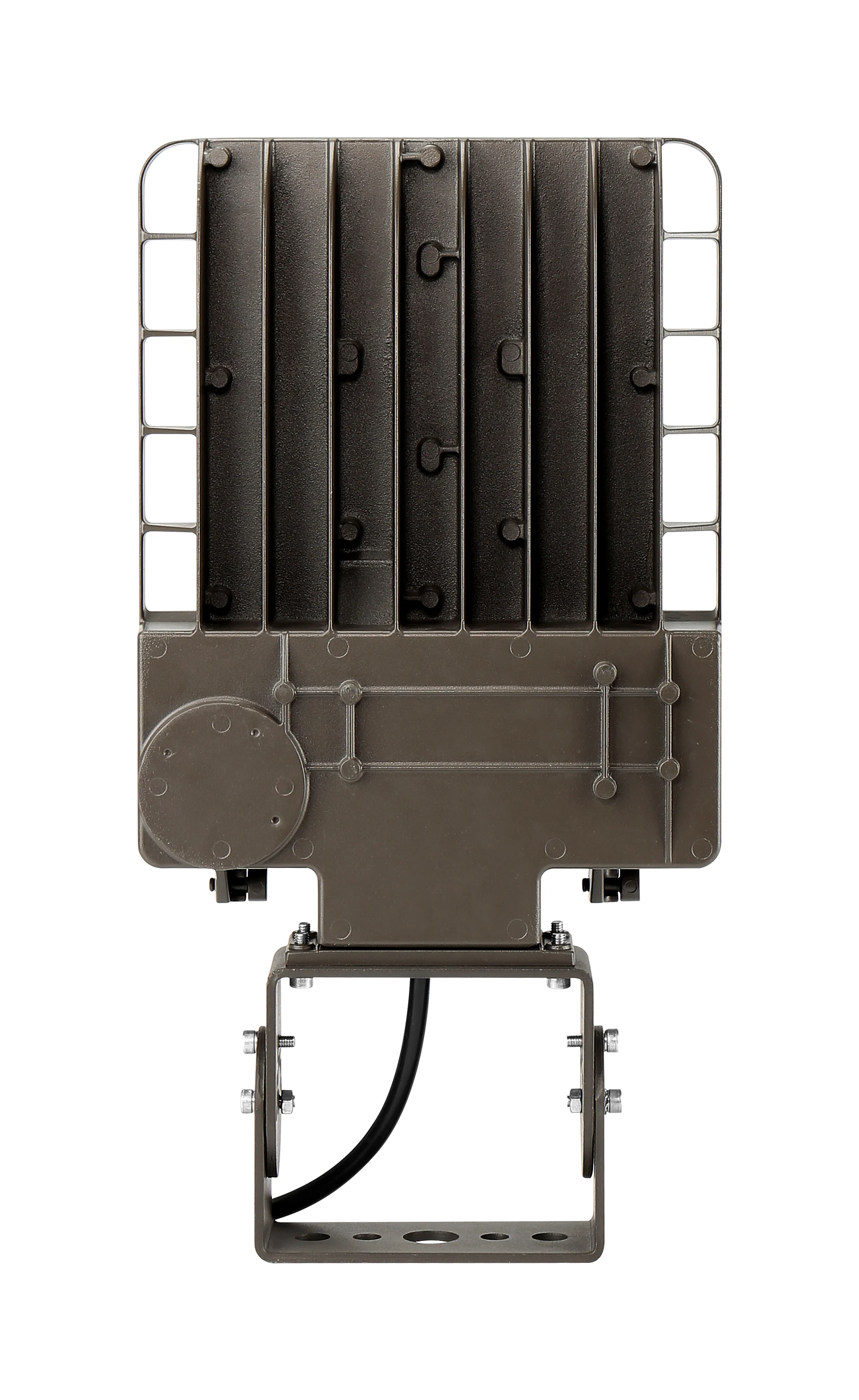

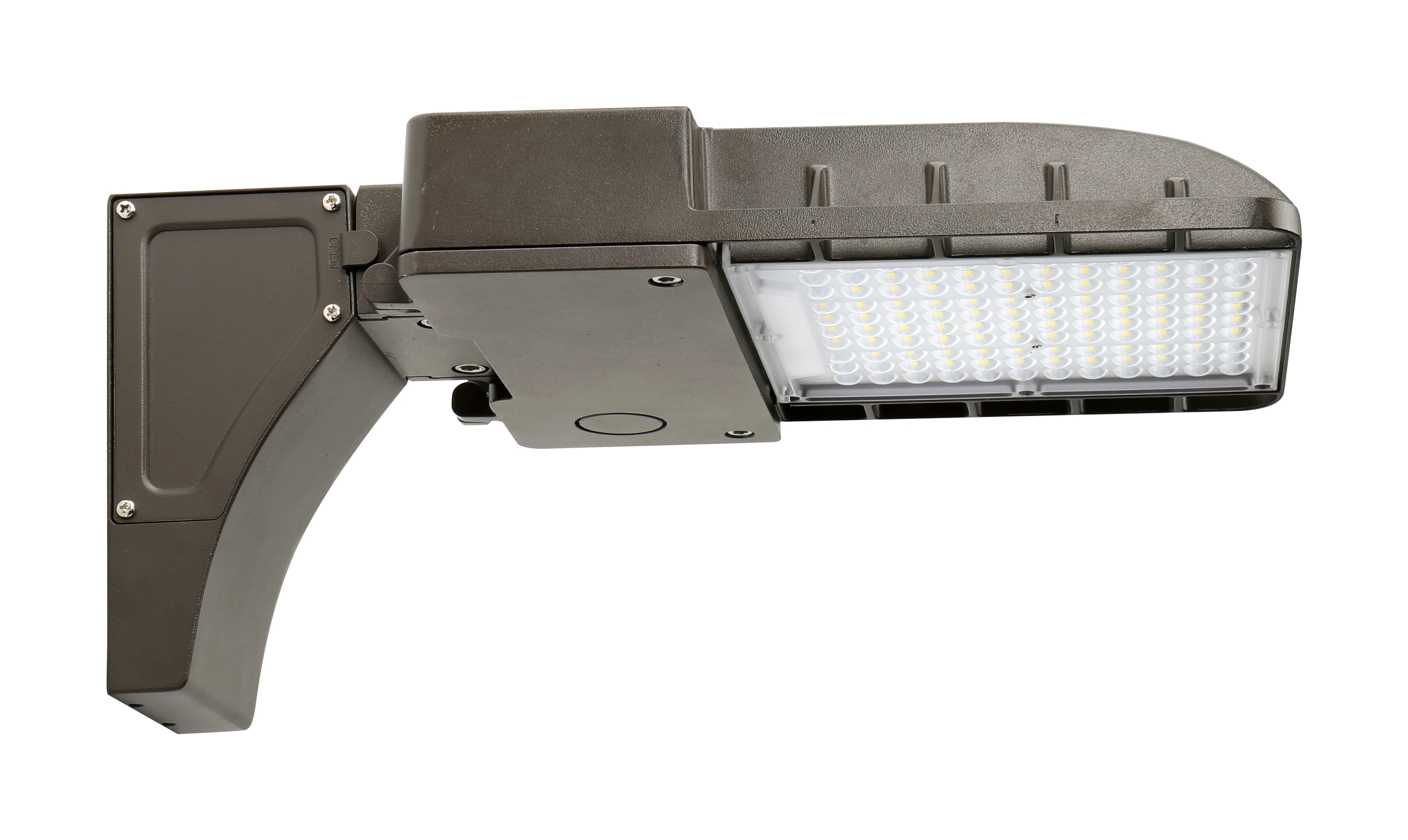

* Rugged one-piece, die-cast aluminum housing secures the thermally conductive
LED panel and electrical chamber
* Low profile, 3G vibration rated compact design minimizes wind load requirements.
* Housing is completely sealed against moisture and environmental contaminants.
LED panel and electrical chamber
* Low profile, 3G vibration rated compact design minimizes wind load requirements.
* Housing is completely sealed against moisture and environmental contaminants.
Optics:
* Available in IES Type III, IV, V distributions
* Light engines are available in standard 4000 K and 5000 K (70 CRI) configurations.

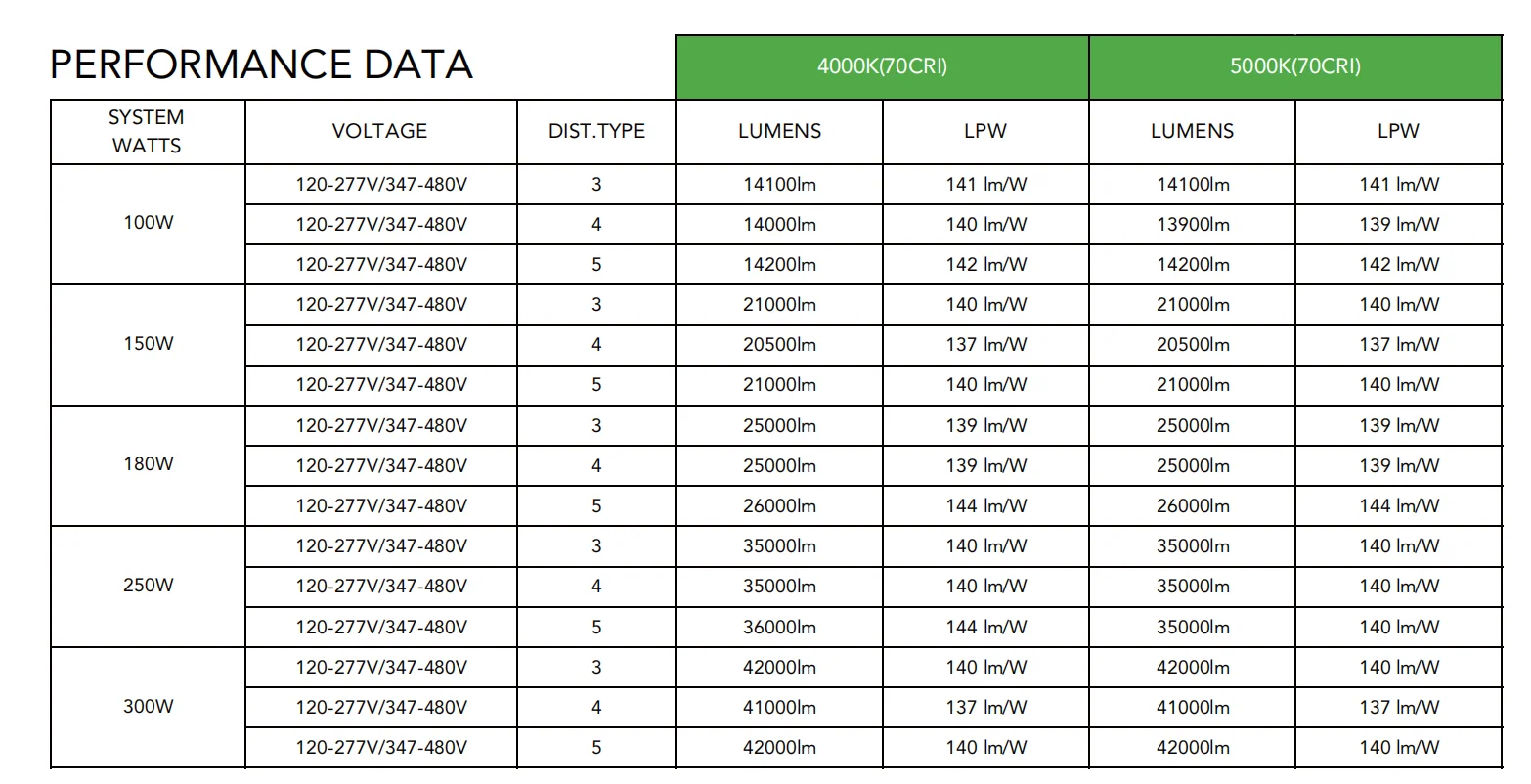

* Scalable Lumen Packages from 13,900 to 42,000 Lumens replaces up to 1000W Metal Halide.
* Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
* The optics can conform to dark sky requirement.
* For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed.
* Light engines are available in standard 4000 K and 5000 K (70 CRI) configurations.
* Scalable Lumen Packages from 13,900 to 42,000 Lumens replaces up to 1000W Metal Halide.
* Optics is precisely designed to shape the distribution, maximizing efficiency and application spacing.
* The optics can conform to dark sky requirement.
* For the ultimate level of spill light control, an optional house-side shield accessory can be field or factory installed.
Electrical:
Universal 120-277 VAC or 347-480 VAC input voltage
* Standard with 0-10V dimming driver for 10% to 100% dimming capabilities.
* Wattage selectable (Option): 100%, 80%, 60%, 40%.
* THD: ≤20%
* Power Factor: ≥90%
* Standard with 0-10V dimming driver for 10% to 100% dimming capabilities.
* Wattage selectable (Option): 100%, 80%, 60%, 40%.
* THD: ≤20%
* Power Factor: ≥90%
Lifespan: Estimated 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
