Forklift Electronic Forklift Warehouse Battery Operated 1.5ton 2ton 3 Ton Portable Small Electric Lifter Forklift
- Category: >>>
- Supplier: Shandong Tavol Group Co. Ltd.
Share on (1601045383256):
Product Overview
Description
Product Description
Product features:
1.The engine comes standard with Yanmar diesel engine,strong power.
2.The gearbox is selected from the first domestic brand of diesel hydraulic transmission. All other components are selected from well-known brands in the industry.
3.The frame adopts an integral welded structure with high strength. The frame, gantry, and fork rack are made of high-strength materials and are all self-made by the enterprise, ensuring an ultra long service life.
1.The engine comes standard with Yanmar diesel engine,strong power.
2.The gearbox is selected from the first domestic brand of diesel hydraulic transmission. All other components are selected from well-known brands in the industry.
3.The frame adopts an integral welded structure with high strength. The frame, gantry, and fork rack are made of high-strength materials and are all self-made by the enterprise, ensuring an ultra long service life.
Specification
Model | TA30F | DK30 | |
Power Type | Diesel | ||
Rated Capacity | kg | 3000 | |
Load Center Distance | mm | 500 | |
Drive Type | All-time 2WD/4WD | ||
Standard Lift Height | mm | 3000 | |
Fork Size(L*W*H) | mm | 1220×125×45 | |
Mast inclination angle (F/R) | Deg | 6\\12 | |
Overall Length (without fork) | 3300 | ||
Overall Width | mm | 1760 | |
Mast Height | mm | 1915 | |
Head Guard Height | mm | 2420 | |
Ground Clearance | mm | 320 | |
Minimum Turning Radius | mm | 3800 | |
Wheelbase | mm | 1850 | |
Front wheel tread | mm | 1385 | |
Rear wheel tread | mm | 1380 | |
Self Weight | kg | 5450/5550 | |
Overall Height(2 Stage 3m Mast) | mm | 2420 | |
Max.Travel Speed | Km\\h | 32 | |
Lifting Speed | mm\\s | 430 | |
Lowering Speed | mm\\s | 460 | |
Maximum Gradeability | ％ | 40 | |
Front Tyre | 14-17.5 | ||
Rear Tyre | 10-16.5 | ||
Battery | V\\Ah | 24\\120 | |
Engine Manufacturer | Yanmar | ||
Engine Model | 4TNE98 | ||
Rated Power/RPM | kw | 43KW/2300 | |
Fuel Tank Capacity | L | 100 | |
Gearbox Model | 265 | ||
Transmission Type | Hydraulic | ||

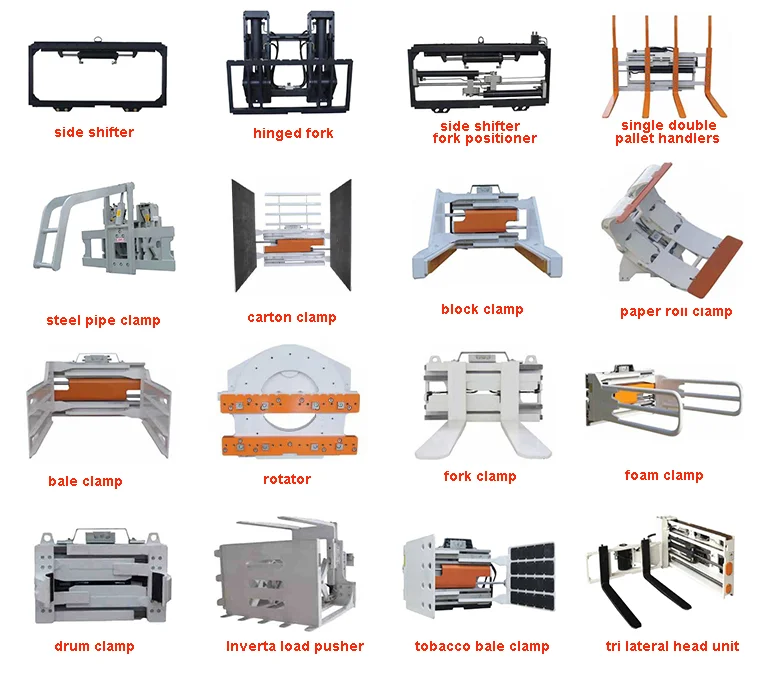

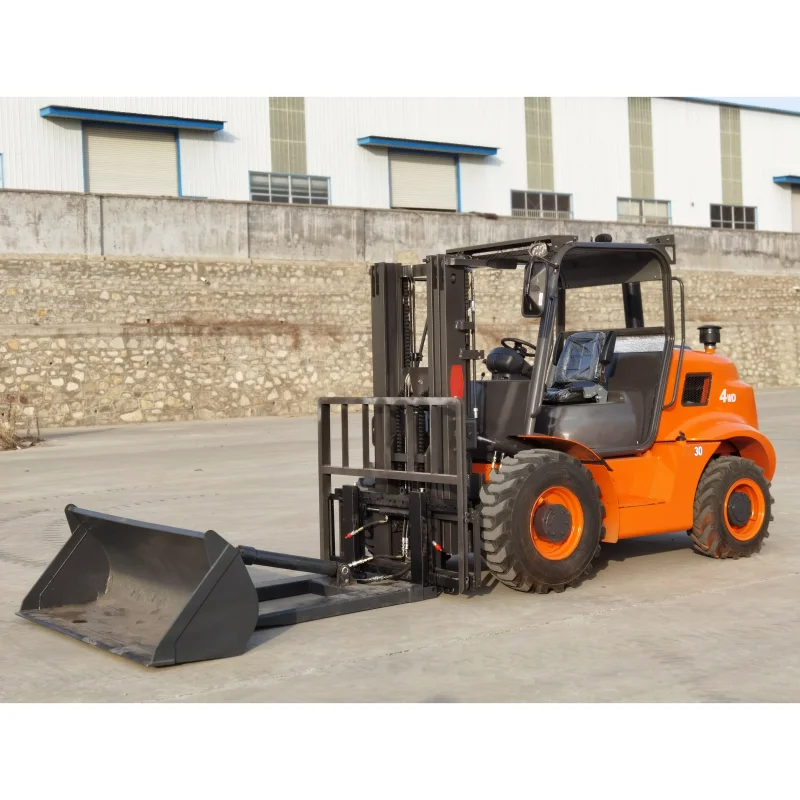

Optional Attachment

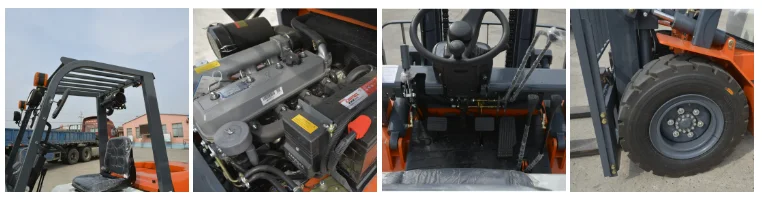

productive process
Company Profile
Tavol has Advanced Production Assembly Line, From Plasma Cutting to Laser Cutting, From Skilled Worker Welding to Robotic Welding, From Various Tooling Equipment to the Application of Special Processing Boring Machines, the Uniformity of Products is Guaranteed, Equipped With Modern Shot Blasting Equipment and Painting Workshop, Each Forklift and Scissor Lifts are Assembled with Craftsmanship. A Cost-effective Brand has Won the Recognition of More and More Client. Which has Serviced in More than 20 Provinces and Cities in China and Exported to Germany, Russia, Brazil, Indonesia, Saudi Arabia, Australia,Singapore, New Zealand,South Africa and more than 40 Countries and Regions.
Customer visit
Trade Show
FAQ
1. who are we?
We are based in Shandong, China, start from 2012,sell to South America(30.00%),Southeast Asia(15.00%),Africa(10.00%),South Asia(9.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(3.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wheel Loader,Backhoe Loader,2 ton Wheel Loaders,5ton wheel loader,3ton wheel loader
4. why should you buy from us not from other suppliers?
We have an Excellent R&D Team,All Designers have a Bachelor degree or Above in Mechanical Majors and More than 10 Years of Working Experience in the Construction machinery industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2012,sell to South America(30.00%),Southeast Asia(15.00%),Africa(10.00%),South Asia(9.00%),Domestic Market(5.00%),Eastern Asia(5.00%),Mid East(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(3.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern Europe(2.00%),Oceania(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wheel Loader,Backhoe Loader,2 ton Wheel Loaders,5ton wheel loader,3ton wheel loader
4. why should you buy from us not from other suppliers?
We have an Excellent R&D Team,All Designers have a Bachelor degree or Above in Mechanical Majors and More than 10 Years of Working Experience in the Construction machinery industry.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
