EKG6A Portable ECG Keyboard: Touch Display Screen, Thermal Printer, Data Transfer, 1000 Record Storage
- Category: >>>
- Supplier: Qingdao Meditech Equipment Co. Ltd.
Share on (1601045390887):
Product Overview
Description

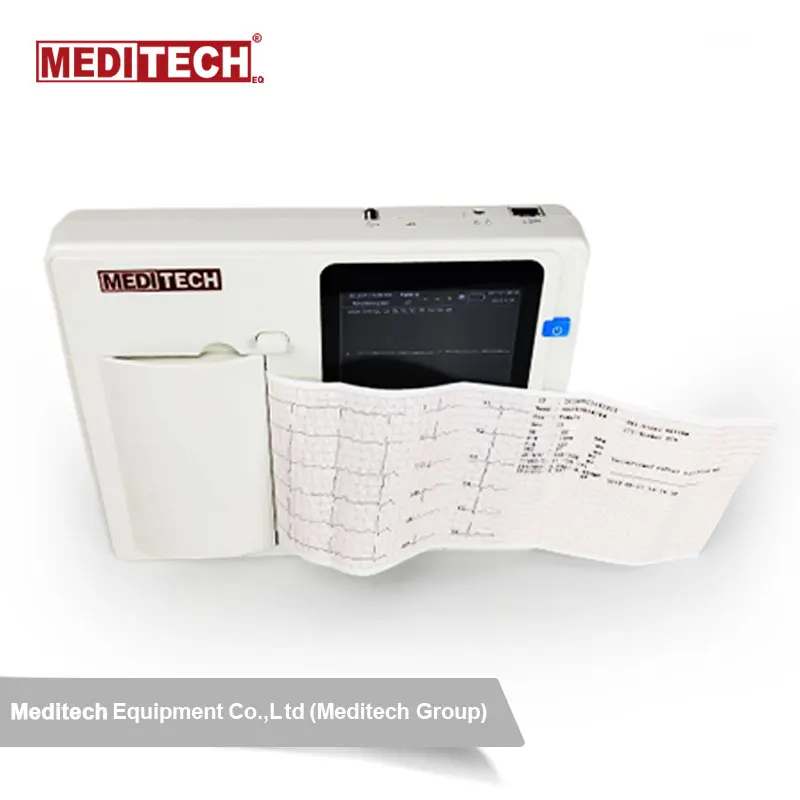

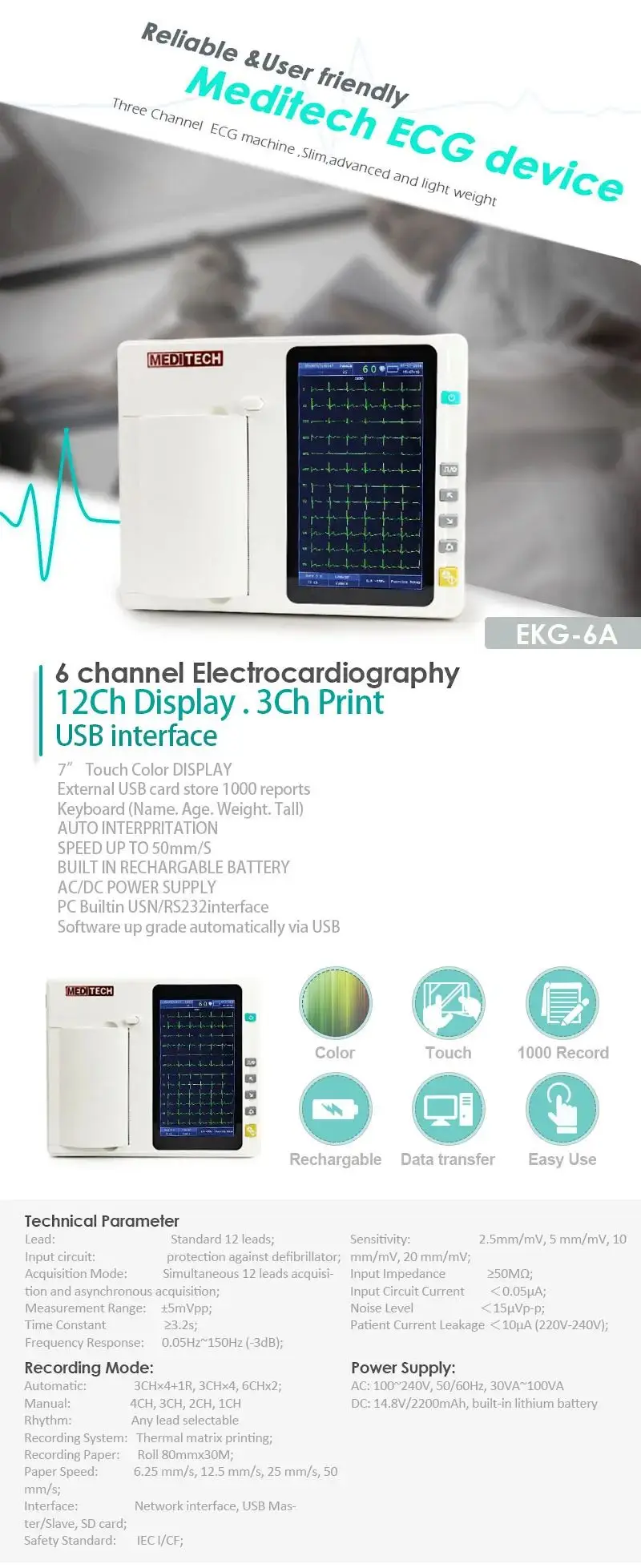

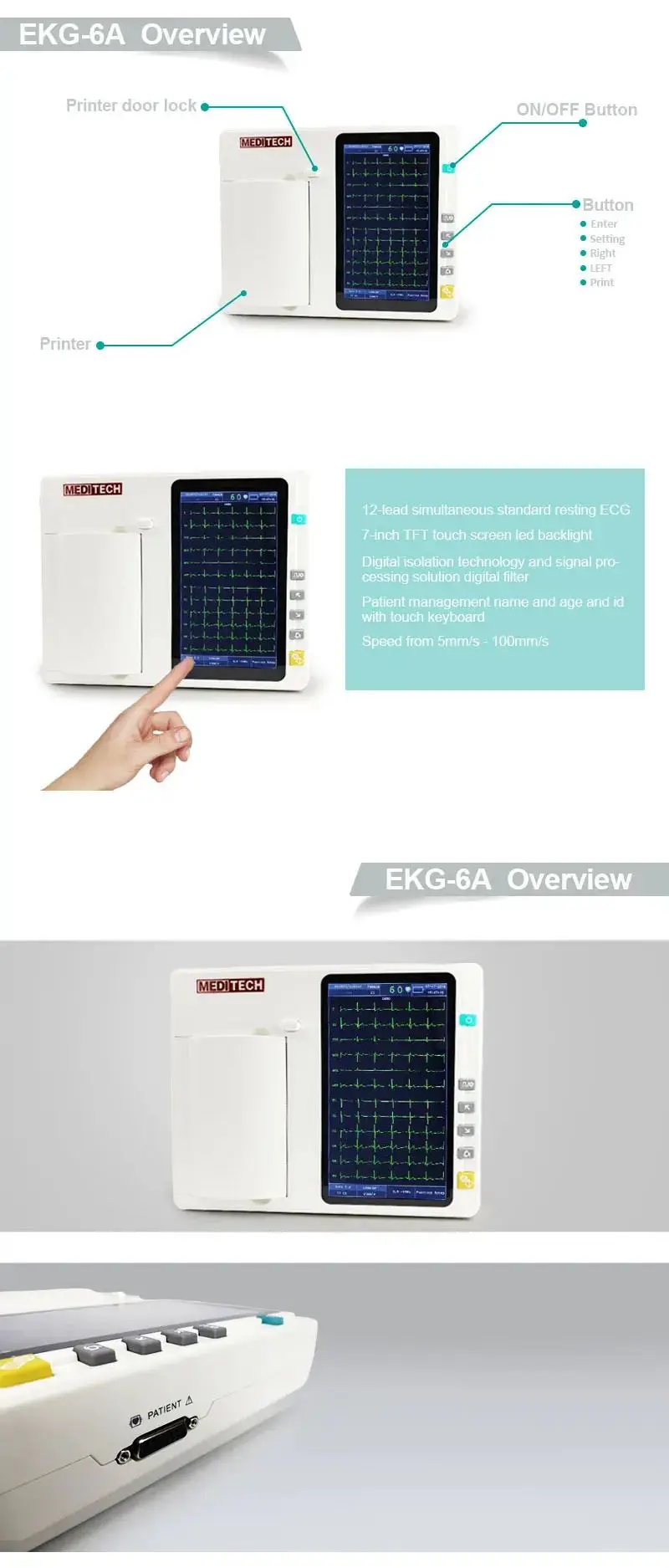

Meditech ECG Device EKG6A ,six channel ECG Machine with Large, Color and Touch Screen 7 inch
Large, Color and Touch Screen 7”.
Keyboard for Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F .
Precise ECG auto-interpretation program.
12 lead ECG simultaneous acquisition and display.
Large, Color and Touch Screen 7”.
Keyboard for Patient management, Name:____ . Age:____ . ID:_____ . Sex: M/F .
Precise ECG auto-interpretation program.
12 lead ECG simultaneous acquisition and display.
item | value |
Place of Origin | China |
Brand Name | Meditech |
Model Number | EKG-6A |
Power Source | Electricity |
Warranty | 2 years |
After-sale Service | Online technical support |
Material | Plastic |
Shelf Life | 5 years |
Quality Certification | CE |
Instrument classification | Class II |
Safety standard | EN 149 -2001+A1-2009 |
Lead | Standard 12 leads |
Input circuit | protection against defibrillator |
Acquisition Mode | Simultaneous 12 leads acquisition and asynchronous acquisition |
Measurement Range | ±5mVpp |
Time Constant | ≥3.2s |
Frequency Response | 0.05Hz~150Hz (-3dB) |
Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV |
Input Impedance | ≥50MΩ |
EMG Filter | 25 Hz / 30 Hz / 40Hz |
Low Pass Filter | 75 Hz / 100 Hz / 150Hz |
Standard:

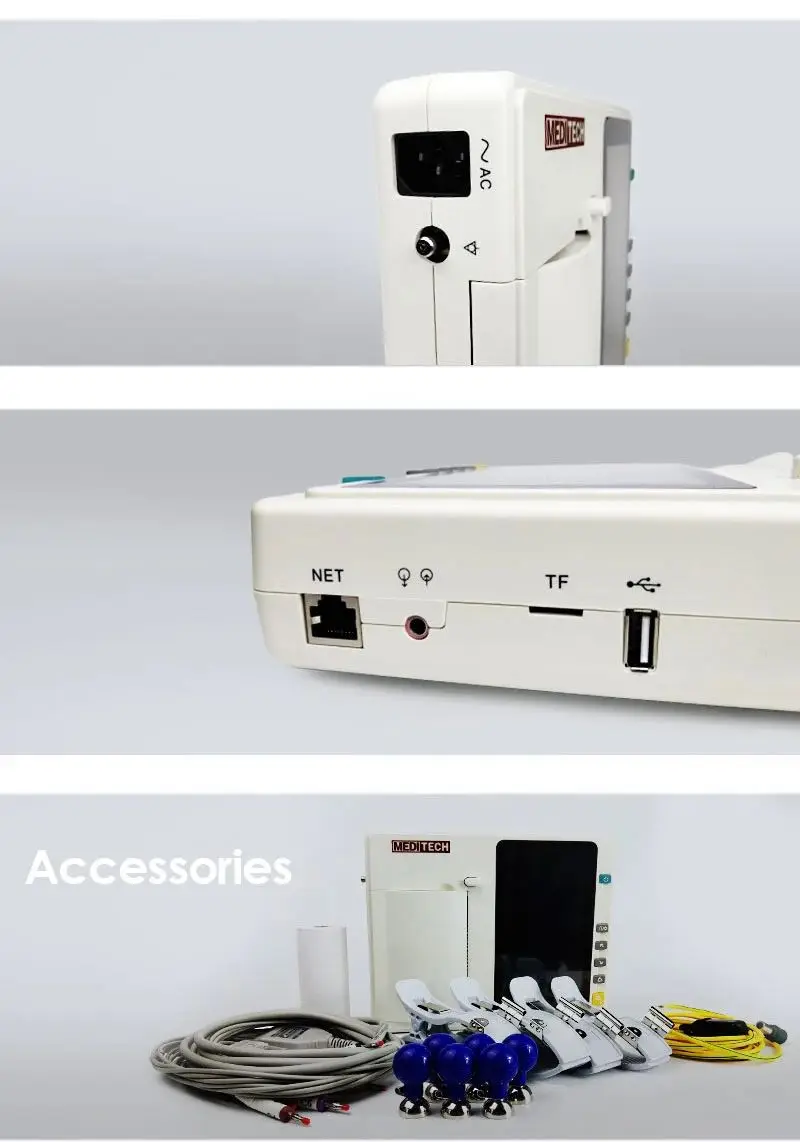

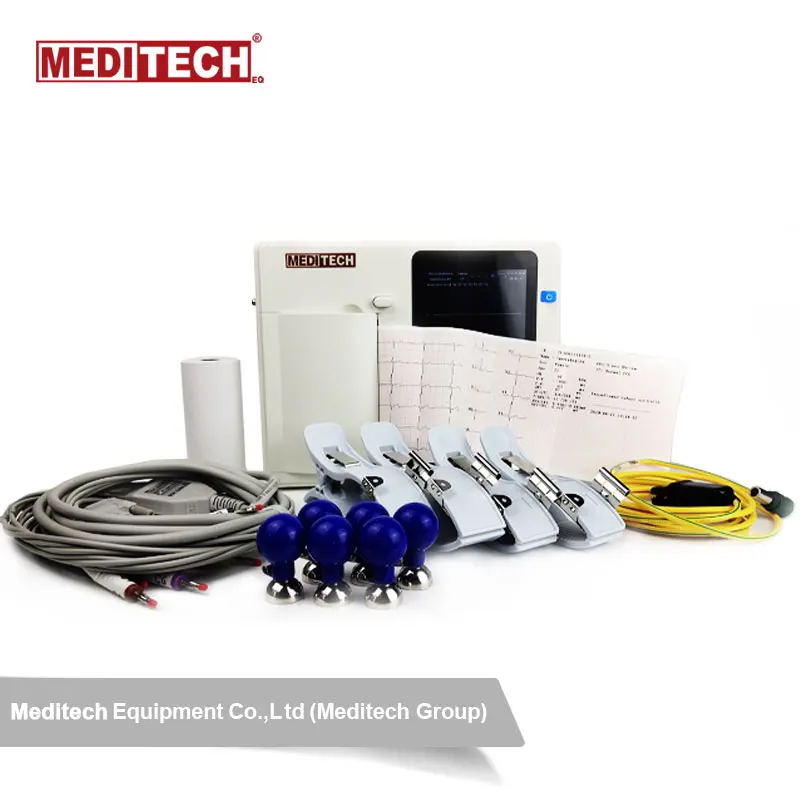

Chest Electrode ............... 6Pcs
Clamp Electrode .............. 4Pcs
EKG Cable ............... 1Pcs
Paper Role ...................... 1Pcs
Power cable ...... .............. 1Pcs
Cleaning Cloth ................. 1Pcs
Clamp Electrode .............. 4Pcs
EKG Cable ............... 1Pcs
Paper Role ...................... 1Pcs
Power cable ...... .............. 1Pcs
Cleaning Cloth ................. 1Pcs
Options:

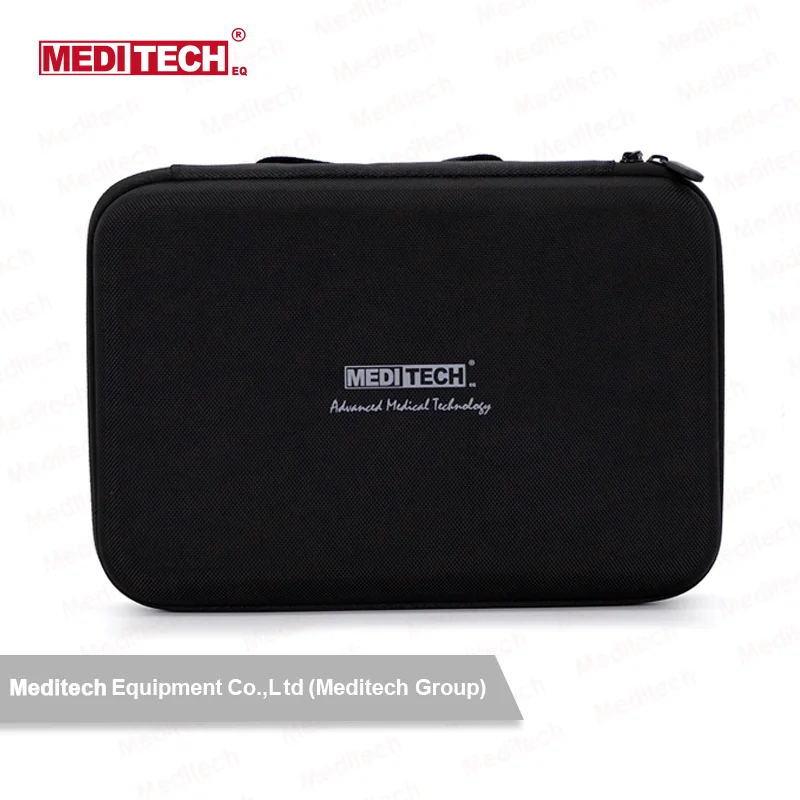

carry Case
Memory USB
Thermal Paper
ECG Trolley
PC (Computer) accessories
Printer accessorie
Memory USB
Thermal Paper
ECG Trolley
PC (Computer) accessories
Printer accessorie
