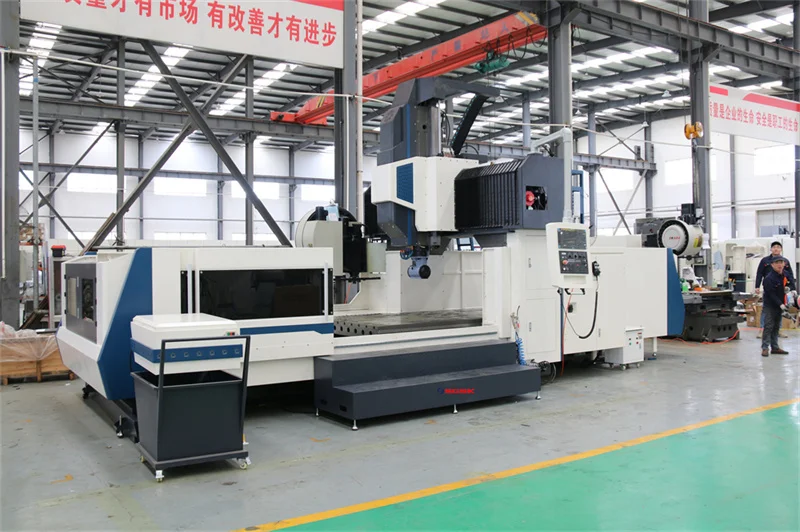

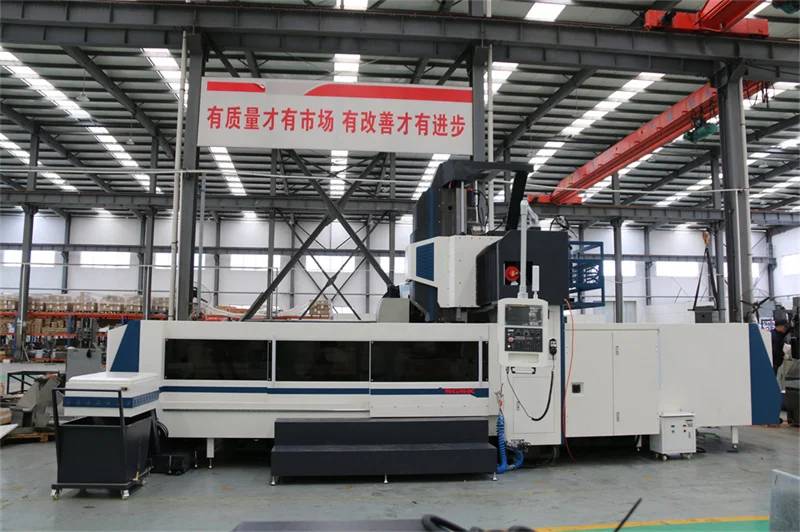

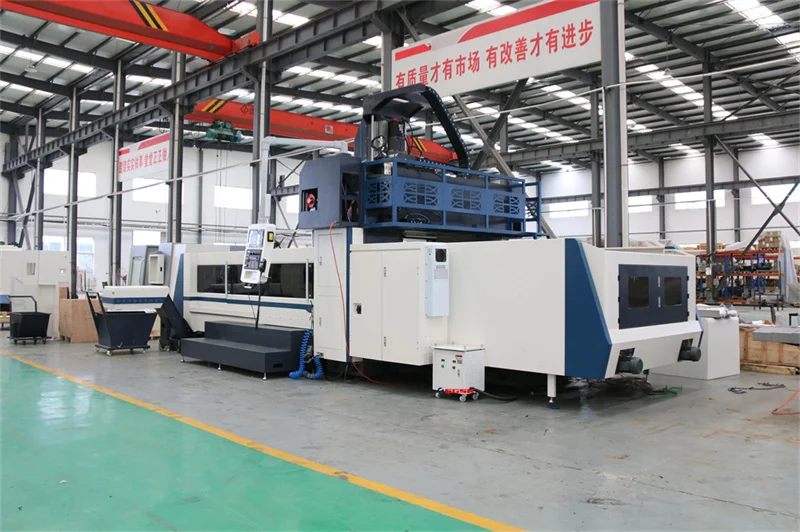

cnc bridge gantry type milling machine GMC2518 gantry cnc milling machine
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (1601045450911):
Product Overview
Description
gantry type milling machine GMC2518 gantry cnc milling machine
Products Description
SPINDLE
1.TAIWAN precision spindle,
2. 2. Spindle taper is BT50;
3. 3. Spindle speed 6000rpm
2. 2. Spindle taper is BT50;
3. 3. Spindle speed 6000rpm
TAIWAN TOOL MAGAZINE
1.Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
2. Brand: OKADA
LEAD SCREW AND COUPLING
1.Taiwan precision lead screw.
2.Lead screw bearing use SKF or NACHI bearing,
,3.Coupling R+W directly connected .
2.Lead screw bearing use SKF or NACHI bearing,
,3.Coupling R+W directly connected .
GUIDERAIL
2 axis linear rail and 1 axis hard rail

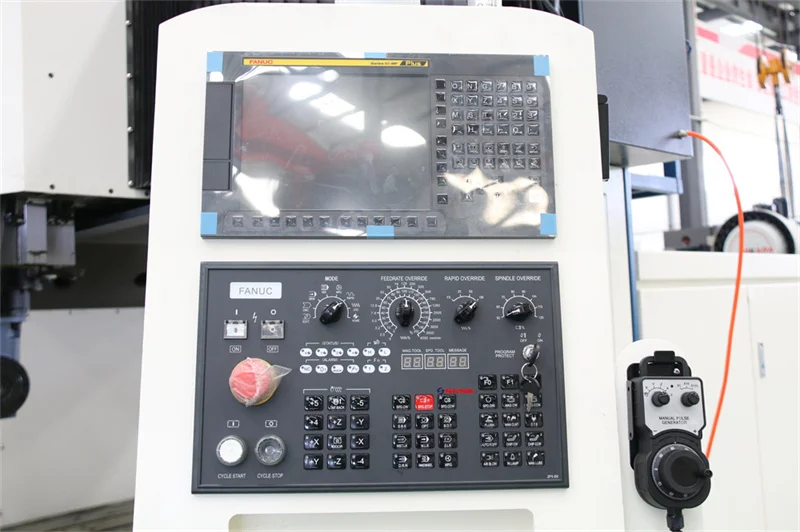

CONTROL SYSTEM
Standard: FANUC control
Optional : Siemens , Syntec ect.
Optional : Siemens , Syntec ect.
AIR STORAGE TANK
Airstorage tank to ensure the stability of spindle tool change
PNEUMATIC COMPONENTS
Standard with AirTAC Pneumatic Components
LUBRICATION SYSTEM
Automatic centralized lubrication device .
SCHNEIDER ELECTRICAL COMPONENTS
1. with Schneider safety electrical components
2. quick plug as standard
2. quick plug as standard
AIR CONDITIONER
Standard with Industrial electrical cabinet air conditioner.
Cooling the electric box better
Cooling the electric box better
MACHINE CONSTRUCT
High strength high quality cast iron,
TESTING
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
-OPTIONAL
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
HALF COVER
CHIP CONVEYOR
2 Spiral type chip conveyor and 1 Chain type chip conveyor
CHIP CONVEYOR
2 Spiral type chip conveyor and 1 Chain type chip conveyor
SPECIFICATIONS | Units | GMC2018 | GMC2518 | GMC3018 | GMC3518 |
Table size（W*L） | mm | 1600*2000 | 1600*2700 | 1600*3200 | 1600*3700 |
X axis travel | mm | 2000 | 2500 | 3000 | 3500 |
Y axis travel | mm | 1900 | 1900 | 1900 | 1900 |
Z axis travel | mm | 800 | 800 | 800 | 800 |
Gantry width/passing height | mm | W：1900/H：1080 | W：1900/H：1080 | W：1900/H：1080 | W：1900/H：1080 |
Table load | t | 4.5 | 5.5 | 6.5 | 7.5 |
Distance between spindle nose and table surface | mm | 200～1000 | 200～1000 | 200～1000 | 200～1000 |
T slot(number-width*pitch) | - | 9-22*180 | 9-22*180 | 9-22*180 | 9-22*180 |
Spindle taper | - | BT50/190 | BT50/190 | BT50/190 | BT50/190 |
Spindle speed | r/min | 6000 | 6000 | 6000 | 6000 |
Rapid traverse speed | m/min | 15 | 15 | 15 | 15 |
Cutting feed speed | m/min | 10 | 10 | 10 | 10 |
Main motor power | kw | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 |
Tool magazine | 圆盘Arm24 | 圆盘Arm24 | 圆盘Arm24 | 圆盘Arm24 | |
Positioning accuracy | mm | X/Y ±0.0075 Z ±0.015 | X/Y ±0.0075 Z ±0.015 | X/Y ±0.0075 Z ±0.015 | X/Y ±0.0075 Z ±0.015 |
Repeat positioning accuracy | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 |
Overall dimension(L*W*H) | mm | 7200*4700*4300 | 8200*4700*4300 | 9200*4700*4300 | 10200*4700*4300 |
Machine weight(about) | t | 20 | 22 | 28 | 26 |
