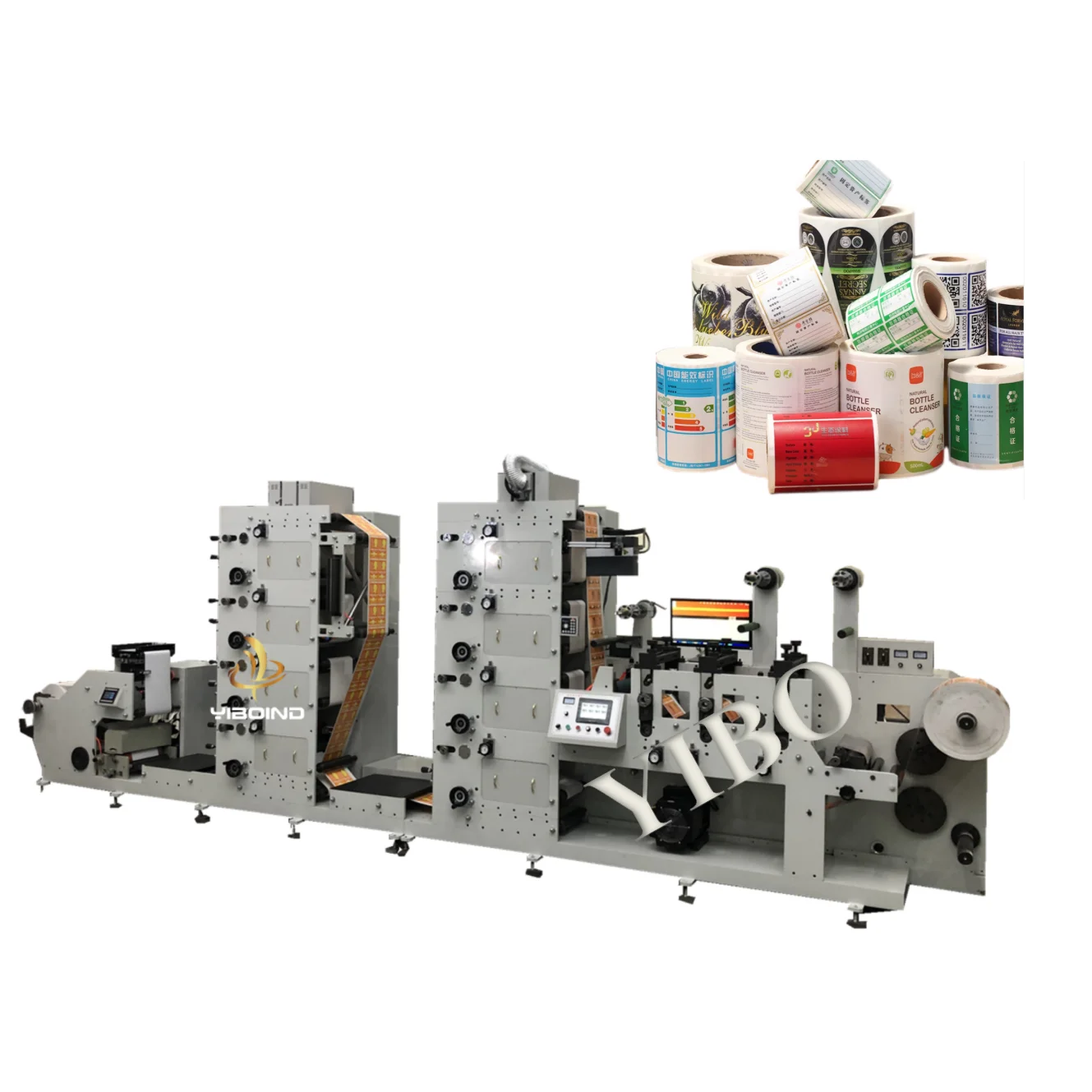

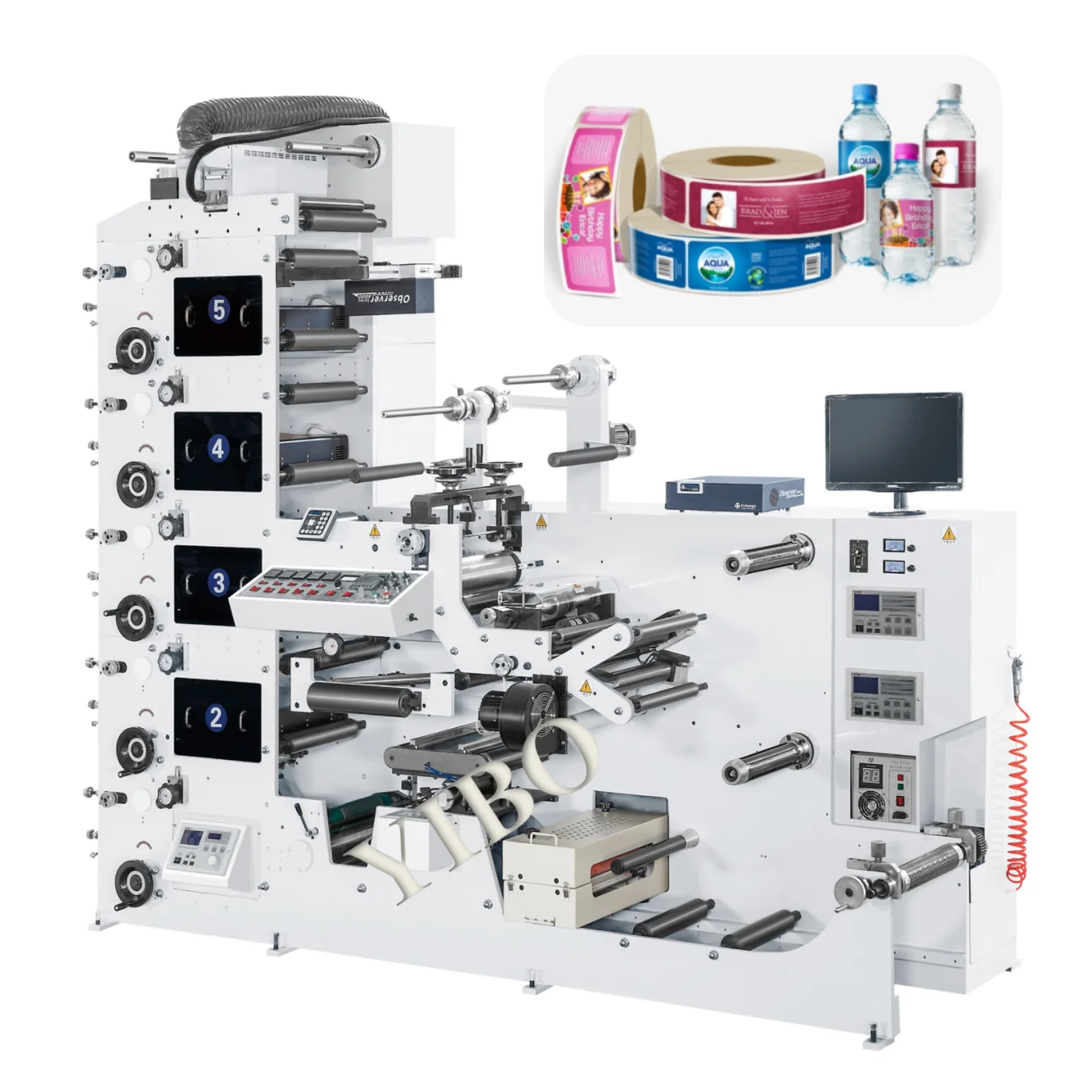

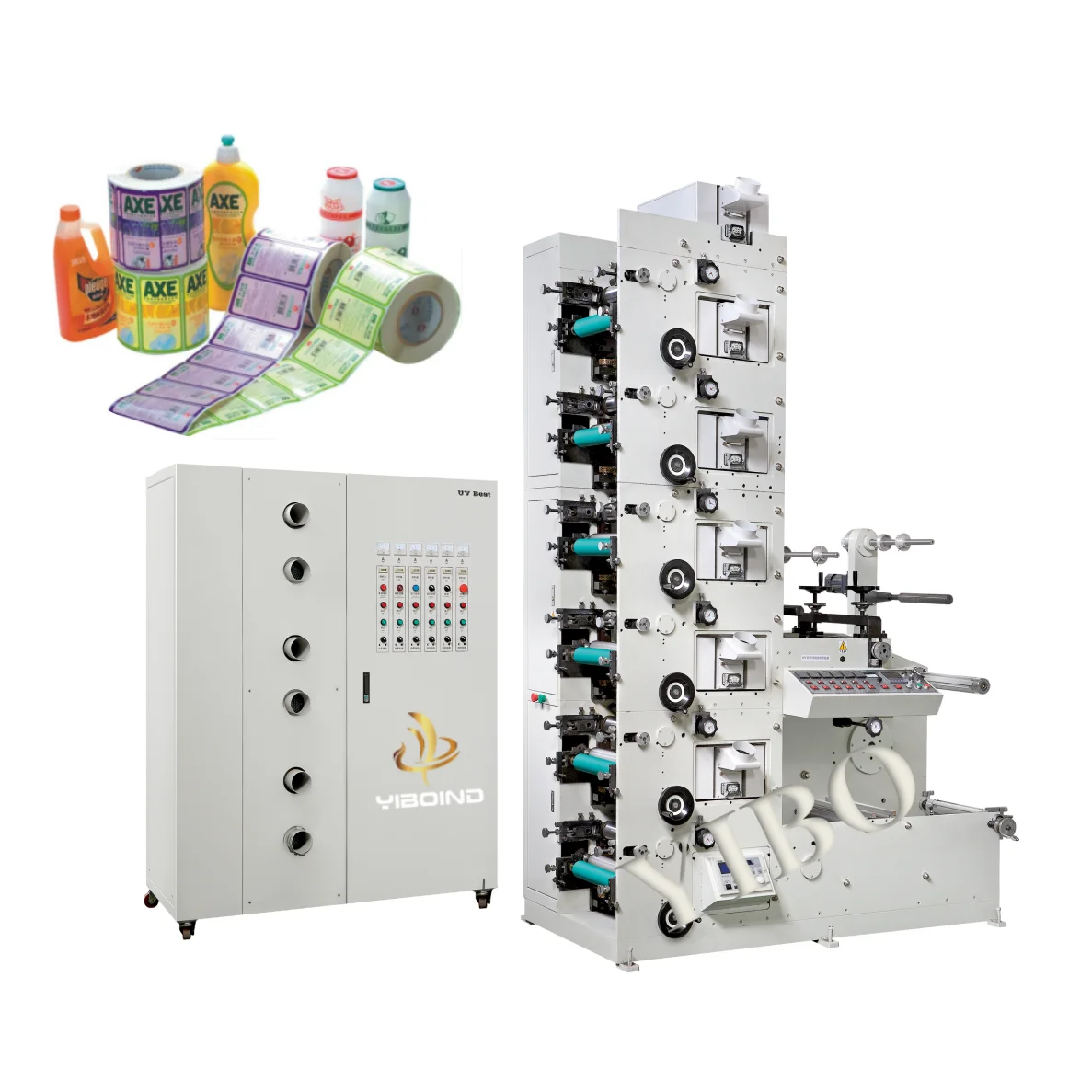

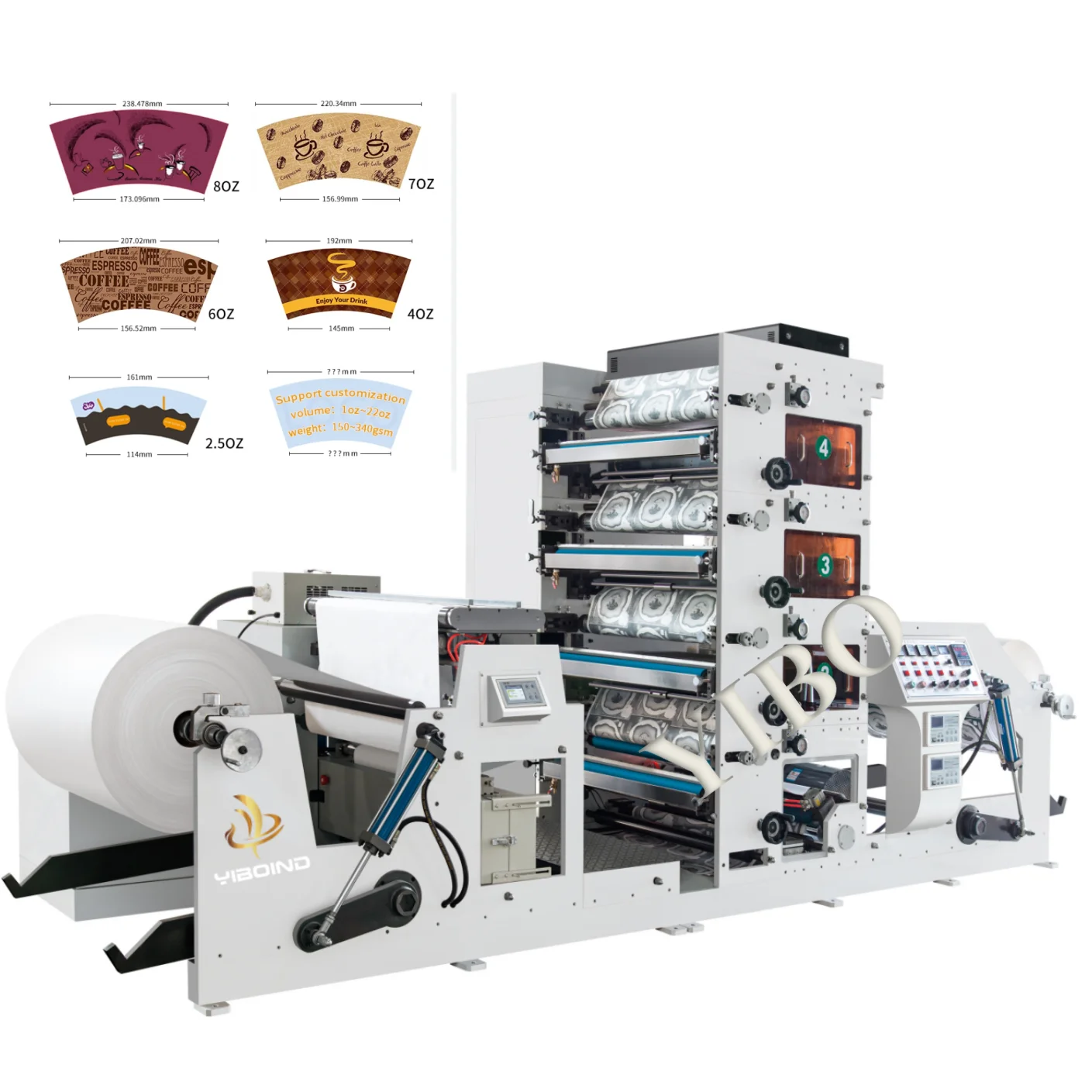

Roll To Roll Logo Die Cutting UV Dryer Flexographic Flexo Printing Machine
- Category: >>>
- Supplier: Wenzhou Yibo Trade Co. Ltd.
Share on (1601045532268):
Product Overview
Description
Product Description
Standard configuration:
1. Machine body.
2. Each color comes with a ceramic Anilox rollers (Japanese brand for maximum print quality), hexagonal cell.
3. Three sets of printing cylinders from 55T to 120T (step 1/8 ")
4. Three magnetic cylinders.
5. Turner band (can flip at any station).
6. Lamination Station.
7. Two die (mould) stations, can stamp above or below.
8. Unwinder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
9. Winder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
10. Stress (tension) Control of the independent machine.
11. Table assemblies.
12. Band´s aligner
13. UV curing lamp at the last station.
14. Hydraulic lift for operator.
1. Machine body.
2. Each color comes with a ceramic Anilox rollers (Japanese brand for maximum print quality), hexagonal cell.
3. Three sets of printing cylinders from 55T to 120T (step 1/8 ")
4. Three magnetic cylinders.
5. Turner band (can flip at any station).
6. Lamination Station.
7. Two die (mould) stations, can stamp above or below.
8. Unwinder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
9. Winder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
10. Stress (tension) Control of the independent machine.
11. Table assemblies.
12. Band´s aligner
13. UV curing lamp at the last station.
14. Hydraulic lift for operator.
Printing speed | 50m-60m/min |
Printing color | 2-8 colors |
Print max width | 320-520mm |
Unwind roll width | 320-530mm |
Unwind roll diameter | 600mm |
Rewind roll max diameter | 600mm |
Printing length | 175-380mm |
Registering accuracy | ±0.15mm |
Voltage | 380V±10% |
Total power | About 35kw |
Air press | 0.6MP |
Oil system | Manual |
Weight | About 4800kg |

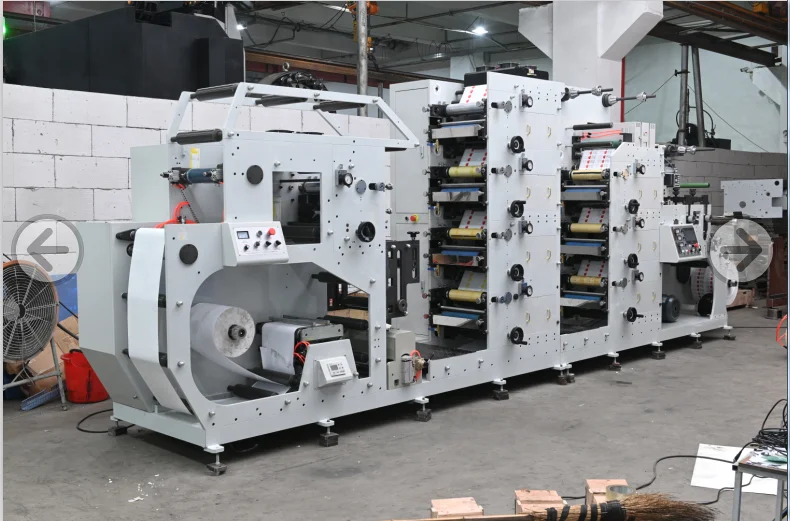

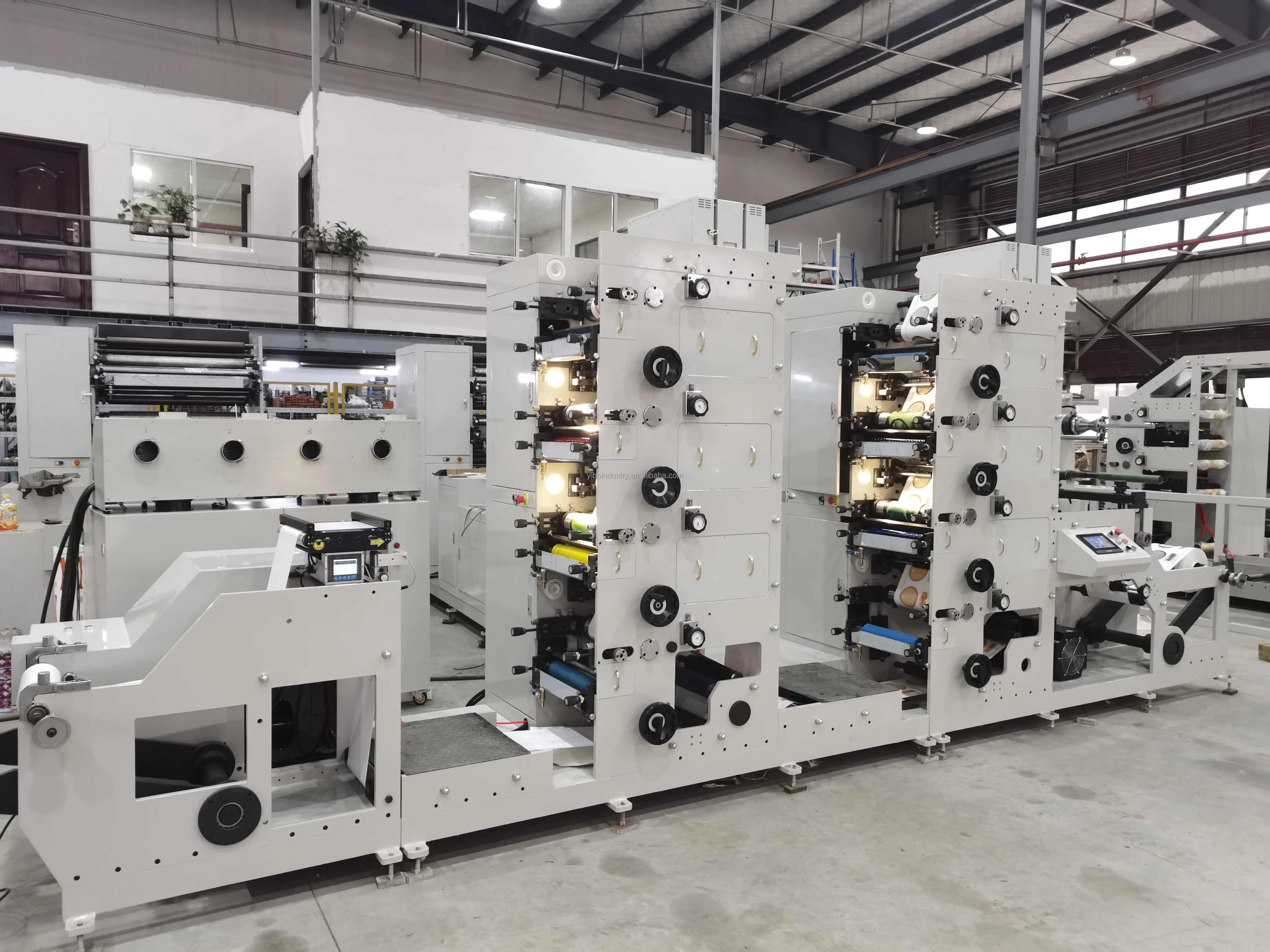

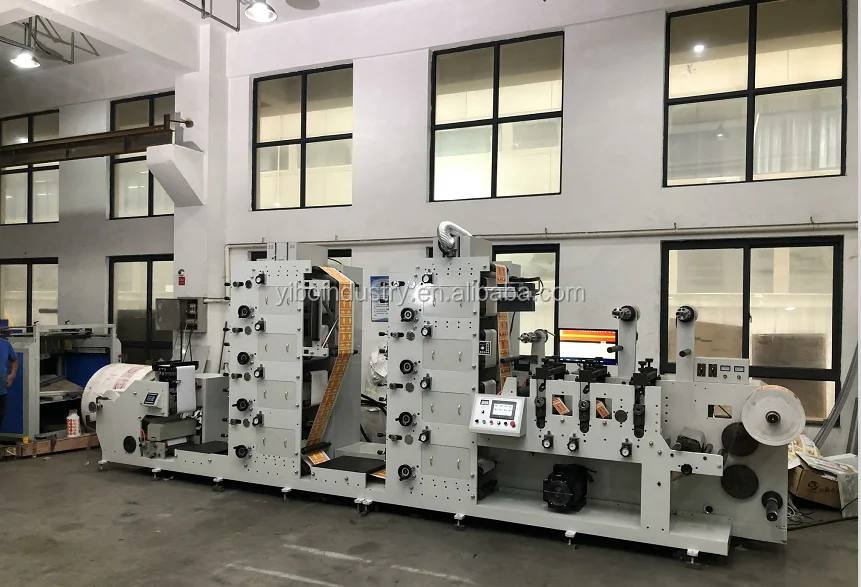

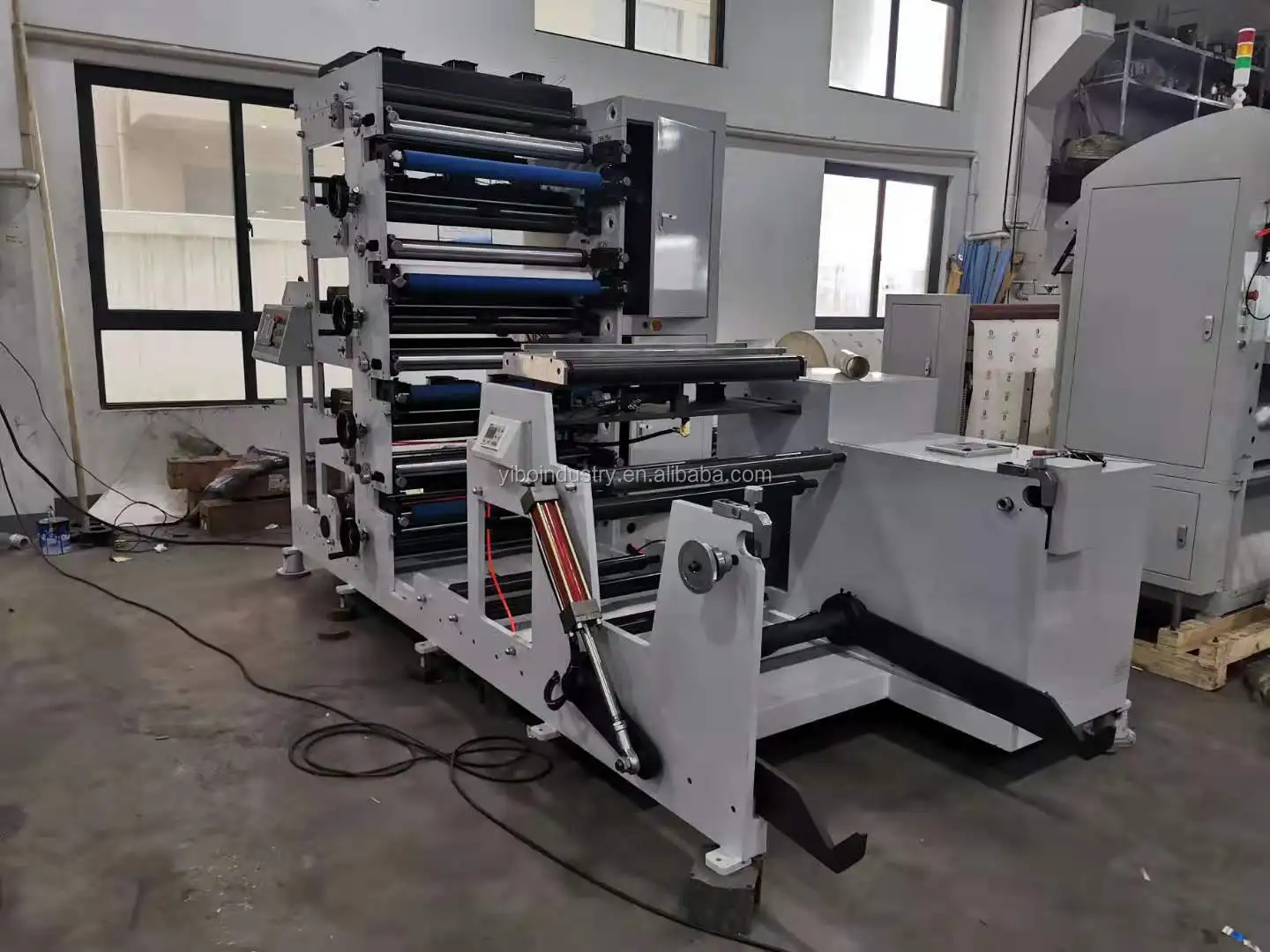

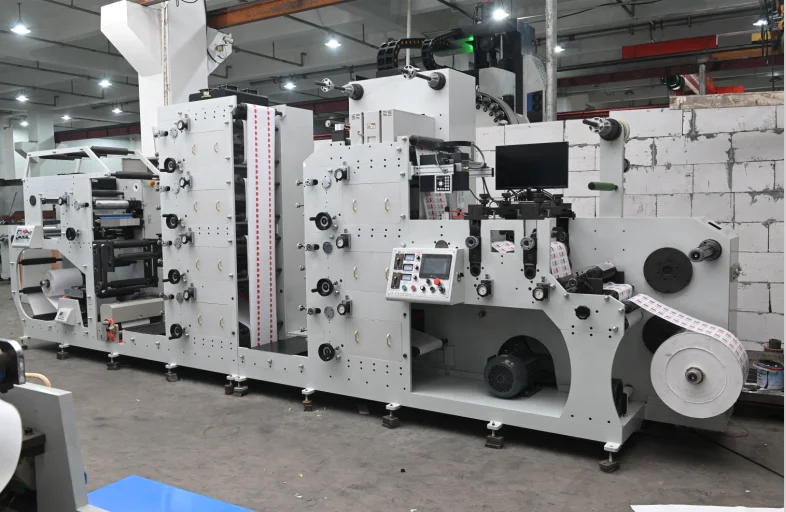

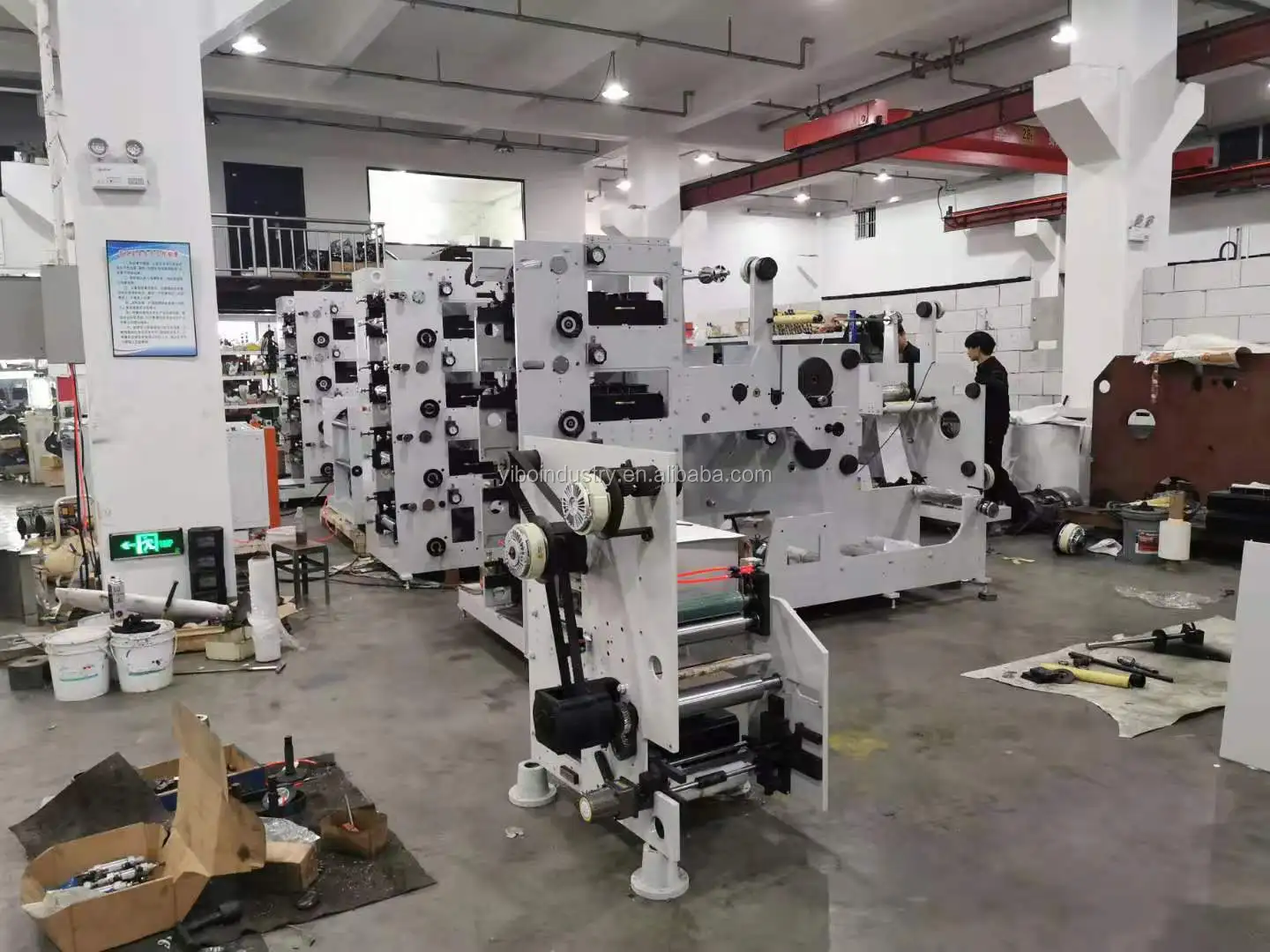

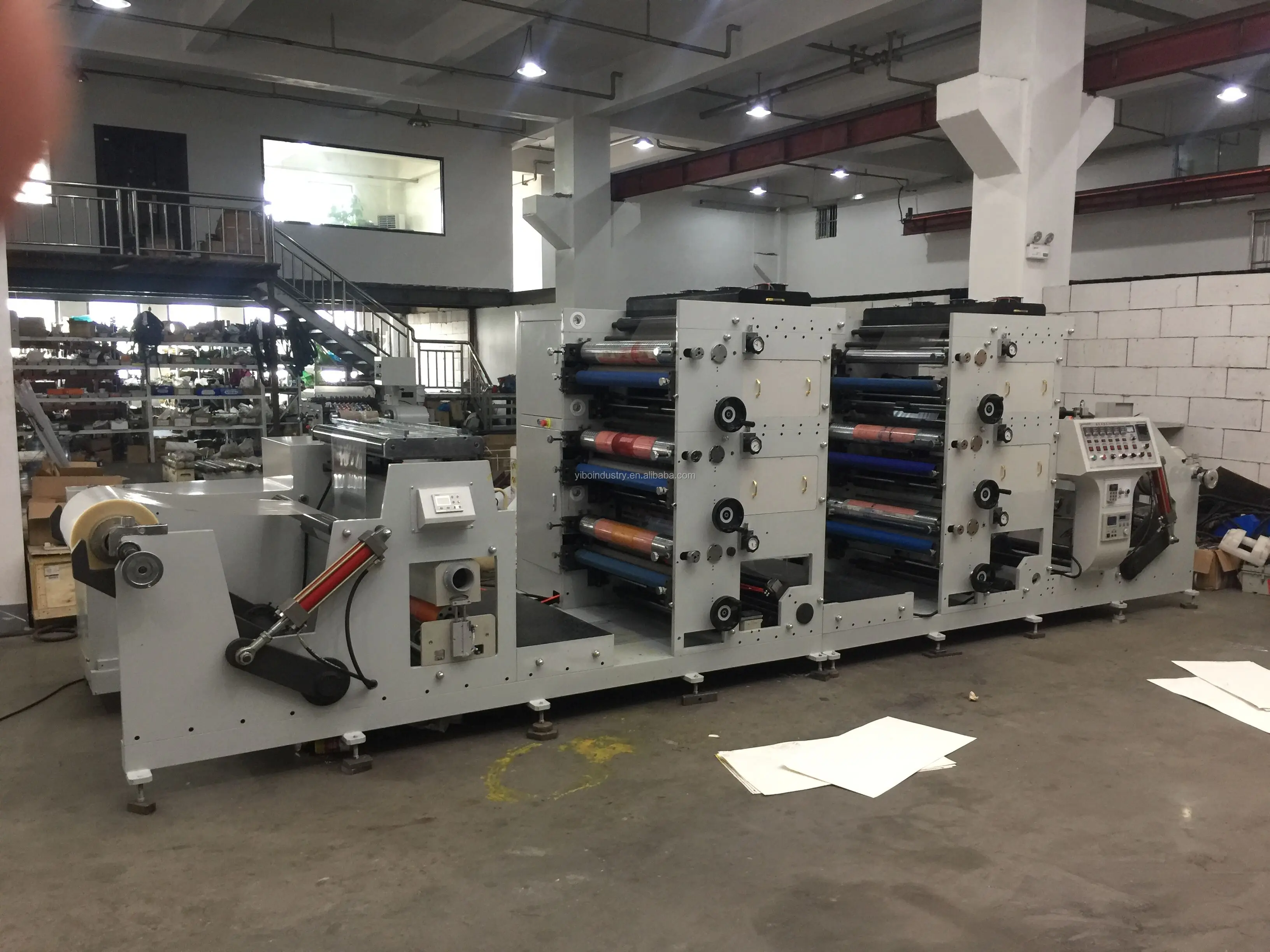

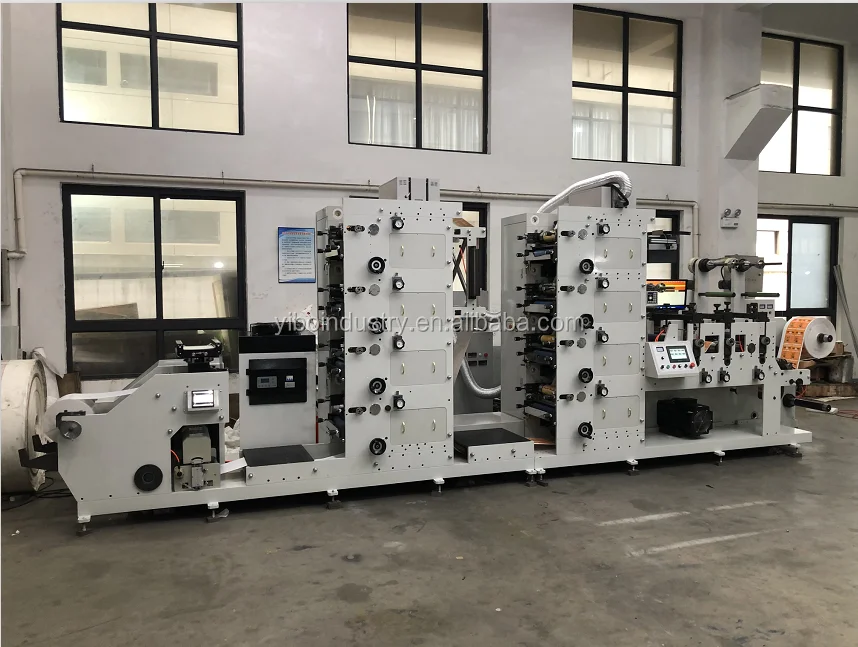

Machine show

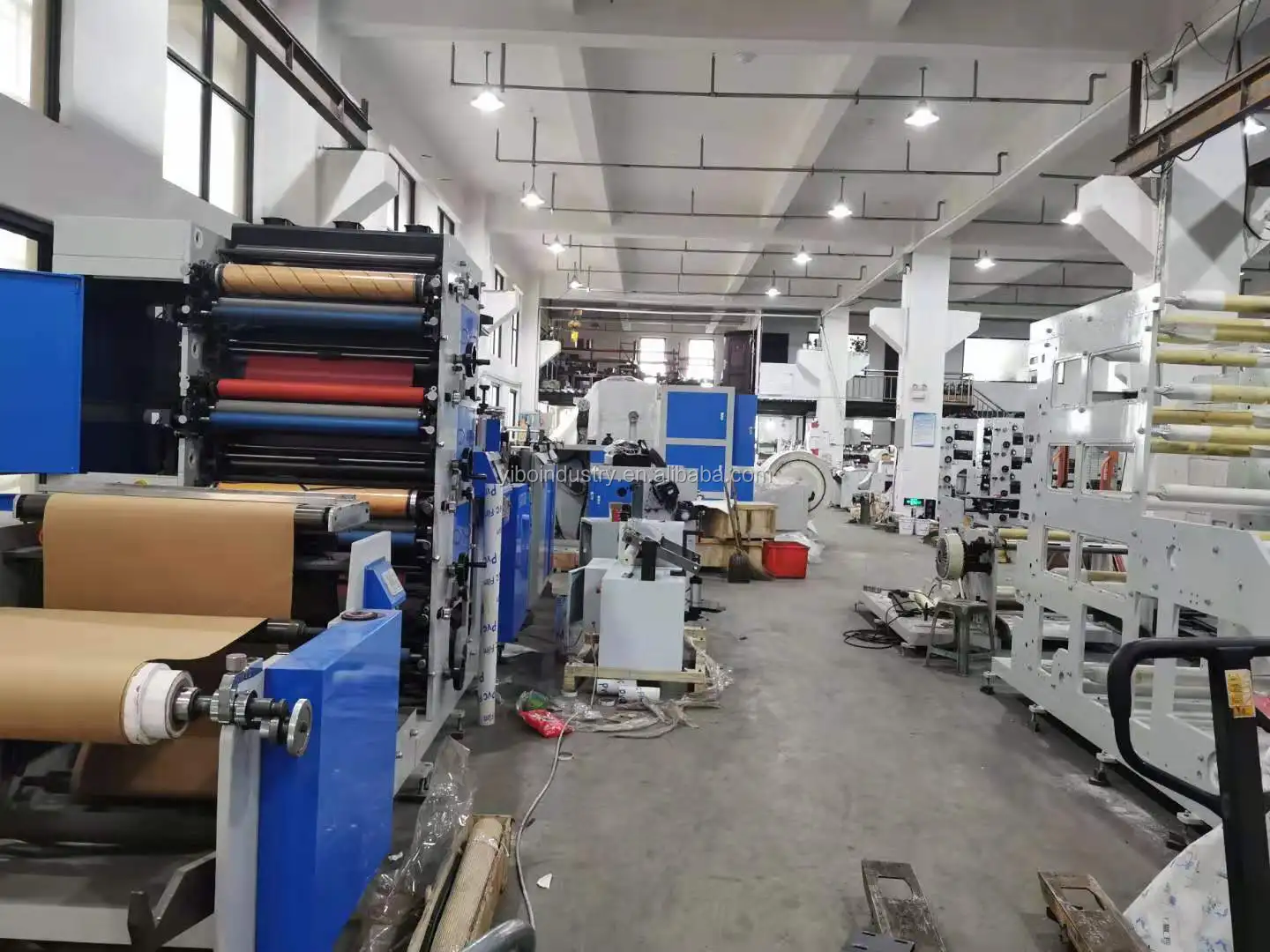

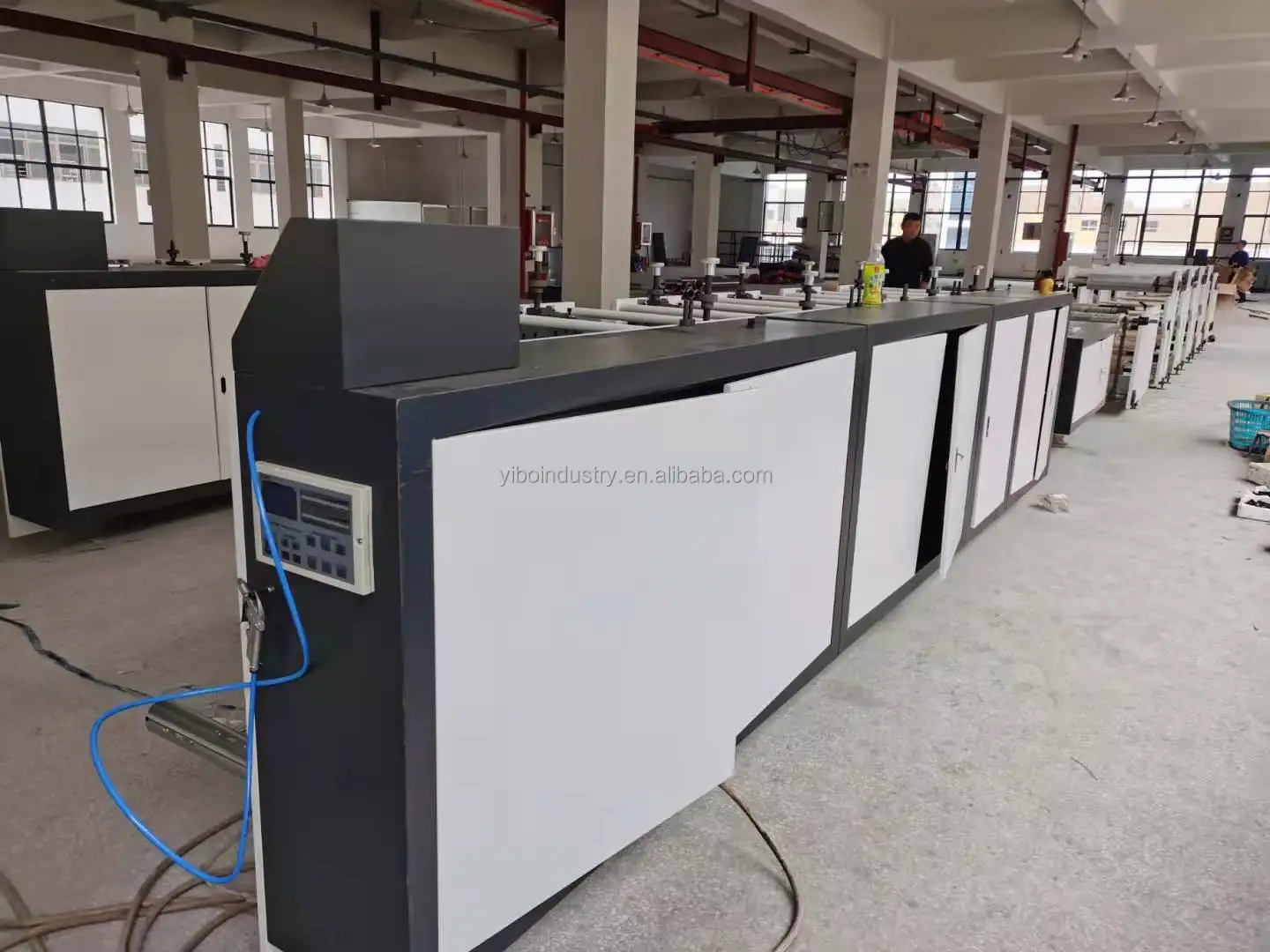

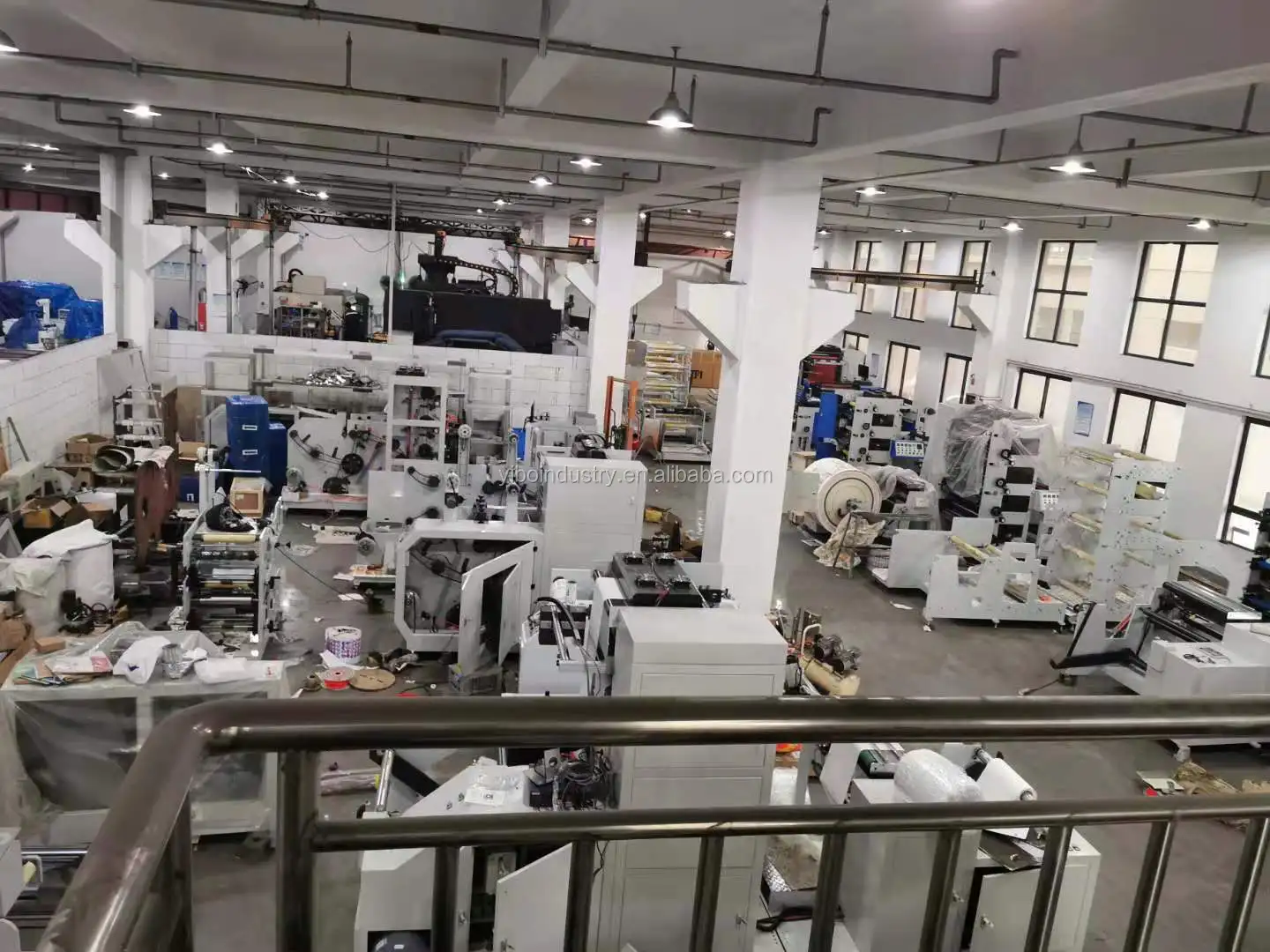

Company Profile

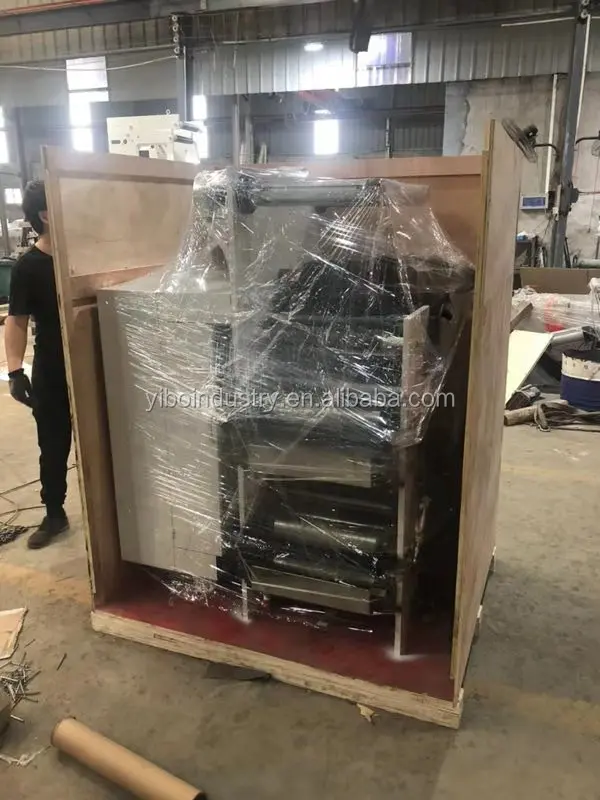

Loading photos
