KHA3 H raychem wcsm 180 50 equivalent UL SGS black shrink tube VERSAFIT 3X or RNF 3000
- Category: >>>
- Supplier: Guangzhou Kehong Electric Co. Ltd.
Share on (1601045567428):
Product Overview
Description
KHA3-H raychem wcsm 180 50 equivalent UL-SGS black shrink tube VERSAFIT 3X or RNF-3000

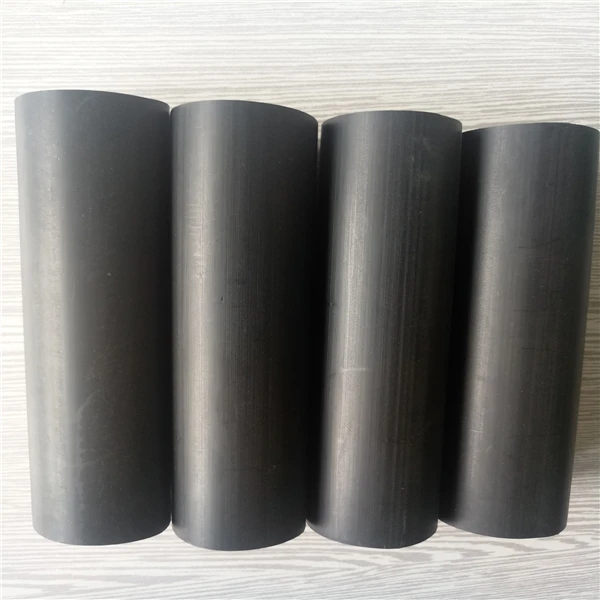

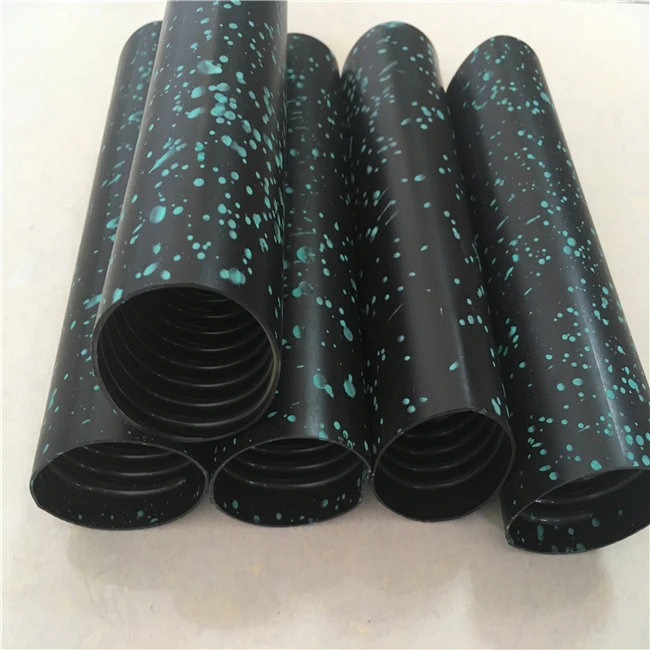

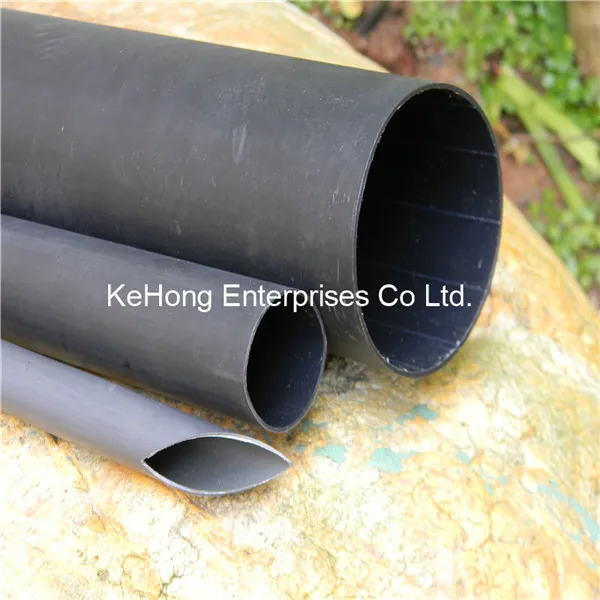

KHA3-H HEAVY WALL HEAT SHRINKABLE TUBEING
With / without adhesive
Features/ Applications
With excellent insulating, environmental sealing, and resistant to impact and abrasion for applications to seal and protect electrical and communication connections, HRA3-H providing excellent mechanical protection to cable terminations and joints, 3:1 shrink ratio allows it easily fit over irregular shape and large connectors, recommended to apply for light cable and wire harnesses, waterproofing, protection of connector components, and seals components contained within the tubing.
Resistant to UV-radiation
High electrical insulation
Superior mechanical property
Minimum fully recovery temperature:120℃
Standard color: Black
Thermoplastic Adhesive
Property | Test Method | Typical Data |
Water absorption | ISO62 | <0.2% |
Softening point | ASTM D E28 | 85℃ |
Peel strength(PE) | DIN 30672 | 4N/cm |
Copper stability | ASTMD2671 | Non-corrosive |
Resistance to fungus and decay | ISO846 | Pass |
Technical Data
Property | Test Method | Typical Data |
Operation temperature | IEC216 | -55℃to110℃ |
Tensile strength | ASTMD2671 | ≥14MPa |
Tensile strength after aging (150℃/168hrs) | ASTMD2671 | ≥12MPa |
Elongation at break | ASTMD2671 | ≥400% |
Elongation at break after aging (150℃/168hrs) | ASTMD2671 | ≥300% |
Density | ASTMD792 | 1.05g/cm3 |
Longitudinal shrinkage | UL224 | 0 to-10% |
Dielectric strength | IEC243 | ≥20kv/mm |
Volume resistance | IEC93 | >1014Ω.cm |
Eccentricity | ASTMD2671 | <30% |
Copper stability | ASTMD2671 | Pass |
Resistance to stress cracking (50℃) | ASTMD1693 | No cracking |
Water absorption(23℃/14days) | ISO62 | <0.15% |
Dimension
| Normal size | As supplied (mm) ID(Min.) | After recovered ID (Max.) | After recovered Wall thickness (mm)(Min.) |
| (mm) | |||
| KHA3-H 9/3 | 9 | 3 | 1.8 |
| KHA3-H 13/4 | 13 | 4 | 2.4 |
| KHA3-H 22/6 | 22 | 6 | 2.7 |
| KHA3-H 33/8 | 33 | 8 | 3.2 |
| KHA3-H 40/12 | 40 | 12 | 4.1 |
| KHA3-H 45/12 | 45 | 12 | 4.1 |
| KHA3-H 55/16 | 55 | 16 | 4.1 |
| KHA3-H 75/22 | 75 | 22 | 4.1 |
| KHA3-H 85/25 | 85 | 25 | 4.3 |
| KHA3-H 95/30 | 95 | 30 | 4.3 |
| KHA3-H 105/30 | 105 | 30 | 4.3 |
| KHA3-H 130/36 | 130 | 36 | 4.3 |
| KHA3-H 160/50 | 160 | 50 | 4.3 |
| KHA3-H 180/50 | 180 | 50 | 4.3 |
| KHA3-H 200/60 | 200 | 60 | 4.3 |
| KHA3-H 235/65 | 235 | 65 | 4.5 |
| KHA3-H 265/75 | 265 | 75 | 4.5 |
| KHA3-H 300/85 | 300 | 85 | 4.5 |
| KHA3-H 350/100 | 350 | 100 | 4.5 |
Buyer Feedback
FAQ
1) What’s the delivery time of free heat shrink sample?
Within 1 day
2) Which payment terms and method do you accept?
TT in advance, or 30% TT in advance, 70% balance by copy of B/L
Pay to: our company account / on line of alibaba / Western Union / Paypal, etc
3) How these heat shrink tube will be freight please?
For one to two cartons of goods, freight by the agent of DHL,UPS,TNT,Fedex.
For LCL goods will be freight by sea or air.
Usually we can find the most competitive freight cost for our clients.
4) How to Warrant your heat shrink tubing quality?
Step1. Clarify the size, color, material, packing, and all other detail requirement before production;
Step 2. Strictly inspection made during production and before goods delivery from our factory.
Step 3. After goods received by client, once client feedback any technical mistake within 2 months, and proved this mistake/problem made by our production, we’ll provide qualified goods for free.
Company Information
KeHong Enterprises Co Ltd is specializes in heat shrinkable technology and manufacture, Headquarter in Hong kong, with factory in GuangZhou and Shenzhen City.
Our factories have obtained the certification of ISO 9001, and main insulation material tubes have UL certification of ISO 9001, and main insulation material tubes have UL cetification, SGS approval, and meet ROHS standard.
KEHONG is one of electrical insulation suppliers, which is able to provide consistent professional, experienced and efficient product service. If you are unable to find a proper tubing or sleeve from our existing products to meet your equirement, please do not hesitate to provide us with your further more detail requirements. Our technical team will do the best to satisfy your requirements with our products.
Further more, we also provide OEM and ODM services for our customers. If needed, please do contact us for detail diacussion.
The highest quality and satisfying service are our company policy. For further details regarding our products and please contact us directly.
