Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer
Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer
Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer
Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer
Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer
Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer
Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer

Low Frequency 10000W 48V/96VDC to 220VAC Pure Sine Wave Off Gird Power Inverter with Battery Charger and UI Transformer

Share on (1601045653252):


Price:

Quantity:


Product Overview

Description



Features:

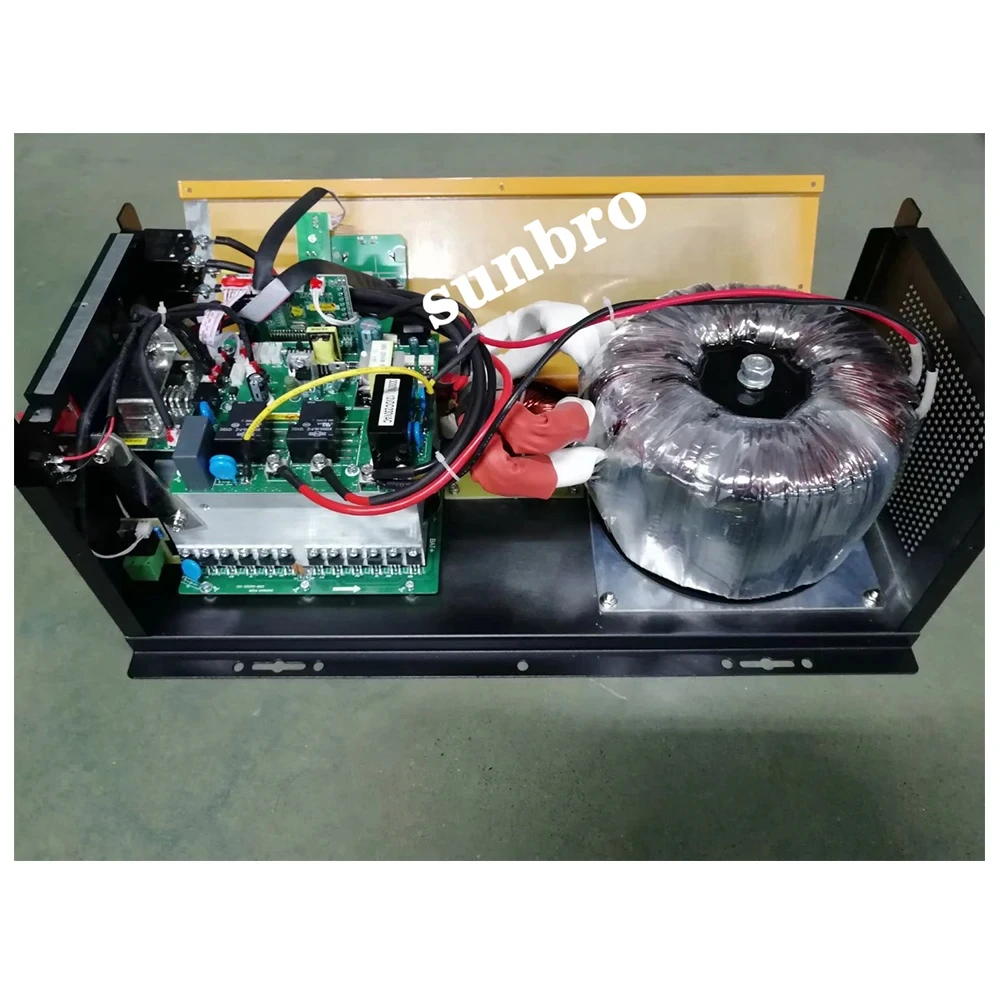

Toroidal transformer: very low idle current

▶Pure sine wave inverter
▶Selectable high power charging current
▶Selectable input voltage range for home appliances and personal computers
▶Configurable AC/Battery input priority via LCD setting

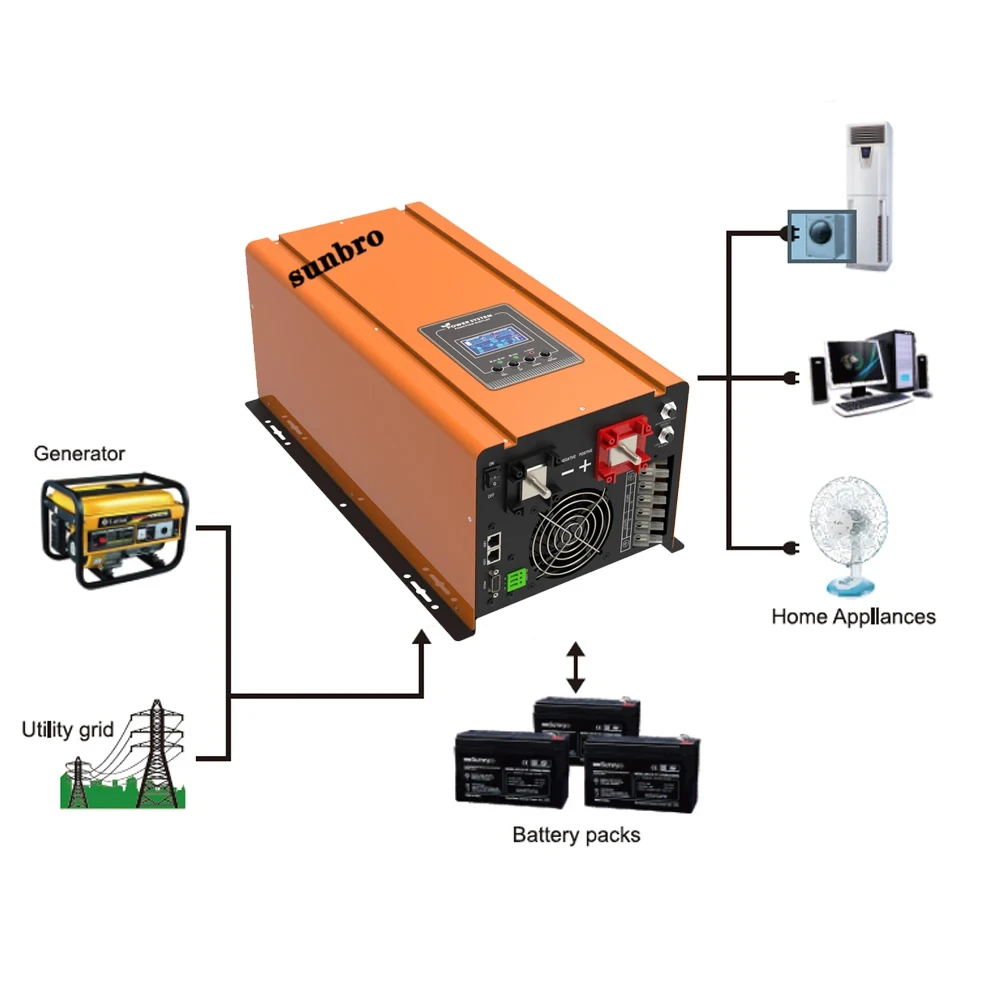

▶Compatible with genrator power

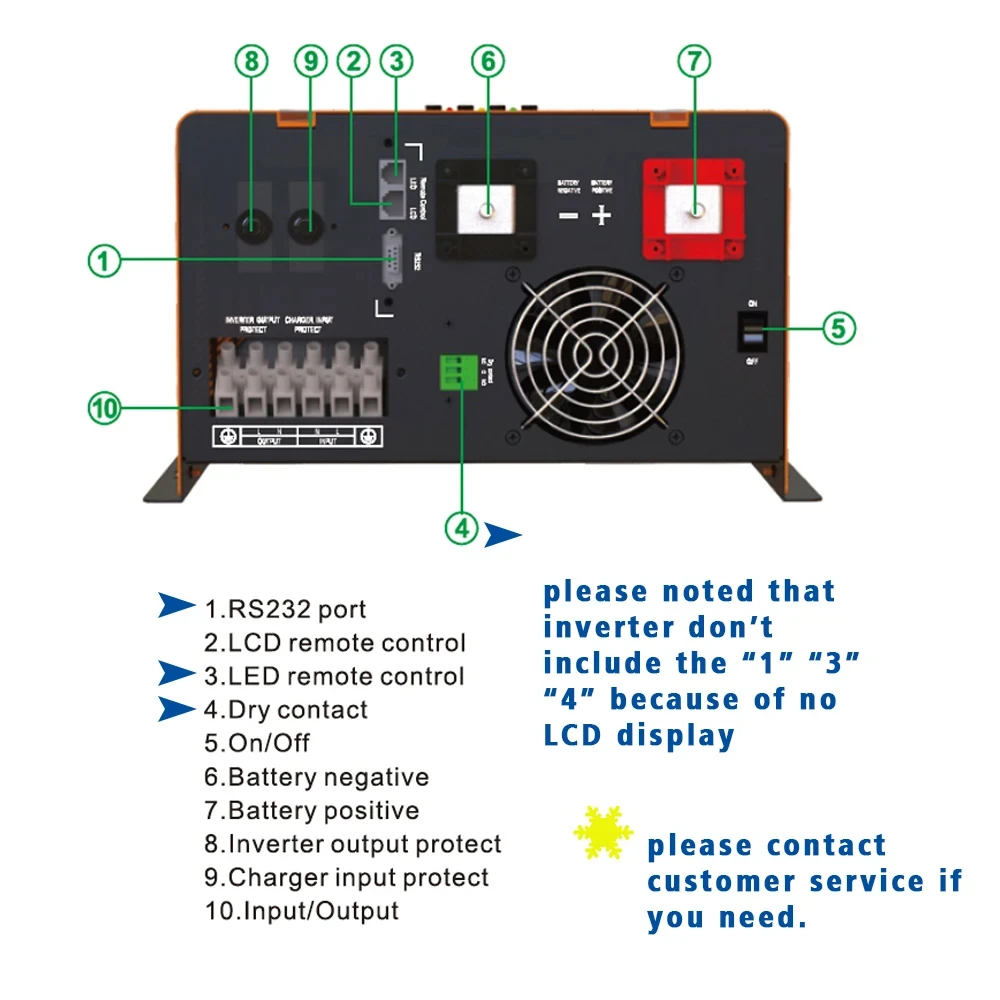

▶Dry contact port for generator to realize mutual control by generator and utility
▶Auto restart while AC is recovering
▶Overload and short circuit protection
▶Cold start function
▶Supports lithium batteries
▶RS 232 communicate port and remote control panel optional


Model
RP 10000
Rated Power
10000W
INPUT
Voltage
100/110/120Vac;220/230*/240Vac
Selectable Voltage Range
Wide Range : 75vac~138Vac; 155Vac~275Vac(for home appliances)
Narrow Range: 82Vac~138Vac; 165Vac~275Vac(for personal computer)
Frequency Range
40~70Hz( 50Hz/60Hz)
OUTPUT
AC Voltage Regulation
(Battery. Mode)
100/110/120Vac; 220/230*/240Vac
Surge Power
30000VA
Efficiency
91%
Transfer time
<10ms
Waveform
Pure sine wave
BATTERY
Battery Voltage
48V
96V
Charge current
75A
40A
Fast charge voltage
57.2V
114.4V
Float charge voltage
54.8V
109.6V
Over voltage protect
66.0V
132.0V
low voltage alarm
42.0V
84.0V
low voltage shutdown
40.0V
80.0V
Protection
Over charging, over temp, over battery voltage, over load, shortcircuit
Operating environment Temp
55°C
Cooling
Intelligent Fan
Display
Color LCD
Parameter setting
By LCD or Position Machine:
Charging current, battery type, input voltage,output frequency, Wide and Narrow range of ac input voltage , Power saver mode,
ac/battery priority
PHYSICAL
Dimension D*W*H(mm)
584*425*180mm
Net Weight(kg)
67kg
ENVIRONMENT
Humidity
5-95% Relative Humidity (Non-condensing)
Operating Temp
-10°C to 50°C
Storage Tem.
-15°C to 60°C
