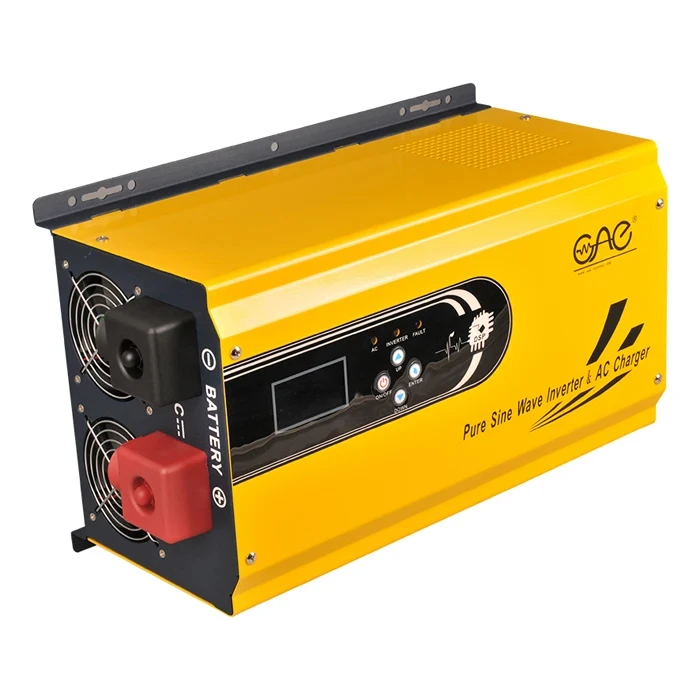

Pure sine wave inverter 6000w 48v low frequency ups inverter 6kw battery inverter 1kw 12v
- Category: >>>
- Supplier: Yiwu Yi Fan E-Commerce Firm
Share on (1601045705192):
Product Overview
Description
Model | GI-102 | GI-152 | GI-202 | GI-302 | GI-402 | GI-502 | GI-602 | |||||||
Rated power | 1KW | 1.5KW | 2KW | 3KW | 4KW | 5KW | 6KW | |||||||
Surge power | 3KW | 4.5KW | 6KW | 9KW | 12KW | 15KW | 18KW | |||||||
AC Input & Output | ||||||||||||||
Voltage | 220VAC | |||||||||||||
Selectable Voltage Range | 165-275VAC (220VAC) | |||||||||||||
Frequency Range | 50Hz/60Hz automatic recognition | |||||||||||||
AC Voltage Regulation (BATT. Mode) | (DC Batt.mode)220vac±3% | |||||||||||||
Transfer Time | ≤4ms | |||||||||||||
Wave Form | Pure Sine Wave | |||||||||||||
Transformer type | Toroidal | |||||||||||||
Transfer efficiency | ≥85% | |||||||||||||
Battery | ||||||||||||||
Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | |||||||||||
Type | Gel/SLA/AGM/ Lithum battery | |||||||||||||
DC Charge Voltage | 13.6-14.2VDC(12V)/27.2-28.4VDC(24V)/54.4-56.8VDC(48V) | |||||||||||||
Overcharge Protection | Battery voltage ≧16VDC (12V) ≧32VDC (24V) ≧64VDC (48V), stop charging after 60s alarm | |||||||||||||
AC Charger | ||||||||||||||
Maximum Ac Charge Current | 35A (adjustable) | |||||||||||||
Working mode | ||||||||||||||
01 mode | AC mains priority | |||||||||||||
02 mode | ECO mode | |||||||||||||
03 mode | DC battery priority | |||||||||||||
Physical | ||||||||||||||
Packing size D*W*H(MM) | 530*335*250 | 740*335*270 | ||||||||||||
G.W.(KGS) | 14 | 16 | 18 | 20 | 31 | 33 | 35 | |||||||
Environment | ||||||||||||||
Humidity | 0~95%(NO CONDESNSATION) | |||||||||||||
Operating Temperature | 0~60℃ | |||||||||||||
Storage Temperature | 0~60℃ | |||||||||||||
*Product Specifications Are Subject To Change Without Further Notice | ||||||||||||||
