Horizontal Pressure Steam Sterilizer Hot selling medical sterilization machinery Cleaning and disinfecting equipment
- Category: >>>
- Supplier: Henan Junmu Medical Equipment Co. Ltd.
Share on (1601045828996):
Product Overview
Description
Product Description
150l 200l 280l 400l 500l Glass jar food sterilization mushroom sterilizing equipment horizontal autoclave
The horizontal autoclave,which adopted the way of gravity exchange to releasing the cold air from the chamber more completely to ensure the reliable sterilization.The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing.This unit is ideal equipment for clinics,scientific research institutes and other organizations to sterilizer surgical instruments,fabric glassed,culture media etc.

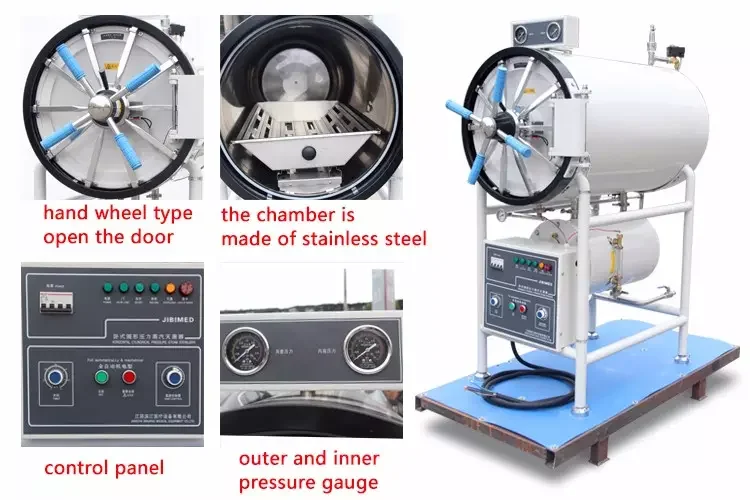

Main Features
1.Sterilizing course automatic sterilization controlled,easy to operate.
2.With drying function,suitable dressing drying.
3.With over-temperature,over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting
to the water tank.
6.The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.It is with tray in the chamber.
9.It could make the power 220V for 150L,200L machine.Over 280L,the power supply is 380V.
1.Sterilizing course automatic sterilization controlled,easy to operate.
2.With drying function,suitable dressing drying.
3.With over-temperature,over-pressure auto-protect device.
4.The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa.It can't be start on if the door doesn't close well.
5.The safety value will be open automatically when the inner pressure over 0.24MPa,and the steam be exhausting
to the water tank.
6.The power will be cut-off automatically,cut-off the water and alarm when the machine lacking water.
7.The chamber of the sterilizer is made of stainless steel.
8.It is with tray in the chamber.
9.It could make the power 220V for 150L,200L machine.Over 280L,the power supply is 380V.
Specification
Technical data | JM-150YDA | JM-200YDA | JM-280YDA | JM-400YDA | JM-500YDA | ||||
Sterilizing chamber volume | 150L φ440×1000mm | 200L φ515×1000mm | 280L φ600×1000mm | 400L Φ700×1100mm | 500L Φ700×1300mm | ||||
working pressure | 0.22MPa | ||||||||
working temperature | 134℃ | ||||||||
Adjustment of temperature | 105℃ - 134℃ | ||||||||
Time of sterilization | 0-60 min | ||||||||
Time of drying | 0-60 min | ||||||||
Heat average | ≤±1℃ | ||||||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz | ||||
Dimension | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 | ||||
Transport dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1800×1050×2100 | 1850×1050×2100 | ||||
G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/520 KG | 580/470 KG | ||||
Electric-thermal tube
There are three U-shape electric-thermal tubes at the bottom of water tank. each 3KW for AC380V three phase /AC220V(single phases).The unit input of power supply should conform to nameplate.
Please noted the power voltage could also make 220V, 50Hz,single phase for 150L,200L.
There are three U-shape electric-thermal tubes at the bottom of water tank. each 3KW for AC380V three phase /AC220V(single phases).The unit input of power supply should conform to nameplate.
Please noted the power voltage could also make 220V, 50Hz,single phase for 150L,200L.
Customer Feedback
Our Services
Professional sales:
•We value every inquiry sent to us, ensure quick competitive offer.
•We assist you on every direct purchasing,project and bid tenders. Provide all necessary document.
•We are a sales team, with all technical support from engineer team.
Ontime delivery time:
•We put your order into our tight production schedule, ensure your punctual delivery time.
•Production / inspection report before your order packed
•Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
•We respect your feed back after receive the goods.
•We provide 12-24 months warranty after goods arrive.
•We promise all spare parts available in lifetime use.
•We care your complain within 24hours.
WARRANTY:
This equipment will be enjoyed 1 year warranty according to the international standard .We will responsible for repairing it or replace the related accessories free of charge if any malfunction happened for the equipment's own quality problem from the date of purchase.
Please contact us if you need further information for these models !
Certifications
Related Products
Packing & Delivery
Delivery detail:
1.We ship autoclave by UPS/DHL/FEDEX/TNT express which is door to door ,you no need go out can get the autoclave,takes 3~ 5 days to arrive.
2.We can also help you ship the autoclave by air cargo which you need to go to Air port to take autoclave home,it takes about 2-7 days to arrive.
3.If autoclave are large quantity and you not need the autoclave so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive .
No matter what delivery way ,depending on your actual requirements.
1.We ship autoclave by UPS/DHL/FEDEX/TNT express which is door to door ,you no need go out can get the autoclave,takes 3~ 5 days to arrive.
2.We can also help you ship the autoclave by air cargo which you need to go to Air port to take autoclave home,it takes about 2-7 days to arrive.
3.If autoclave are large quantity and you not need the autoclave so urgently ,you can choose by sea to save some freight cost which takes about one month to arrive .
No matter what delivery way ,depending on your actual requirements.
Company Profile
Henan Junmu Medical Equipment Co., Ltd. is located in Zhengzhou, Henan Province, an international famous city. Junmu Medical is a professional supplier and service provider of disinfection and sterilization equipment and related products. The main products are vertical autoclave, horizontal autoclave, portable autoclave, plasma sterilizer, ethylene oxide sterilizer, etc. Widely used in supply rooms, operating rooms, endoscopy centers, dentistry, food factories, biological companies, laboratories, scientific research institutions, etc., we have become a professional supplier of domestic mass production, processing and export sterilization equipment. We have good after-sales service, and we look forward to providing you with the best service. If you have any products you like, we are willing to promote mutual cooperation opportunities with favorable prices.
