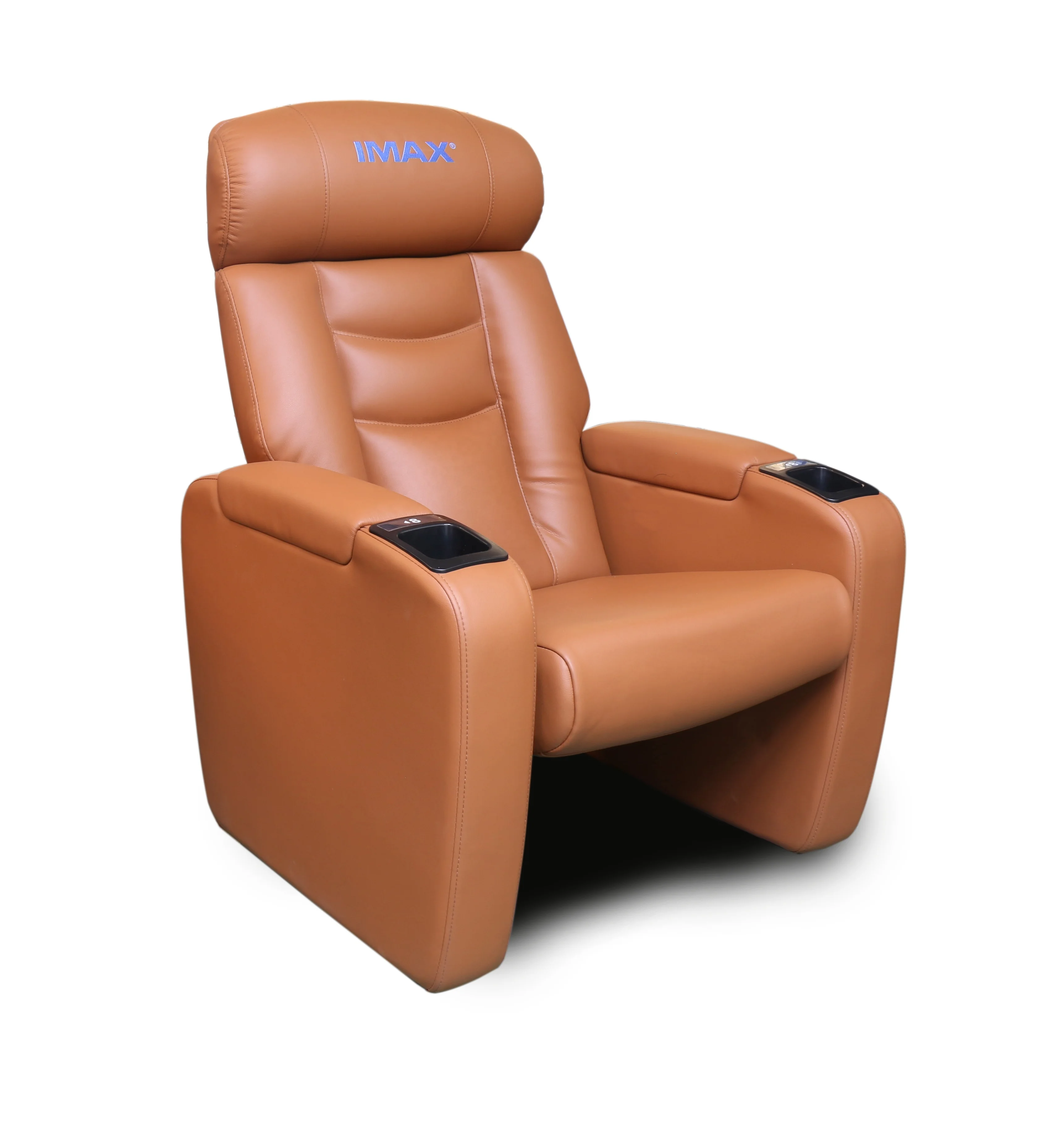

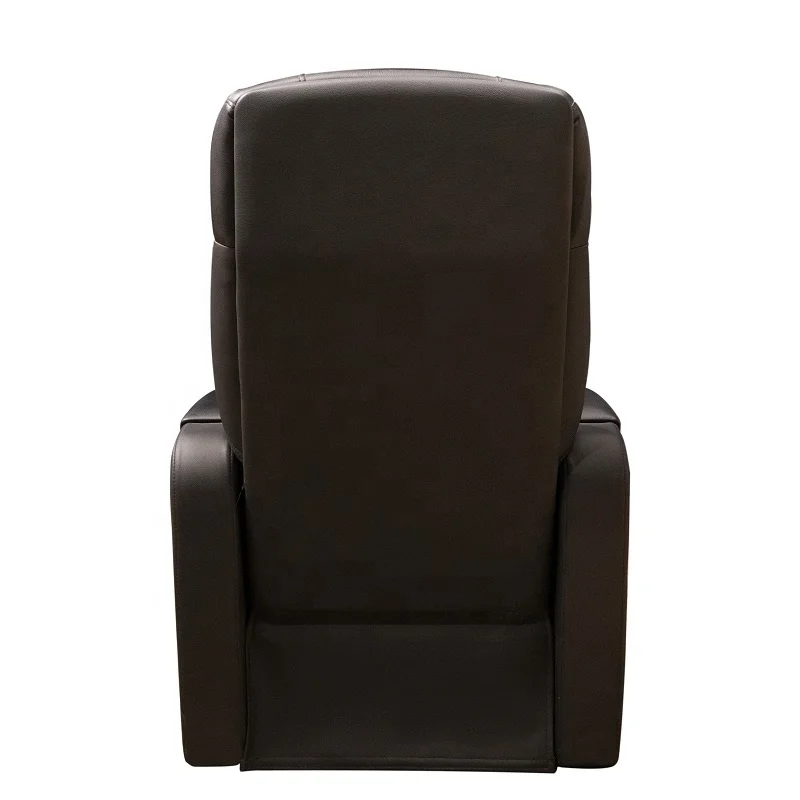

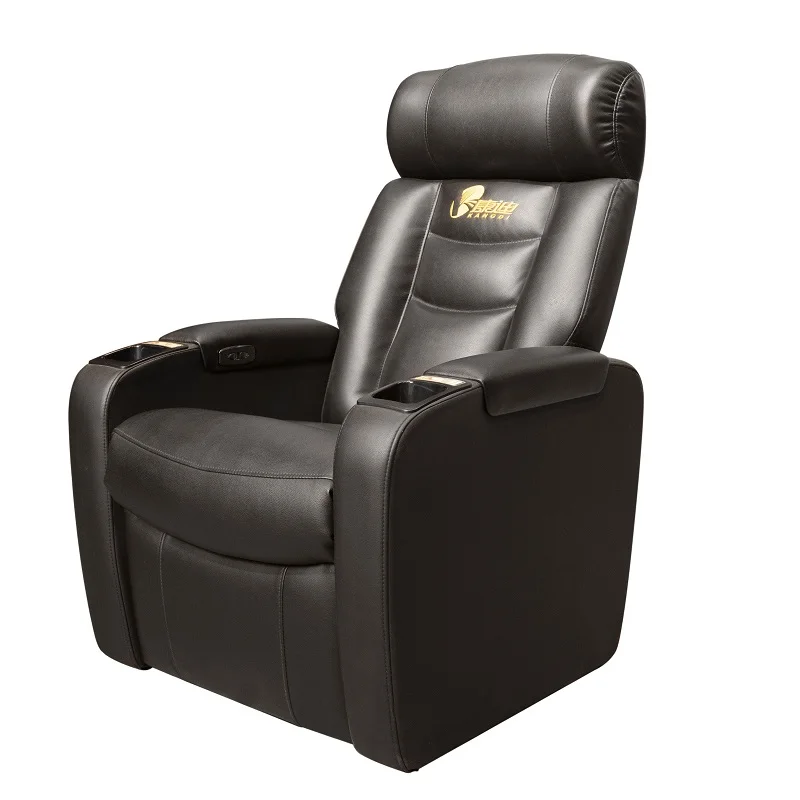

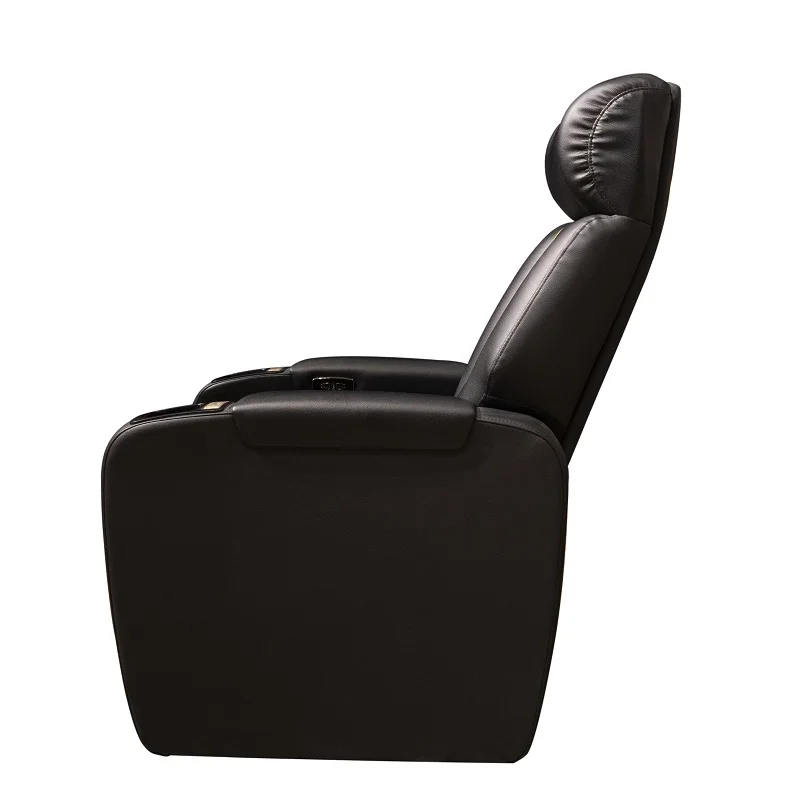

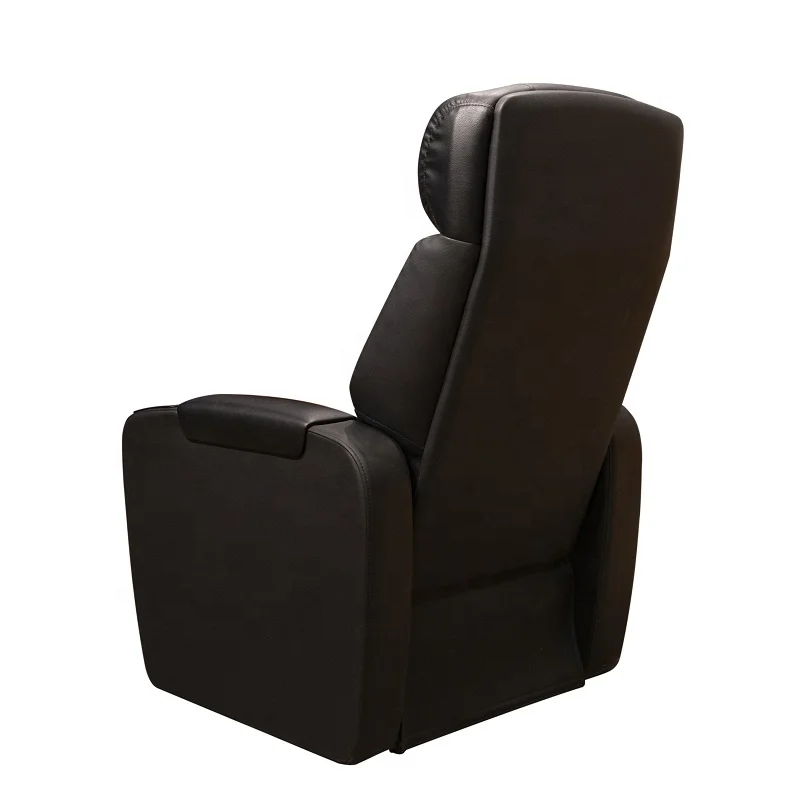

Functional Custom Leather Movie theater seat 5D Cinema Vibrating chair Seating
- Category: >>>
- Supplier: Hebei Muwei Film And Television Equipment Co. Ltd.
Share on (1601045864105):
Product Overview
Description
Product Name | Cinema vibration seat | Weight | .38kgs |
Brand | Muwei | Colour | custom |
Composition | Seat,vibrator,transformer,Controller | CBM | 0.5 |
Material | fabric/leather | MOQ | 50 |
Size | 580*780*1060mm | OEM/ODM | yes |
Product introduction
Product name: Vibrating seat
Brand: Muwei
Power: 100W
Resistance: 4Ω
Seat distance: 560mm/580mm
Function: The seat follows the sound effect in the film to produce the corresponding vibration effect, which is transmitted to the human body through the seat and the back of the chair, so that people can move together with the film.
Advantages of the seat: With the subtle vibration, you can get in close contact with the film, convert the audio signal into a vibration signal through the seat to the human body, and feel the shock of the film with the body
Brand: Muwei
Power: 100W
Resistance: 4Ω
Seat distance: 560mm/580mm
Function: The seat follows the sound effect in the film to produce the corresponding vibration effect, which is transmitted to the human body through the seat and the back of the chair, so that people can move together with the film.
Advantages of the seat: With the subtle vibration, you can get in close contact with the film, convert the audio signal into a vibration signal through the seat to the human body, and feel the shock of the film with the body
Manufacturing Technique

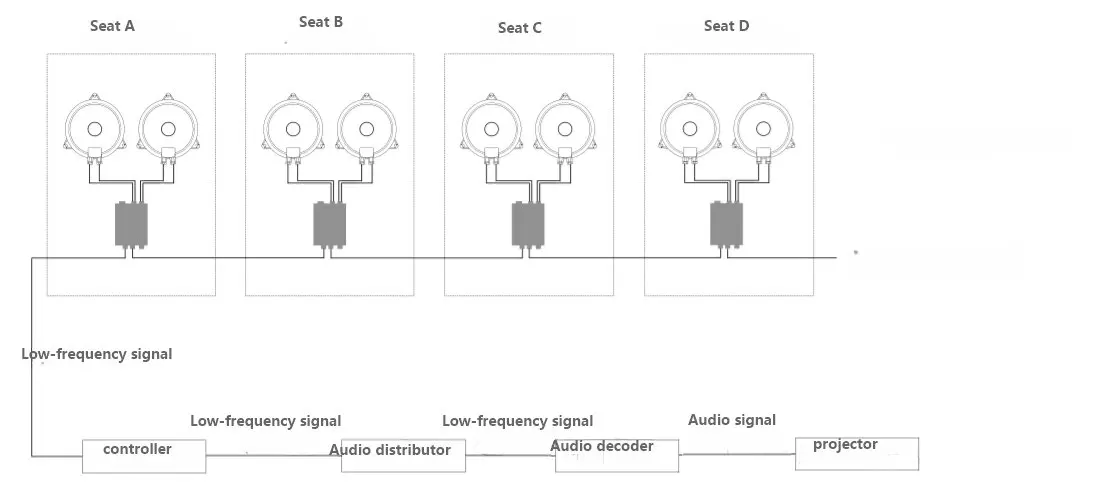

When the projector plays the movie, the audio signal is transmitted to the audio decoder through the network cable, and the audio decoder processes the audio of each channel and transmits it to the rear power amplifier. The vibration signal is separated from the bass signal interface of the audio decoder through the audio distributor to transmit the same low-frequency channel to the low-frequency controller of the 4D seat. In this way, the vibrating seat can receive a lossless pure bass signal to drive the seat vibration.
Two vibrators are located in the seat back and the seat cushion, and the side of the armrest is equipped with a manual switch, which can be manually turned off by some viewers who have heart problems or are not comfortable.
The backrest vibrator is installed on the fixed frame, and the fixed frame is located in the center of the backrest sponge, so that the vibrator can drive the fixed frame to vibrate, and the fixed frame drives the surrounding sponge to vibrate, so as to achieve local vibration of the backrest and reduce the impact of seismic force on other parts of the seat.
The cushion vibrator is installed on the curved spring, the curved spring is fixed in the seat skeleton, and the sponge is wrapped in the curved spring as a whole, so that the local vibration of the cushion can be achieved, and the impact of seismic power on other parts of the seat and the interference of the neighboring audience can be reduced
The cushion vibrator is installed on the curved spring, the curved spring is fixed in the seat skeleton, and the sponge is wrapped in the curved spring as a whole, so that the local vibration of the cushion can be achieved, and the impact of seismic power on other parts of the seat and the interference of the neighboring audience can be reduced

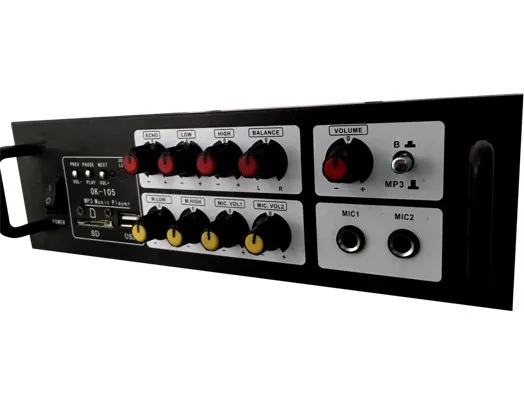

Device name: Low frequency controller
Brand: Muwei
Power: 80W
Size: 400*320*120mm
Device function: The low frequency controller is connected to the bass channel of the cinema decoder, and sends the bass channel sound to the low frequency vibration plate on each seat by amplifying the bass channel sound, and the low frequency vibration plate drives the low frequency vibrator to vibrate and realize the individual vibration of each seat.
Equipment advantages: The low frequency controller can adjust the vibration intensity of the vibration seat and optimize the vibration effect. The low frequency controller controls all the low frequency vibration versions to reach the seat vibration, so that the vibration frequency of all seats in the theater is equal. If the vibration effect is not enabled in the cinema, you can directly turn off the device
Brand: Muwei
Power: 80W
Size: 400*320*120mm
Device function: The low frequency controller is connected to the bass channel of the cinema decoder, and sends the bass channel sound to the low frequency vibration plate on each seat by amplifying the bass channel sound, and the low frequency vibration plate drives the low frequency vibrator to vibrate and realize the individual vibration of each seat.
Equipment advantages: The low frequency controller can adjust the vibration intensity of the vibration seat and optimize the vibration effect. The low frequency controller controls all the low frequency vibration versions to reach the seat vibration, so that the vibration frequency of all seats in the theater is equal. If the vibration effect is not enabled in the cinema, you can directly turn off the device

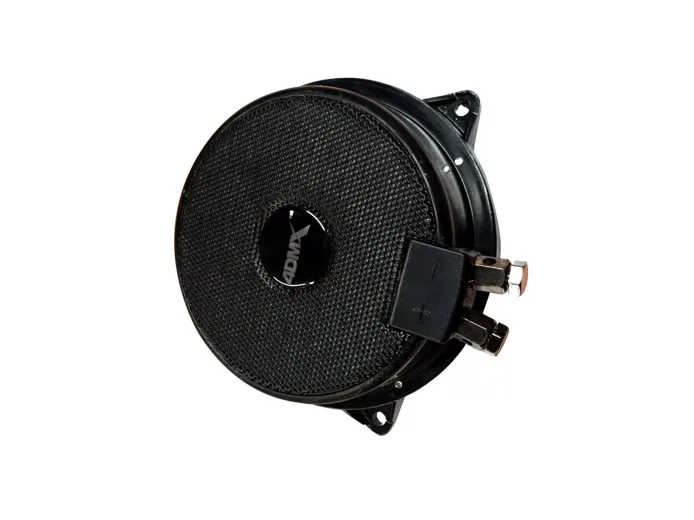

Device name: Low frequency vibrator
Brand: muwei
Power: 50W
Resistance: 4Ω
Size: 160*160*50mm
Device function: This device can be installed in the seat cushion part, can produce strong low-frequency vibration with the heavy bass effect of the film, so that people can feel the earthquake, tsunami, train collision, explosion and other strong vibration effect in the film picture.
Equipment advantages: This device in the market on the basis of the existing vibrator to improve, increase the original vibration force, installed in the seat to make the seismic force distribution more uniform, current and voltage are safe voltage, the surface of the mesh cover heat dissipation performance is very strong, and has overheating protection function, power consumption is very small.
Brand: muwei
Power: 50W
Resistance: 4Ω
Size: 160*160*50mm
Device function: This device can be installed in the seat cushion part, can produce strong low-frequency vibration with the heavy bass effect of the film, so that people can feel the earthquake, tsunami, train collision, explosion and other strong vibration effect in the film picture.
Equipment advantages: This device in the market on the basis of the existing vibrator to improve, increase the original vibration force, installed in the seat to make the seismic force distribution more uniform, current and voltage are safe voltage, the surface of the mesh cover heat dissipation performance is very strong, and has overheating protection function, power consumption is very small.

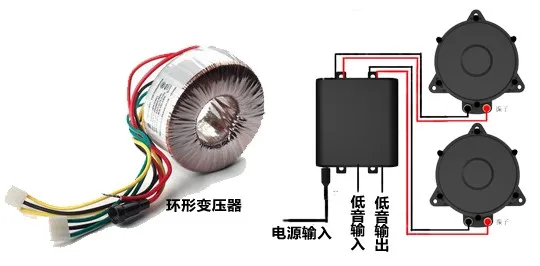

Ring transformer:
Significantly higher power than ordinary transformers, stable voltage,
Very low AC noise, suitable for the audio industry
Low frequency vibration plate:
Individual modular audio boards for each seat,Enhance seat stability and reduce damage caused by series and parallel vibrators.
Significantly higher power than ordinary transformers, stable voltage,
Very low AC noise, suitable for the audio industry
Low frequency vibration plate:
Individual modular audio boards for each seat,Enhance seat stability and reduce damage caused by series and parallel vibrators.
