Wear resisting A H Centrifugal Mine Slurry Pump and Spares Parts Impeller Volute Liner

Product Overview

Description



Wear-resisting A H Centrifugal Mine Slurry Pump and Spares Parts Impeller Volute Liner



Slurry pump parts

Completely interchangeable with NH, L, M, HH, SP slurry pumps and G/GH gravel pumps

For unlisted slurry pump parts, OEM service offered. Drawings needed.



 Materials

High chrome alloy: A05, A07, A49, etc.

Natural rubber: R08, R26, R33, R55, etc.

Other material as per requests, like stainless steel, duplex stainless steel, Nickle alloy, Alloy 20, etc.

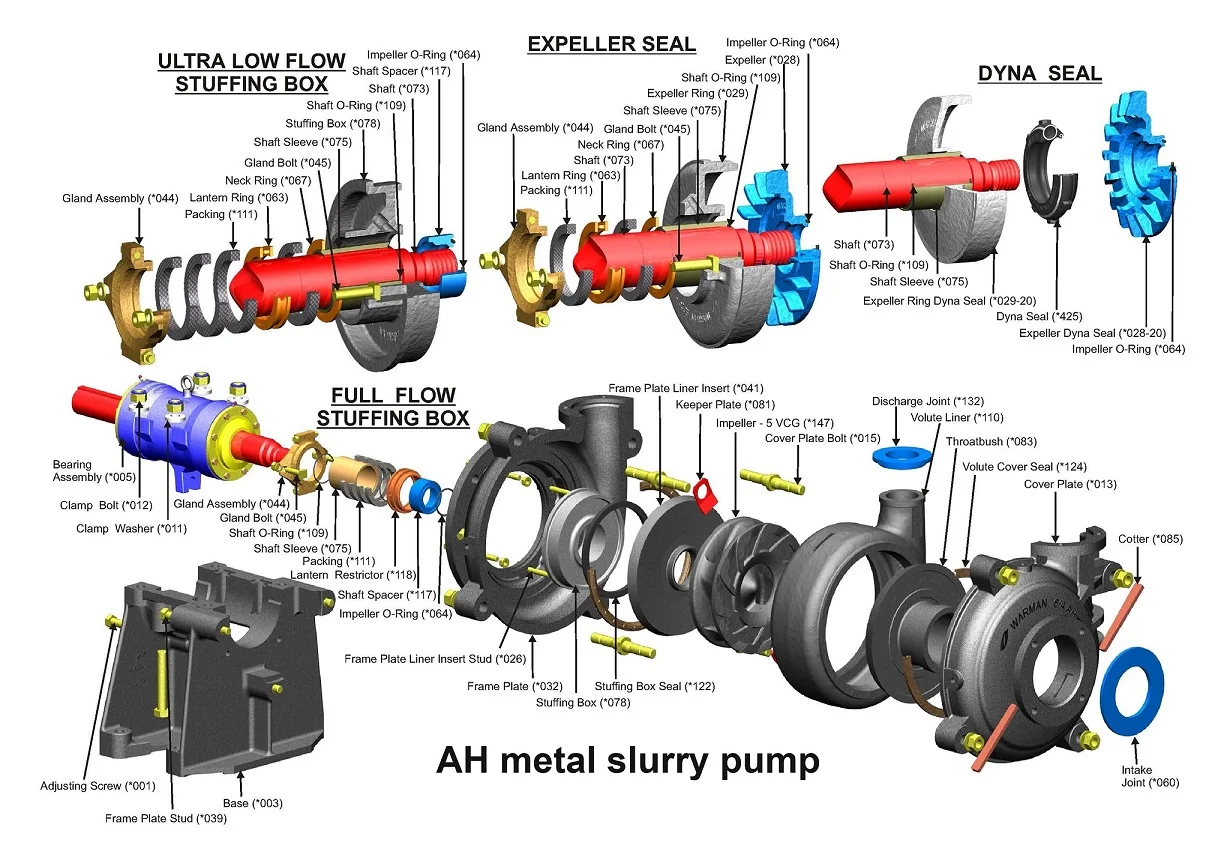

No.	Name	Material
1	Impeller	High-chrome alloy
		Natural Rubber
2	Volute casing	High-chrome alloy
3	Front liner plate	High-chrome alloy
		Natural Rubber
4	Rear liner plate	High-chrome alloy
		Natural Rubber
5	Liner	High-chrome alloy
6	Expeller	High-chrome alloy
7	Shaft sleeve	3Cr13
8	Water-seal ring	High-chrome alloy
9	Shaft	45#steel quenching And high temperature tempering
10	Bearing housing	Gray iron
11	Expeller ring	High-chrome alloy
		Natural Rubber
12	Front casing	Gray iron or Nodular cast iron
13	Rear casing	Gray iron or Nodular cast iron
14	Base	Gray iron
15	Support	QT500-7







Short delivery time



For some parts, stocks are available. We have large producing capacity to shorten the delivery time.



OEM part codes

Here we list some OEM part codes for reference:

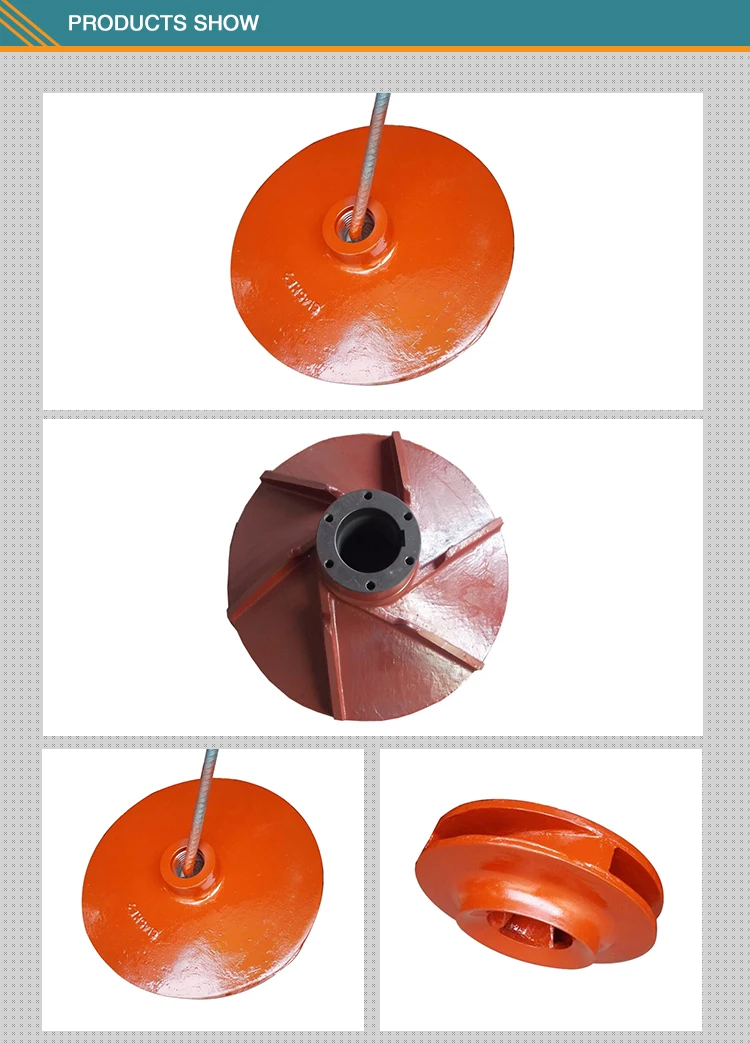

Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...

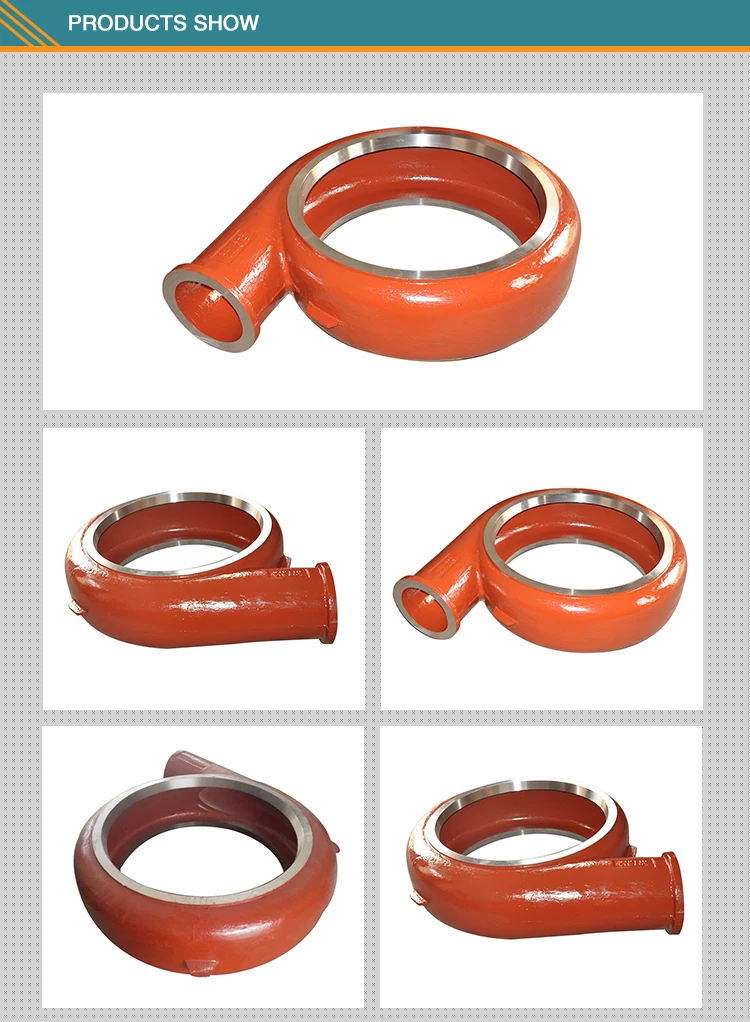

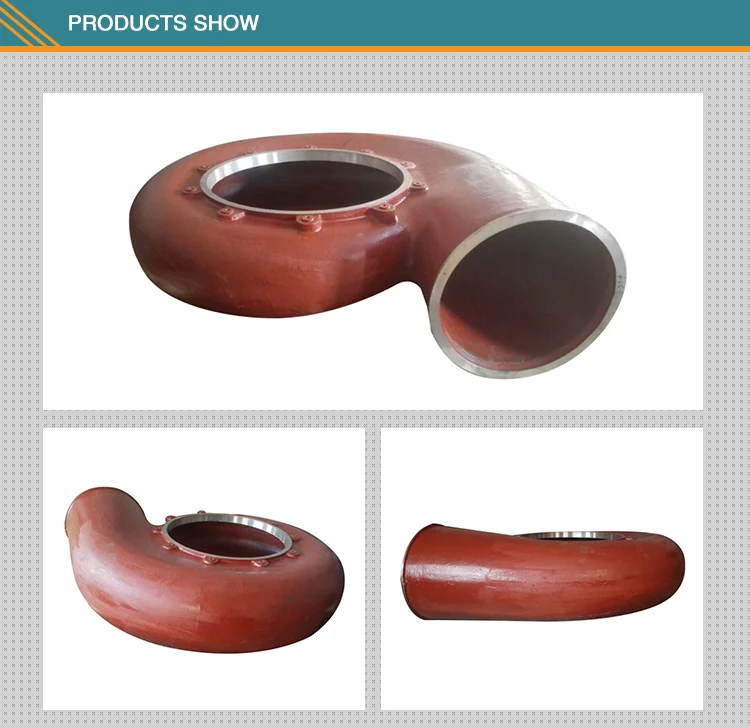

Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...



NH Series Heavy Duty Slurry Pump Throat Bush code:
6/4 D-NH Slurry Pump  code: E4083
6/4 E-NH Slurry Pump  code: E4083
8/6 E-NH Slurry Pump  code: F6083
8/6 F-NH Slurry Pump  code: F6083
10/8 F-NH Slurry Pump  code: F8083
10/8 ST-NH Slurry Pump  code: G8083
12/10 ST-NH Slurry Pump  code: G10083
14/12 ST-NH Slurry Pump  code: G12083

G Series Sand Gravel Pump
12/10G-G Sand Gravel Pump Throat Bush code: FG10013
14/12G-G Sand Gravel Pump Throat Bush code: GG1412013

Frame & Bearing Assembly types

Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.



Meeting international standards



The quality management systems of Nainater slurry pump are accredited to ISO 9001:2000 and our environmental management systems are accredited to ISO 14001:2004

Testing Equipment

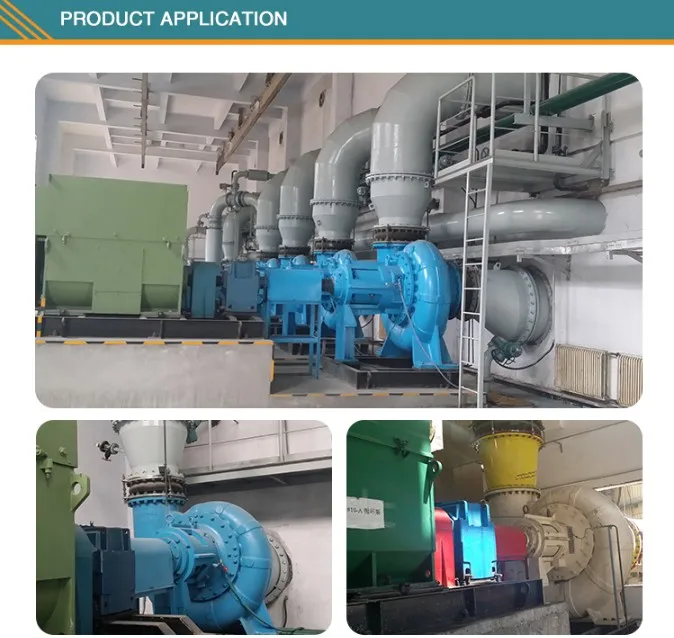

Products and application



 Shipment
