rotary vane lpg pump
- Category: >>>
- Supplier: Shanghai Cowell Machinery Co. Ltd.
Share on (1601045891762):
Product Overview
Description

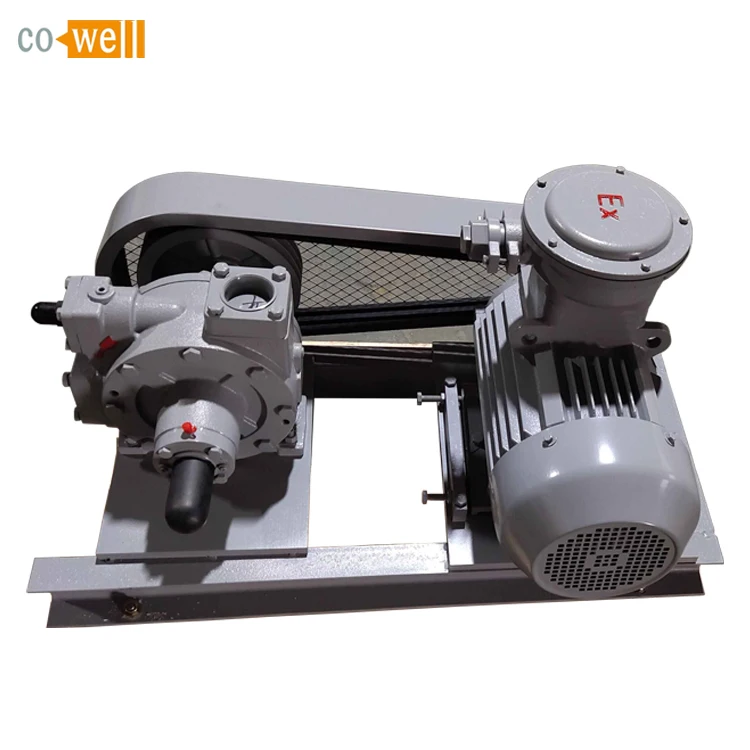

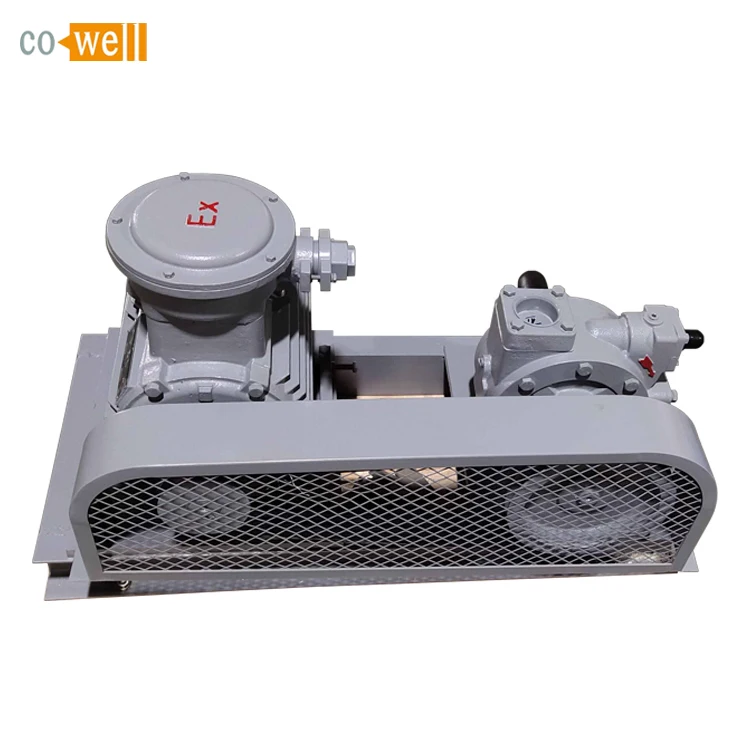

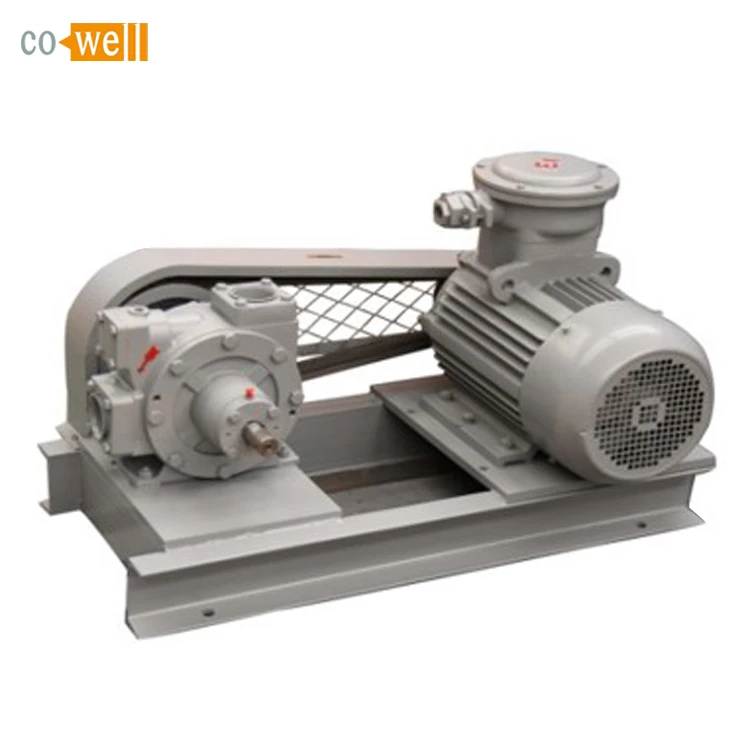

LYB-2000 2" 50mm LPG positive displacement Vane Pump with coupling drive &motor
Advantage
•Innovative cam design virtually eliminates cavitation.
•New materials utilized in cam & blades, and heavy dutybearings extending pump life.
•Single mechanical seal, easy seal replacement andmaintenance.
•Large non-metallicepins are suitable for higher pump speed.

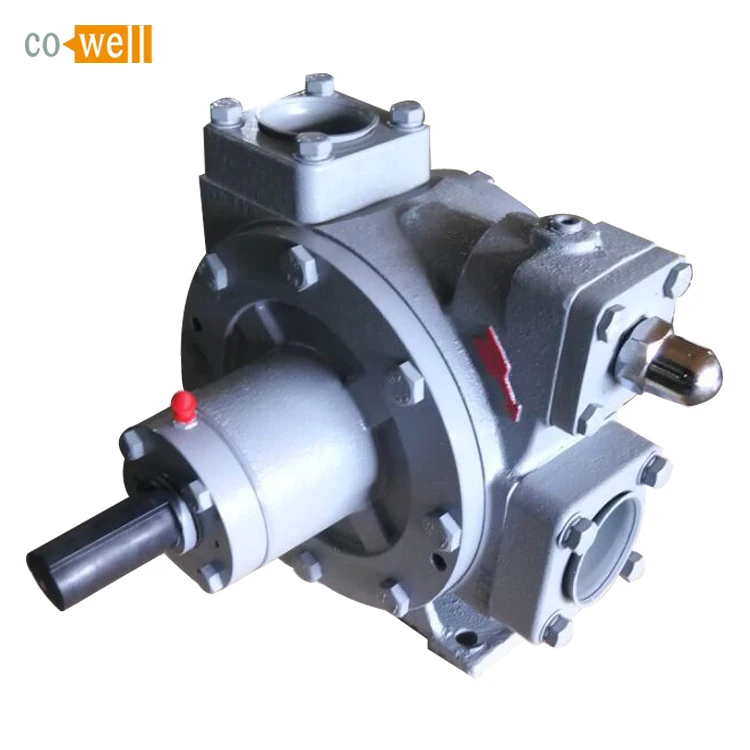

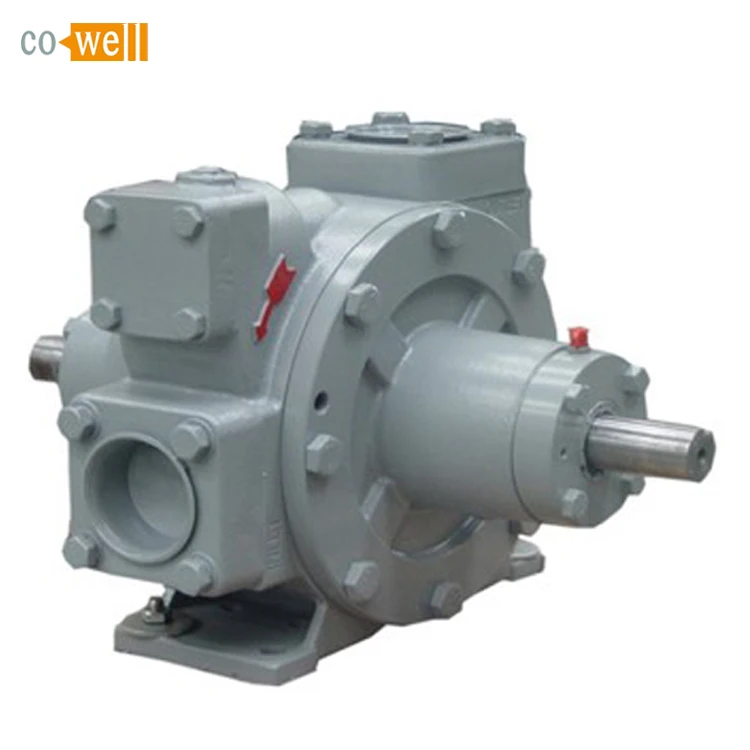

pump only
Coupling drive
 |

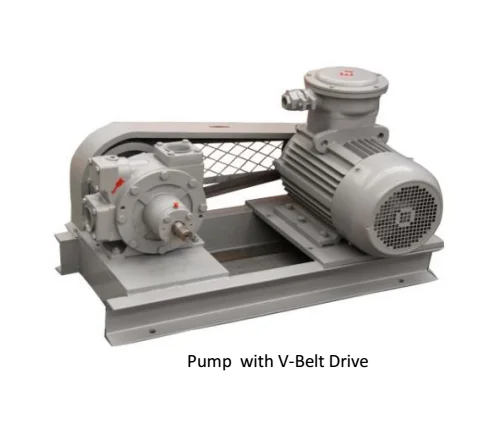

V- belt drive
FlowRate | |||
Speed RPM | Differential Pressure (Bar) | Flow Rate (L/min) | Power (KW) |
800 | 3.4 | 323 | 2.3 |
6.9 | 287 | 4.6 | |
650 | 3.4 | 261 | 1.9 |
6.9 | 227 | 3.8 | |
500 | 3.4 | 189 | 1.4 |
6.9 | 155 | 2.9 | |
Technical Specification | |
Inlet & Outlet: | 50mm/2" |
Max. Working Pressure: | 28.6 Bar |
Differential Pressure: | 8.6 Bar |
Max.Speed: | 800RPM |
Temperature: | -32oC~+107oC |
Internal Relief Valve: | Yes |
- ApplicationTypical applications for LPG, NH3 bulk transfer include LPG cylinder filling
- loading and unloading of bulk trucks and transport trailers.
 | ||
| Warranty: the product is guaranteed for 12 months from the date of delivery under normal condition. | Customers will enjoy free repair services for failures found within the warranty due to manufacturing quality; | We provide paid repair services for products damages not arising from manufacturing quality issues or not within the scope of warranty. |
