Industrial Efficient Port Gantry Cranes Wood Gantry Crane with PLC Engine Manufacturing Plants

Product Overview

Description



Low Price Building Box Single Girder Gantry Crane 15 Ton 30 Ton Electric Hoist Lifting

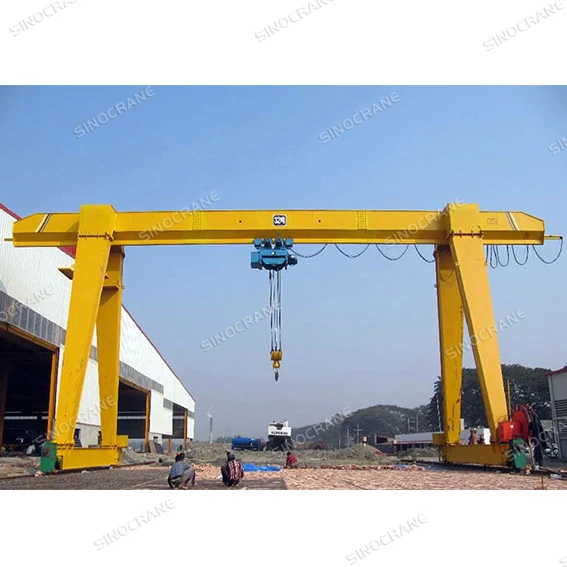

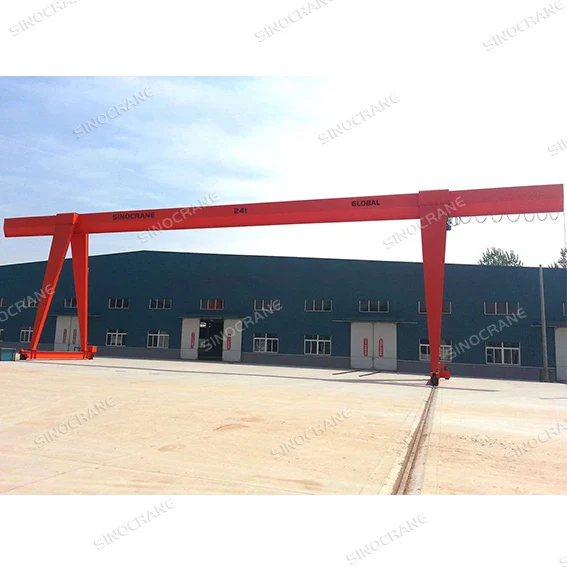

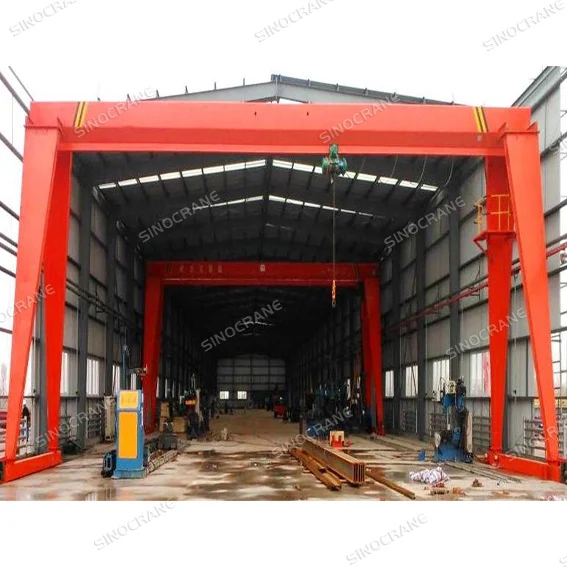

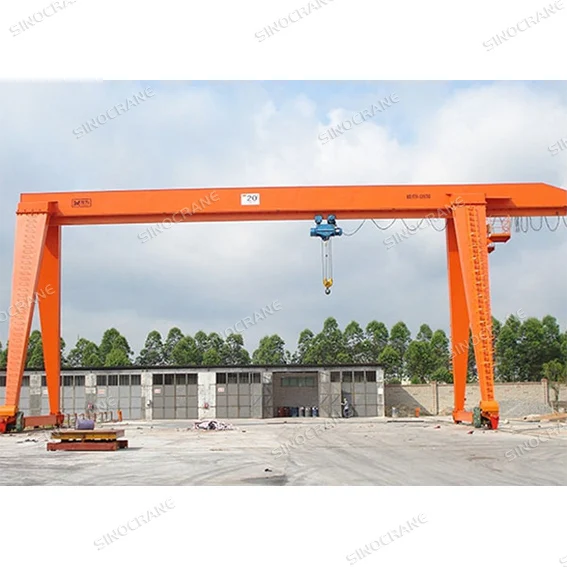

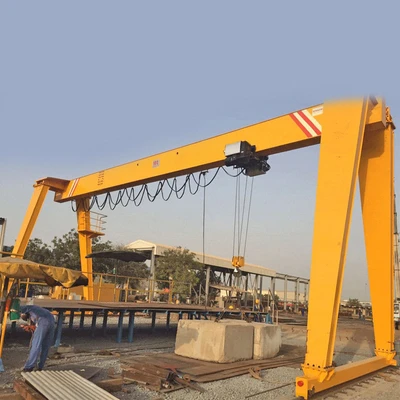

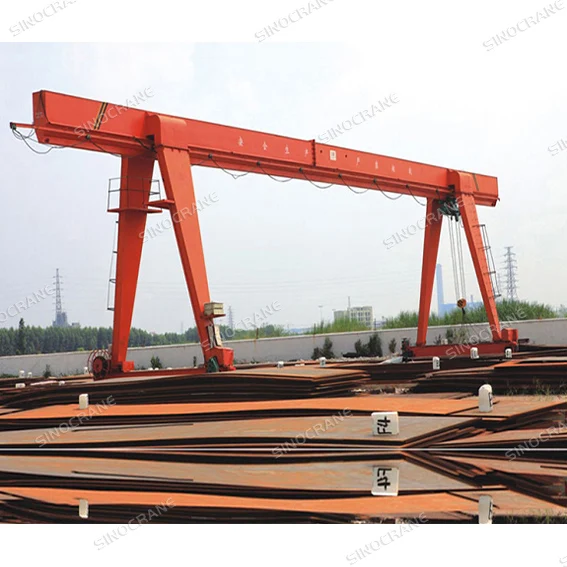

MH Single Girder Gantry Crane



Lifting Capacity	1-32 Ton (Customized)
Lifting Height	6-100m (Customized)
Span	5-35m (Customized)
Working Class	A5,A6



MH series single beam gantry crane: its lifting weight can be reach 32 tons, and as to lifting height and the span of crane can be customized according to clients’ requirements.



Note: Most of our gantry cranes can be customized, please contact us(SINOCRAEN) to get the most economical and reasonable lifting solution for you.



Overview



This MH series single girder gantry crane can meet the practical application of lots of working conditions. What’s more, it is cost-effective, installation and commissioning easily, in addition, has feature: low maintenance cost. Max lifting capacity of MH series electric hoist single girder gantry crane can be up to 32 tons with CD/MD series electric steel wire rope hoist or ELK electric chain hoist.

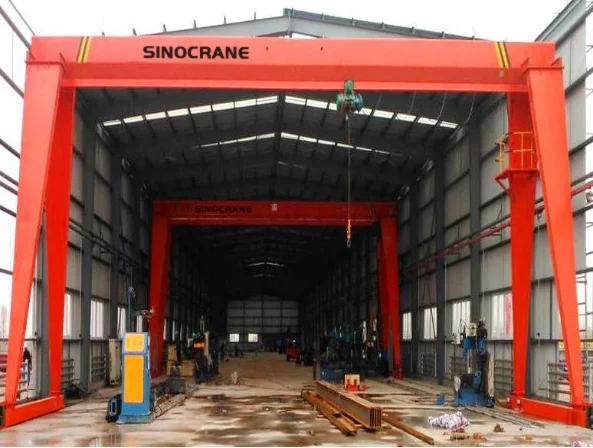

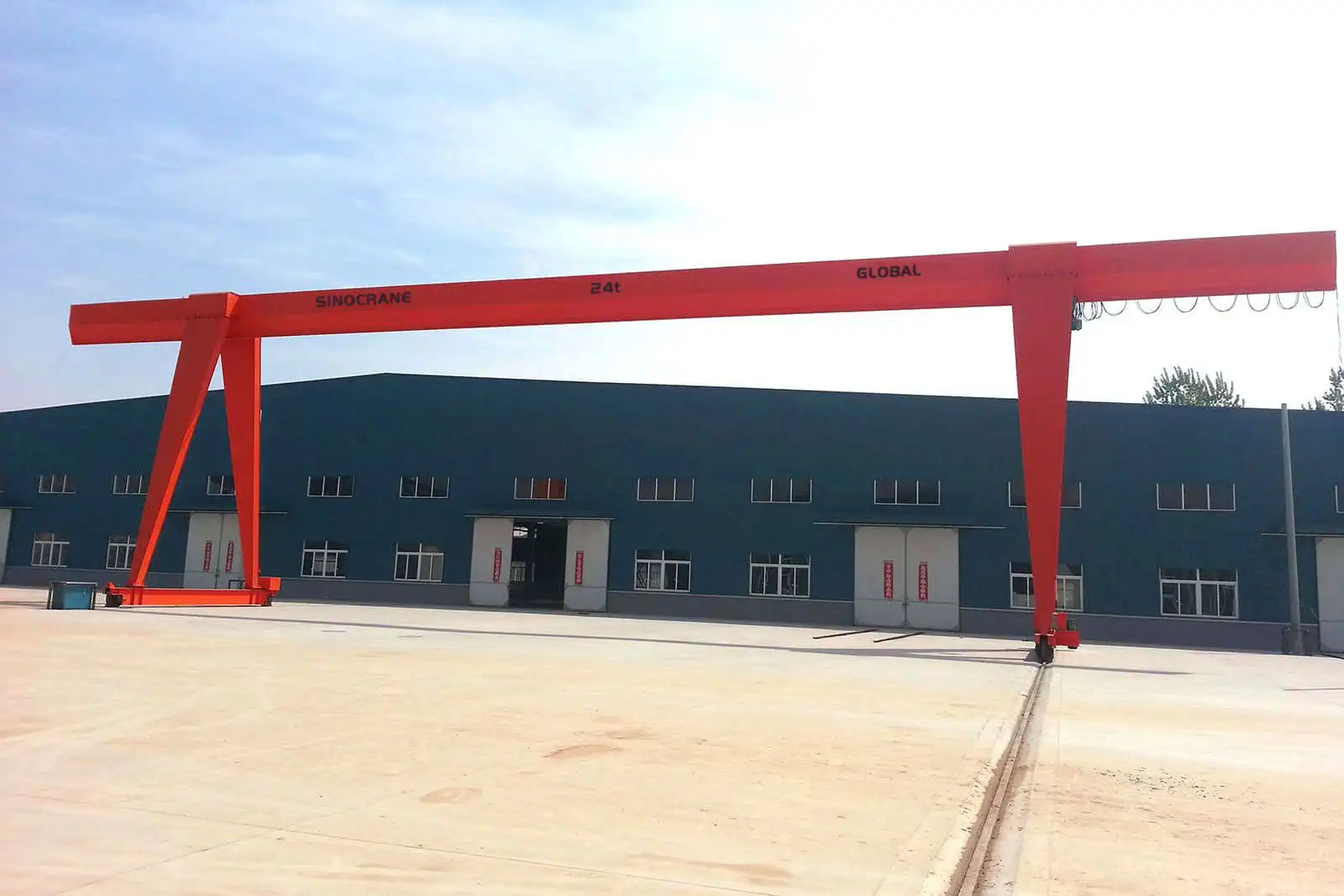

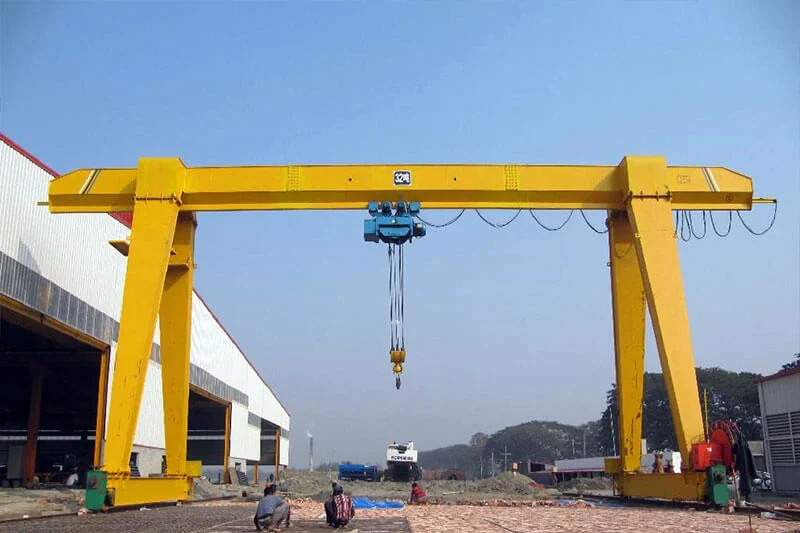

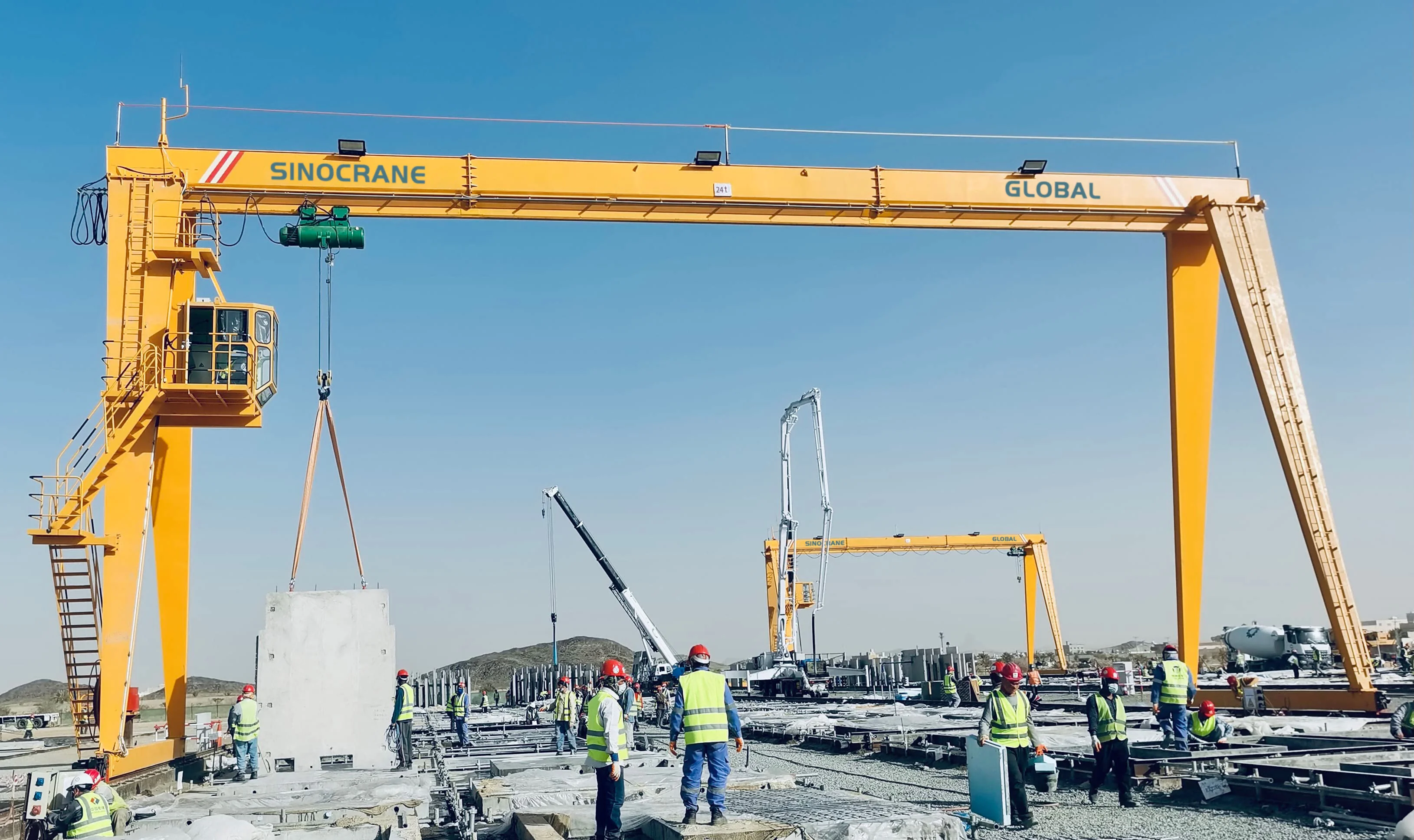

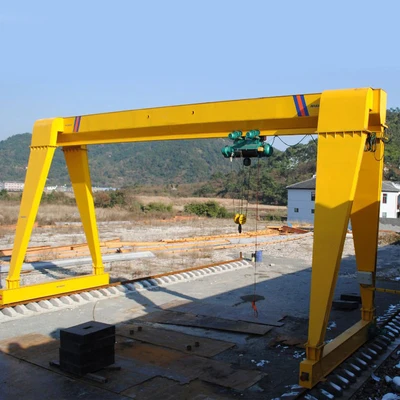

MH series single girder gantry cranes are widely used for outdoor operation in storage yards or loading areas. MH series gantry cranes are applied for outdoor conditions and indoor conditions.



MH series single girder gantry crane: lifting capacity can be up to 32 tons, its span and lifting height can be customized according to real requirements.







Note: Most of the single girder gantry cranes are customized products, please contact us(SINOCRANE) to get the most economical and suitable lifting solution for you.

1. Design according to standards FEM and CMAA70.

2. Crane main girders are made of computer-optimised box sections.

3. End carriages of strong rigid, welded box-section design.

4. Wheel group with adjustable structure.

5.Crane is equipped with frequency conversion Three-In-One mechanism. Crane components with high safety and reliability.

6. Based on different working environment, height limiter, overload limiter, stroke limiter, and other security measures are equipped.

7. For smoothly lifting and exact position of loads, with low-sway travel motions.

8. Ergonomically designed control units make efficient.

9. Lifting capacity: 1~32t, non-standard customized crane can be produced according to clients’ needs.





Personalized configuration

Optimum integration into existing and new material storage yards and handing areas.

Control pendant suspended for separate travel on the crane girder.

Radio control with display and push buttons possible (optional).

Optional remote radio control with power and signal transmission.





Features:



l Effectively braking, smoothly moving, long service life.

l Crane spare components with high safety and high reliability.

       l Crane is controlled by Three-In-One mechanism with frequency conversion can reduce the noise of the equipment.





Design and Construction Rules
All the standards which are required for the cranes are the FEM standard, DIN standard and Chinese National standard.

Europe Main National Standards
--  89/392/EEC standard (93/68/EEC)
--  91/368/EEC standard
--  73/23/CEE standard
--  "EMC" standard 89/336/EEC
--  EN 60204-1
--  EN 292 mechanical safety
--  ISO 2141
--  ISO 2766
International Standards
--  June 9, 1993 / Sept. 22, 1993 notice
--  July 29, 1992, 92-765, 92-766, 92-767 notice
--  DIN 5684
--  DIN 15400; DIN 15401
--  NFE 26-010
--  NFE 26-030
Technical Standards
--  FEM 9.511    Mechanical group
--  FEM 9.661    Hoisting and traveling components size and quality standard
--  FEM 9.671    Wire rope quality standard
--  FEM 9.681    Travel motor choice
--  FEM 9.682    Hoisting motor choice
--  FEM 9.755    Electric hoisting equipment
--  FEM 9.811    Electric crane standard
--  FEM 9.901    Hoisting components design reference
--  IEC 34-1      Traveling and allocation performance
--  IEC 34-5      Protection grade standard
--  IEC 947-5-1   Low voltage equipment
China Main National Standards
Design rules for cranes             GB/T 3811-2008
Safety rules for lifting appliances          GB 6067-2010
Common crane technical condition          GB 7592-87
Crane-Gantry crane





Notes: If you want to ask any questions about this product directly with us, pls click here !



Send your Inquiry Details in the Below, Click " Send " Now!

If you would like us to provide an accurate quote within 12 hours, please write down the following information:

Lifting Capacity is ____t
2. Span is____m
3. Lifting Height ____m
4. Working Conditions_____
5. Power source is____v,____hz, ____phase.
6. Your contact information. Both Email and phone number are essential.











FAQ



1. What information should I provide to get the price?

Specific parameters such as lifting capacity, lifting height, span,power supply voltage, control method, etc. And if you can give us your design drawing, that will be very helpful to get an quotation.

2. Can you customize product ?

Yes, of course. we are manufacturer, and we have a lot of experienced engineers,They can design products according to cus.

3. How can you ensure your quality?

Before the delivery, every products will be tested. You are also warmly welcomed to come to our factory for inspection.

4. Which brand are the crane parts and components?

We have a long term cooperations with ABB, Siemens, Schneider, SEW, etc. And we have the world's leading machining, forging and welding machinery and processes.

5. Do you sell crane accessorries?

Yes, of course, we can provide motors, reducers, brakes, hooks, remote controllers, wheels, crane rails, end carriages, busbar and so on.



The manufacturing technology level is leading in China.the production scale and capacity are in the forefront of the same industry. Our mission is to supply the full solution for all types of crane systems.
