CCS, BV, ABS Approved 600m3/h Diesel Engine Driven Fire Fighting FiFi Pump
$10,000.00-30,000.00
Guangzhou manufacturers hfc227ea piston flow system fm200 fire fighting equipment
- Category: >>>
- Supplier: Guangzhou Xingjin Fire Equipment Co. Ltd.
Share on (1601045923668):
Product Overview
Description
Product Description
Guangzhou manufacturers hfc227ea piston flow fm200 fire fighting equipment
Product Parameters
No. | Name | Specification |
1 | Device Model | QMQ5.6/90W-XJ, QMQ5.6/120W-XJ, QMQ5.6/150W-XJ, QMQ5.6/180W-XJ, QMQ4.2/245W-XJ |
2 | Cylinder Volume | 90Ltr, 120Ltr, 150Ltr, 180Ltr, 245Ltr |
3 | Filling Capacity of Gas | 112.5kg, 150kg, 187.5kg, 225kg, 306.25kg |
4 | Max Working Pressure | 8MPa, 5.3MPa |
5 | Max protected area | Single zone: 800m2 |
6 | Max protected volume | Single zone: 3600m3 |
7 | Spraying Time | ≤10s |
8 | Agent Filling Density | ≤1250kg/m3 |
9 | Power | DC24V/1A |
10 | Pressure of Adding Pressure Cylinder | 13.5MPa |
11 | Pressure of Driving Device | 6.0MPa(20℃) |
12 | Condition of Reserving Room for Container | Temperature: 0~50℃ |

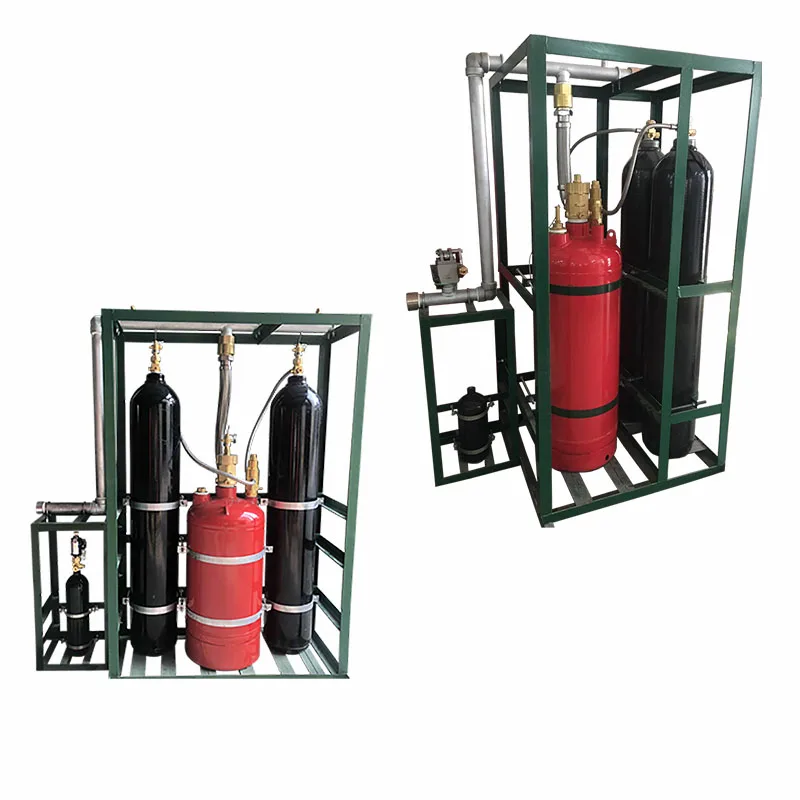

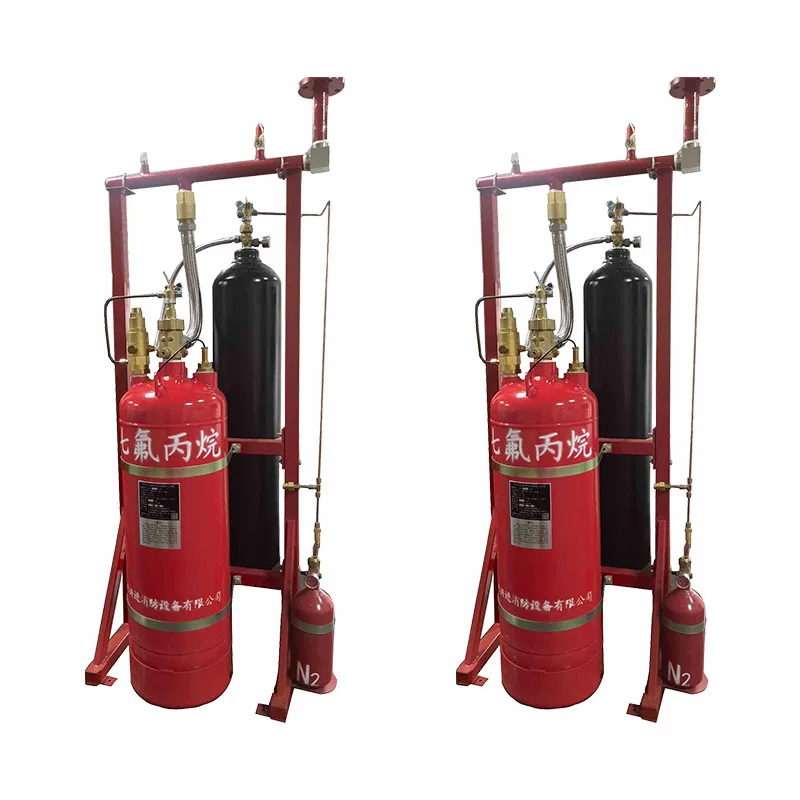

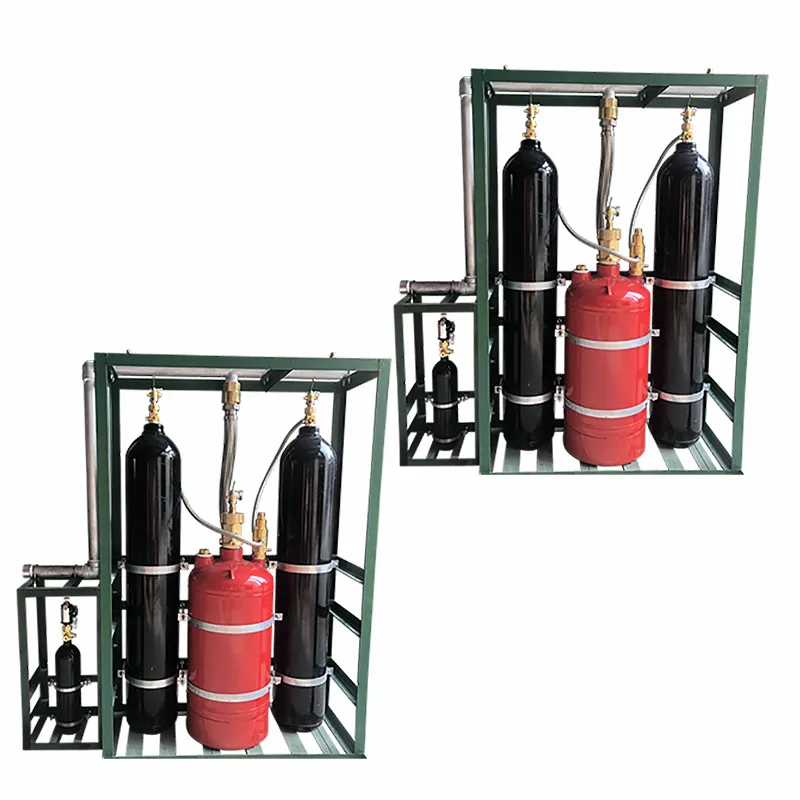

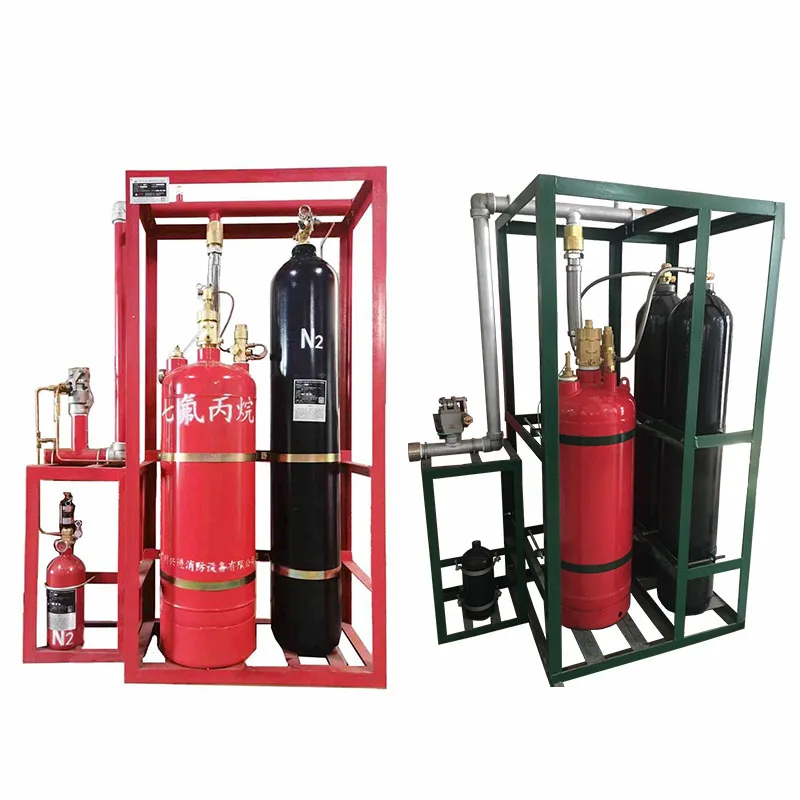

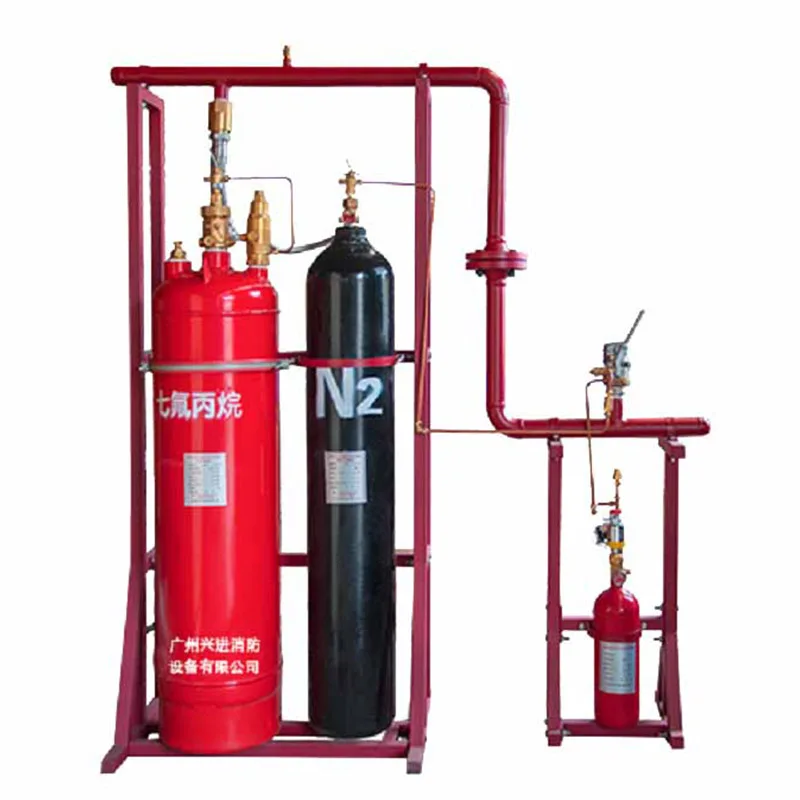

Detailed Images
System Composition
This system mainly consists of agent storage cylinder, container valve, driving cylinder group, adding pressure cylinder group, distributing valve, liquid flow check valve, gas flow check valve, safety valve, pressure switch, frame, nozzle, high pressure hose, pressure-relief device, level gauge, relief valve, pipe system, which can constitute the unit independent system. Combined distribution system and other forms can implement fire protection for single and multiple zones.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Pipe fittings are those conduits to connect extinguishing device and guide agent into protective zone, like high pressure galvanized steel pipe and flange and elbow.
Electrical accessories are those things which are used to detect and monitor whole protective area and control whole system, also warn people to evacuate and prevent from fire expansion.
These integrated three parts will be efficient to detect and supervise and alarm and extinguish fire automatically.
Proven Technology
Clean, leaves behind no residue
Safe for discharge into occupied spaces
Cost effective engineered system, providing maximum protection
Sustainable technology providing an environmentally-conscientious solution
Clean, leaves behind no residue
Safe for discharge into occupied spaces
Cost effective engineered system, providing maximum protection
Sustainable technology providing an environmentally-conscientious solution
Data centres; Server rooms; Comms rooms; Electrical distribution rooms; Control rooms;
Museums & archives; Laboratories;
Museums & archives; Laboratories;
Anechoic chambers; Marine vessels;
Medical records storage; Military;
Power generation & power storage;
Power generation & power storage;
Telecommunications; Transportation;
Paint storage; Battery rooms;
Large manufacturing complexes; Multi level sites;
Clean rooms
Large manufacturing complexes; Multi level sites;
Clean rooms
Related Products
Certificate
Environmental Management System Certificate
Quality Management System Certificate
Occupational Health and Safety Management System Certificate
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
• We provide 8×6 hrs technical support and service.
FAQ
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
