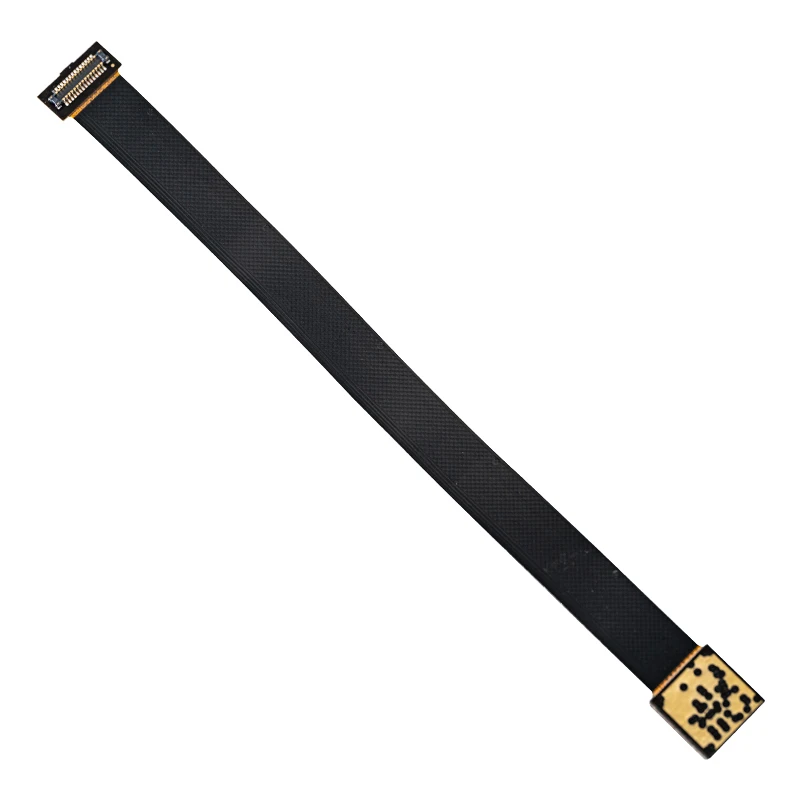

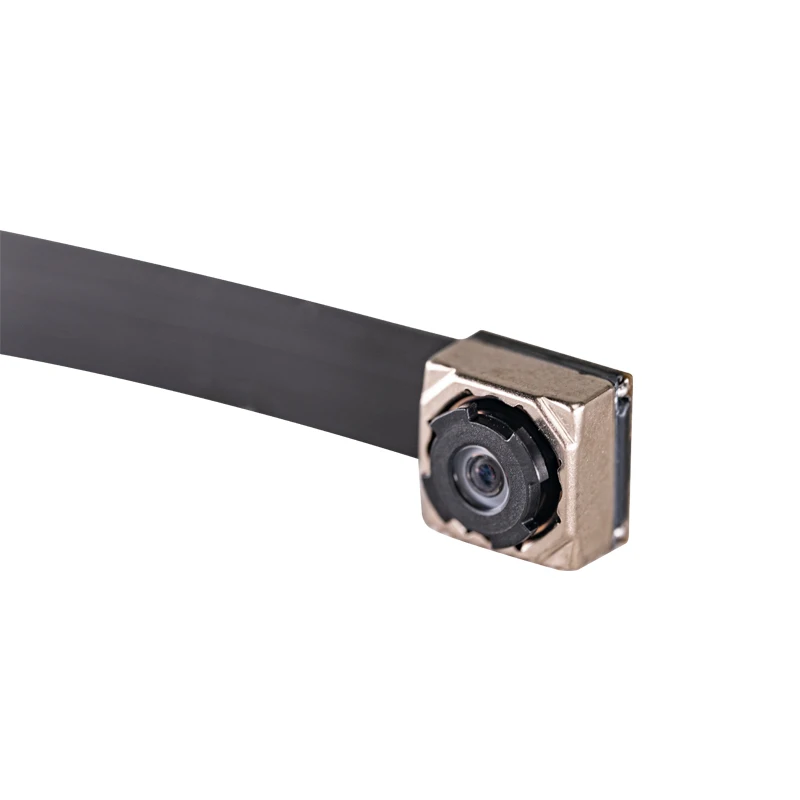

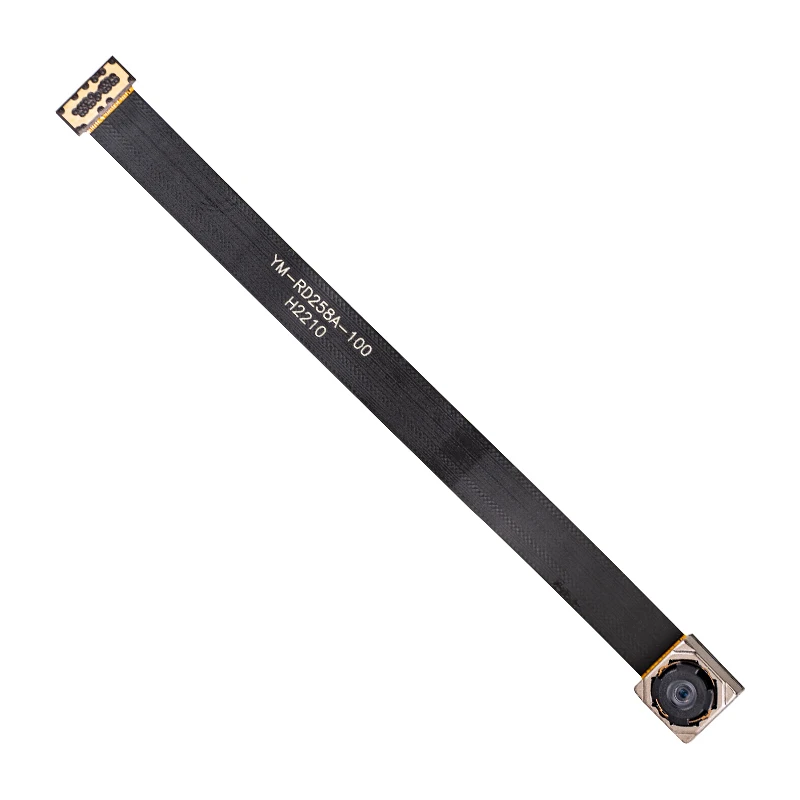

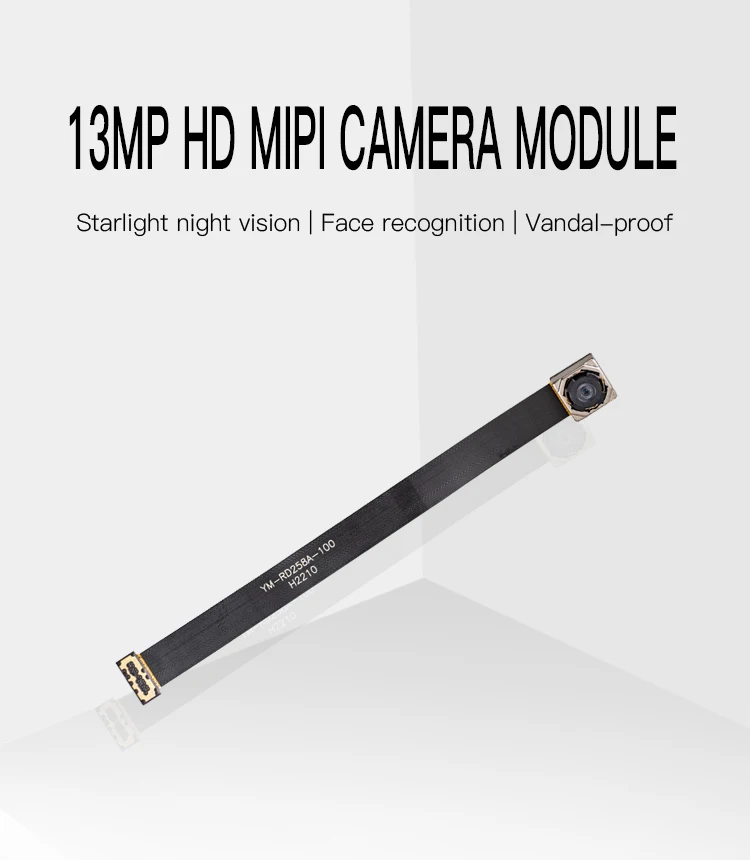

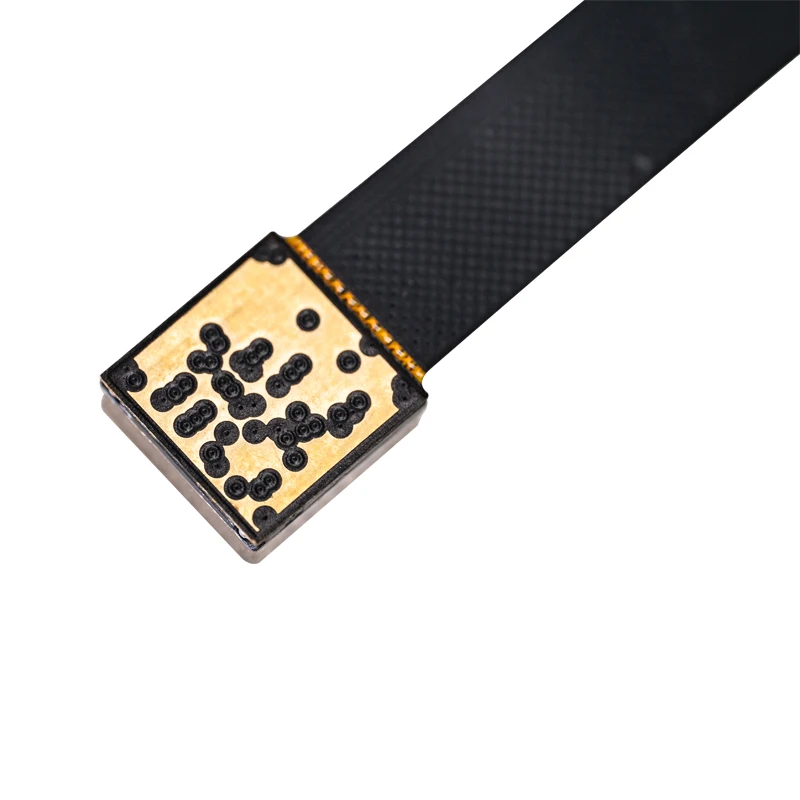

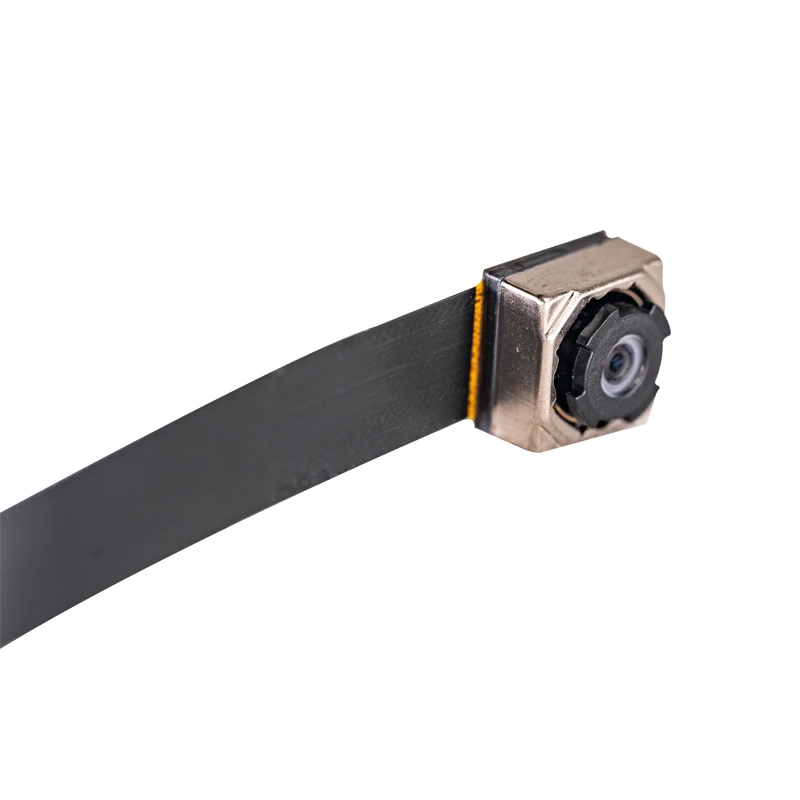

13MP Mipi IMX258 cmos Image sensors HDR Auto Focus camera module
- Category: >>>
- Supplier: Shenzhen Zheng Pin Yi Photoelectric Technology Co. Ltd.
Share on (1601045927919):
Product Overview
Description
Chip Size: | 1/3 | Pixels: | 13MP | |||
Lens slides: | 6P | F/NO: | 2.4 | |||
EFL: | 3.35mm | Fov(D): | 137° | |||
TV Distortion: | ＜19.35% | |||||
Description: IMX258-0AMH5-C is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.7 V, digital 1.2 V and 1.8 V for input/output interface and achieves low power consumption. Functions and Features: ◆Back-illuminated and stacked CMOS image sensor Exmor RS ◆High Dynamic Range (HDR) mode with raw data output. ◆High signal to noise ratio (SNR). ◆Full resolution @30fps (Normal / HDR).4K2K @30fps (Normal / HDR) 1080p @60fps (Normal) ◆Output video format of RAW10/8. ◆Pixel binning readout and V sub-sampling function. ◆Independent flipping and mirroring. ◆CSI-2serial data output (MIPI 2lane/4lane, Max. 1.3Gbps/lane, D-PHY spec. ver. 1.1 compliant) ◆2-wire serial communication. ◆Dynamic Defect Pixel Correction. ◆Fast mode transition. (on the fly) ◆Dual sensor synchronization operation. ◆4K bit of OTP ROM for users. ◆Built-in temperature sensor | ||||||
