China 25 ton Top Brand 25Ton Left Hand Drive Mobile Crane QY25K5 II with High Quality
- Category: >>>
- Supplier: Newindu Construction Engineering (Shanghai) Co. Ltd.Newindu Ltd.
Share on (1601045955886):
Product Overview
Description
Product Description
Truck Crane QY25K5-II
* Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%. The grade ability is 40%, whichmake the machine have good road adaptability.
* The unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.
* The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer and more reliable.
* The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.
* Six unique technologies supply the quality assurance, and make the products keep a high value.
* The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.
* The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
* Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing
systems.
Contact
Zelia Chen / Sales Manager
Whatsapp /Wechat /Mobile Phone: +86 13577949888
Newindu Construction Engineering (Shanghai) Co., Ltd.
Whatsapp /Wechat /Mobile Phone: +86 13577949888
Newindu Construction Engineering (Shanghai) Co., Ltd.
Newindu International Limited
Specification
Parameter item | QY25K5—II |
Basic arm length (mm) | 10600 |
Extension (mm) | 1895 |
Chassis length (mm) | 10610 |
Outrigger span (mm) | 5140×6000 |
Wheelbase (mm) | 4425/1350 |
Wheel base (mm) | 2074/1834/1834 |
Overall length (mm) | 12780 |
Overall width (mm) | 2500 |
Overall height (mm) | 3400 |
Approach angle (°) | 10 |
Departure angle (°) | 13 |
Curb weight (kg) | 32370 |
Self-disassembly and assembly balance weight (kg) | —— |
engine model | SC9DF300.1Q5 |
Engine rated power/speed (kw r/min) | 221/2200 |
Working range*Maximum rated lifting capacity (m*t) | 3×25 |
Maximum lifting moment of basic boom (kN·m) | 961 |
Outrigger span (longitudinal * horizontal) (m*m) | 5.14×6.0 |
Longest main boom (m) | 40 |
Longest main boom + jib (m) | 48.3 |
Main boom raising time (s) | ≤68 |
Full extension time of main boom (s) | ≤150 |
Maximum rotation speed (r/min) | ≥2.5 |
Main lifting speed (four layers without load) (m/min) | ≥125 |
Maximum driving speed (km/h) | ≥80 |
Minimum turning diameter (m) | ≤22 |
Maximum climbing ability (%) | ≥40 |

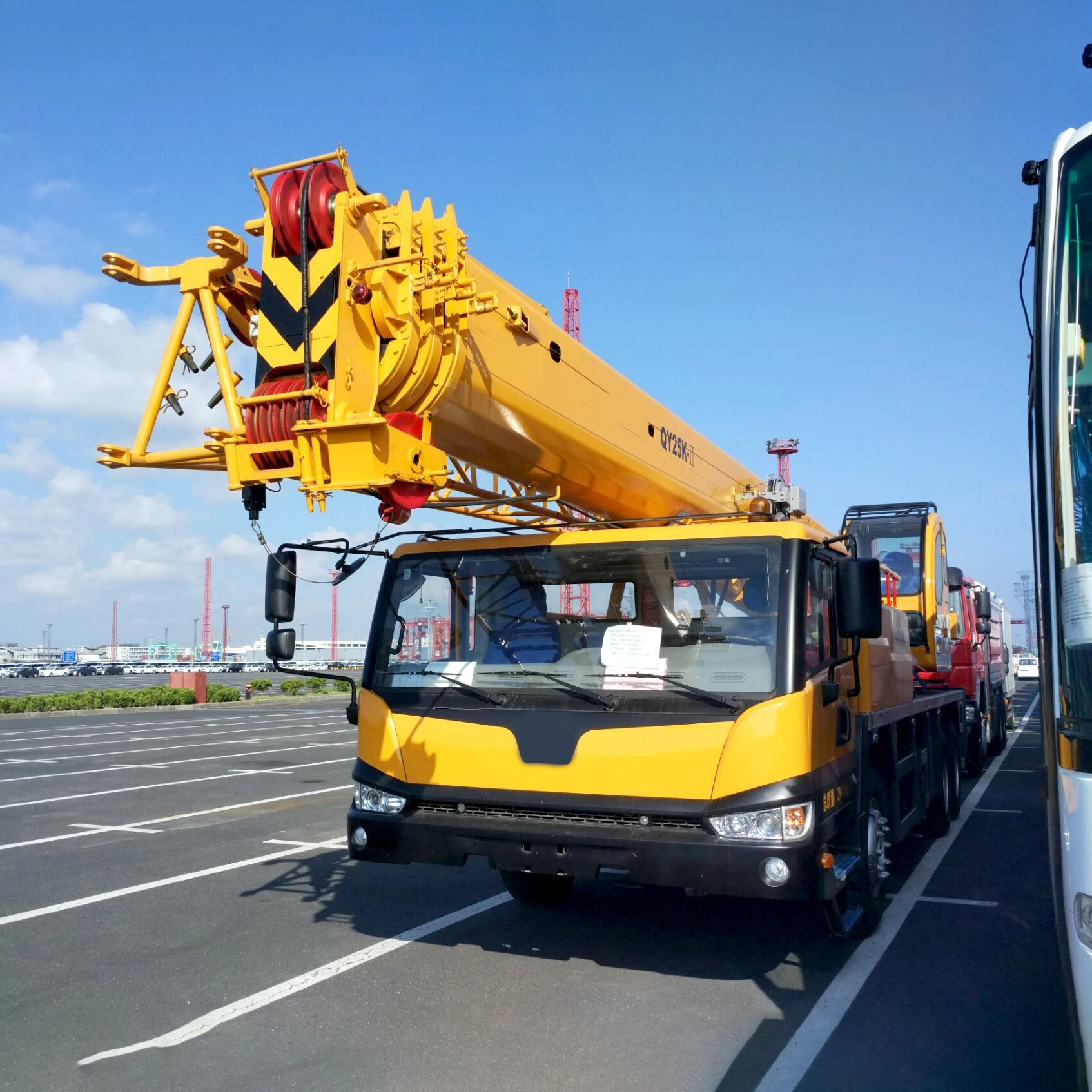

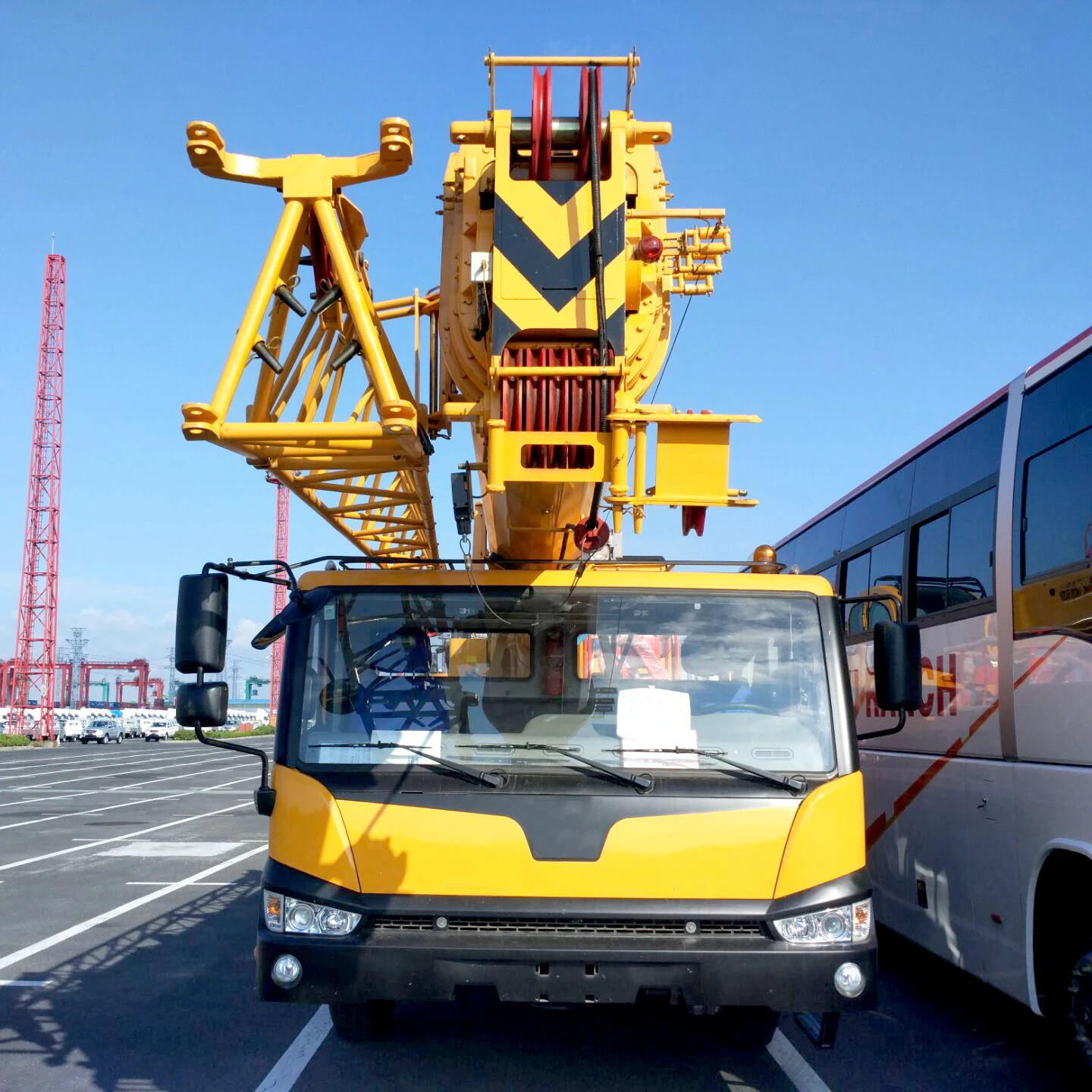

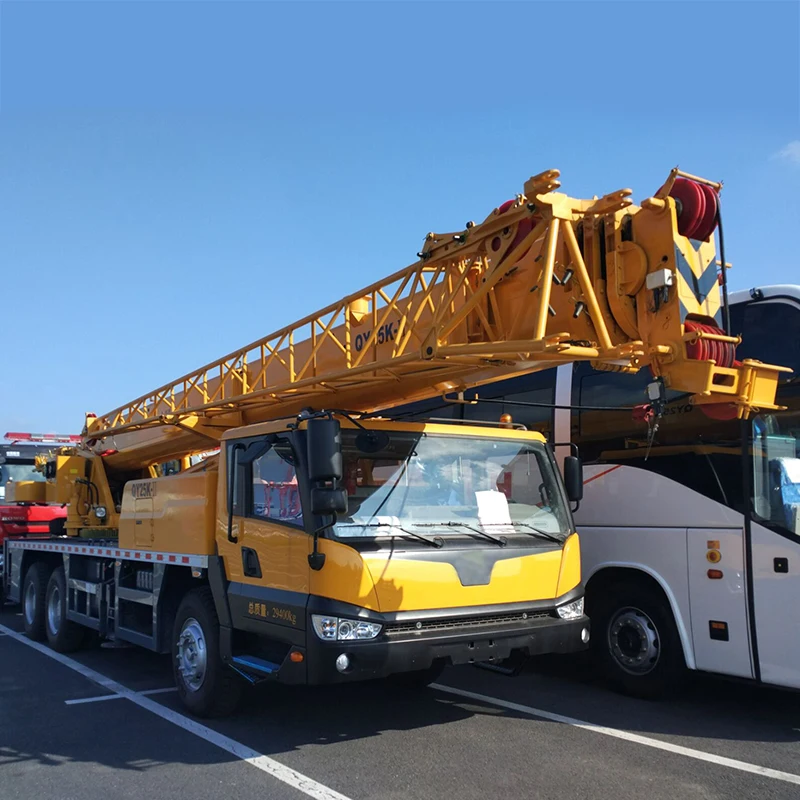

Details Images
