Product Overview
Description
Products Description

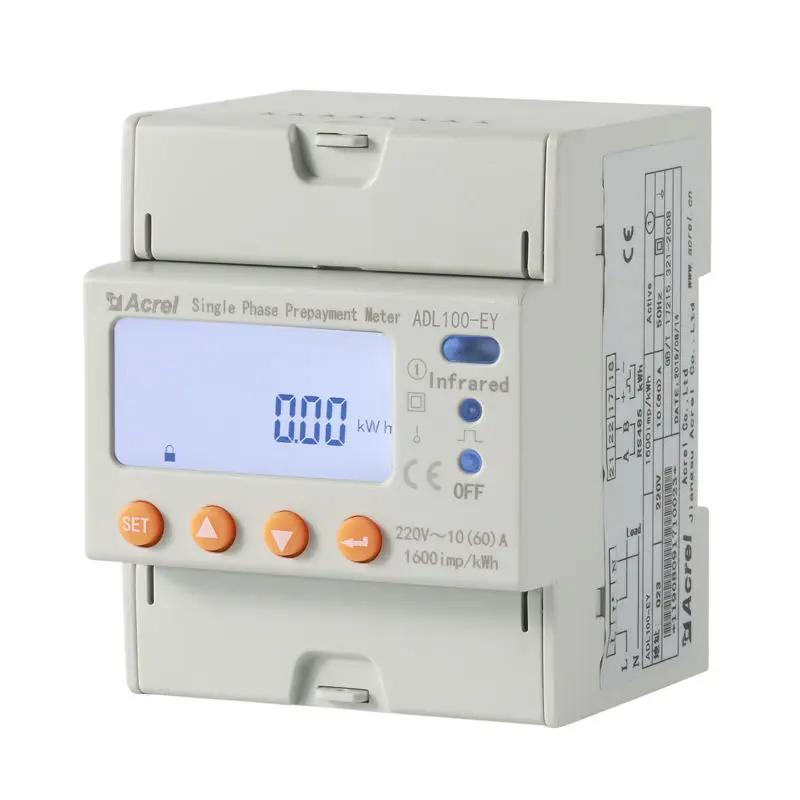

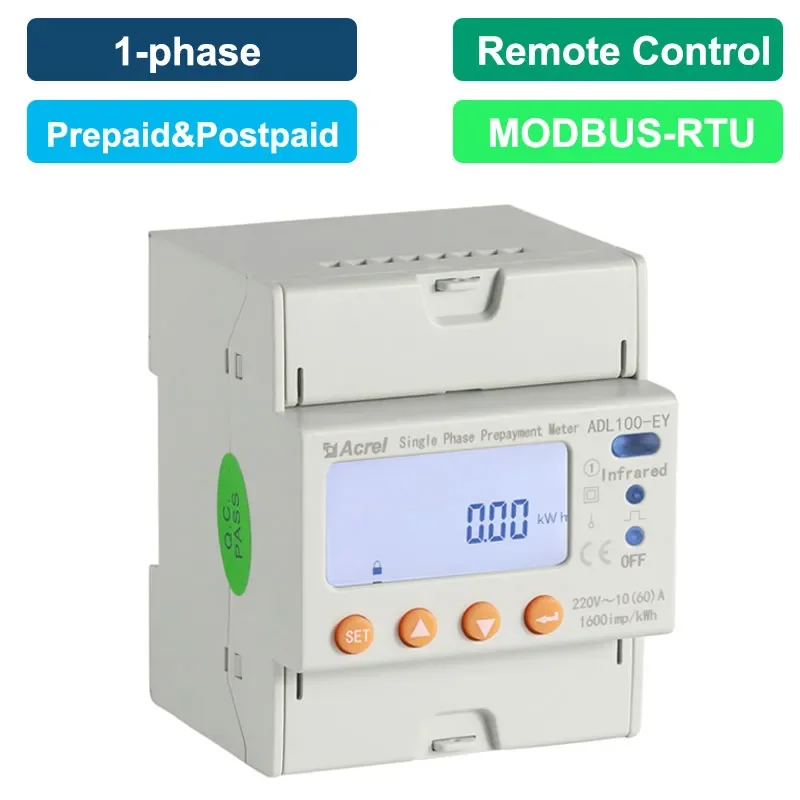

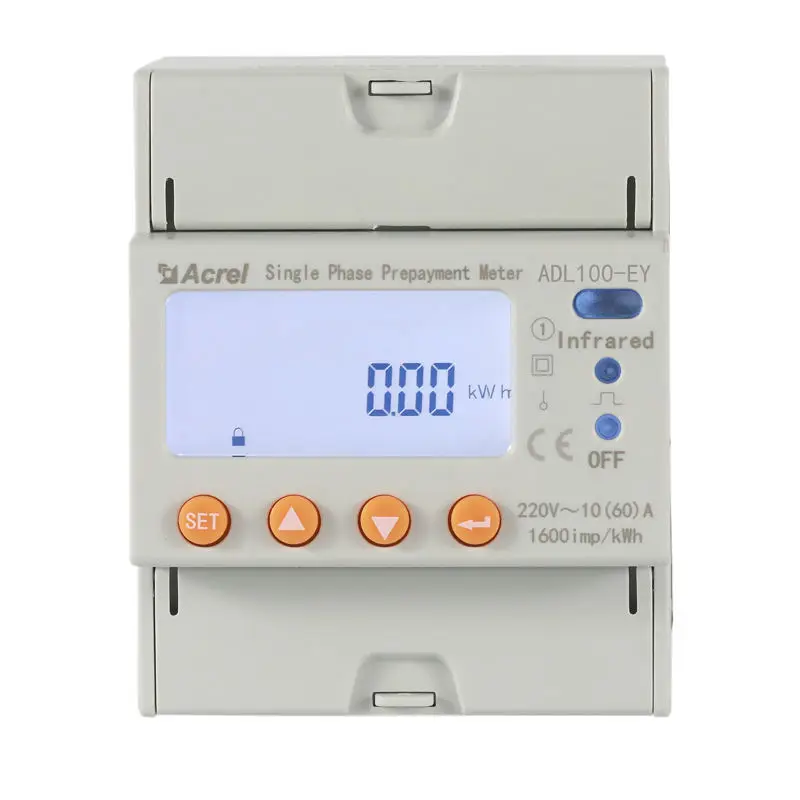

ADL100-EY single phase wireless prepaid watt-hour meter,ADL300-EY three phase wireless prepaid watt-hour meter are used for calculating the single and three phase active energy respectively on the frequency of 50 Hz. The meter has functions of pre-paid, load controlling, time control and NB,2G,4G,RS485 communication etc.Products meet the Enterprise Standard Q31/0114000129c039-2019《Enterprise Standard for electronic prepayment watt-hour meter》 requirements.
Network
Function & Parameter
Technical Parameters
Projects | ADL100-EY | ADL300-EY | ||||
Specification | ||||||
Measurement | Voltage | Reference voltage | 220V | 3×220/380V | ||
Consumption | <10VA(Single phase) | |||||
Impedance | >2MΩ | |||||
Accuracy class | Error±0.2% | |||||
Current | Input current | 10(60)A | 3×1(6)A， 3×10(80)A | |||
Consumption | <4VA(Single phase rated current) | |||||
Accuracy class | Error±0.2% | |||||
Power | Active, reactive, apparent power, error±0.5℅ | |||||
Frequency | 45～65Hz，Error±0.2% | |||||
Meter amount | Energy | Active energy (Accuracy class:1) | Active energy (Accuracy class:0.5) | |||
Clock | ≤0.5s/d | |||||
number signal | Energy pulse output | 1 active optocoupler output | ||||
Switching output | 1 Switching output | 2 Switching output | ||||
pulse | Width of pulse | 80±20ms | ||||
Pulse constant | 1600imp/kWh | 6400imp/kWh,400imp/kWh | ||||
communication | RS485 | Interface and communication | RS485 ：Modbus RTU | |||
Range of communication address | Modbus RTU:1~ 247 | |||||
Baud rate | 1200bps~19200bps | |||||
2G | Working band | GSM 850，EGSM 900，DCS 1800，PCS 1900 | ||||
Transmission rate | Maximum rate of descent 85.6kbps，Maximum uplink speed 85.6kbps | |||||
GSM 990/1800 MHZ LTE-FDD B1/B3/B5/B8 LTE-TDD B34/B38/B39/B40/B41 | ||||||
The maximum downlink rate is 10Mbps and the maximum uplink rate is 5mbps | ||||||
NB | Transmission rate | H-FDD B1 B3 B8 B5 B20 | ||||
Transmission rate | Maximum rate of descent 25.2Kbps，Maximum uplink speed 15.62 Kbps | |||||
Environment | Relative temperature | -25℃~+55℃ | ||||
Storage temperature | -40℃~+70℃ | |||||
Relative humidity | ≤95℅(No condensation) | |||||
Altitude | <2000m | |||||
Wiring&Installation
Dimension and Packaging
DDSY1352
ADL100-EY derect connect
ADL300-EY connect via CT
