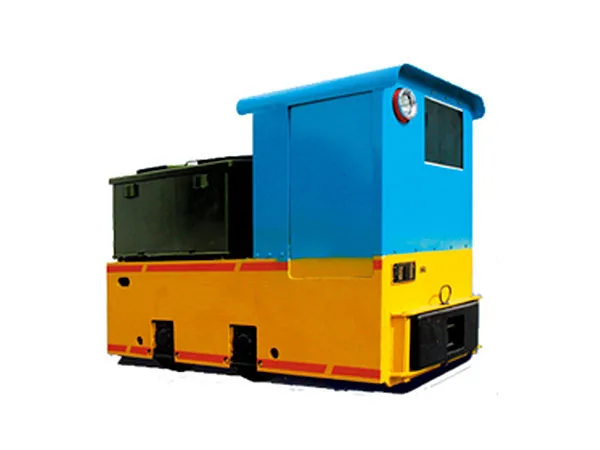

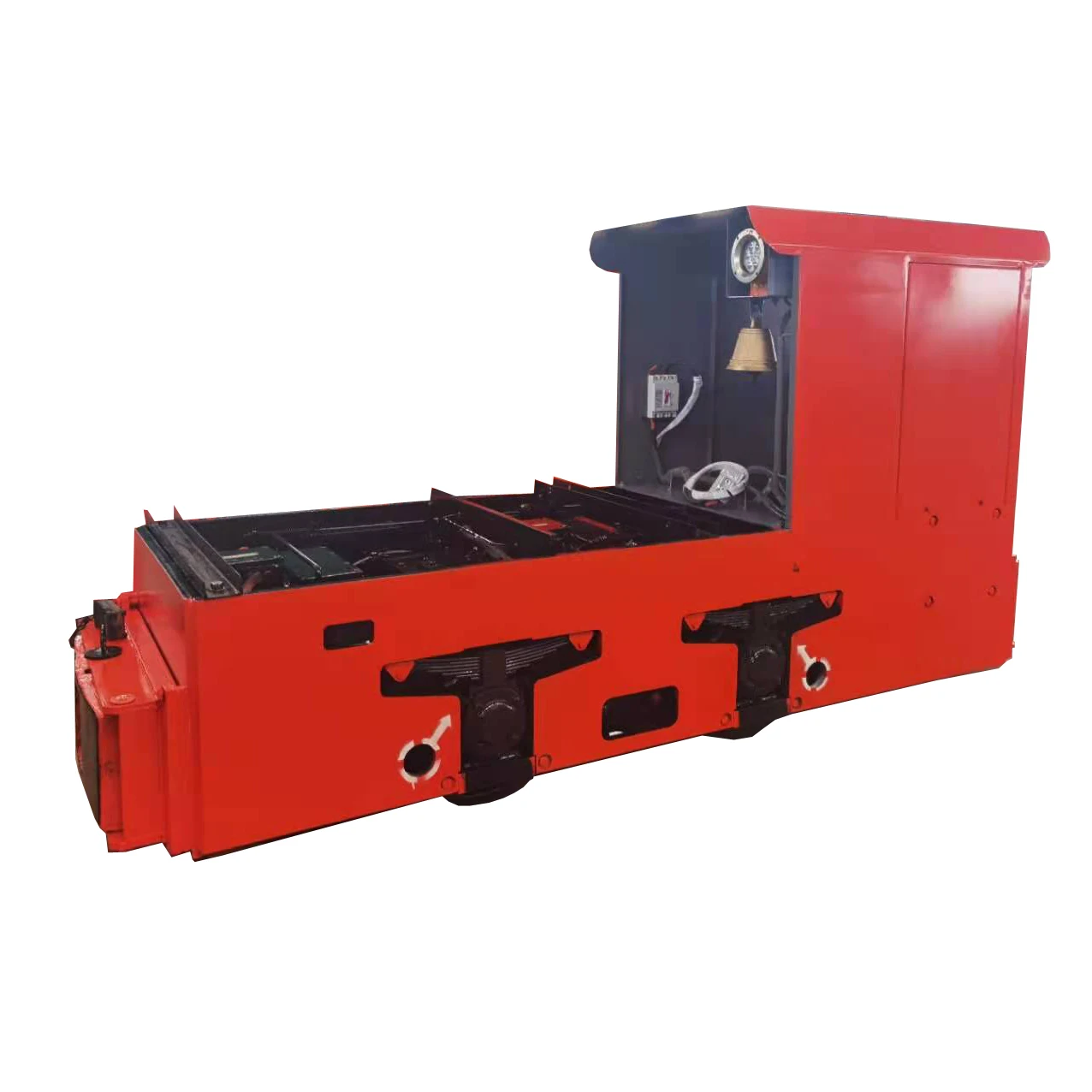

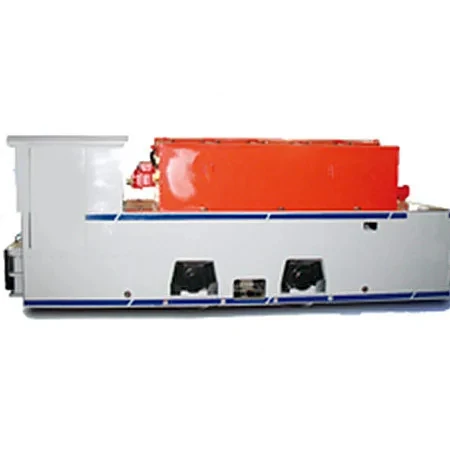

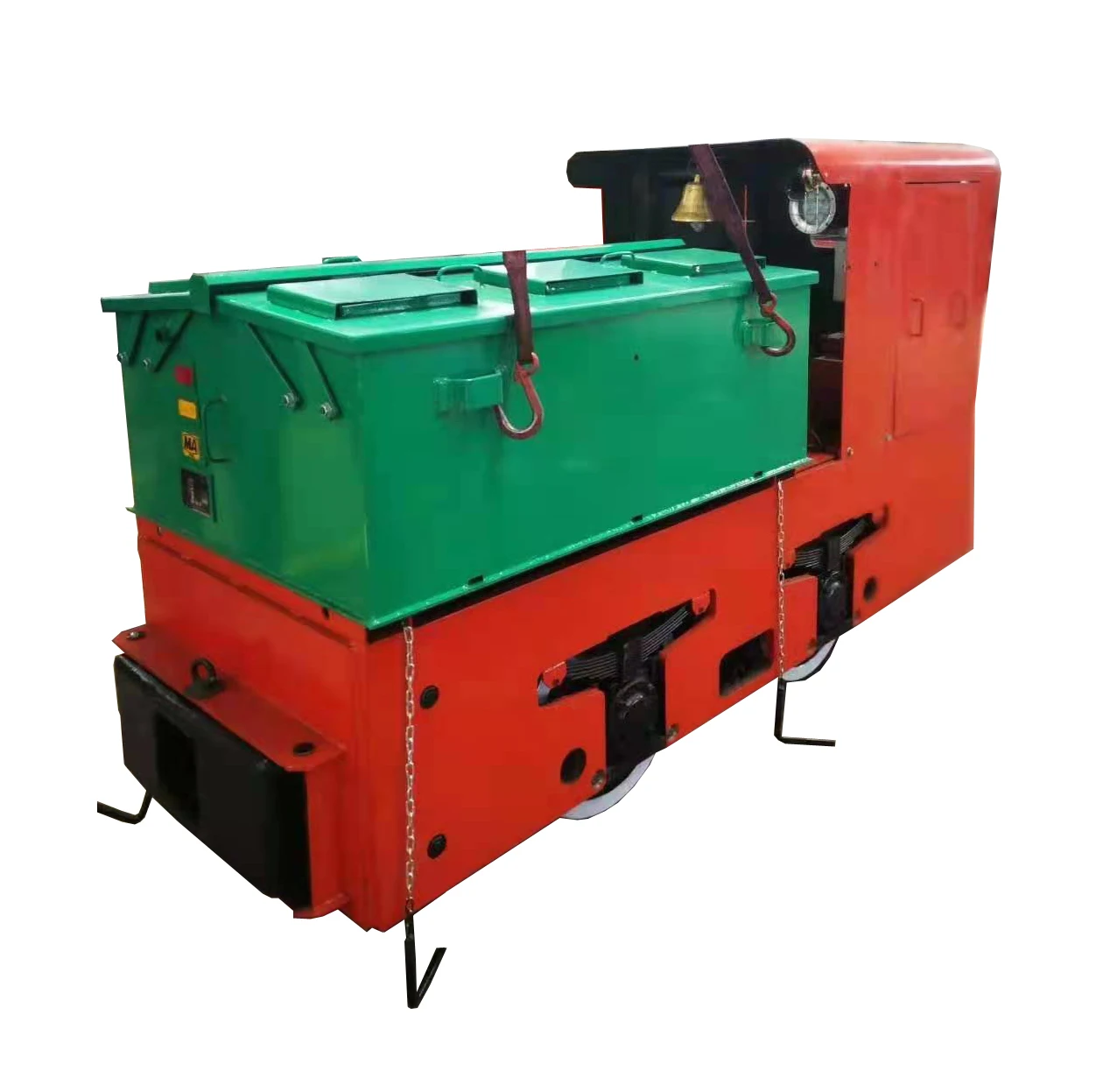

2.5Ton 5 Ton Underground Mine Battery Locomotives Electric Locomotive For Sale
- Category: >>>
- Supplier: Jining Enwei Intelligent Technology Co. Ltd.
Share on (1601046046979):
Product Overview
Description
Products Description

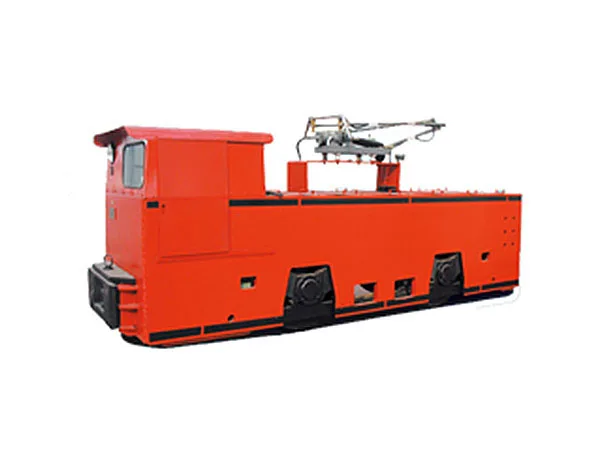

The CTY2.5/6(XK2.5— 6/48-KBT) Electric Trolley Underground Mining Locomotives are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
Product Parameters
CTY2.5/6(XK2.5— 6/48-KBT) | ||||||
Weight | t | 2.5 | ||||
Rail gauge | mm | 600 | ||||
Rated voltage | V | 48 | ||||
Rated hour speed | kN | 2.84 | ||||
Rated hour speed | km/h | 5.4 | ||||
Motor power | kW | 3.5 | ||||
Shaft distance | mm | 650 | ||||
Min.curve radius | m | 5 | ||||
Control method | Resistor | impulse | ||||
Brake method | Mechanical | |||||
Drive method | Closed gear box double stage drive | |||||
Traction height | mm | 210；320 | ||||
Dimensions | mm | 2350*934*1550 | ||||
For 2.5T electrical locomotive, there are two kinds, i.e. general type and flame-proof special type with the characteristics of small dimensions, short shaft distance, running reliable, flexible, easy structure and maintenance, quick and reliable valve brake method. Used in small laneway and small mine for transportation and vehicle adjustment. | ||||||
Company Certifications

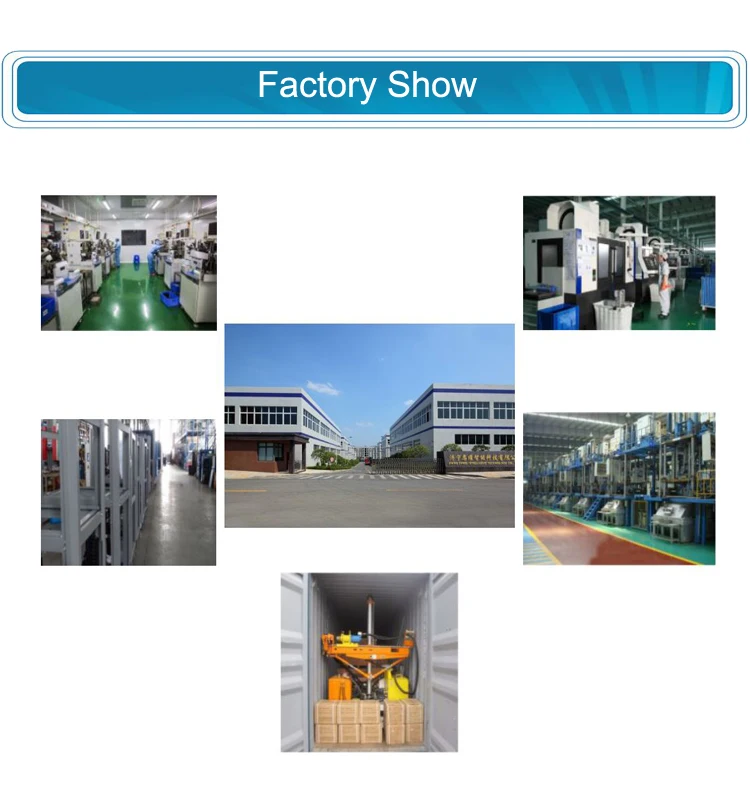

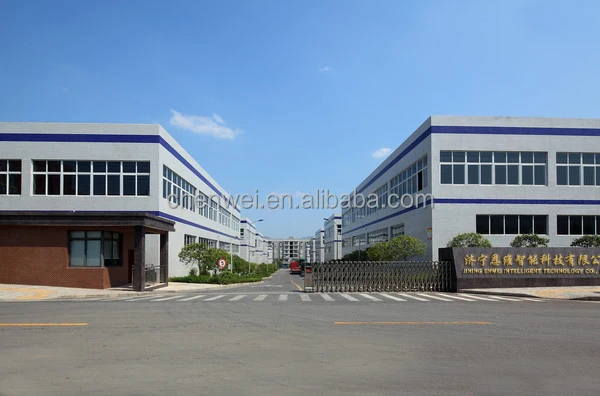

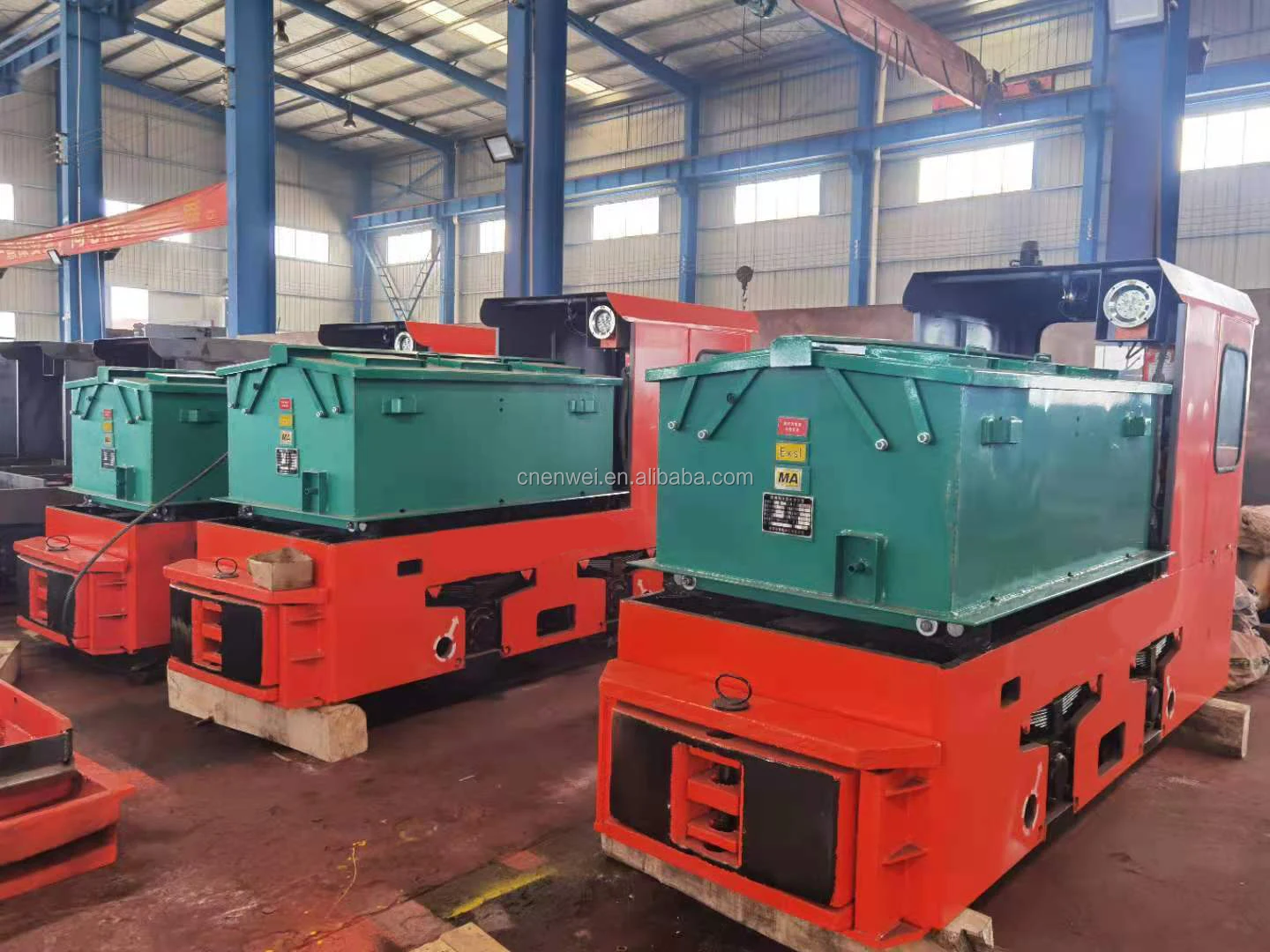

Factory Show
