excavator tilt hitch for sale power tilt for excavators tilting quick coupler tiltor excavator up to 3 tons tiltor
- Category: >>>
- Supplier: Yantai Jiangtu Mechanical Equipment Co. Ltd.Yantai Ltd.
Share on (1601046092406):
Product Overview
Description

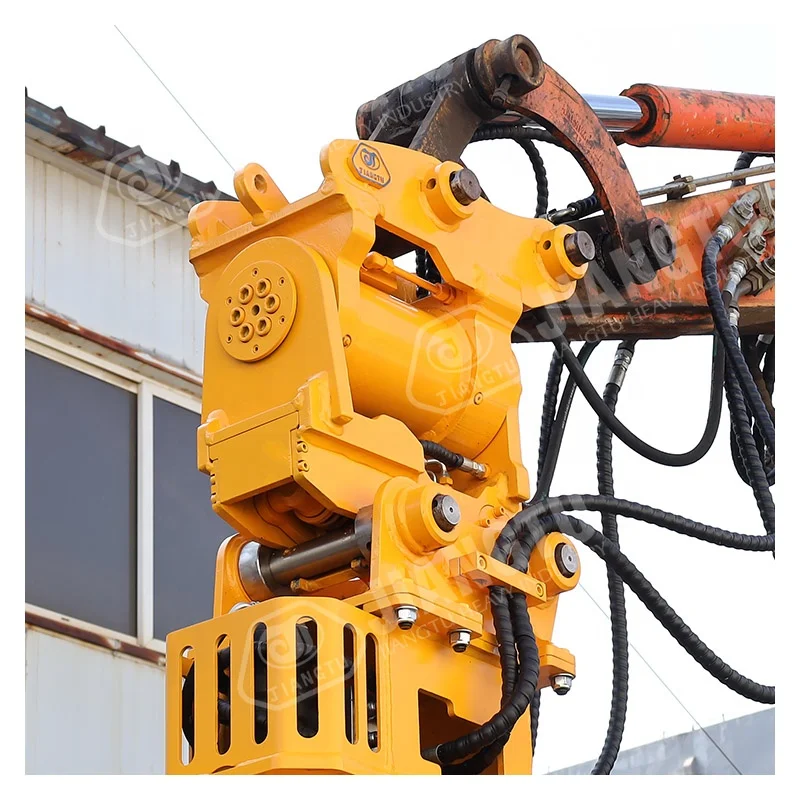

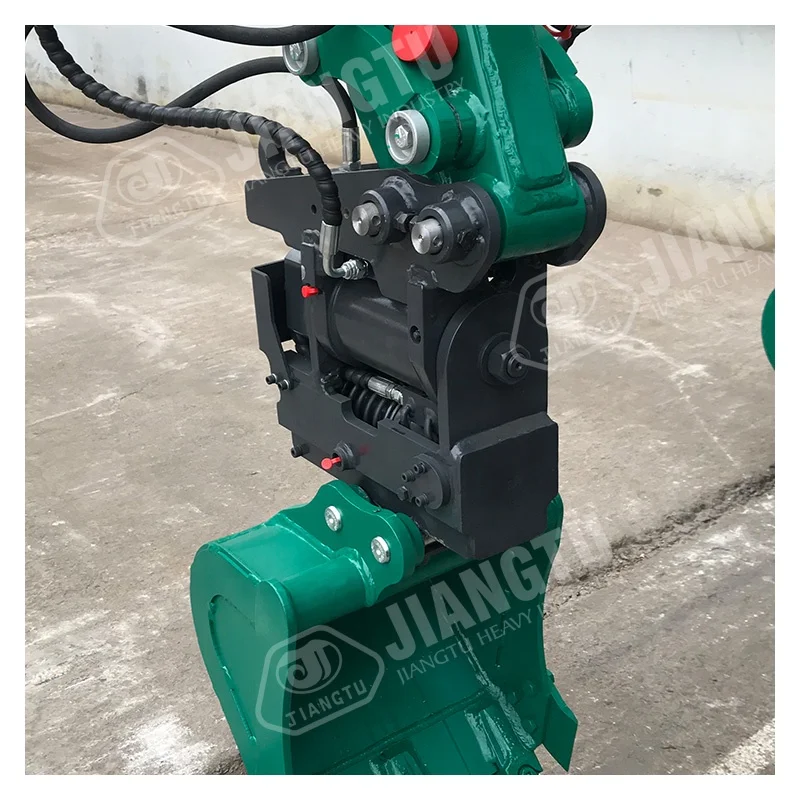

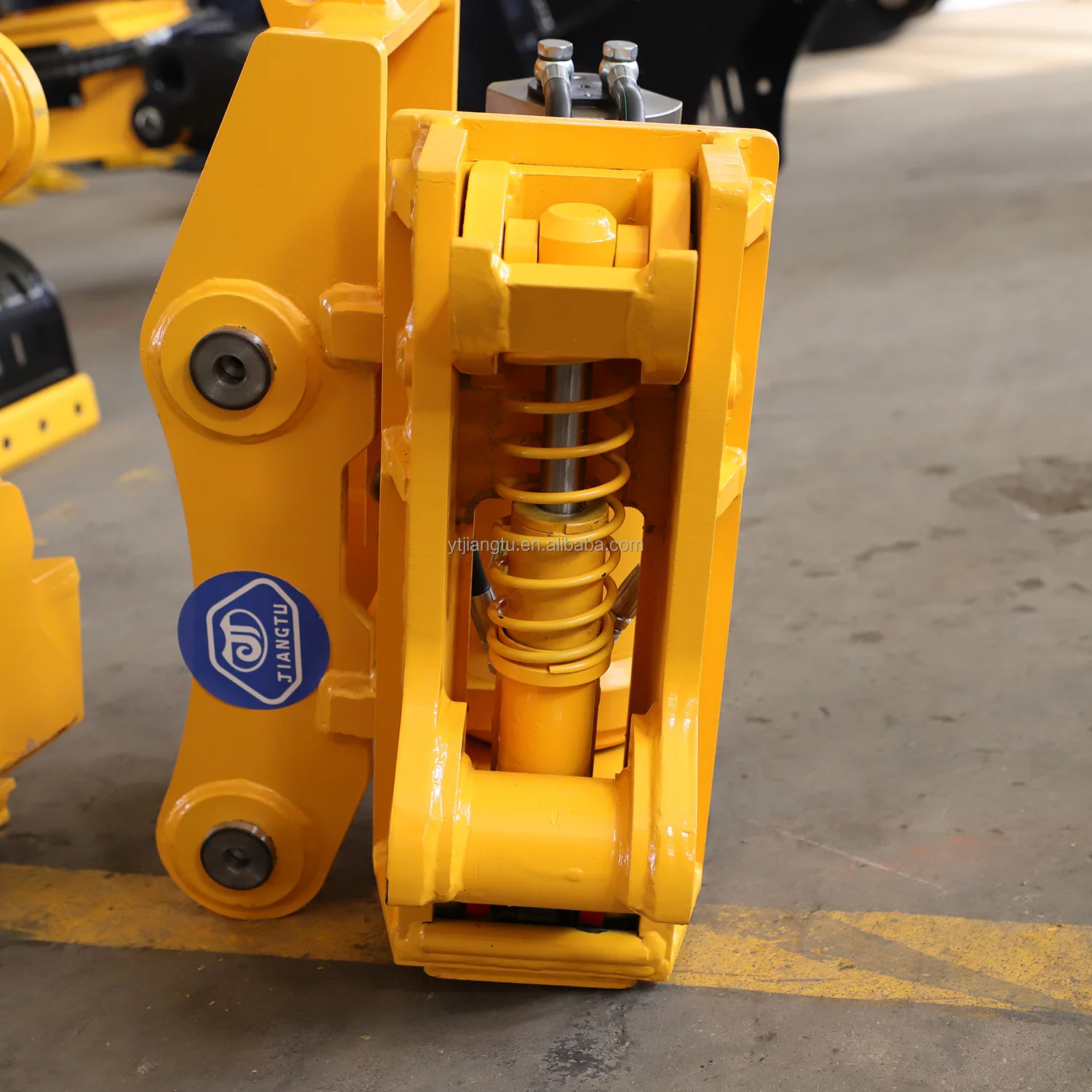

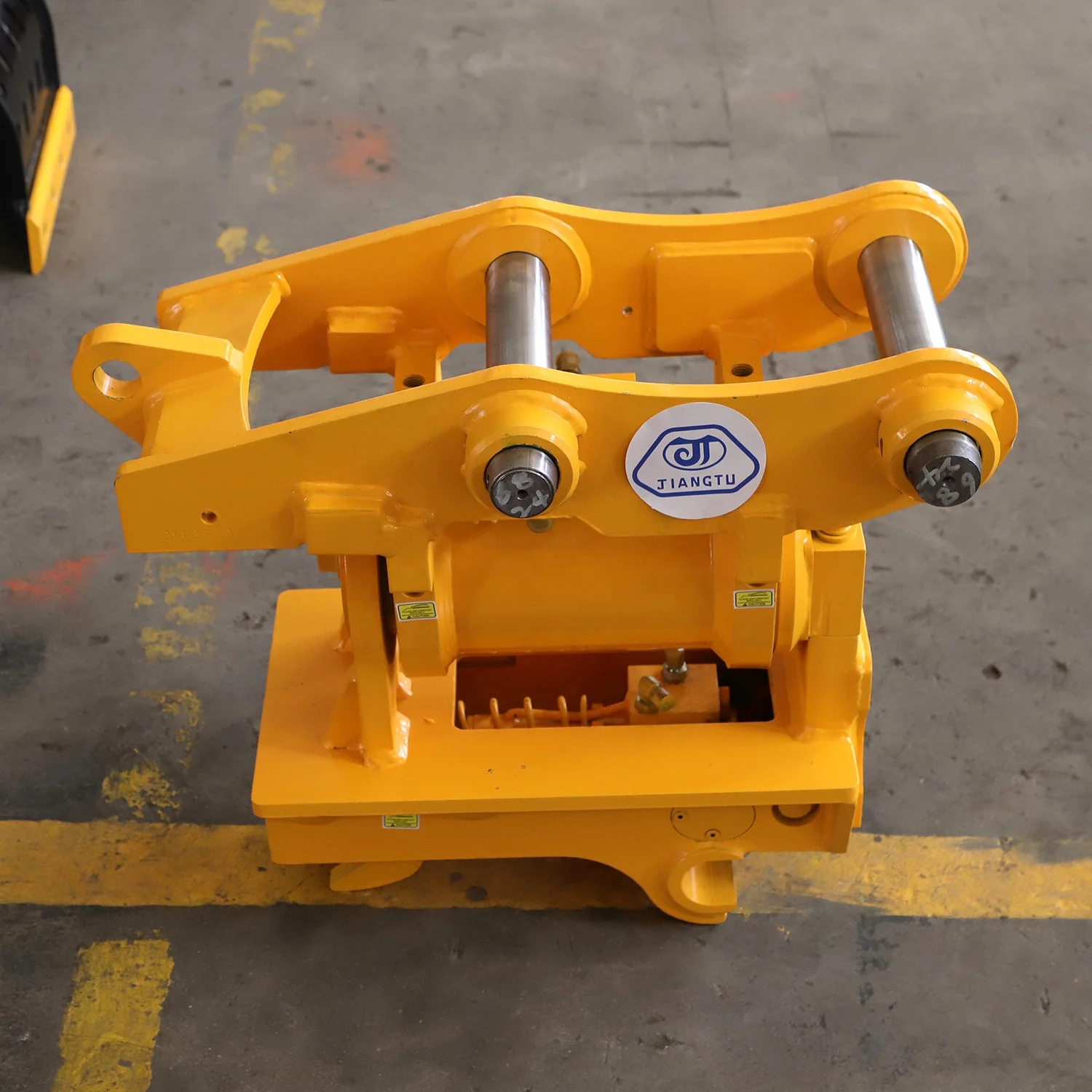

Tilting Quick Hitch Coupler for 0.8-30 Ton excavator

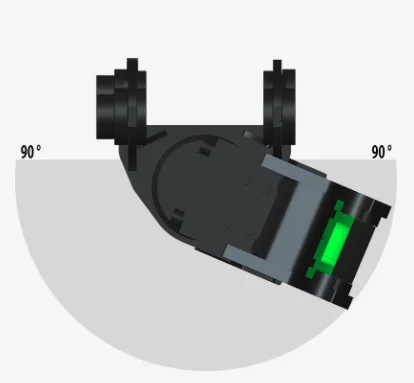

Dramatically increase your productivity using the JT (JIANGTU) Tilting Quick Coupler. Tilt your bucket or any attachment up to 180° with peace of mind.
Product Application
Tilt Quick Coupler Parameter Sheet
Category/Model | JT-00 | JT-01 | JT-02A | JT-02B | JT-04A | JT-04B | JT-06 | JT-08 |
Tilt Degree | 180° | 180° | 180° | 180° | 180° | 180° | 140° | 140° |
Drive Torque | 930 NM | 2870 NM | 4400 NM | 4400 NM | 4400 NM | 7490 NM | 10623 NM | 18600 NM |
Tilt Displacement | 0.627 L/MN | 0.627 L/MN | 1.016 L/MN | 1.016 L/MN | 1.016 L/MN | 1.896 L/MN | 2.3 L/MN | 3.62 L/MN |
Tilt Working Pressure | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar |
Tilt Necessary Flow | 2-4 Lpm | 5-16 Lpm | 5-16 Lpm | 5-16 Lpm | 5-16 Lpm | 15-44 Lpm | 19-58 Lpm | 35-105 Lpm |
Working Pressure | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar |
Necessary Flow | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm |
Excavator | 0.8-1.5 Ton | 2-3.5 Ton | 4-6 Ton | 4-6 Ton | 7-9 Ton | 7-9 Ton | 10-16 Ton | 16-22Ton |
Overall Dimension (L2*W1*H1) mm | 477*280*567 | 477*280*567 | 518*310*585 | 545*310*585 | 541*350*608 | 582*350*649 | 720*450*784 | 858*500*911 |
Weight | 55 Kg | 112 Kg | 156 Kg | 156 Kg | 170 Kg | 208 Kg | 413 Kg | 655 Kg |
• Variable pin centre design• Tilt any bucket or attachment up to 180
• Available for 0.8 – 30 ton excavators
• Easy Installation
• Simple Control
• Easy Maintenance
• Proven technology exceeds current safety standards
• Durable, compact design minimises tip radius extension integrated cross port relief valve to protect the internal seals
• Available for 0.8 – 30 ton excavators
• Easy Installation
• Simple Control
• Easy Maintenance
• Proven technology exceeds current safety standards
• Durable, compact design minimises tip radius extension integrated cross port relief valve to protect the internal seals

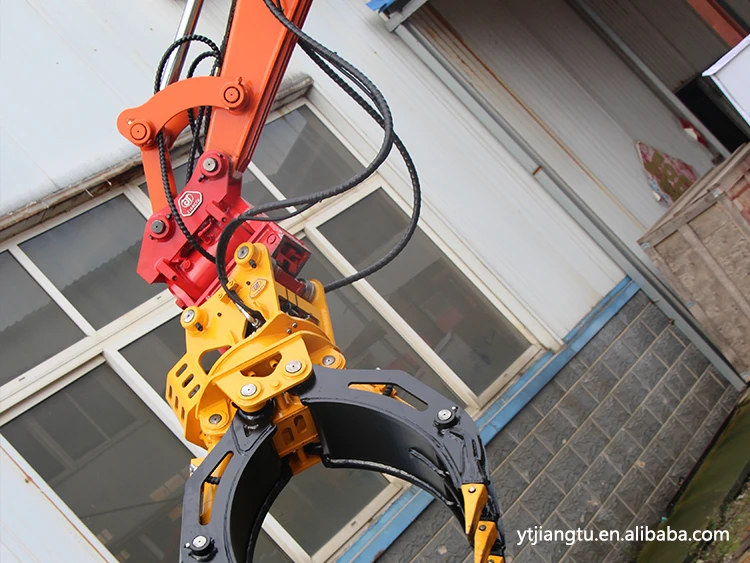

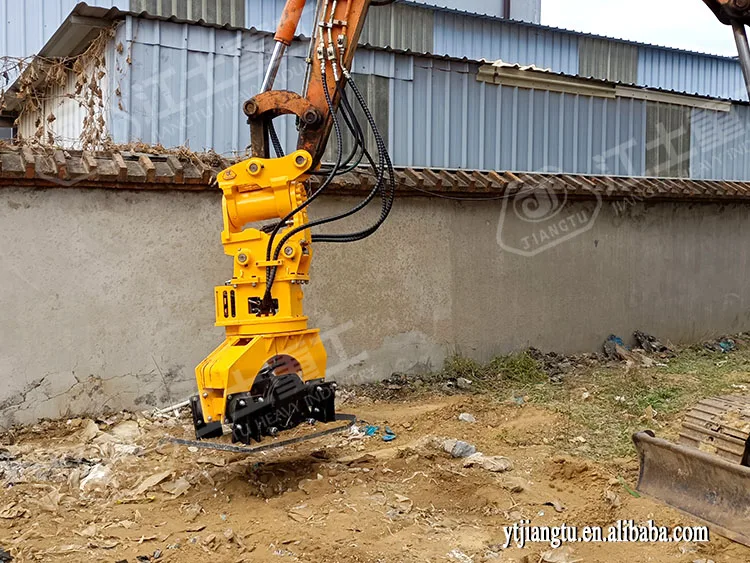

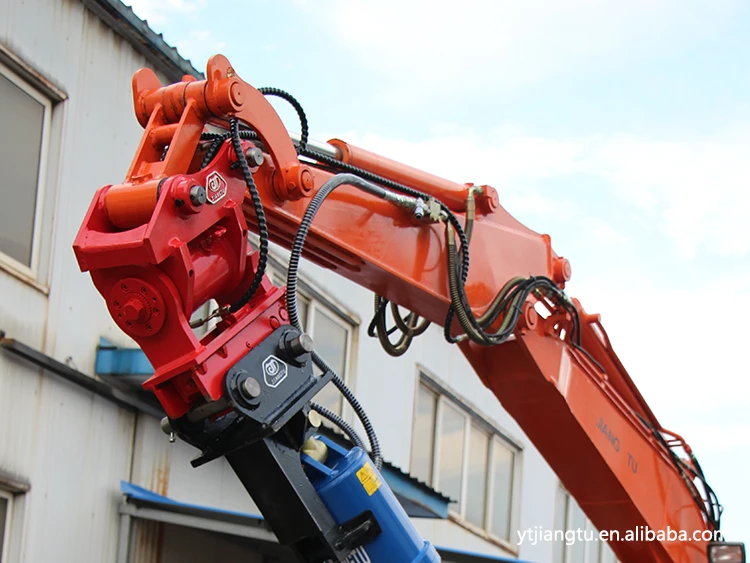

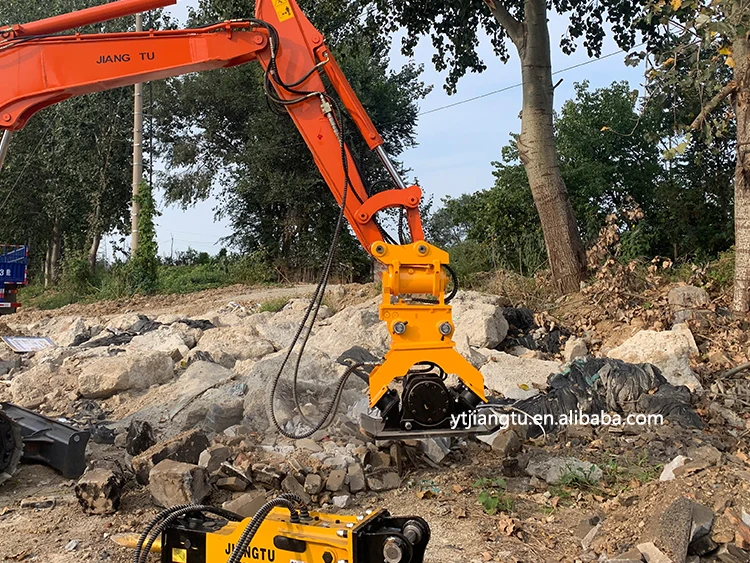

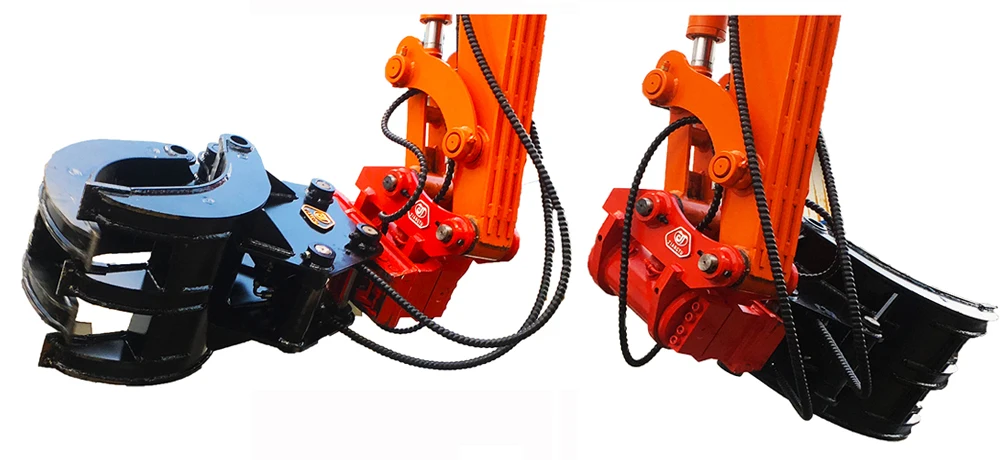

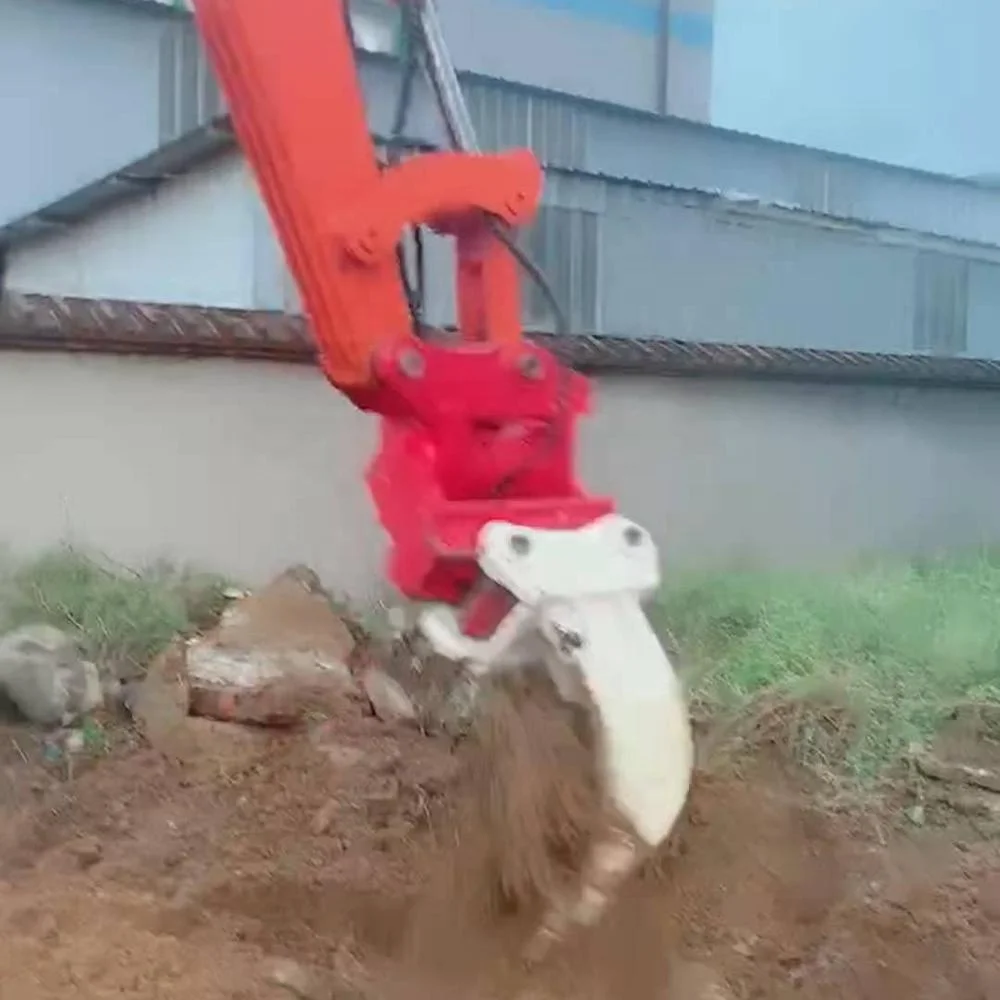

Application

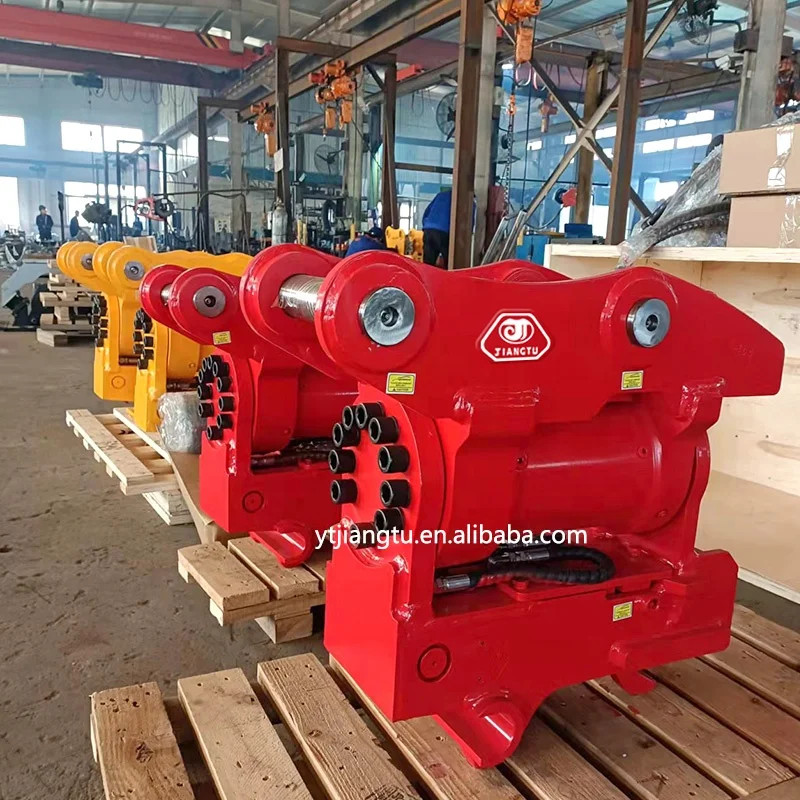

Product packaging
Company Profile
Yantai Jiangtu Mechanical Equipment Company is a leading manufacturer for excavator attachments in China. All products’ quality are strictly under control from processing to delivery. By continuous innovation and improvement, the company has got ISO 9001, CE Certifications and Technical Patents successively. Our products have been sold to widely domestic and oversea customers and long term partnerships have been developed.
Our mission is: Quality first, Service foremost, and Innovation paramount. Uncompromising commitment to high quality and thoughtful service wins us a good reputation and more coming partners. And we will keep on improving the products to better serve the world market. We are looking forward to working with you!
Our mission is: Quality first, Service foremost, and Innovation paramount. Uncompromising commitment to high quality and thoughtful service wins us a good reputation and more coming partners. And we will keep on improving the products to better serve the world market. We are looking forward to working with you!
Our Service
Our Service

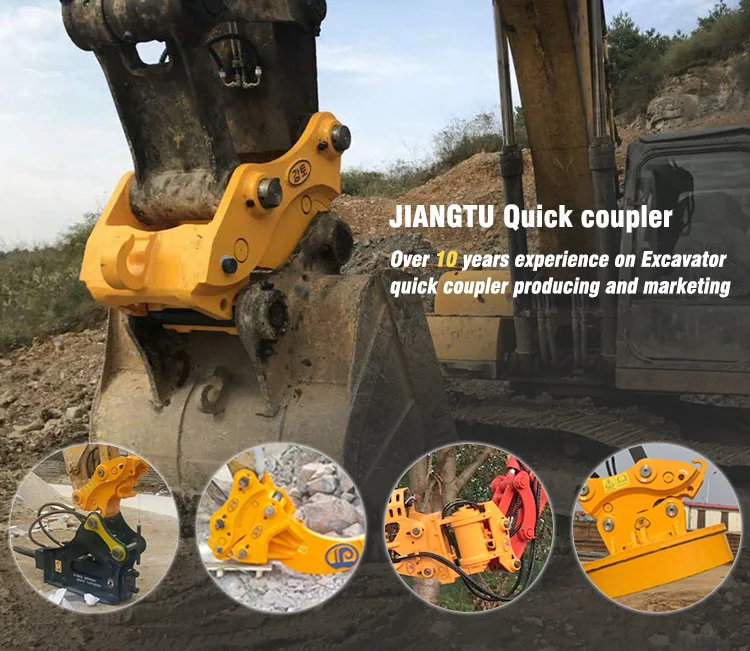

1. We can offer a comprehensive range of excavator attachments such as hydraulic breaker, quick hitch, log grapples, plate compactor, earth drill auger, orange peel grab, demolition grapple, grab bucket, ripper, etc...
2.You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements.Meanwhile, we can offer an excellent after-sale service.
3. We will keep your business information confidential.
4. We promise to reply to you upon receipt of your inquiry within 12 hours .
5.The order will be produced exactly according to your detailed requirements and bucket dimensions.Each of attachment will be tested before delivery. Our QC will submit inspection report before shipment.
OEM: Offer your design documents or tell us your ideas and our R&D team will do the rest.
Warranty: JIANGTU Excavator Attachments are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within first 6 months, we offer free replacement service.
2.You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements.Meanwhile, we can offer an excellent after-sale service.
3. We will keep your business information confidential.
4. We promise to reply to you upon receipt of your inquiry within 12 hours .
5.The order will be produced exactly according to your detailed requirements and bucket dimensions.Each of attachment will be tested before delivery. Our QC will submit inspection report before shipment.
OEM: Offer your design documents or tell us your ideas and our R&D team will do the rest.
Warranty: JIANGTU Excavator Attachments are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within first 6 months, we offer free replacement service.
