Glass stair hardwares chrome standoffs glass fitting glass balustrade
- Category: >>>
- Supplier: Dongying Inox Star Hardware Co. Ltd.
Share on (1601046095115):
Product Overview
Description
Product Description

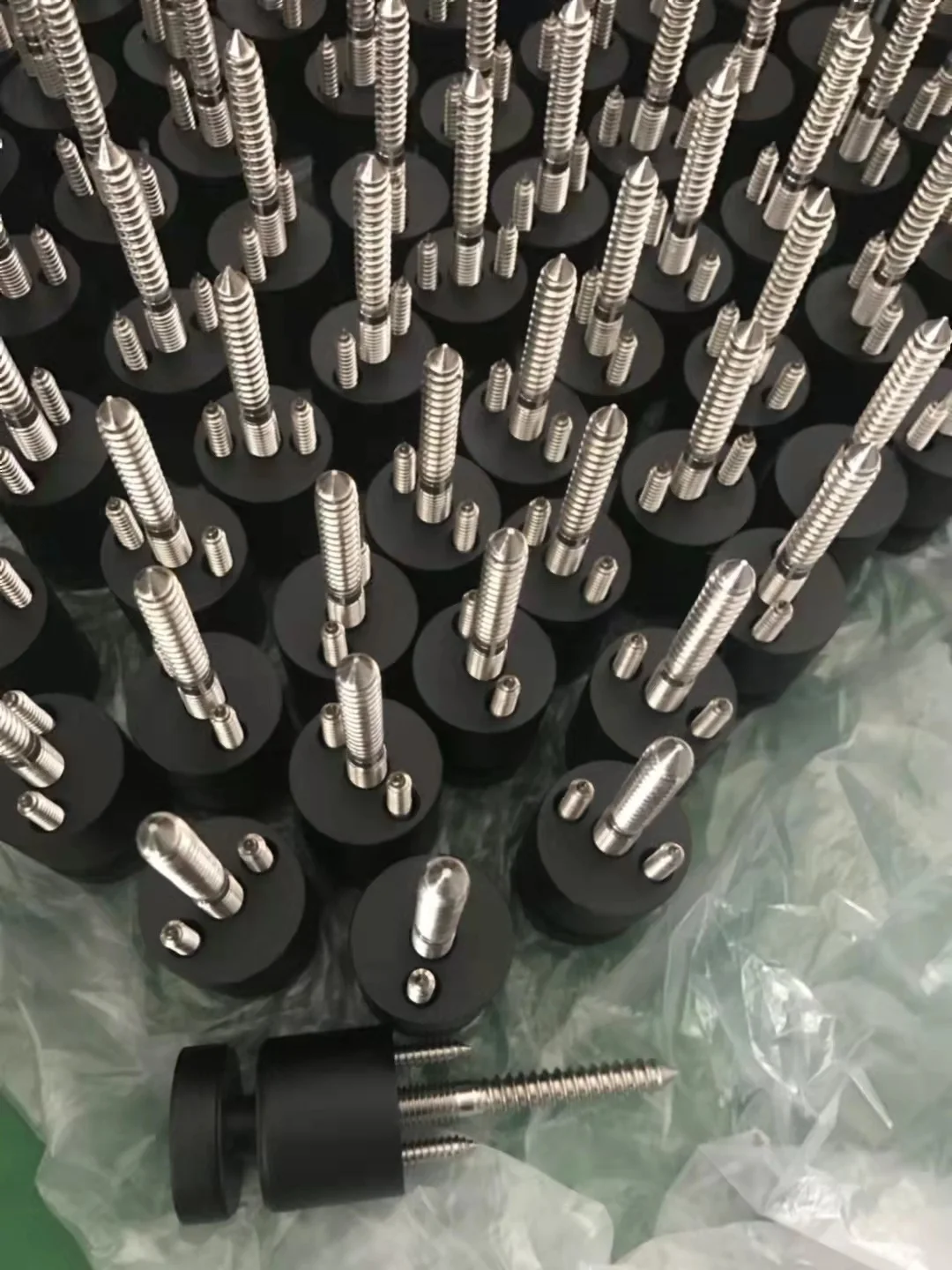

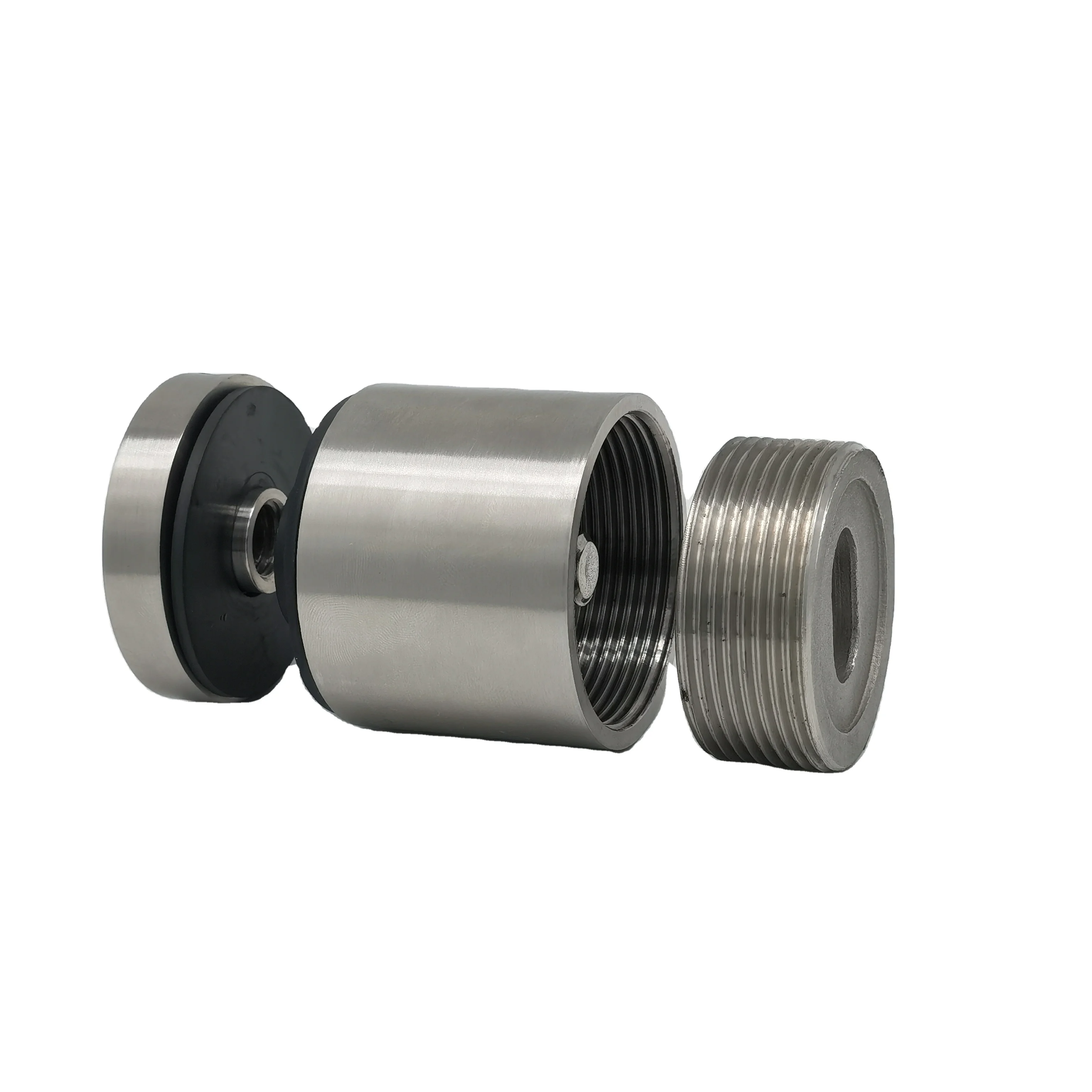

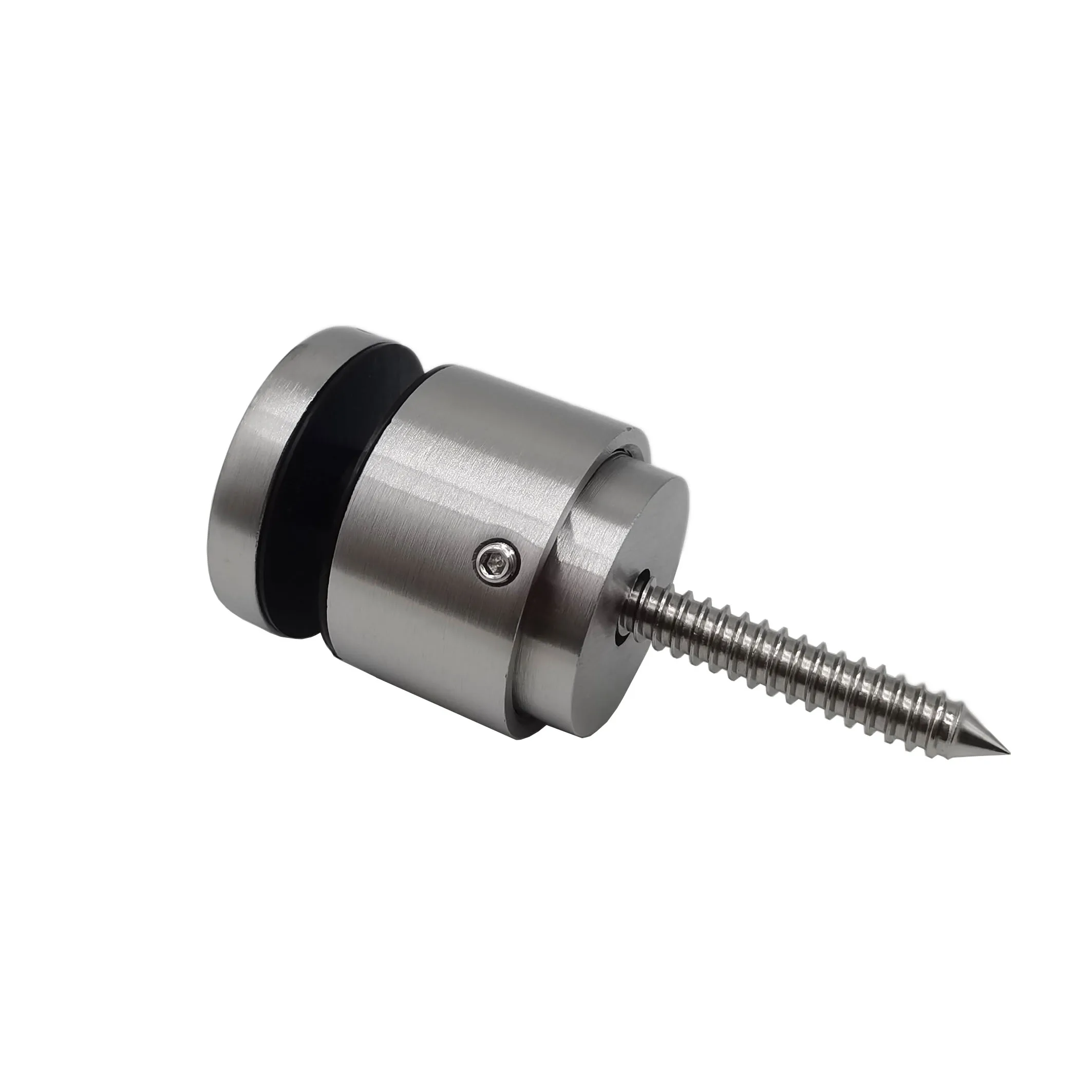

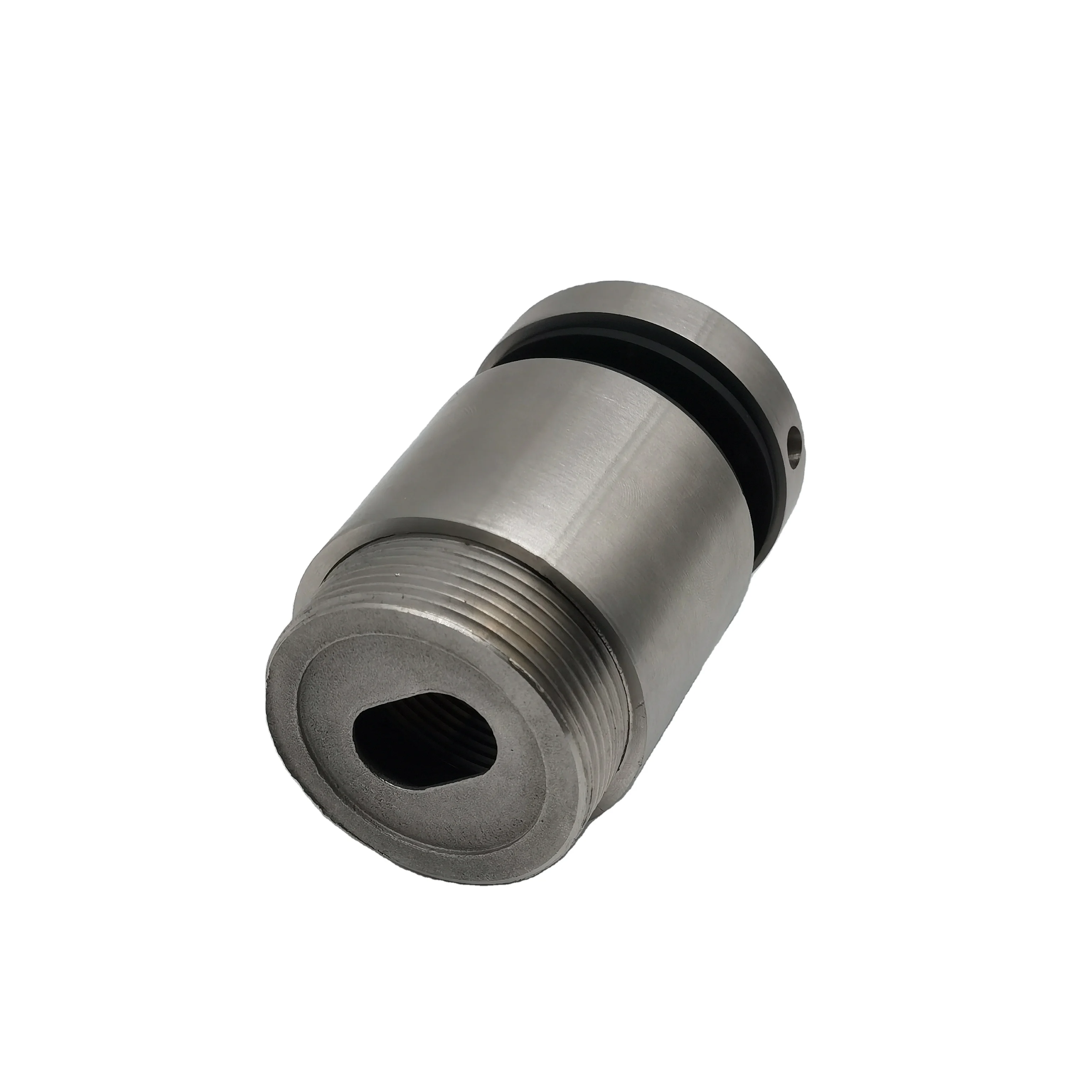

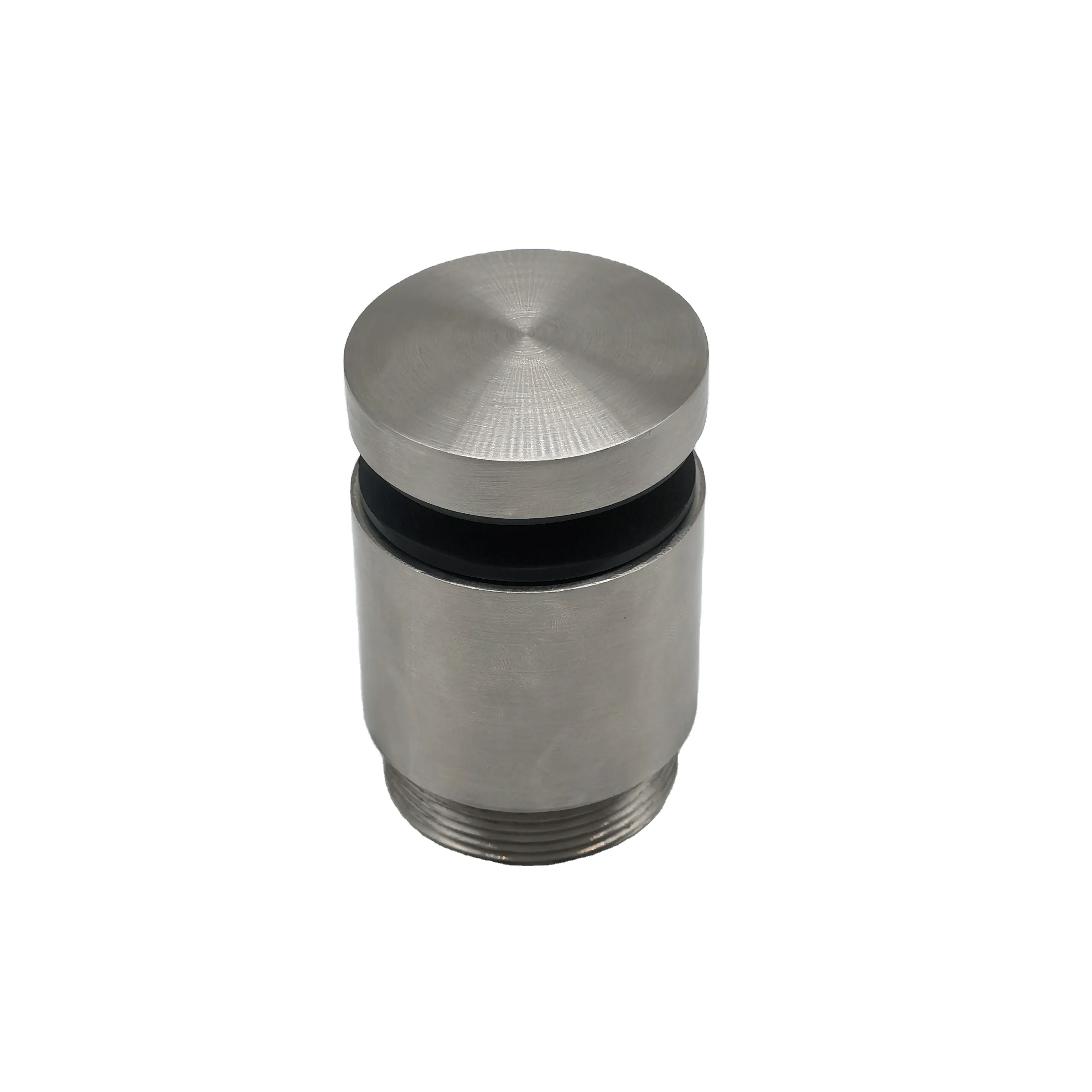

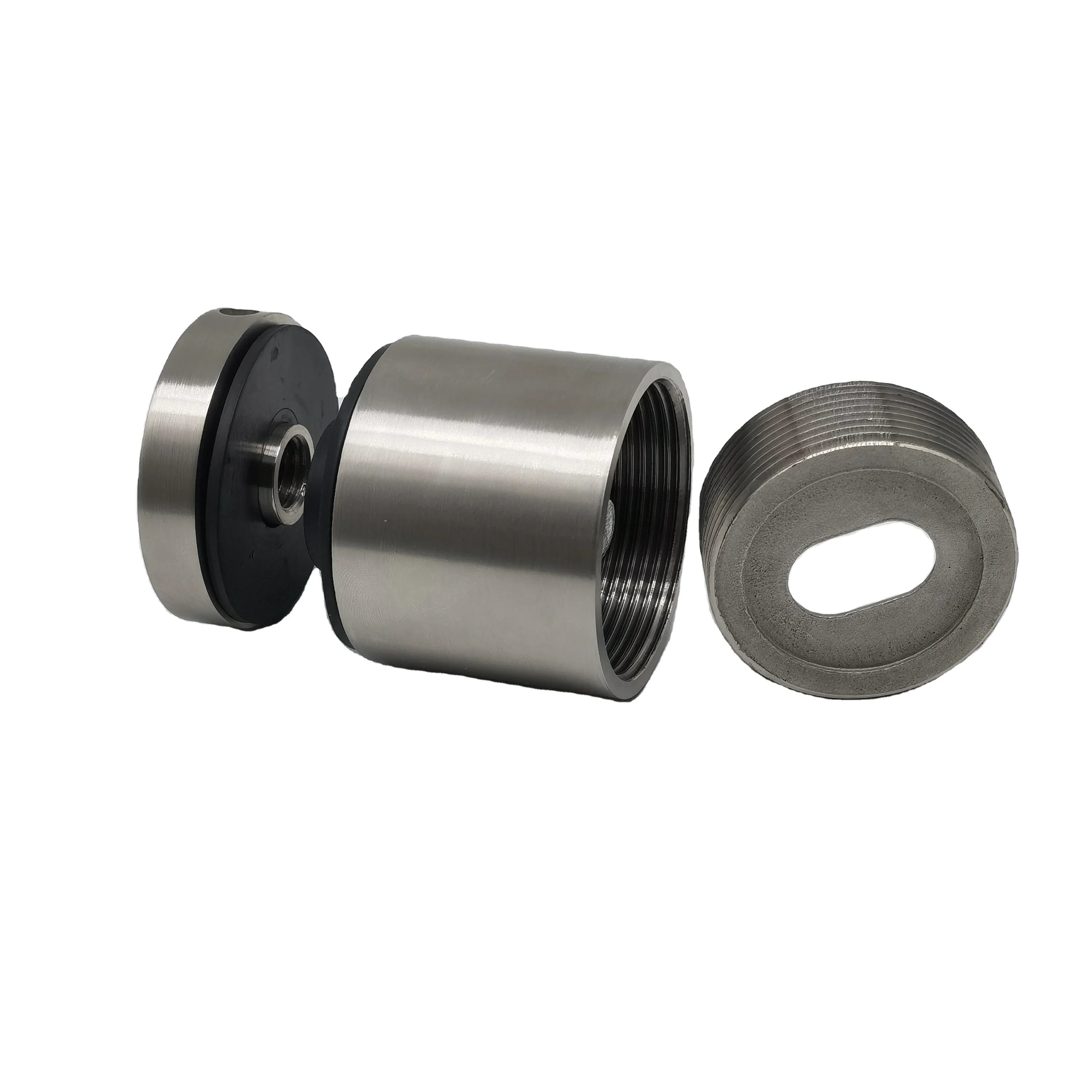

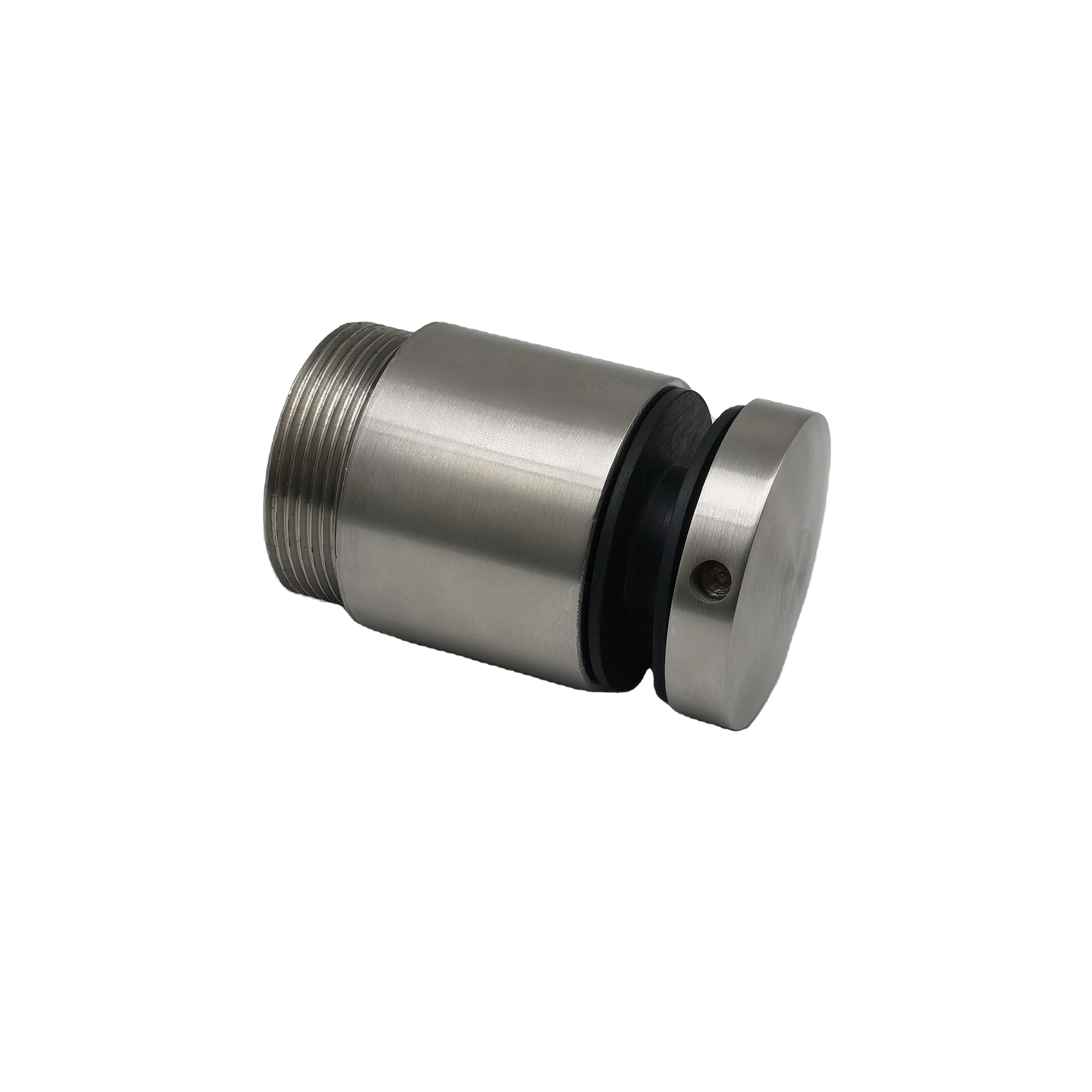

Stainless Steel Glass Standoff Pin
Min. order 100 sets
Stainless steel 316/304 grade
Satin finish/mirror/matt black
Two standoffs with one stainless steel sheet
Standoff:for 8-12 mm glass
Performance Requirements:
1. Support distributed load of 50 pounds per linear foot (0.73kN/M), applied horizontally at right angles in any direction to the top/grab rail.
2. Support concentrated horizontal load of 200 pounds (0.89kN), applied in any direction at any point along top/grab rail.
3. 50 lbs (0.22kN) on 1 sf (0.093m2) perpendicular to guard at any location
4. Wind loads 25 psf or as otherwise specified.
5. These loads need not to be assumed to act concurrently.
6. Maximum deflection at top of glass is height/24.
7. For use with 8-12mm tempered monolithic or tempered laminated glass
Stainless steel 316/304 grade
Satin finish/mirror/matt black
Two standoffs with one stainless steel sheet
Standoff:for 8-12 mm glass
Performance Requirements:
1. Support distributed load of 50 pounds per linear foot (0.73kN/M), applied horizontally at right angles in any direction to the top/grab rail.
2. Support concentrated horizontal load of 200 pounds (0.89kN), applied in any direction at any point along top/grab rail.
3. 50 lbs (0.22kN) on 1 sf (0.093m2) perpendicular to guard at any location
4. Wind loads 25 psf or as otherwise specified.
5. These loads need not to be assumed to act concurrently.
6. Maximum deflection at top of glass is height/24.
7. For use with 8-12mm tempered monolithic or tempered laminated glass
Specification
Material | Stainless Steel: Duplex 2205/304/316 |
Color/Finish | Matt black，mirror polish，satin finished or as required |
Safty glass thickness | 8mm-12mm |
Length | 30mm |
Weight | 0.4kg |
DIA | 38MM |

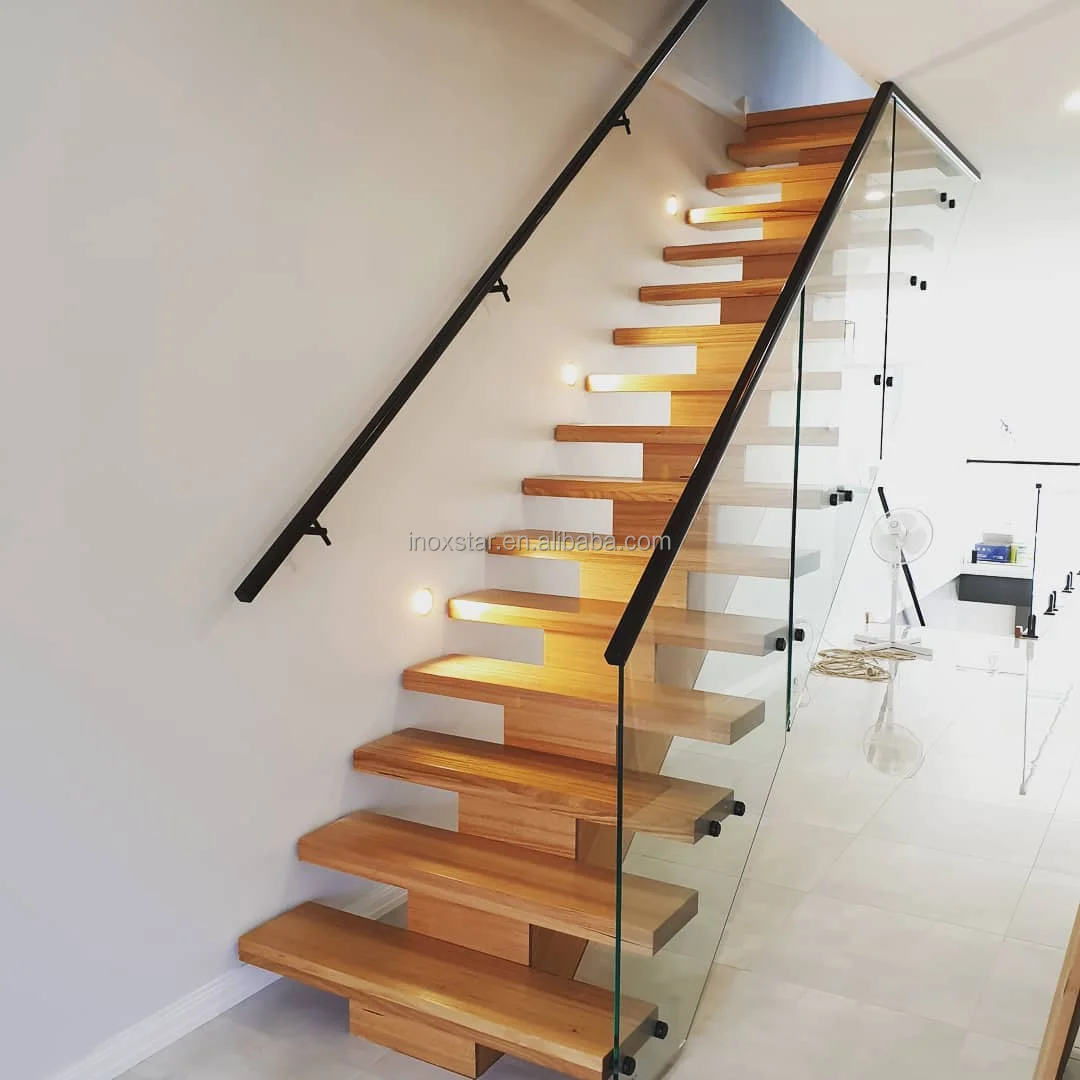

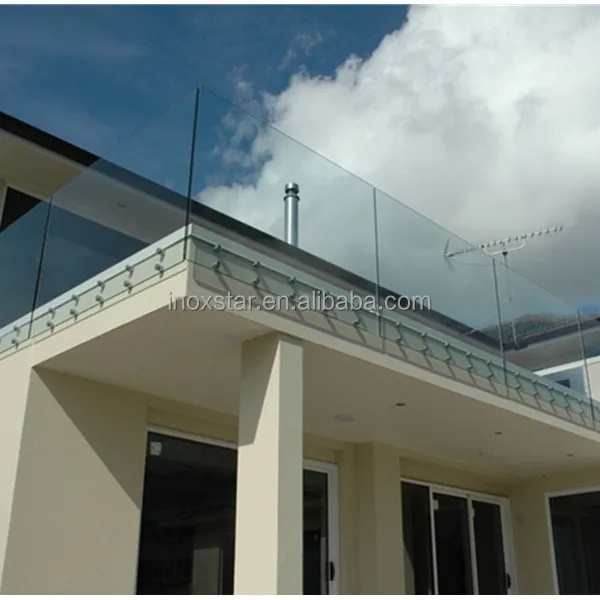

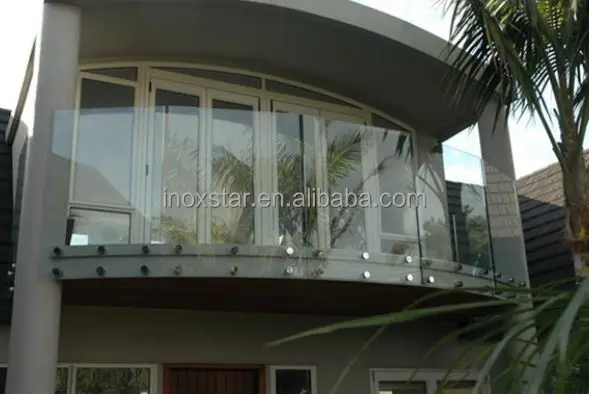

Recommended Location Usage | Pool fence or balustrade ,staircase |
Type of Mounting | drill |
Company Profile
DONGYING INOX STAR HARDWARE CO.,LTD
Inox Star Hardware was established in 2008. We are one professional manufacturer who uses the lost wax - silica sol shell craft and good at producing the complex metal precision castings.

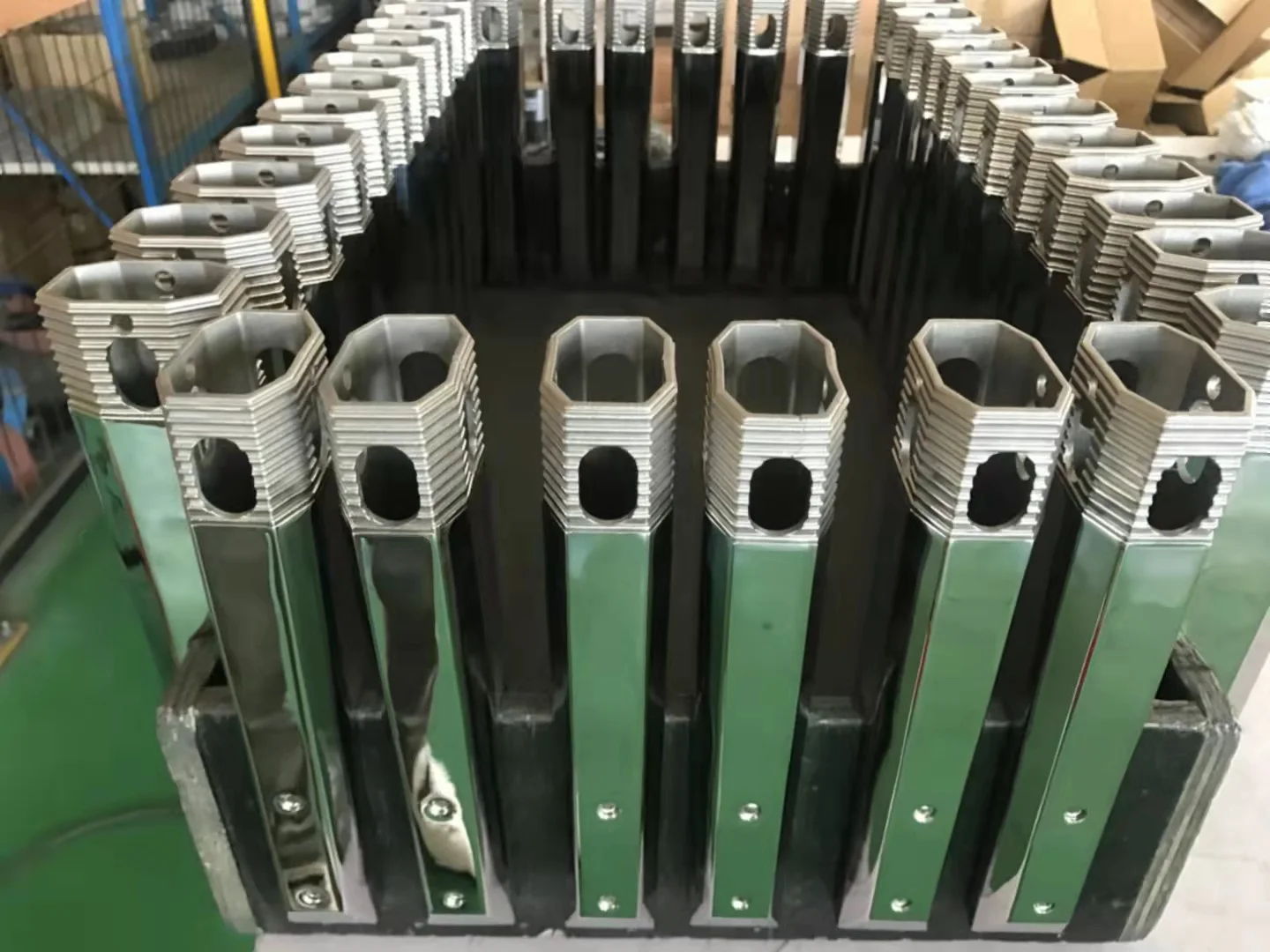

Inox Star is engaged in architectural hardware, like glass spigot ,glass clamp, glass balustrade post ,handrail bracket, cable railing. Through 13 years development and our continuous efforts, Inoxstar has independent research and development ability and can meet customers’ special requirements. And we set one big warehouse with over 2000 squire meters in Melbourne Australia with mass stock, with perfect design,excellent quality and cost-effective price , our products are very popular in the local market.
Inox Star lost wax casting process & machining perform ISO 9001:2000, IATF 16949:2016 and ISO14001-2015 strictly to guarantee the customers' requirements. And all the glass hardware tested to relevant standards at NATA accredited test facility with the Australia Standard certification .
Inox Star is engaged in architectural hardware, like glass spigot ,glass clamp, glass balustrade post ,handrail bracket, cable railing. Through 13 years development and our continuous efforts, Inoxstar has independent research and development ability and can meet customers’ special requirements. And we set one big warehouse with over 2000 squire meters in Melbourne Australia with mass stock, with perfect design,excellent quality and cost-effective price , our products are very popular in the local market.
Inox Star lost wax casting process & machining perform ISO 9001:2000, IATF 16949:2016 and ISO14001-2015 strictly to guarantee the customers' requirements. And all the glass hardware tested to relevant standards at NATA accredited test facility with the Australia Standard certification .
Packing & Delivery
Packing:
1)Foam Bag.
2)Individual carton box
1)Foam Bag.
2)Individual carton box
3）As customer’s request
FAQ
1. Are you manufacturer or trading company?
We are manufacturer established in 2008 with more than 10 years experience.
2. What are you mainly in?
We mainly in construction hardwares especially glass hardwares .railing system,hydraulic hinge,shower hardwares.
We are manufacturer established in 2008 with more than 10 years experience.
2. What are you mainly in?
We mainly in construction hardwares especially glass hardwares .railing system,hydraulic hinge,shower hardwares.
And we also do custom lost wax castings and machining parts according to drawings.
3.Can you accept OEM?
Yes，we accept OEM.We can make new design for you.
4. Do you have stock?
Yes，we have large stock for some regular size.We can send you the products immediately without waiting.If you urgent need them contact us to confirm the details.
3.Can you accept OEM?
Yes，we accept OEM.We can make new design for you.
4. Do you have stock?
Yes，we have large stock for some regular size.We can send you the products immediately without waiting.If you urgent need them contact us to confirm the details.
5.How long will it take to get a quotation
We can supply the quotation with 24 hours.
