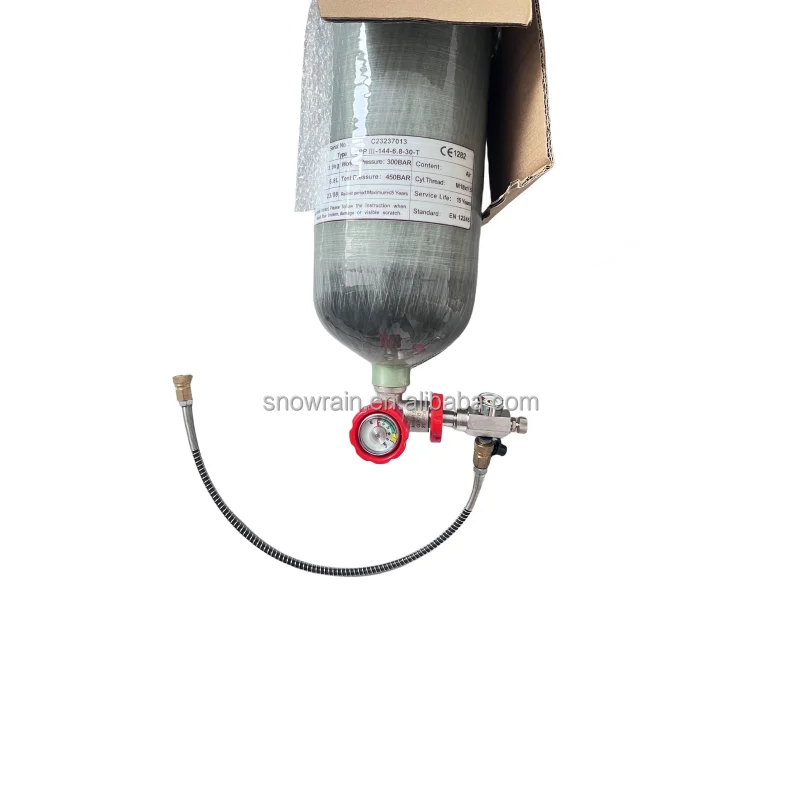

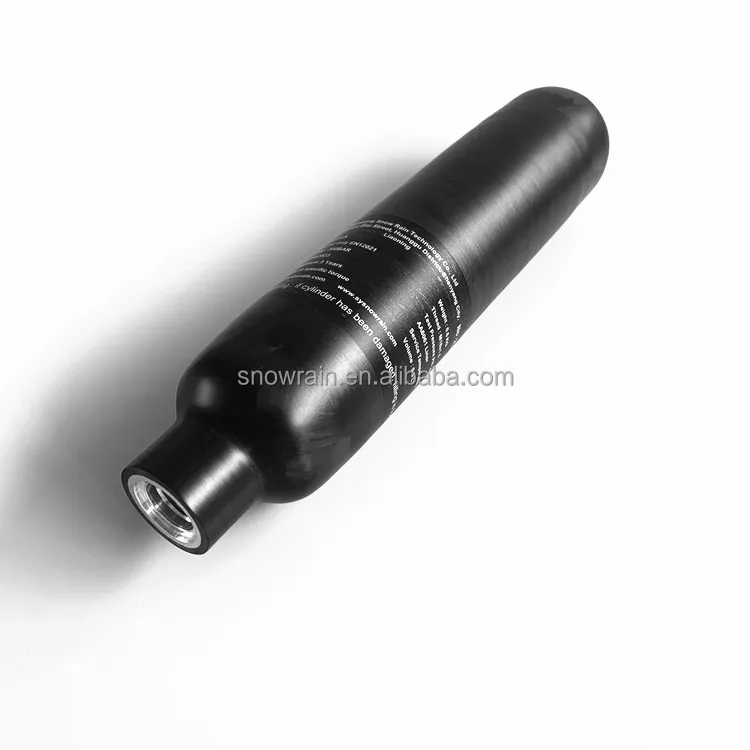

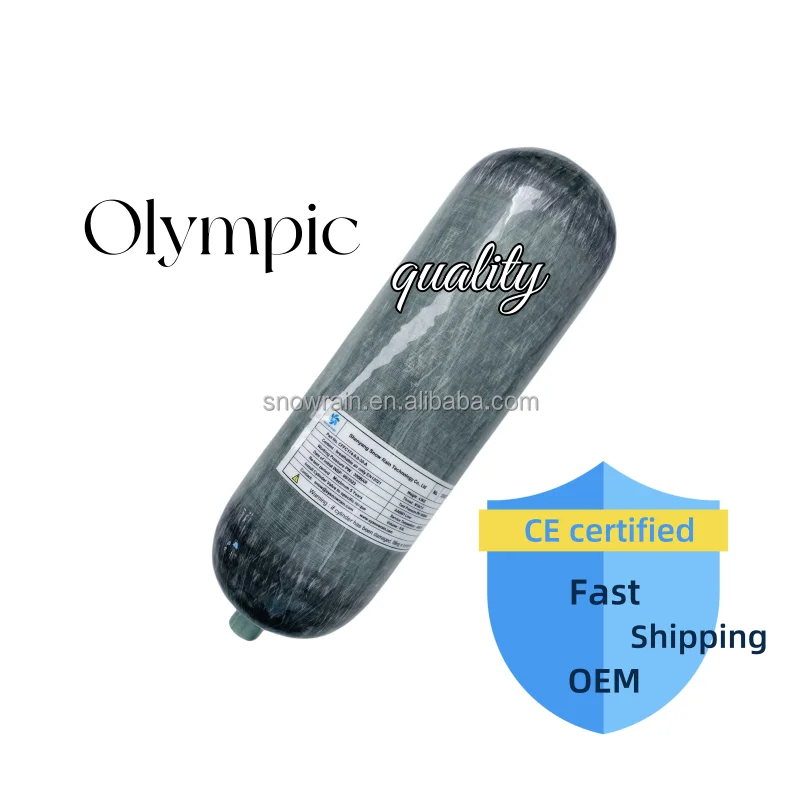

Pcp Airgun Cylinder Factory Sale Customize Label Cylinder Carbon Fiber OEM CE Certified ISO 6.8L Carbon Fiber Tank
- Category: >>>
- Supplier: Shenyang Snow Rain Technology Co. Ltd.
Share on (1601046106839):
Product Overview
Description
Products Introduction
Manufacture standard | GB28053, EN12245, DOT-CFFC, ISO11119-3 |
Material | Aluminum 6061 and carbon fiber |
Certificate | CE certificate available |
Filling content | air |
Surface | glossy black and matt black |
Thread | M18*1.5 or as per requirement |

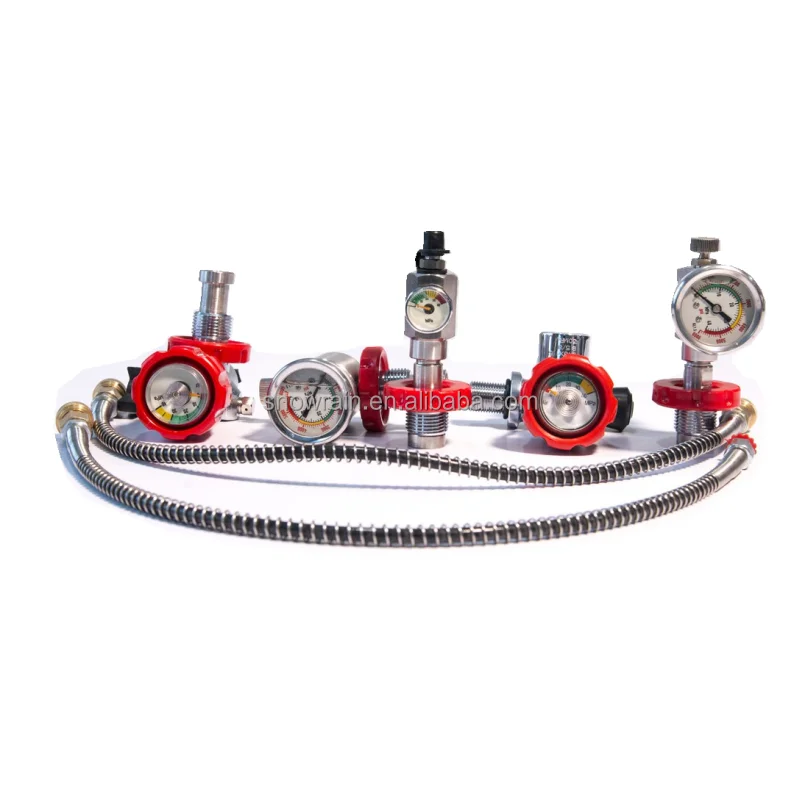

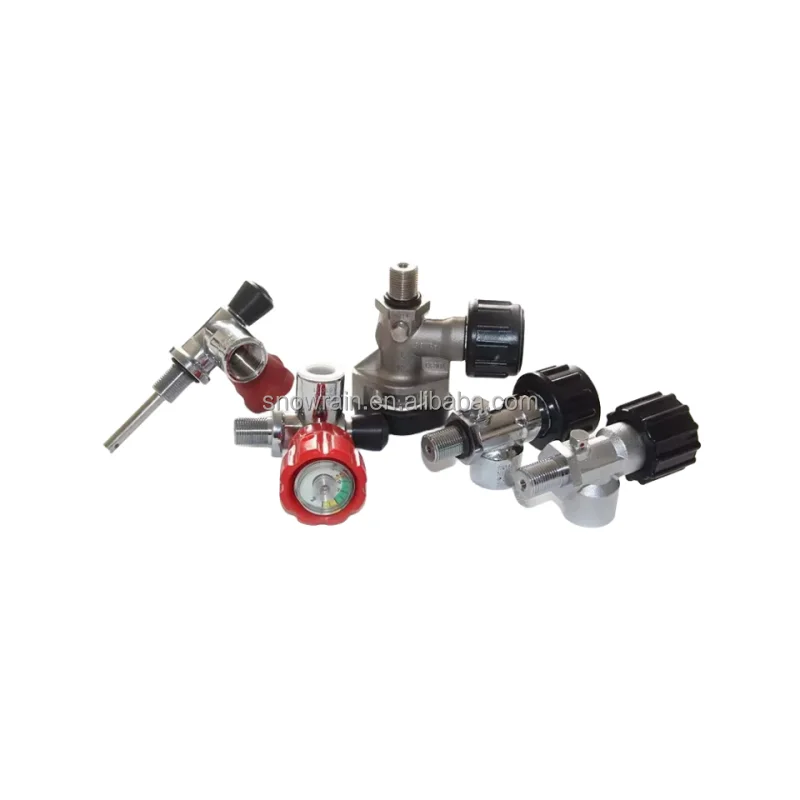

Valve | As per requirement |
OEM and ODM | Accept |
Carbon fiber air cylinders offer several advantages over their steel or aluminum counterparts：
1. The lightweight nature, high strength, corrosion resistance, design flexibility, and thermal stability of carbon fiber make it an ideal material choice for PCP air cylinders and SCBA air cylinders.
2. These benefits contribute to improved performance, increased safety, and enhanced user experience in various industries, including shooting air source support and underwater diving.
Dedicate Thread and Neck
We use heat necking in technology and strict production monitor to contribute to elegant condition.
Perfect Bottom
Fine grinding during the manufacturing process makes the smooth surface of the bottom.

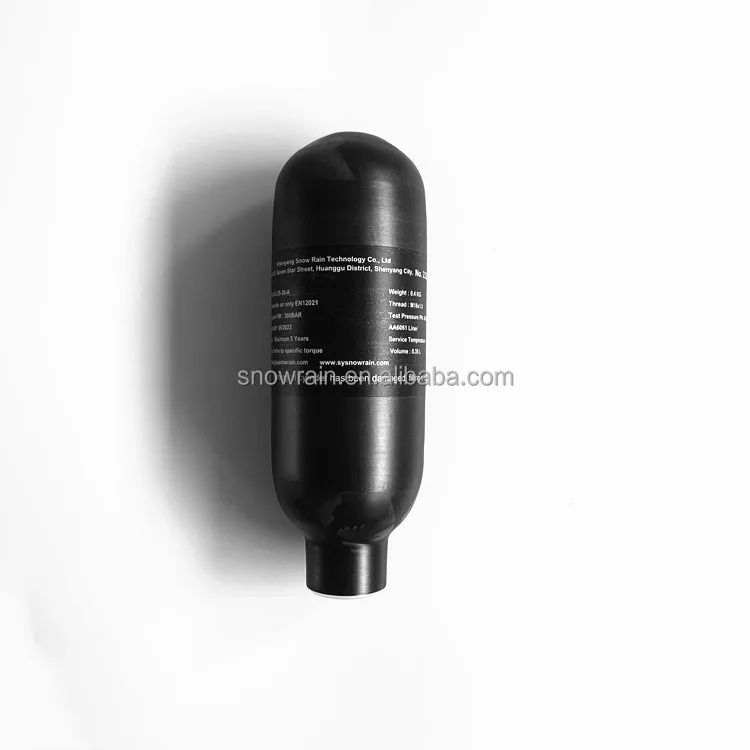

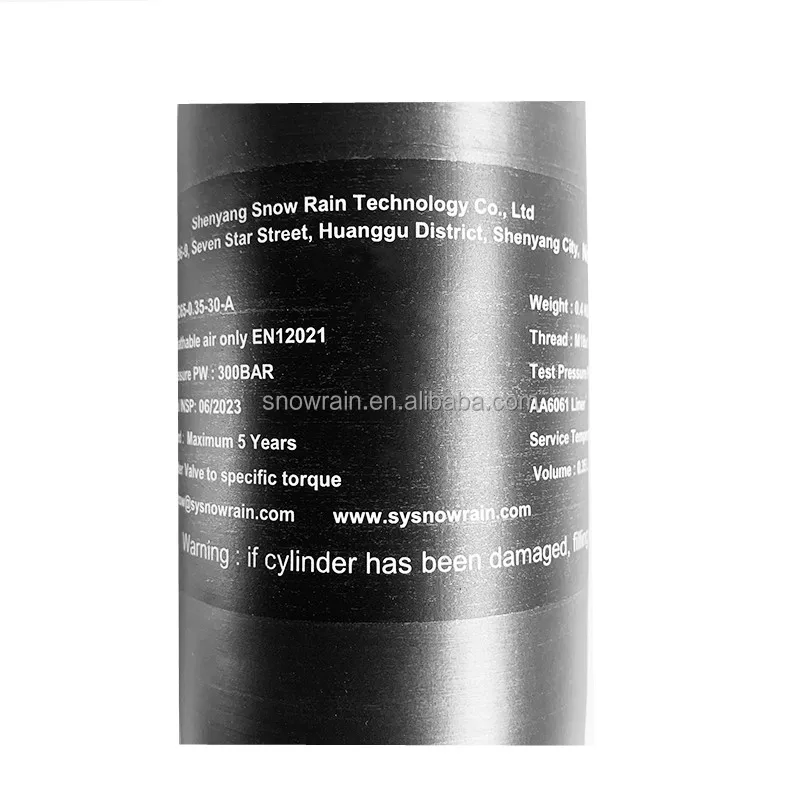

CE Marked Label and Customization
Every cylinder is CE marked.
We do label customization to help customer build their own brand.
One-stop purchase
Specifications Recommended
SCBA and EEBD Gas Cylinder Tehnical Data Sheet | ||||||||||
Specification/Model | Volume | Outside Diameter | Length | Weight | Working Pressure | |||||
CRPIII-93-0.8-30-T | 0.8L | 101 mm | 200 mm | 0.7 kg | 300 bar | |||||
CRPIII-93-1.12-30-T | 1.12L | 101 mm | 250 mm | 0.9 kg | 300 bar | |||||
CRPIII-88-2.0-30-T | 2.0L | 106 mm | 383 mm | 1.9 kg | 300 bar | |||||
CRPIII-120-2.5-30-T | 2.5L | 129 mm | 310 mm | 1.6 kg | 300 bar | |||||
CRPIII-124-2.7-30-T | 2.7L | 132 mm | 310 mm | 1.7 kg | 300 bar | |||||
CRPIII-105-3.0-30-T | 3.0L | 113 mm | 453 mm | 2.2 kg | 300 bar | |||||
CRPIII-124-4.7-30-T | 4.7L | 137 mm | 495 mm | 3.5 kg | 300 bar | |||||
CRPIII-144-6.8-30-T | 6.8L | 158 mm | 528 mm | 3.9 kg | 300 bar | |||||
CRPIII-162-9.0-30-T | 9.0L | 176 mm | 562 mm | 5.2 kg | 300 bar | |||||
CRPIII-192-12-30-T | 12L | 208 mm | 575 mm | 6.5 kg | 300 bar | |||||
CRPIII-192-20-30-T | 20L | 208 mm | 840 mm | 9 kg | 300 bar | |||||
Specification/Model | Volume | Outside Diameter | Length | Weigh | Working Pressure | |||||
CRPIII-106-2.0-20-T | 2.0L | 113 mm | 330 mm | 1.4 kg | 200 bar | |||||
CRPIII-120-2.5-20-T | 2.5L | 127 mm | 309 mm | 1.6 kg | 200 bar | |||||
CRPIII-106-3.0-20-T | 3.0L | 113 mm | 465 mm | 2 kg | 200 bar | |||||
We can manufacture aluminum gas cylinder from 0.19L to 200L, for other carbon fiber gas cylinders blow 1L, please visit our PCP and Paintball Tank category. We can also manufacture other specifications as per requirement. | ||||||||||
