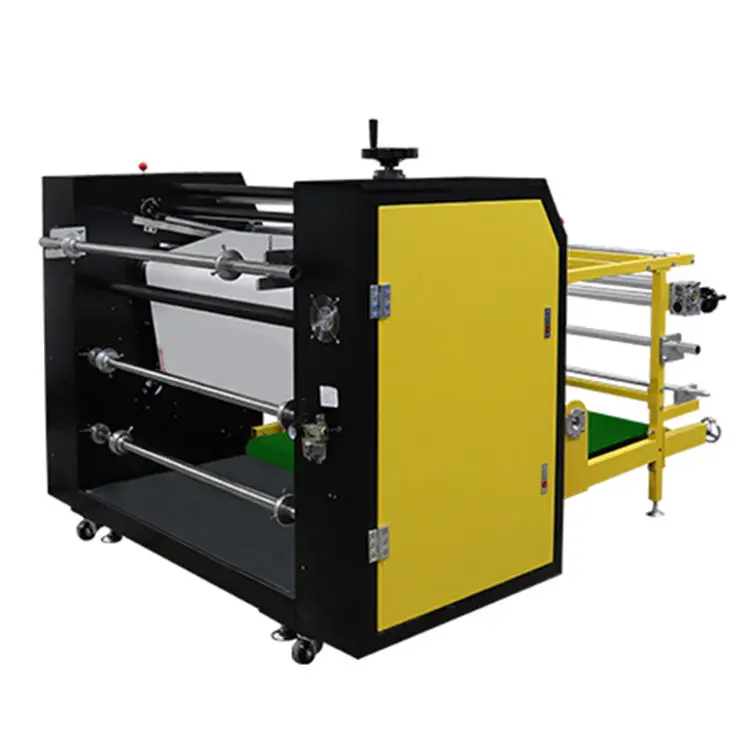

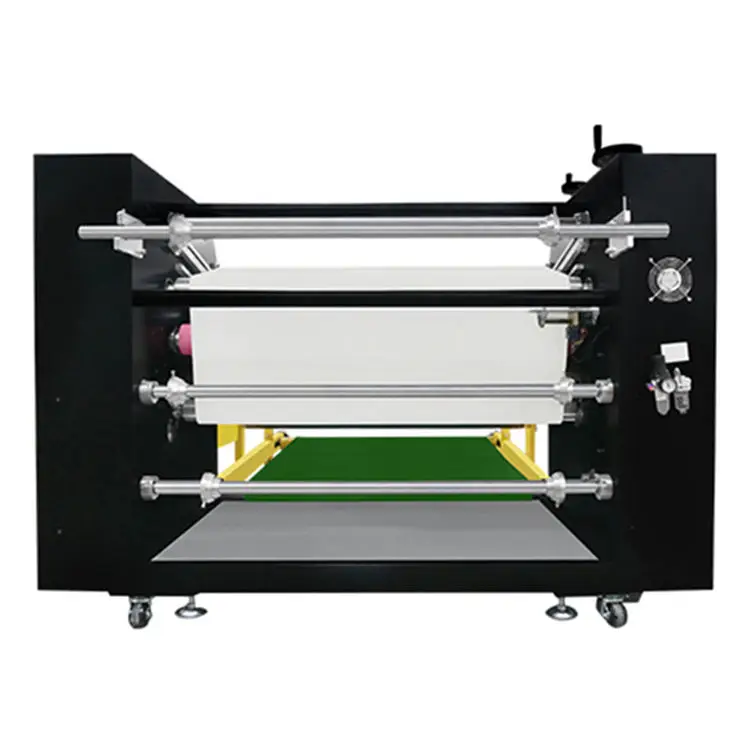

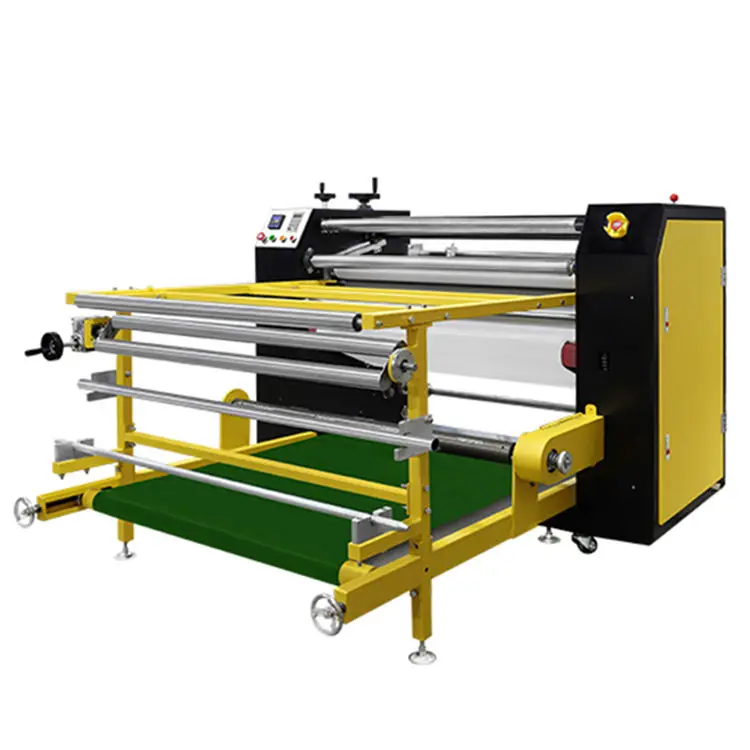

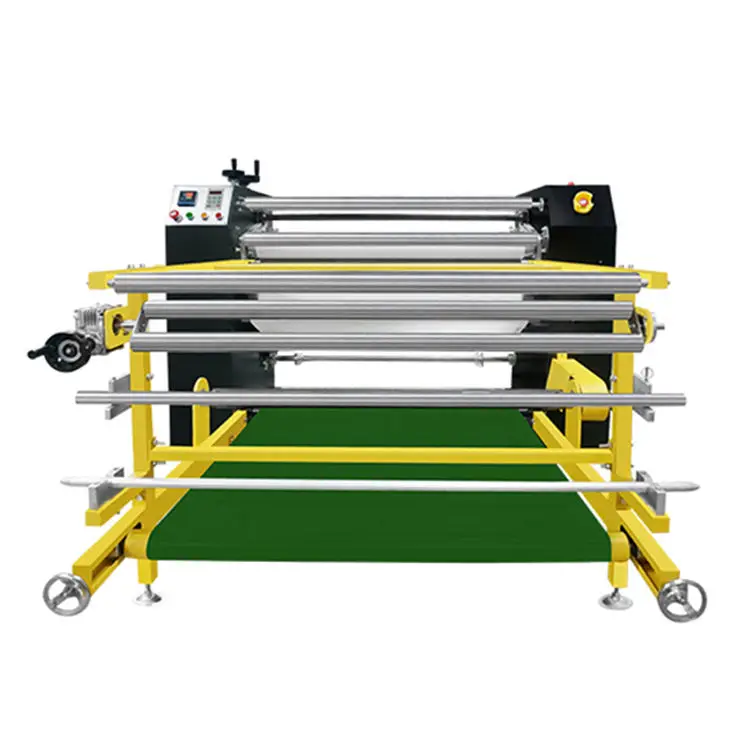

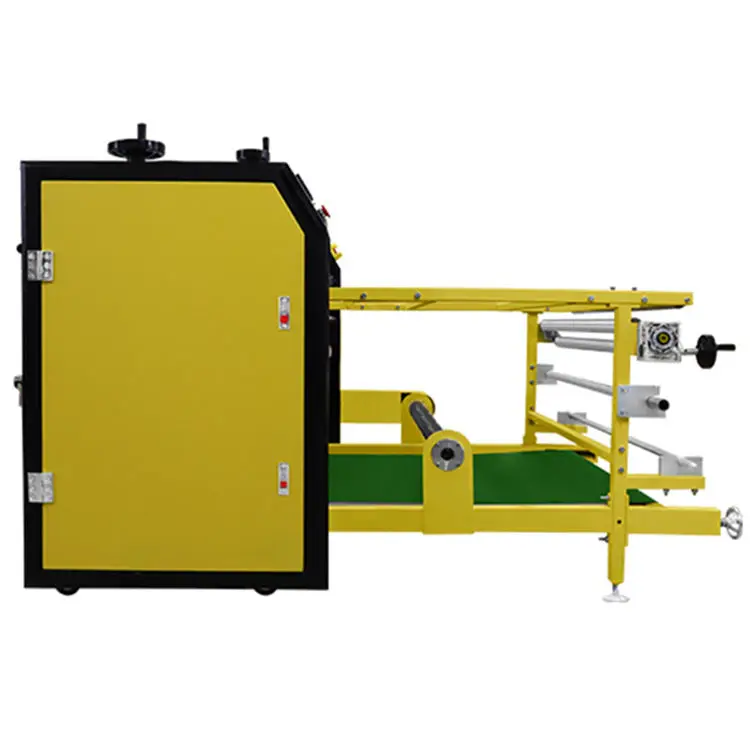

Roller Heat Press Machine roll to roll roller fabric drum sublimation Automatic Heat Transfers heat roller press machine
- Category: >>>
- Supplier: Guangzhou Disen Electronic Equipment Co. Ltd.Guangzhou Ltd.
Share on (1601046144329):
Product Overview
Description
Product Description
Specification
Description:
This Roller –type sublimation thermal transfer printing equipment, the use of heat-conducting oil layer surrounding electric
heating diversion of the principles of design and manufacture of heating, the cylinder surface temperature balanced and stable blanket with out of the mechanical structure, with three-phase frequency control devices, machine operation, easy
maintenance,transfer to achieve the best and widely used in digital printing industry at home and abroad.
Feature:
1.Wide Application:Applicable to both heat transfer printing and cotton cold transfer printing.
2.Good printing effects:The transfer printing effects are as good as those of flat hot stamping machines.
3. High Hardware Configuration: The main wall board and all shaft rollers are all reinforced and professionally crafted.
4. Pneumatic pressure, pressure can be flexibly controlled.
5. Reasonable structure: The integrated manufacture of feeding and outfeeding system,the parallel and accurate moving of paper and cloth, the machine occupies less space, saves labor.
Technical parameter
This Roller –type sublimation thermal transfer printing equipment, the use of heat-conducting oil layer surrounding electric
heating diversion of the principles of design and manufacture of heating, the cylinder surface temperature balanced and stable blanket with out of the mechanical structure, with three-phase frequency control devices, machine operation, easy
maintenance,transfer to achieve the best and widely used in digital printing industry at home and abroad.
Feature:
1.Wide Application:Applicable to both heat transfer printing and cotton cold transfer printing.
2.Good printing effects:The transfer printing effects are as good as those of flat hot stamping machines.
3. High Hardware Configuration: The main wall board and all shaft rollers are all reinforced and professionally crafted.
4. Pneumatic pressure, pressure can be flexibly controlled.
5. Reasonable structure: The integrated manufacture of feeding and outfeeding system,the parallel and accurate moving of paper and cloth, the machine occupies less space, saves labor.
Technical parameter
Product Name | Roller Heat Press Machine | ||||
Model Number | DSH-R26E | ||||
Drum diameter | 21CM | ||||
Roller Width | 120CM | 170CM | 180CM | ||
Power | 6KW | 9KW | 10KW | ||
Voltage | 220/380/420/480 3 phase is available | ||||
Sublimation Speed | 35-50M Per Hour | ||||
Temp.range | 0-390℃ | ||||
Tempered glass table size | 1215x1180x10MM | 1715x1180x10MM | 1815X1180X10MM | ||
Packing dimension | 204X114X155CM | 248X108X165CM | 258X114X155CM | ||
Gross weight | 850KG | 1020KG | 1200KG | ||

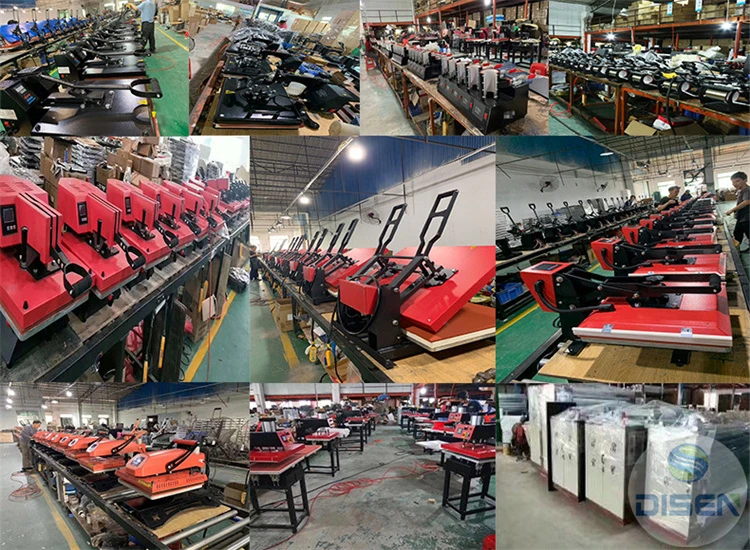

Company Profile
