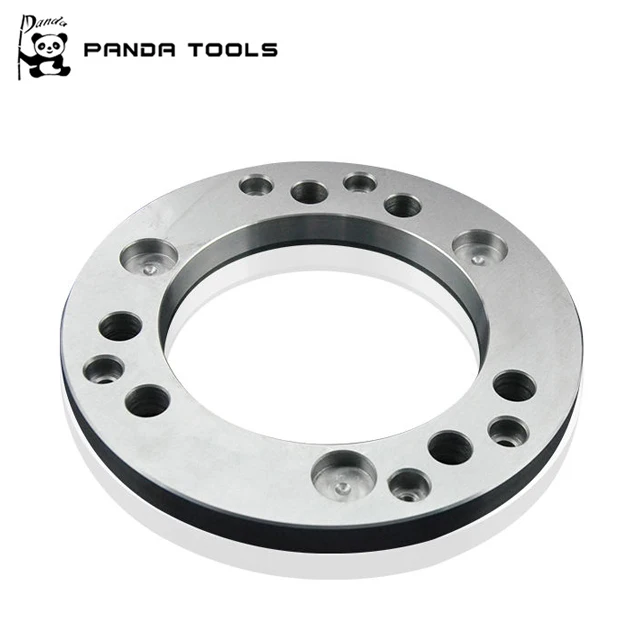

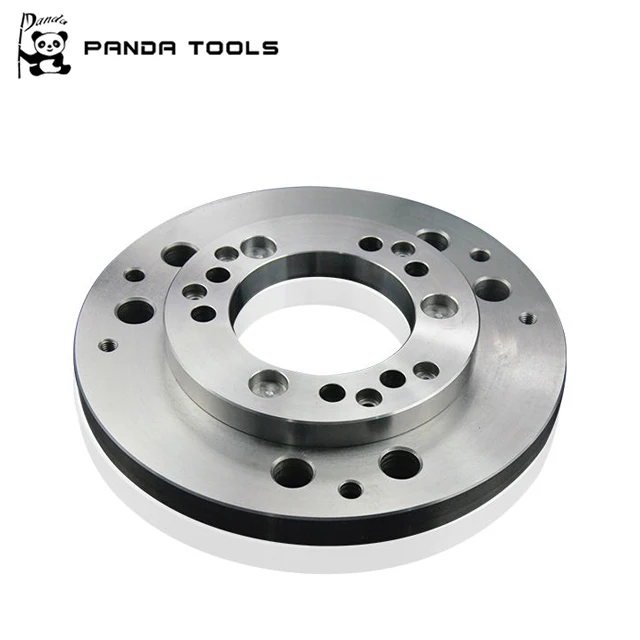

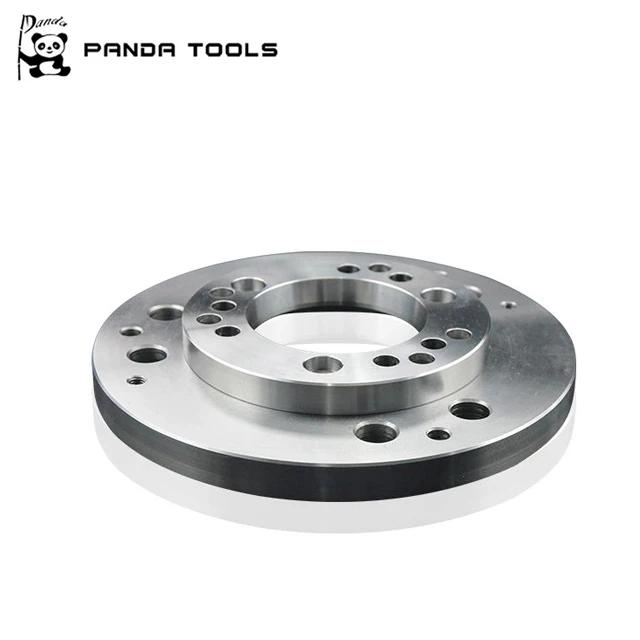

Adapter Back Plate for 6 Inch Diameter Power Lathe Chucks
- Category: >>>
- Supplier: Dezhou Panda Machine Tools Co. Ltd.
Share on (1601046209645):
Product Overview
Description
One-stop Supply
Machine Tools Accessories
One-stop Supply Tool holder
Product Description

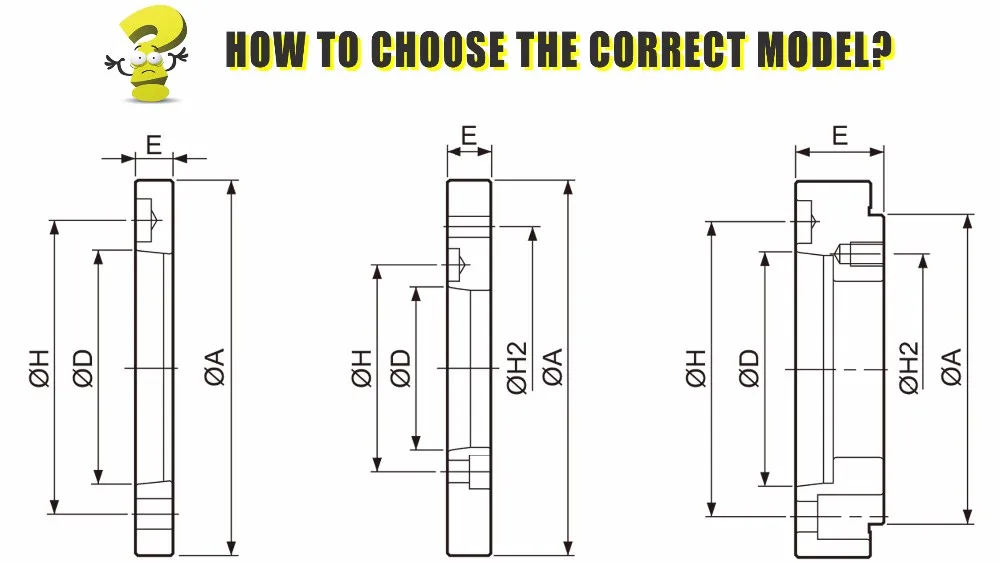

There are three questions to answer to aid the correct choice of power chuck:
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?
1. Type and model of CNC lathe.
2. Length of workpiece?
3. Outer diameter of workpiece?
4. Processing requirement?

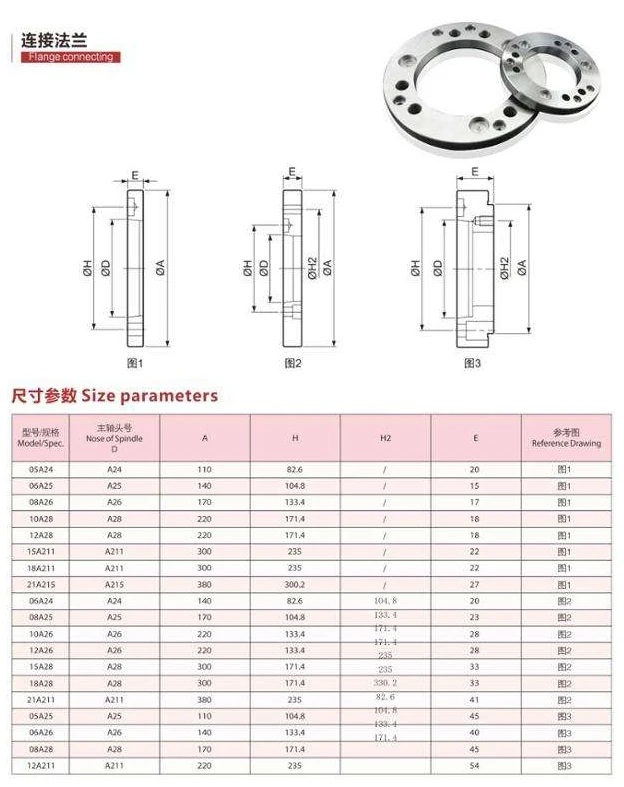

Model/Spec. | Nose of Spindle D | A | H | H2 | E | Reference Drawing |
-05A24 | A24 | 110 | 82.6 | - | 20 | fig1 |
-06A25 | A25 | 140 | 104.8 | - | 15 | fig1 |
-08A26 | A26 | 170 | 133.4 | - | 17 | fig1 |
-10A28 | A28 | 220 | 171.4 | - | 18 | fig1 |
-12A28 | A28 | 220 | 171.4 | - | 18 | fig1 |
-15A211 | A211 | 300 | 235 | - | 22 | fig1 |
-18A211 | A211 | 300 | 235 | - | 22 | fig1 |
-21A215 | A215 | 380 | 300.2 | - | 27 | fig1 |
-06A24 | A24 | 140 | 82.6 | 104.8 | 20 | fig2 |
-08A25 | A25 | 170 | 104.8 | 133.4 | 23 | fig2 |
-10A26 | A26 | 220 | 133.4 | 171.4 | 28 | fig2 |
-12A26 | A26 | 220 | 133.4 | 171.4 | 28 | fig2 |
-15A28 | A28 | 300 | 171.4 | 235 | 33 | fig2 |
-18A28 | A28 | 300 | 171.4 | 235 | 33 | fig2 |
-21A211 | A211 | 380 | 235 | 330.2 | 41 | fig2 |
-05A25 | A25 | 110 | 104.8 | 82.6 | 45 | fig3 |
-06A26 | A26 | 140 | 133.4 | 104.8 | 40 | fig3 |
-08A28 | A28 | 170 | 171.4 | 133.4 | 45 | fig3 |
-12A211 | A211 | 220 | 235 | 171.4 | 54 | fig3 |
Packing & Delivery
Packaging | ||
Size | 1200*1200*800mm | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 1000*1000*800mm | |
Weight | 1.0T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
