3.7 V 15mAh Ultra Thin Battery 091525
3.7 V 15mAh Ultra Thin Battery 091525
3.7 V 15mAh Ultra Thin Battery 091525
3.7 V 15mAh Ultra Thin Battery 091525
3.7 V 15mAh Ultra Thin Battery 091525
3.7 V 15mAh Ultra Thin Battery 091525
3.7 V 15mAh Ultra Thin Battery 091525

3.7 V 15mAh Ultra Thin Battery 091525

Share on (1601046318040):


Price:$2.00 - $3.50

Quantity:


Product Overview

Description



Specification

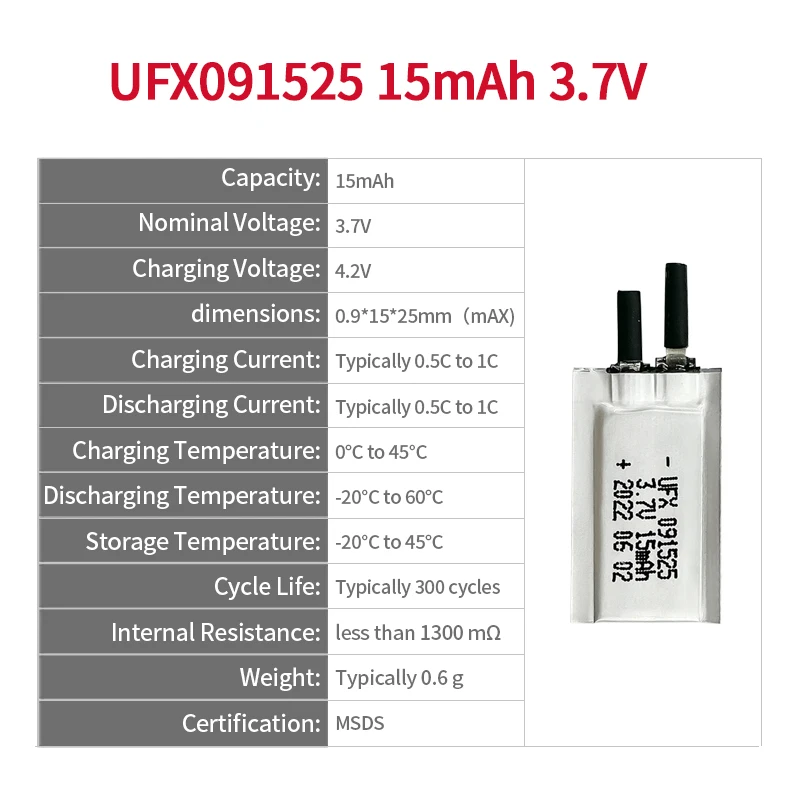

1、Mechanical Characteristics
Cell:
091525
PCM:
No
NTC:
NO
Weight:
1g
Configuration:
1S1P
Demension
0.9*15*25mm
2、Electrical Specification
Capacity:
15mAh
Nominal Voltage:
3.7V
Energy:
0.0555Wh
Internal Impedance：
less than 1000mΩ
Max. Charge Voltage:
4.2V
Discharge Cut Off:
2.75V
Max. Charge Current:
15mA
Max. Discharge Current:
15mA
Standard Charge Current:
3mA
Standard Discharge Current:
3mA
Charge Temp. Range:
Typically 0°C to 45°С
Discharge Temp. Range
-20°C to 60°С
Storage Temp. Range
1 year at -20℃ to +30℃
Cycle life:
100 cycles ≥92%
3 moths at -20℃ to +45℃
300 cycles ≥88%
1 month at -20℃ to +60℃
500 cycles ≥80%
3、Cell protection
Overcharge Detection ：
No
Overdischarge Detection：
No
Overcurrent Detection：
No
Short protection：
No


Products Description


Ufine is a leading polymer lithium-ion battery cell manufacturer, specializing in the production of 15mAh 3.7 V ultra thin
batteries.
* Slim and compact design for space-efficient compatibility with thin electronic devices.
* Engineered for flexibility, allowing bending or shaping to fit unique designs without compromising functionality.
* Lightweight materials minimize overall device weight while providing reliable power for portable and wearable tech.
* Suitable for various devices like smart cards, medical patches, IoT devices, or other compact electronics needing a slim power
source.
* Customizable capacities and sizes tailored to diverse device needs.
