Air Recuperator Hrv Heat Recovery Ventilator ECO A MVHR Mechanical Air Ventilation System for Residential Fresh Air
- Category: >>>
- Supplier: Vika Intelligent Technology (Guangdong) Co. Ltd.
Share on (1601046341431):
Product Overview
Description
Features

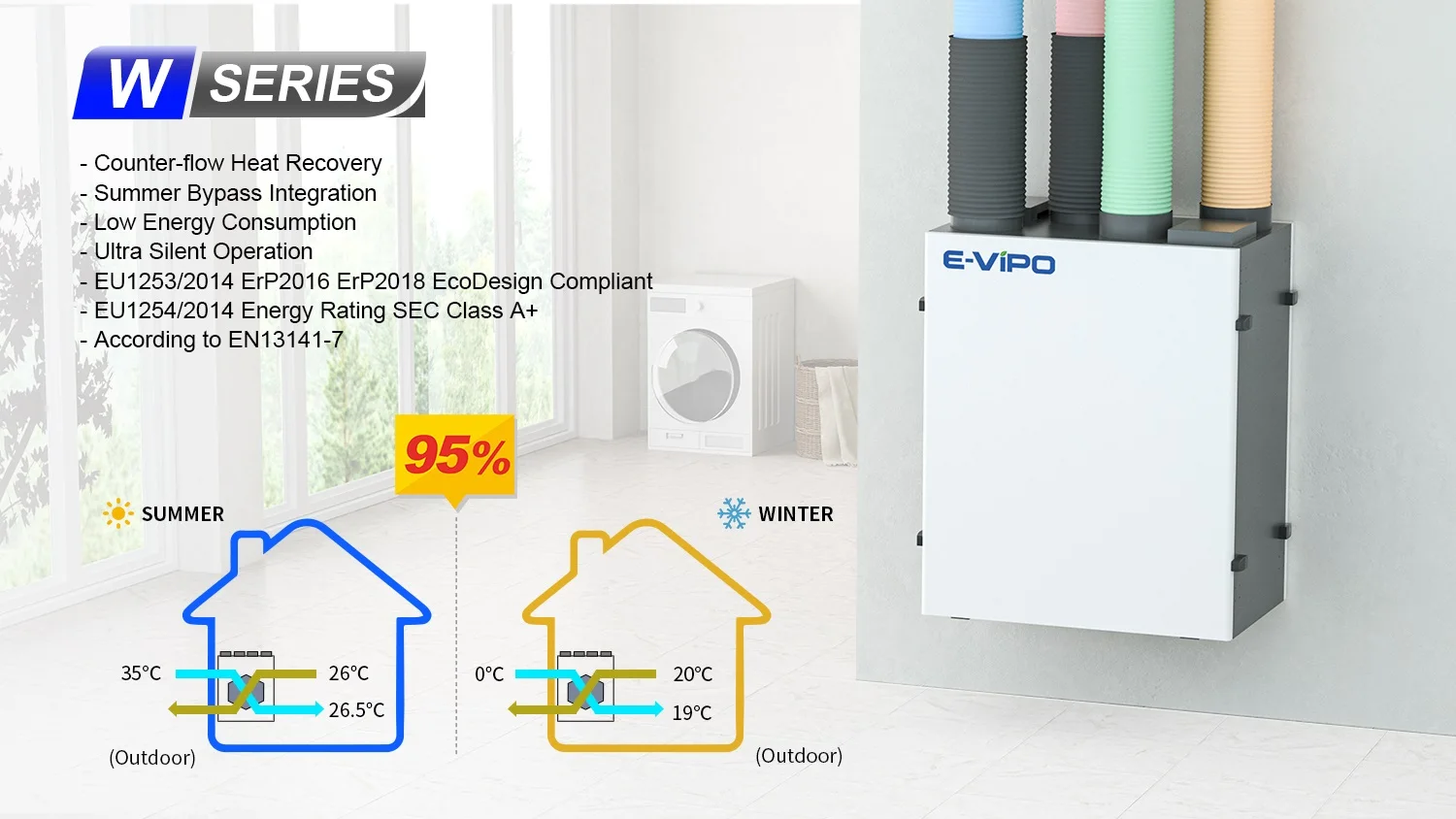

▶ High-efficiency heat recovery up to 98%
▶ EC Energy Saving Motor (High Static Pressure)
▶ Summer Bypass Integration
▶ Low Energy Consumption
▶ Efficient Sound Reduction
▶ Efficient Sound Reduction
▶ Strong Thermal Insulation
▶ WiFi Control - APP for Android / iOS

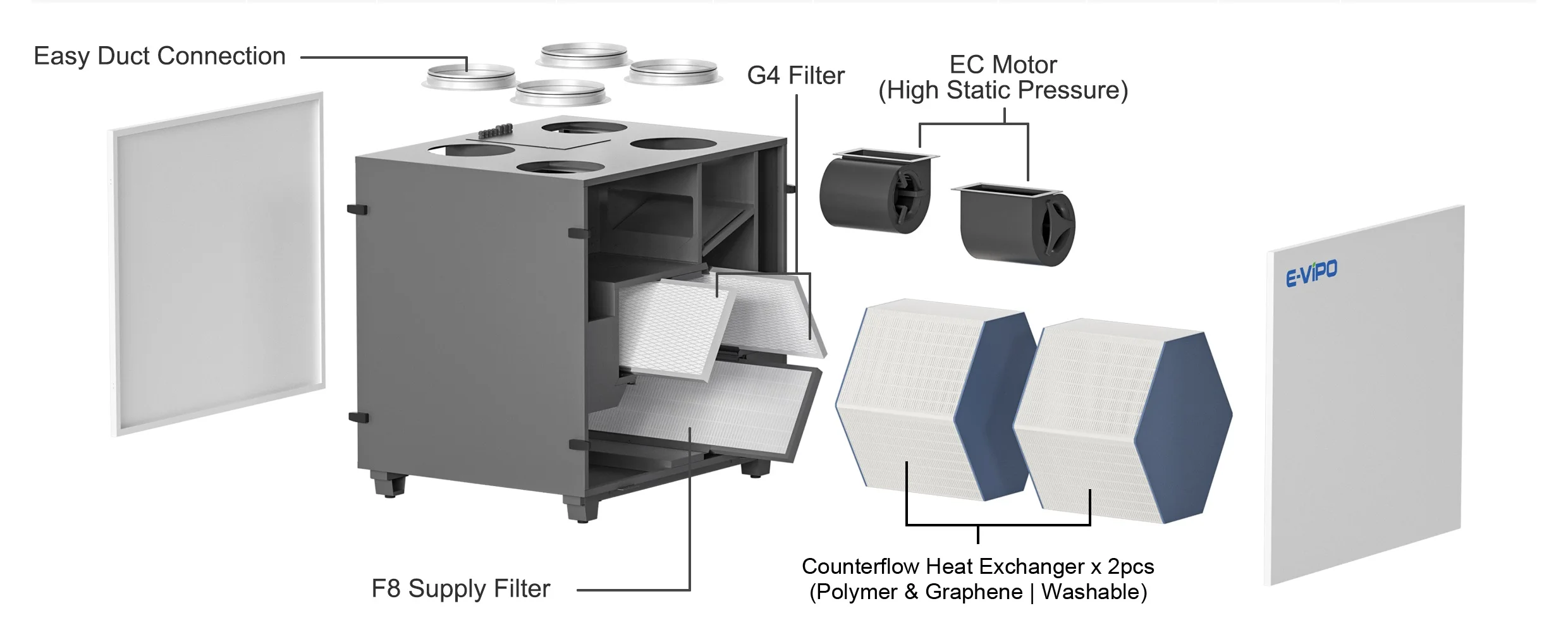

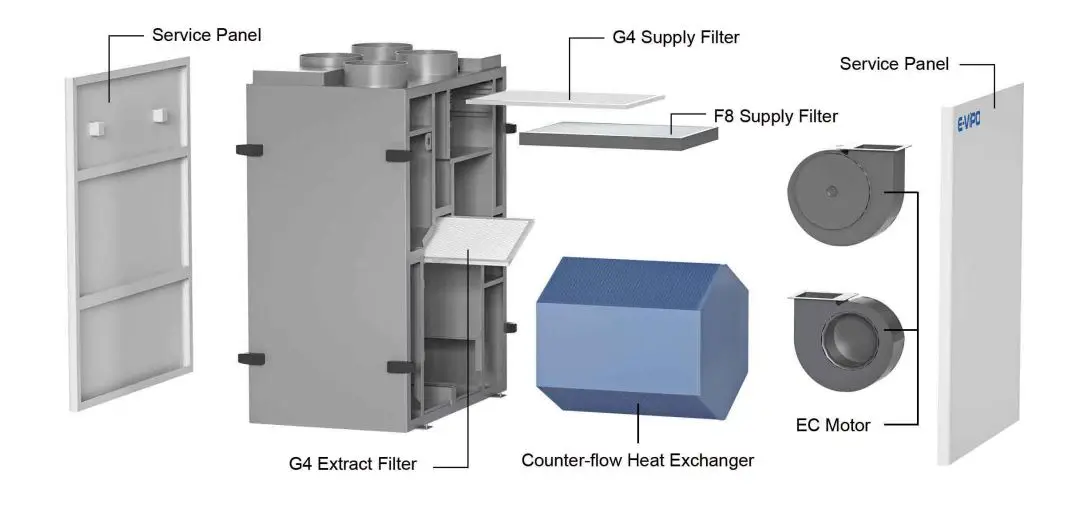

Counter-flow
With an optimal distance between layers to ensure a high heat recovery efficiency and a smooth movement of the airflows. Comparing to traditional cross-flow heat exchanger, counter-flow heat exchanger provides a longer distance flows of air and with a larger plate area. Material with Graphene used also has a higher heat recovery efficiency than traditional paper material core, where the counter-flow heat exchanger is washable and durable, anti-viral and anti-bacterial.
EC Motor
The high performance EC motor equipped in the unit has the features of low power consumption, quiet and high static pressure. This
not only reduces the long run electricity cost, but also ensures the air delivering to the room is sufficient after ducting.
Comparing to traditional AC motor, EC motor provides a better overall performance including energy saving.
not only reduces the long run electricity cost, but also ensures the air delivering to the room is sufficient after ducting.
Comparing to traditional AC motor, EC motor provides a better overall performance including energy saving.

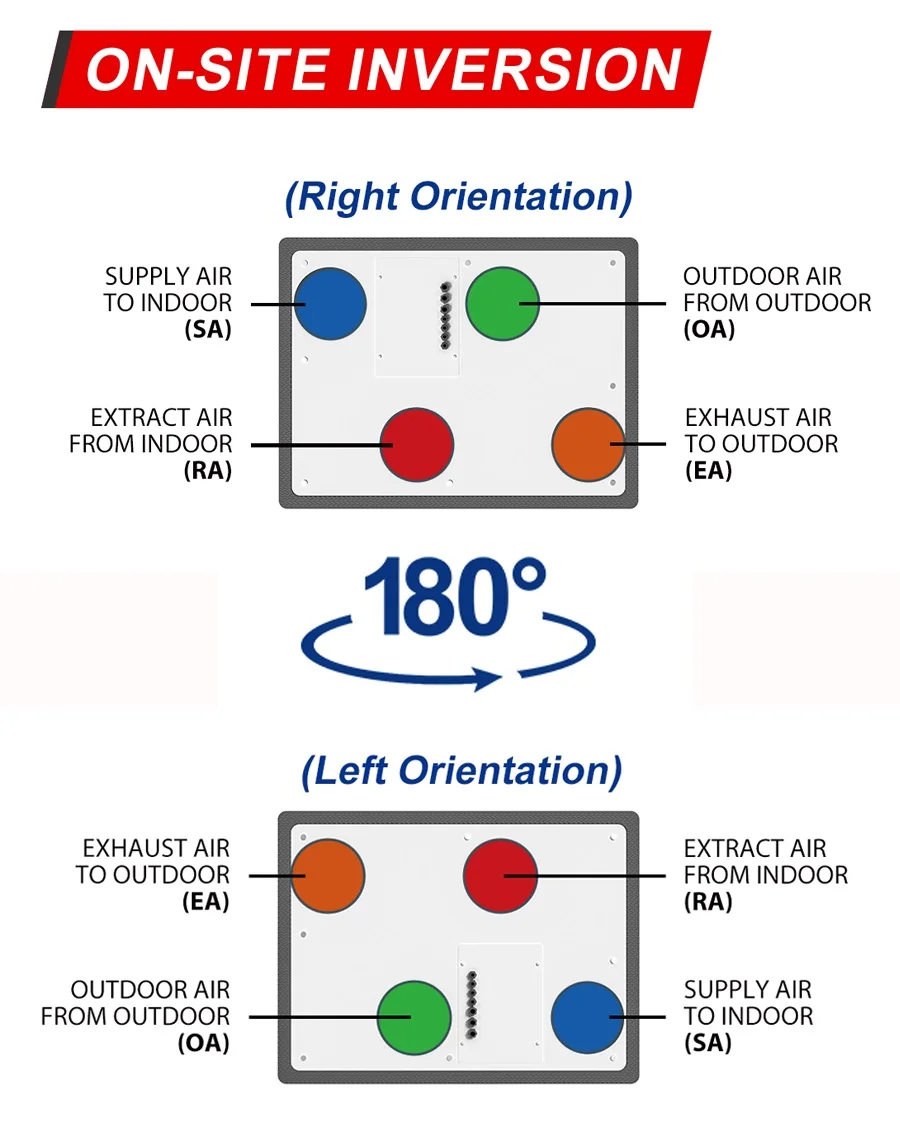

On-Site Reversible Mounting Installation
Service panels are on the both sides, left or right installation can be adjusted at site to meet different installation requirements.
What is Bypass?
Bulit-in Bypass damper for summer bypass (free-cooling), without exchanging the heat at the heat exchanger, the fresh air with comfortable temperature level from outdoor can be delivered into the room directly.
What is Boost Switch
Boost ventilation is a function that can be triggered when indoor needs a fast circulation of air with outdoor fresh air.
When the IAQ is bad, or indoor humidity is high, boost function can be triggered to ensures pollutants are extracted immediately at the highest fan speed.
Model | Airflows | Supply Filters | Motor | Heat Exchanger | Air Duct Diameter |
W150 | 150m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow | Φ150mm |
W200 | 200m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow | Φ150mm |
W250 | 250m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow | Φ150mm |
W300 | 300m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow | Φ150mm |
W350 | 350m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow | Φ150mm |
W600 | 600m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow*2 | Φ250mm |
W700 | 700m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow*2 | Φ250mm |
W800 | 800m3/h | G4 | F8 (option) | EC (BLDC) | Counter-flow*2 | Φ250mm |

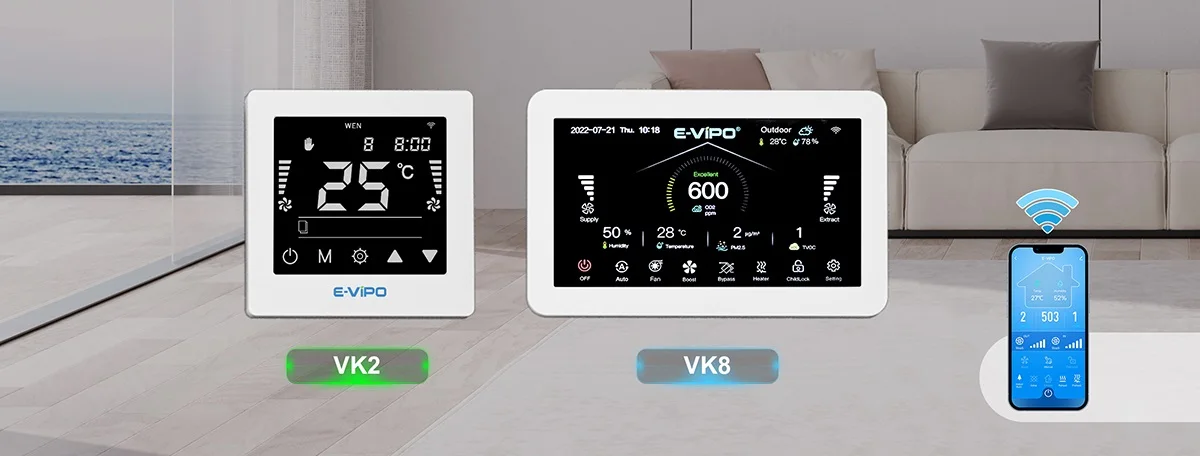

VK8 Controller Feature
- HD 7” Color Touchscreen with Real-time IAQ Display
- Variable Speed Control
- Modbus RS485 Smart Home Connection
- IAQ Sensors CO2 / PM2.5 / VOCs / TEMP / RH
- Weekly Scheduled Operation
- Optional Fans Separately Control
- Multiple External CO2 / RH / TEMP Sensors Connection
- Multiple External Boost Switches Connection
- Bypass / Defrost / IAQ Automation
- APP Remote Control Available
- Filter Countdown / Replacement Notification
- Complete Settings on Control Panel
- Variable Speed Control
- Modbus RS485 Smart Home Connection
- IAQ Sensors CO2 / PM2.5 / VOCs / TEMP / RH
- Weekly Scheduled Operation
- Optional Fans Separately Control
- Multiple External CO2 / RH / TEMP Sensors Connection
- Multiple External Boost Switches Connection
- Bypass / Defrost / IAQ Automation
- APP Remote Control Available
- Filter Countdown / Replacement Notification
- Complete Settings on Control Panel
VK2 Controller Feature
- 3.5” Display & Touchscreen
- Optional Fans Separately Control
- Filter Management with Filter Timer & Notification
- Week Scheduled Operation
- Boost Ventilation Function
- APP Remote Control Available
