Oilfield Drilling Mud Linear Motion Shale Shaker for Drilling Solid Control System

Share on (1601046386596):


Price:

Quantity:


Product Overview

Description



Product Description


 1. Mainly suitable for water quality treatment and control of raw water and supplementary water, such as oilfield drilling, non excavation horizontal directional crossing, mud purification and cyclone separation in coalbed methane drilling, sand removal from river and well water, coal washing water, industrial beneficiation, solid-liquid separation, liquid degassing, and separation of immiscible liquids.
2. It can be widely used in water source heat pump systems, heating water, central air conditioning cooling water, chilled water, steel, power generation, chemical and other industrial and mining enterprises, tap water, seawater, surface water, groundwater, etc.


5d64d9a8dd8aa







Advantages


1.One stop service. We provide various drilling equipment and accessories for overseas clients in different drilling fields. Including oil drilling and repair machines, horizontal drilling rigs, horizontal directional drilling rigs, mud pumps and accessories, solid control systems and equipment, etc. It can meet various needs of customers.
2. Quality assurance. Our supplier's products are strictly produced according to standards and provide corresponding after-sales service to customers, actively handling and solving a series of problems encountered by customers during use.
3. Professional team. In terms of production research, we have sufficient technical talents to support the product production line and ensure product quality; In terms of sales, we have professional and enthusiastic service personnel to ensure the sales and after-sales service of our products, and to ensure the stability and durability of our cooperative relationship.
4. Fast delivery. Our company has dedicated tracking personnel to ensure the normal production and delivery of orders.





Product Parameters

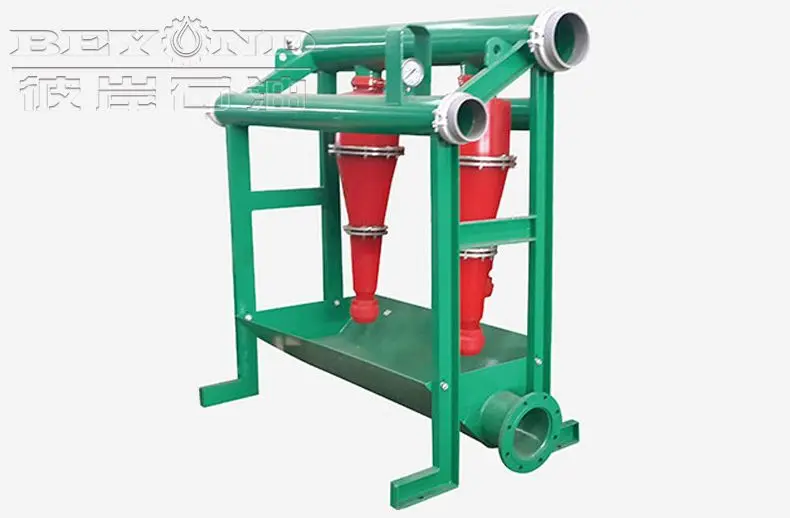

ZQJ Double Hydrocyclone Desander





















































































ModelJZQJ300x2JZQJ250x2JZQJ200x2JZQJ100x16
Hydrocyclone diameter300mm250mm200mm100mm
Working pressure0.2~0.45MPa0.2~0.45MPa0.2~0.45MPa0.2~0.45MPa
Capacity240 m3/h200 m3/h160 m3/h200-240 m3/h
Screen size1240×585 mm1240×585 mm1240×585 mm1240×585 mm
Screen spec120-200 mesh120-200 mesh120-200 mesh120-200 mesh
Inlet diameter6″6″3″6″
Outlet diameter8″8″6″8″
Motor power0.5 KW0.5 KW0.5 KW0.5 KW
Weight780 kg740 kg700 kg780kg
Overall dimensions(mm)1630×2018×22801630×2018×22151630×1875×20452866×2018×2085

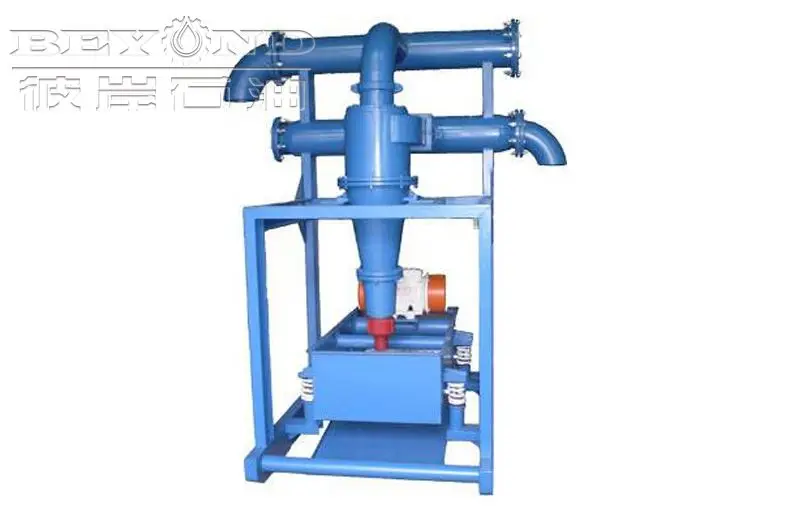

ZQJ Single Hydrocyclone Desander










































































ModelJZQJ300x1JZQJ250x1JZQJ200x1
Hydrocyclone diameter300mm250mm200mm
Working pressure0.2~0.45MPa0.2~0.45MPa0.2~0.45MPa
Capacity120m3/h100m3/h80m3/h
Screen size1240×585 mm1240×585 mm1240×585 mm
Screen spec120-200 mesh120-200 mesh120-200 mesh
Inlet diameter6″6″3″
Outlet diameter8″8″6″
Motor power0.5 KW0.5 KW0.5 KW
Weight680kg640kg620kg
Overall dimensions(mm)1630×2018×22801630×2018×22151630×1875×2045




Packaging & Shipping
















PackagingCustomized according to customer needs
Shipping1)Ocean shipping
2)Air transport
3)Select according to customer needs




Company Information


 SHANDONG BEYOND PETROLEUM EQUIPMENT Co., Ltd. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment spares maintenance and supply.


 2DSCN7490_1


China has become main supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, and there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.
However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.


1.0




 BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts.
Meanwhile, BEYOND can offer technical services personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: From best factories, with most competitive price and within shortest lead time.



FAQ


 1. Are you trading company or manufacturer?
We are professional trading company with 11 years export experience build base on our mud pump manufacturer, we are exclusive agent, and mainly products are oil drilling rig, drilling mud pump, related oilfield drilling equipment, construction machinery, water well drilling rig and etc. Our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.
2. Are your products qualified?
Yes, our products all have gained ISO certificate,API, and CE, Ghost, and we have specialized quality inspection department for
checking every machine before leaving our factory.
3. How about your machine quality?
All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.
4. Do you have after-sale service?
Yes, we have professional technic after-sale service team which will offer you the best technical maintenance guidance. Engineers
are available to be abroad for service.
5. What about the quality warranty?
We offer one-year quality warranty.
6. How long can you deliver the machine?
Generally, parts mainly have at stock , pumps we can delivery in 20 working days.
