Multifunctional Uv Laser Marker For PVC/Ceramic Laser Engraving affordable Small Flying UV Laser Marking Machine
- Category: >>>
- Supplier: Liaocheng Worlds Laser Equipment Co. Ltd.
Share on (1601046497963):
Product Overview
Description
Product Description

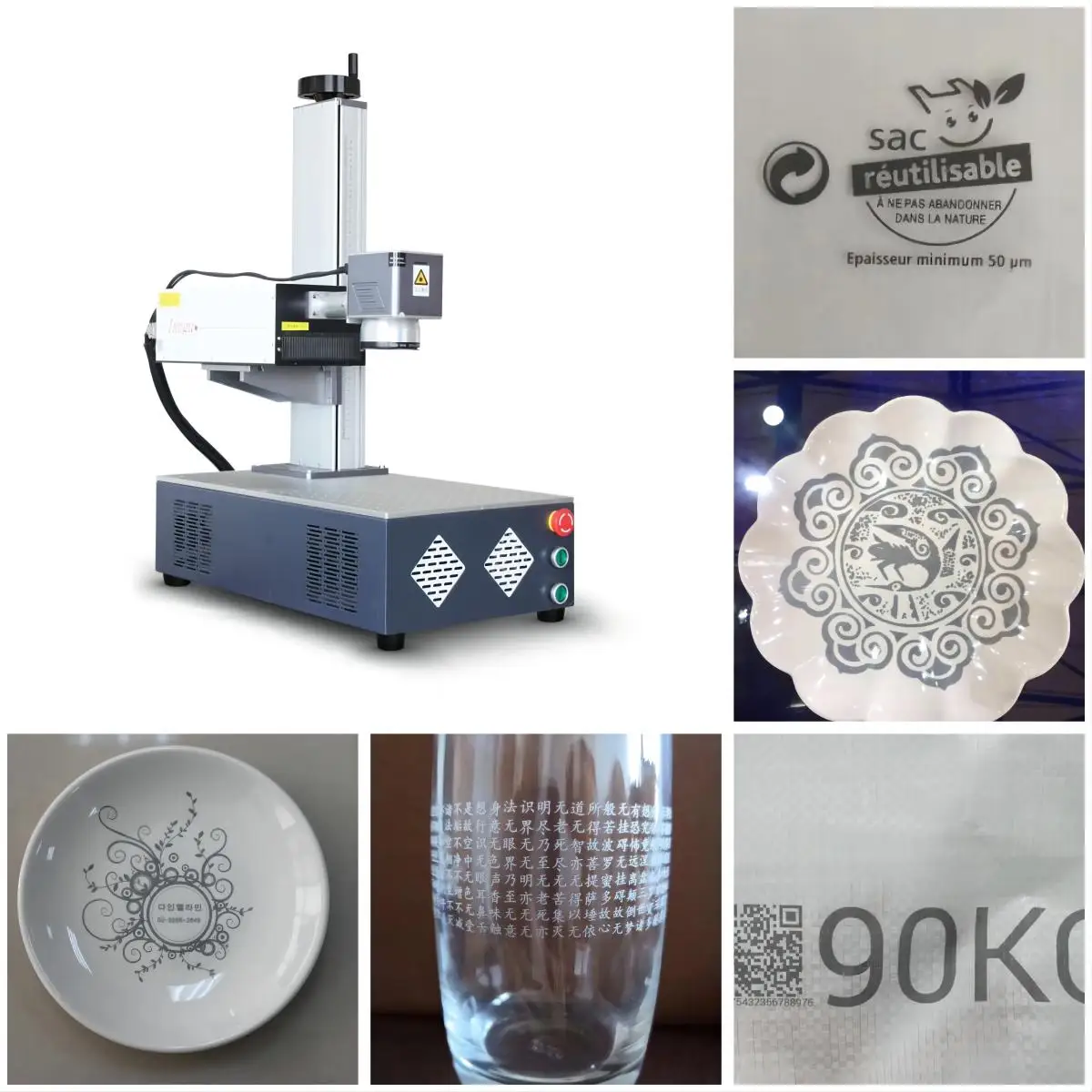

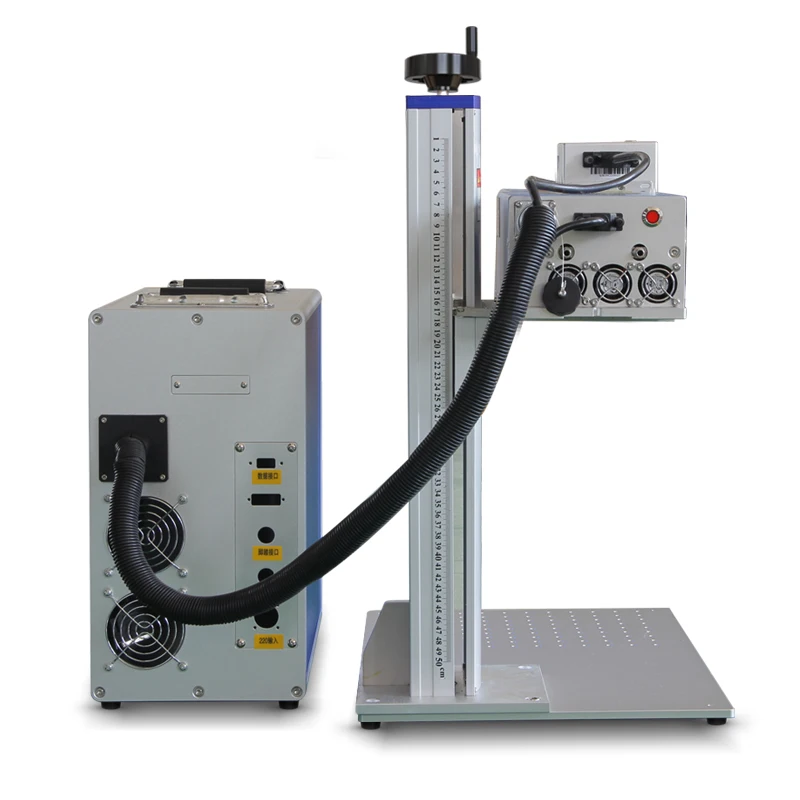

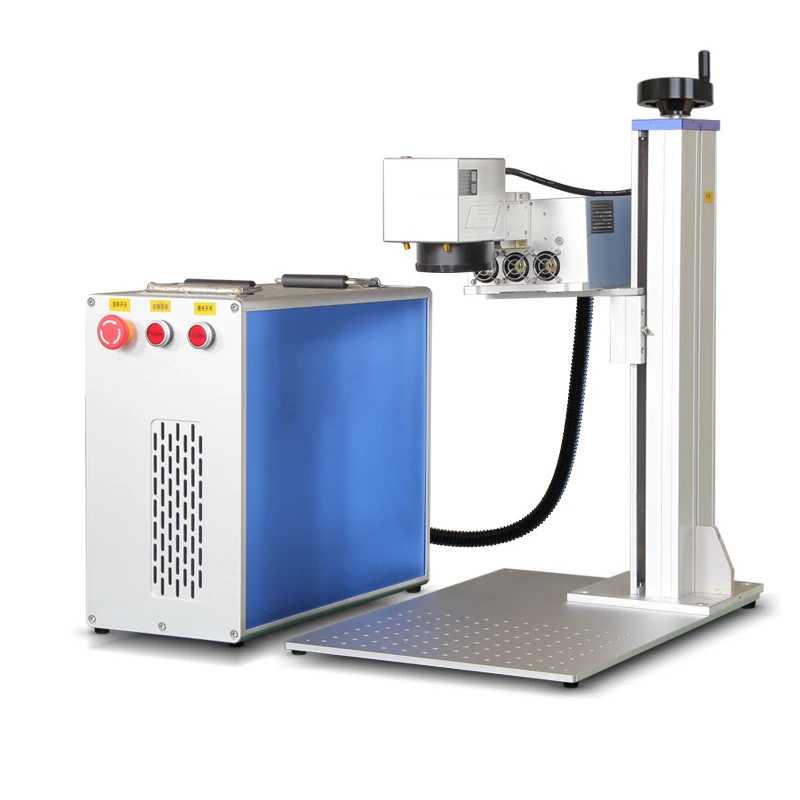

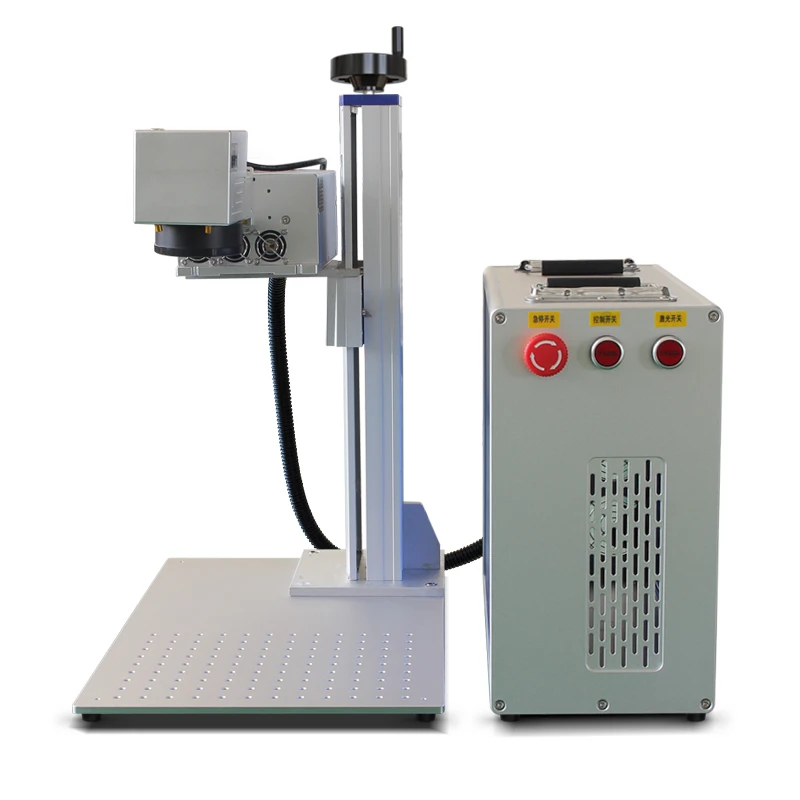

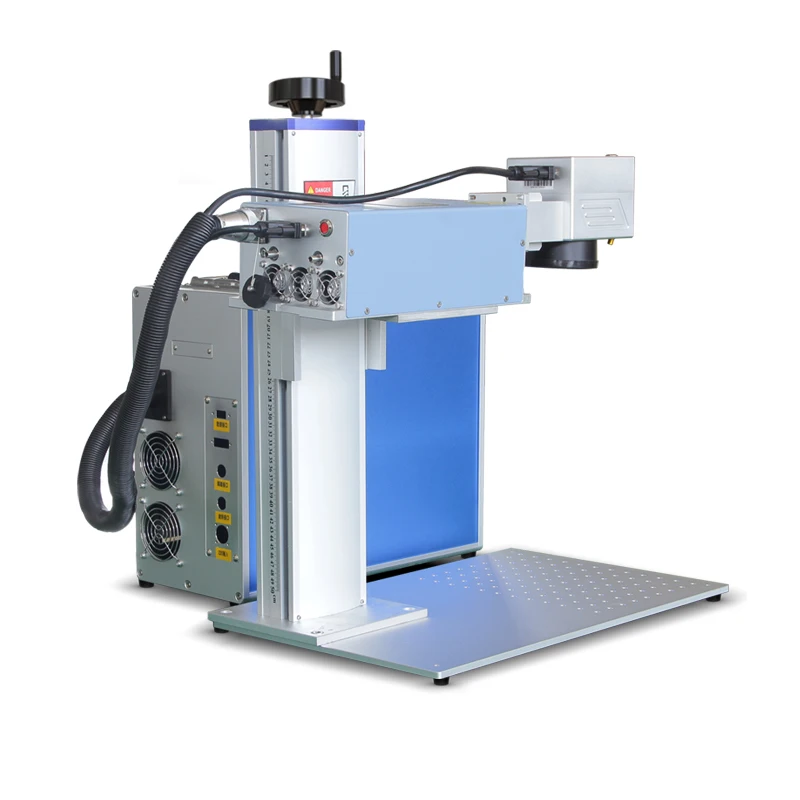

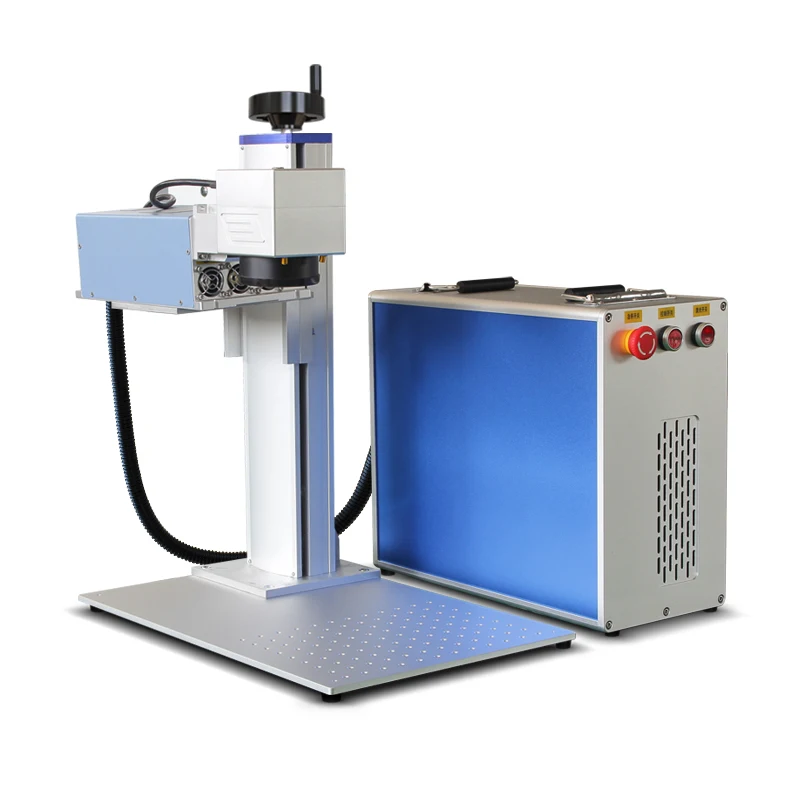

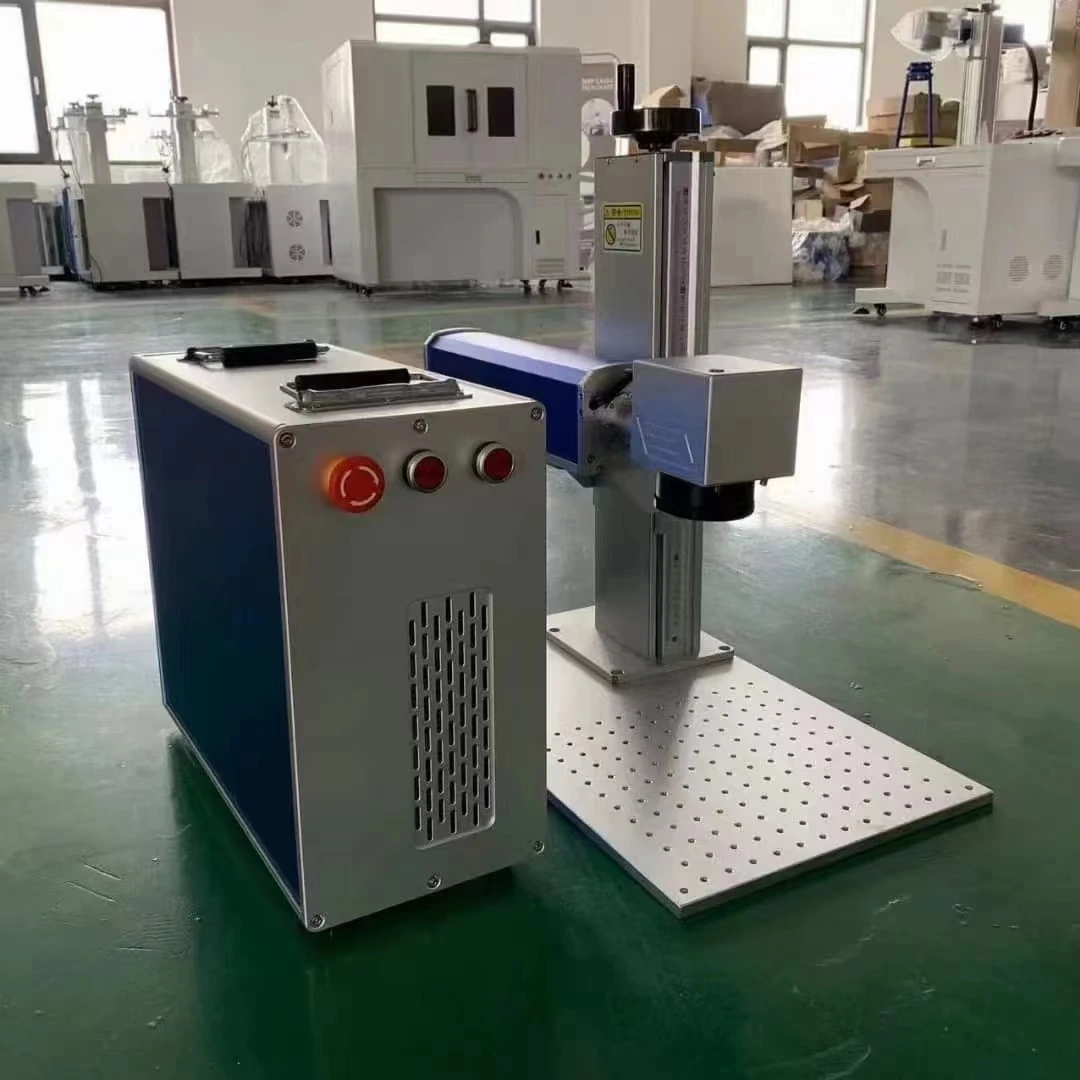

UV Laser Marking Machine
* Compact: UV laser marking Machine, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.Desktop machine weight is 80kg.
* High Precision: Re-position precision is 0.002mm
* High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
* Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
* High Precision: Re-position precision is 0.002mm
* High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
* Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
Details Images

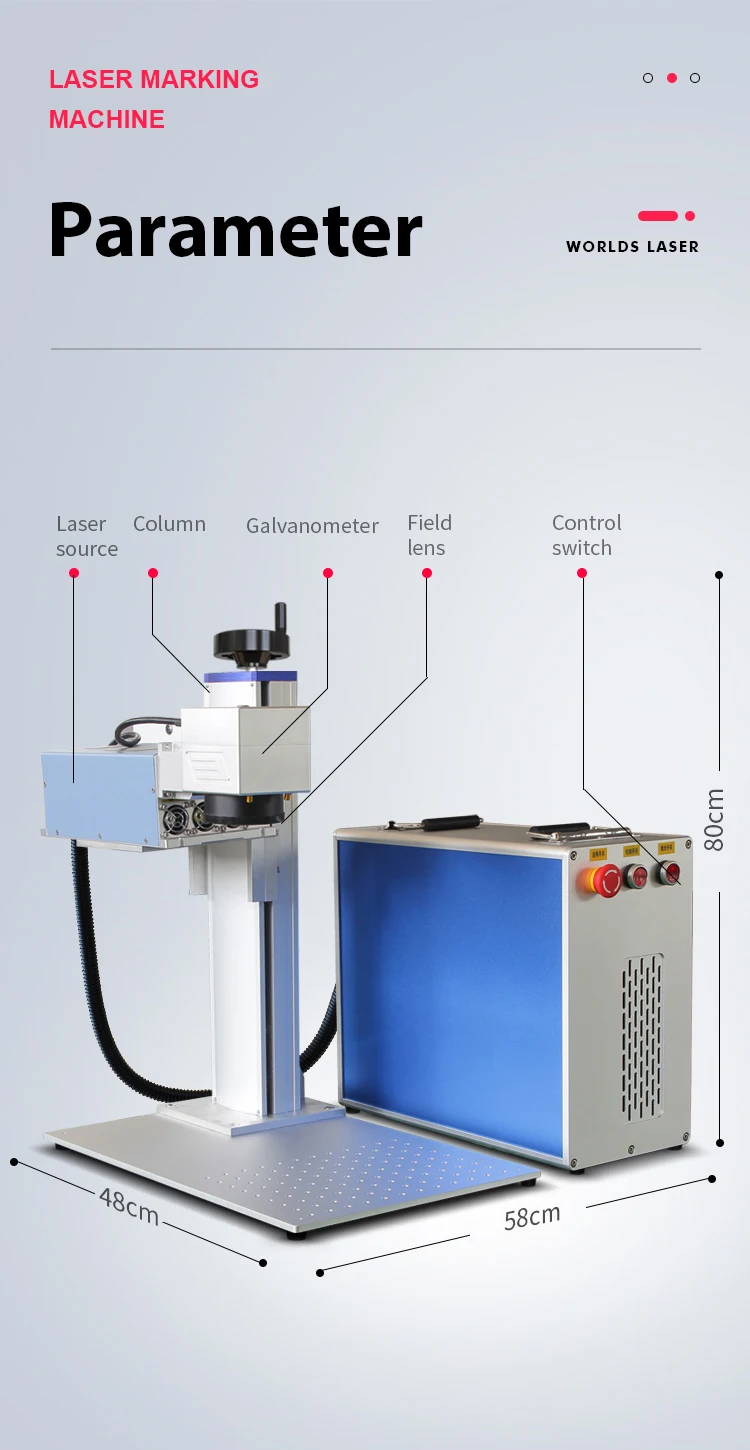

Model | WD-3W/5W /10W/12W UV Laser Marking Machine |
Laser power | 3W/5W/10W/12W |
Laser Wavelength | 355±10nm |
Q-frequency | 20KHz~100KHz |
Divergence | 0.3mard |
Marking range | 110*110mm/205*205mm |
Minimum line width | 0.01mm |
Minimum character | 0.1mm |
Marking speed | 7000mm/s |
Marking depth | 0 ~1mm |
Engraving line speed | ≤7000mm/s |
Repeatability accuracy | ±0.001mm |
Beam quality | M2:1.2~1.8 |
Graphics, text, bar codes, two-dimensional code, automatically | |
marking the date, batch number, serial number, frequency,etc. | |
Graphic format supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
working voltage | 220V±10%/50Hz/4A |
Unit power | <0.5kw |
Working environment | Clean and dust free or dust less |
Working (Humidity) | 5%-75%,free of condensed water |
Laser module life | 100000~200000 hours |
Warranty | 24 months |
High-quality optical components, fewer failures; good beamquality, small pulse width, fine marking graphics; built incooling fan can intelligently adjust the wind speed, conve-nient and energy-saving; fully sealed structure, dust-proofand moisture-proof, to ensure long-term operation of themachine.

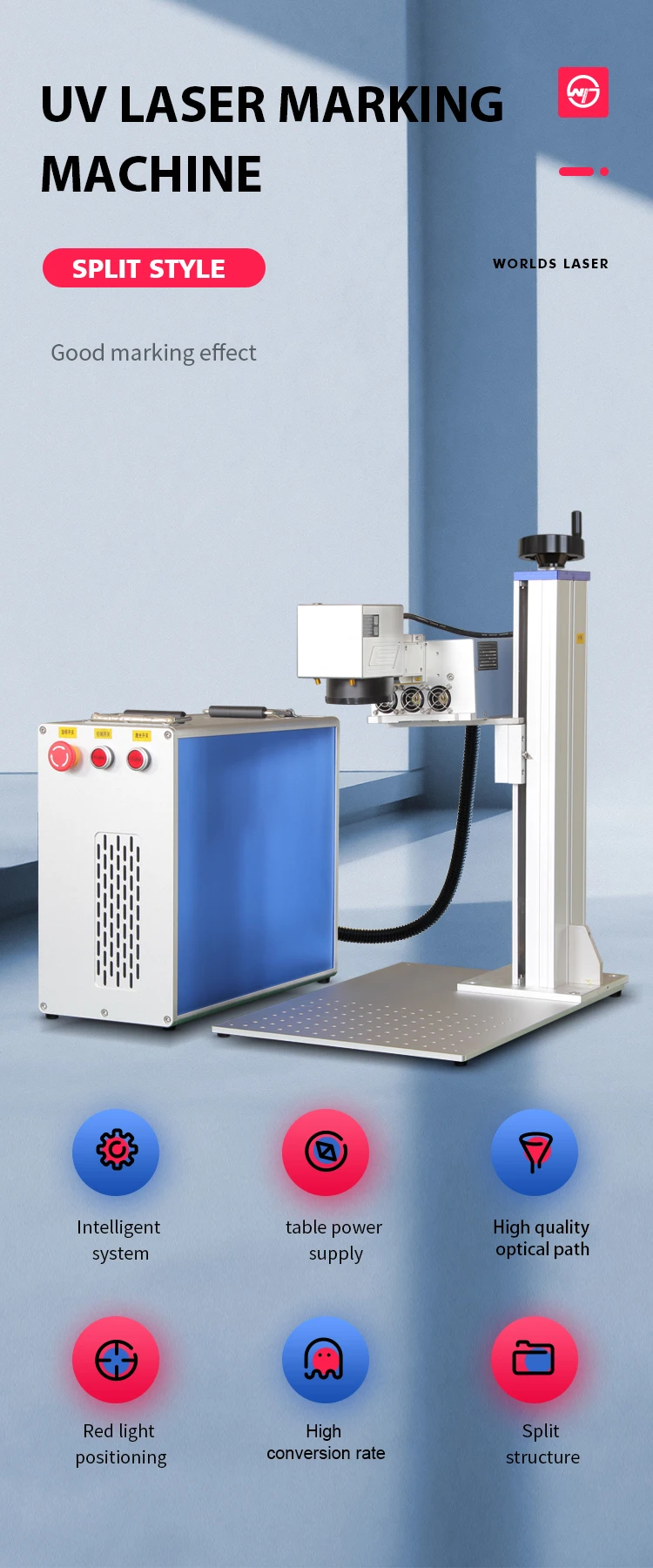

UV laser marking machine

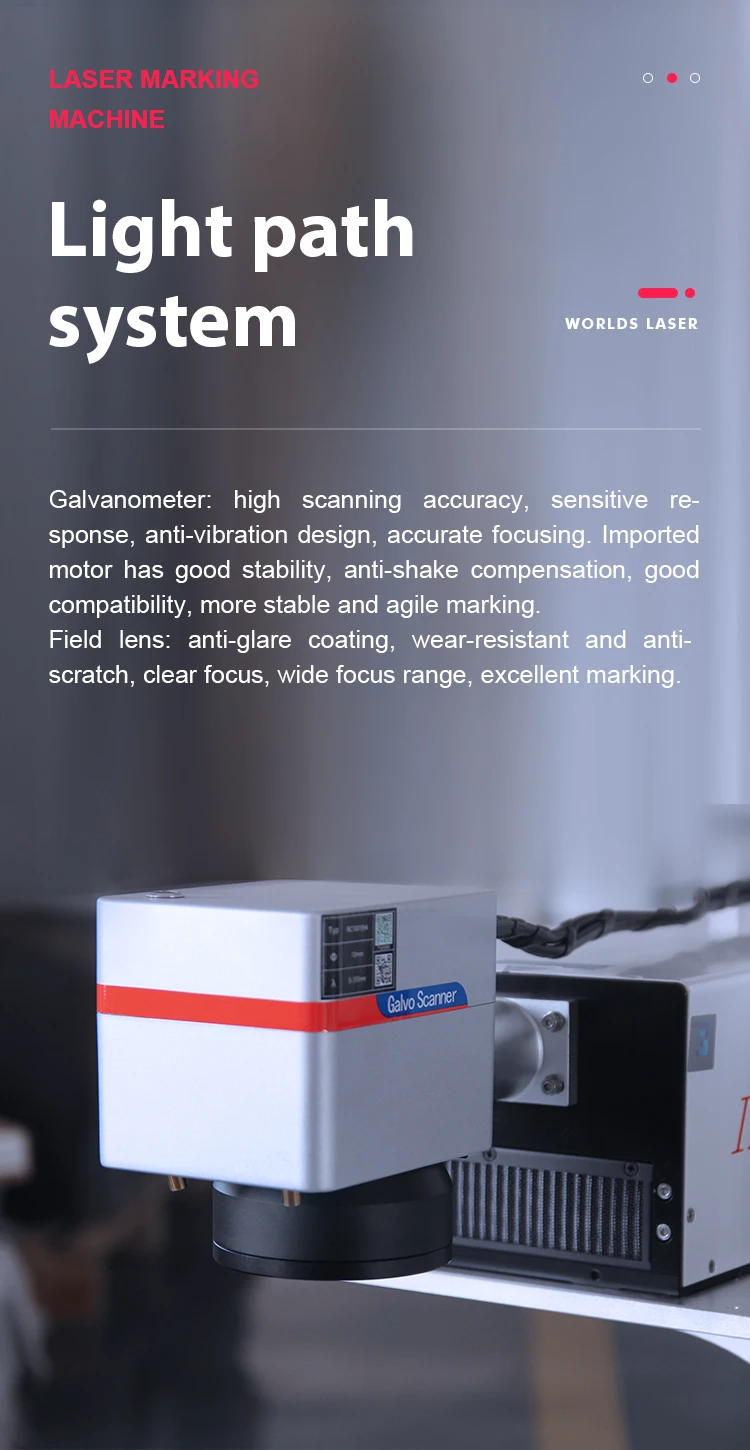

1) Galvanometer: RC 7110/SG7110/2206 AND other type
high scanning accuracy,sensitive re-sponse, anti-vibration design, accurate focusing. lmportedmotor has good stability,anti-shake compensation,goodcompatibility, more stable and agile marking.
2) Field lens: Opex 70*70mm 110*110mm 150*150mm 175*175mm 200*200mm 300*300mm
anti-glare coating,wear-resistant and anti-scratch, clear focus, wide focus range, excellent marking.

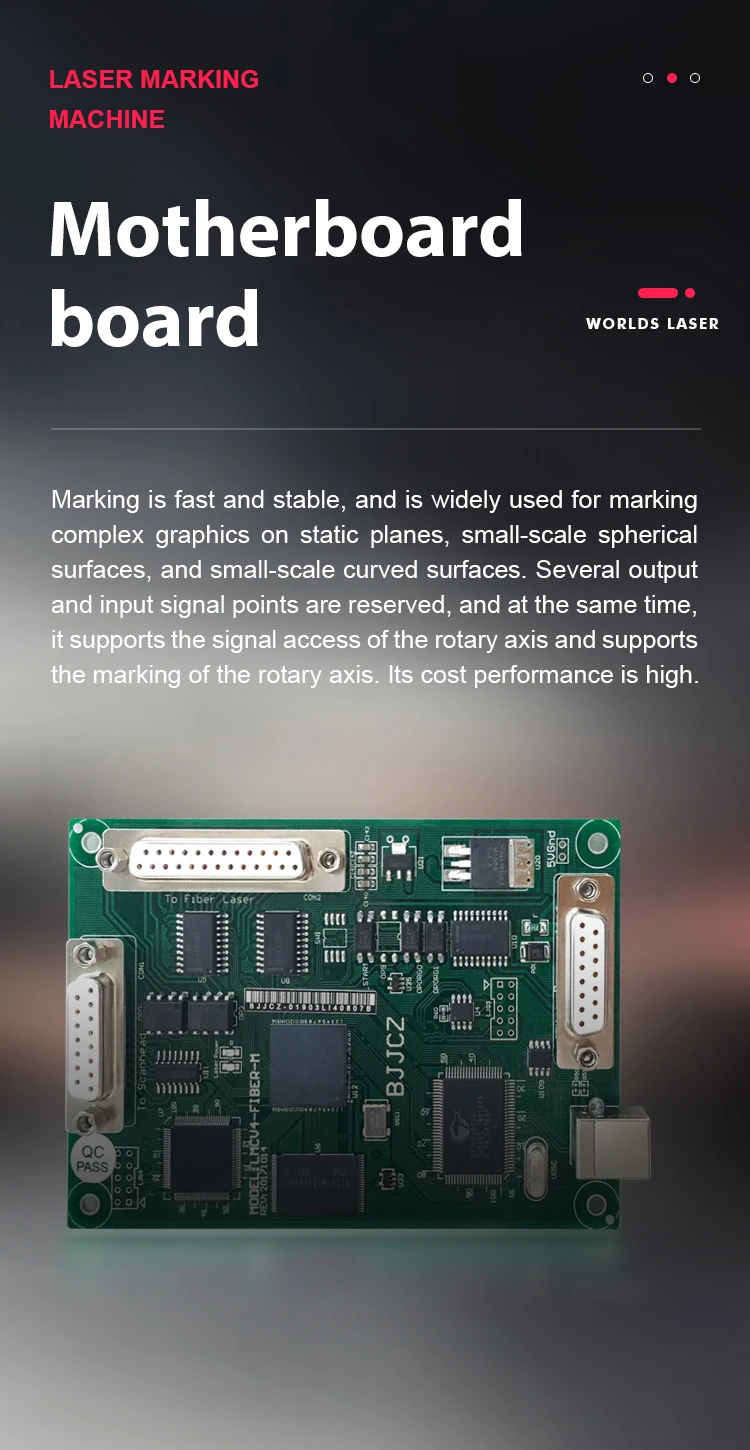

EZCAD Software
Marking is fast and stable,and is widely used for markingcomplex graphics on static planes, small-scale sphericalsurfaces, and small-scale curved surfaces. Several outputand input signal points are reserved,and at the same time,it supports the signal access of the rotary axis and supportsthe marking of the rotary axis. Its cost performance is high.

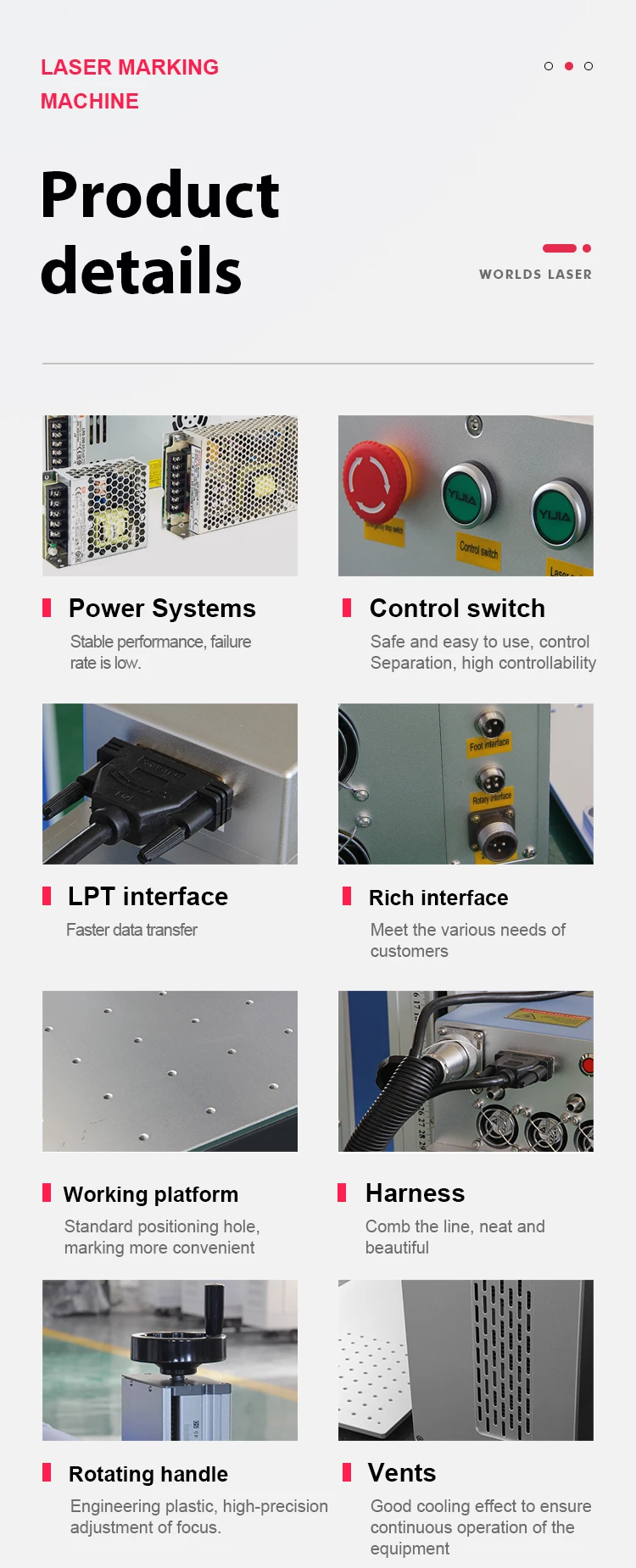

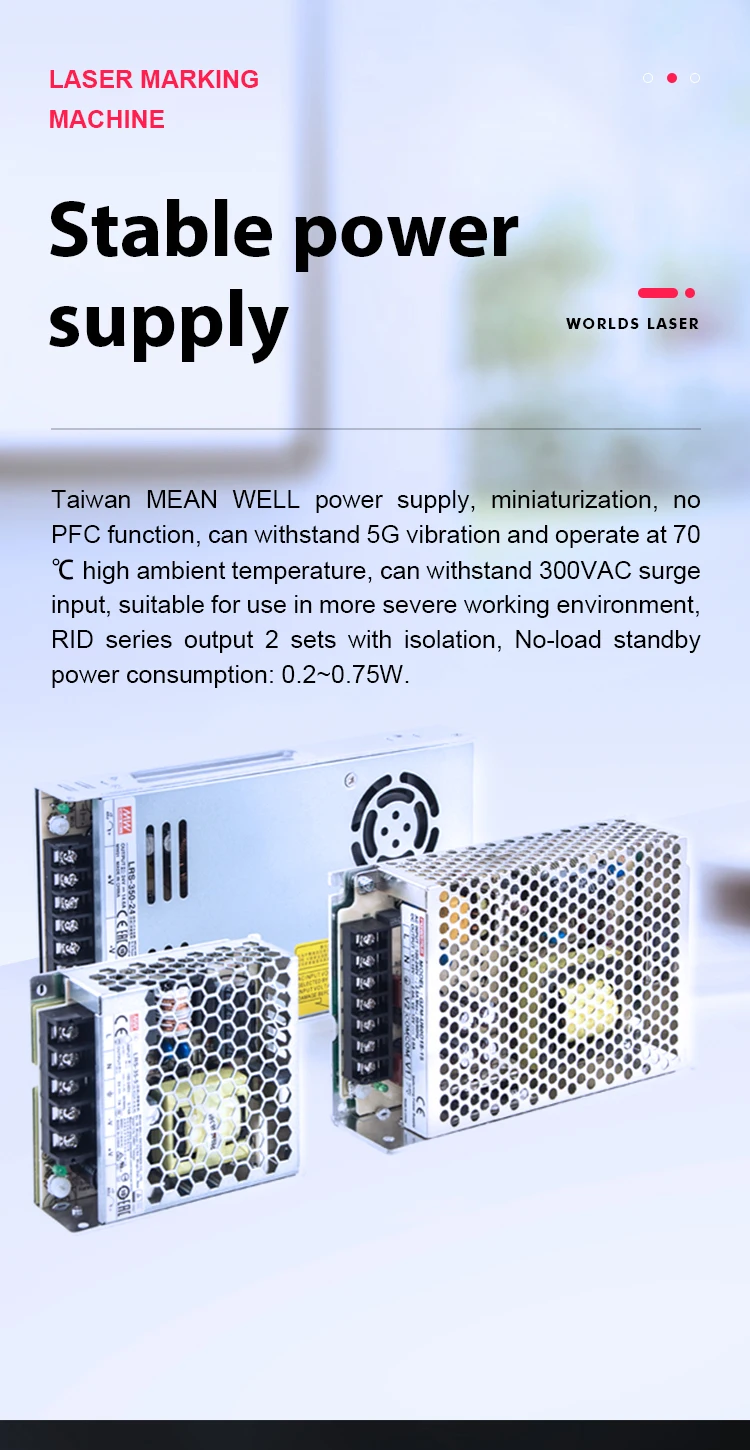

power supply
Taiwan MEAN WELL power supply，miniaturization,noPFC function, can withstand 5G vibration and operate at 70 high ambient temperature, can withstand 300VAC surgeinput,suitable for use in more severe working environment, RID series output 2 sets with isolation，No-load standbypower consumption: 0.2~0.75W.

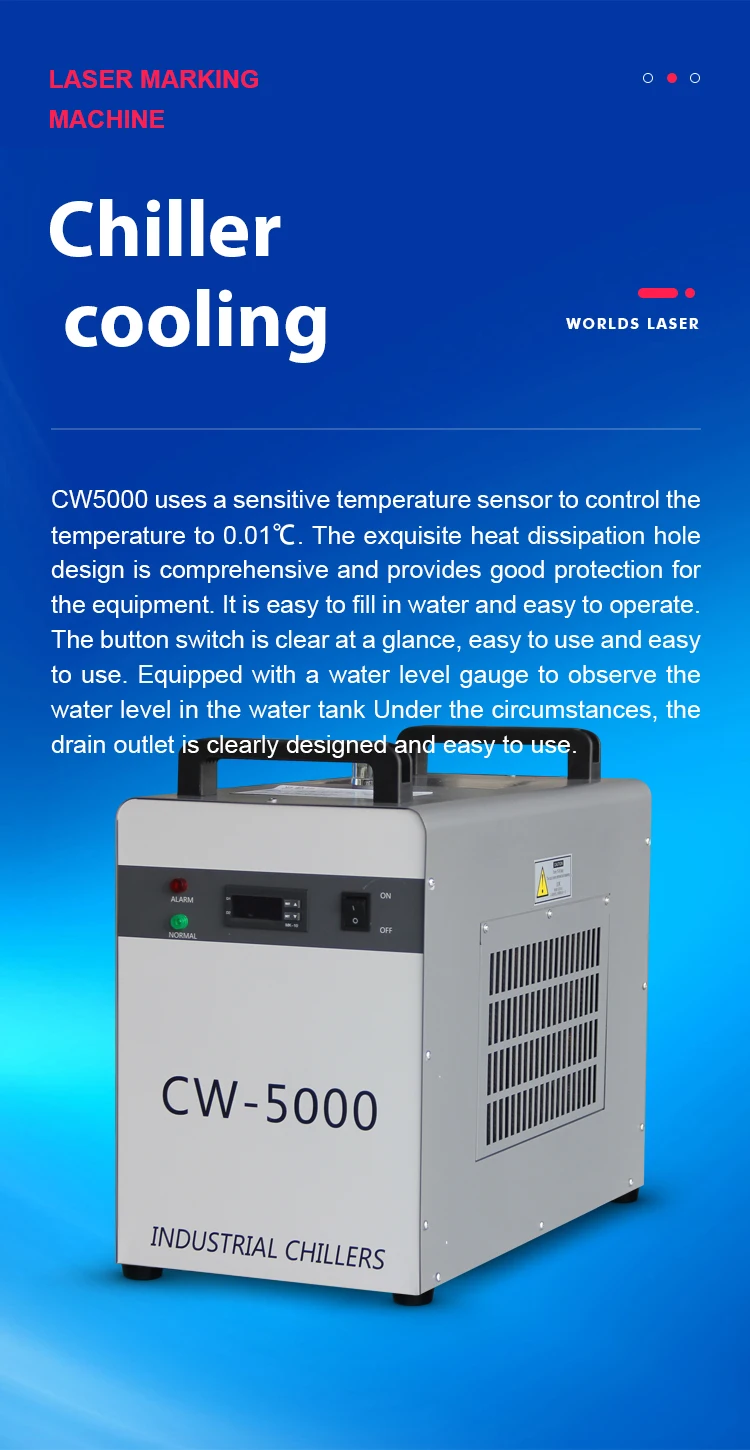

Chiller CW5200/ HTUL-5
CW5000 uses a sensitive temperature sensor to control thetemperature to 0.01℃.The exquisite heat dissipation holedesign is comprehensive and provides good protection forthe equipment. It is easy to fill in water and easy to operate.The button switch is clear at a glance, easy to use and easyto use. Equipped with a water level gauge to observe thewater level in the water tank Under the circumstances, thedrain outlet is clearly designed and easy to use.

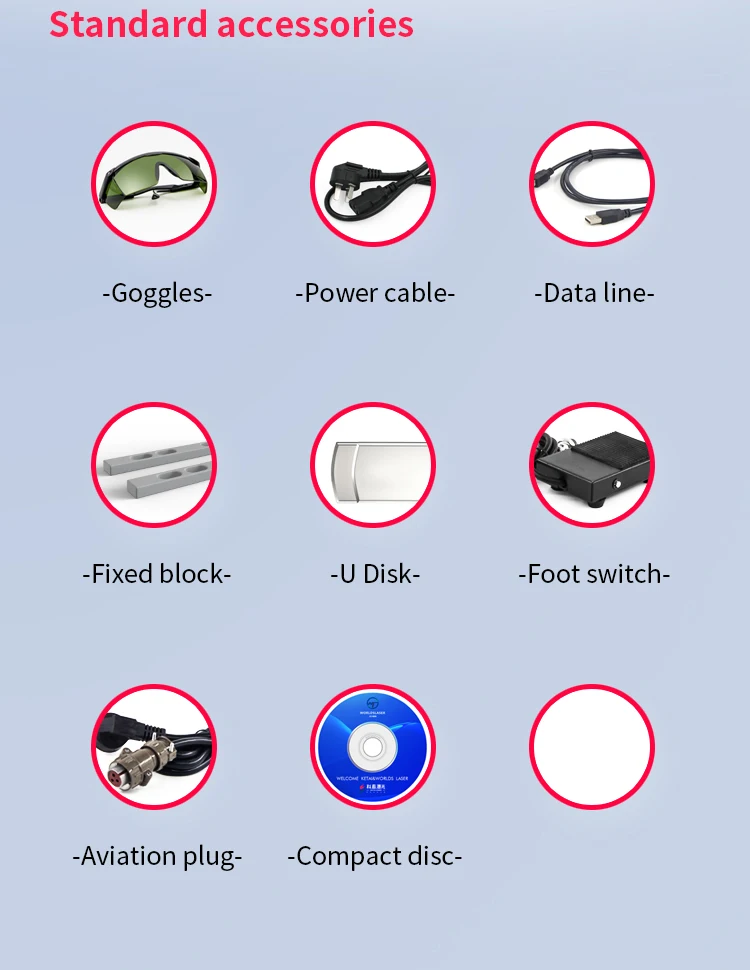

Accessories

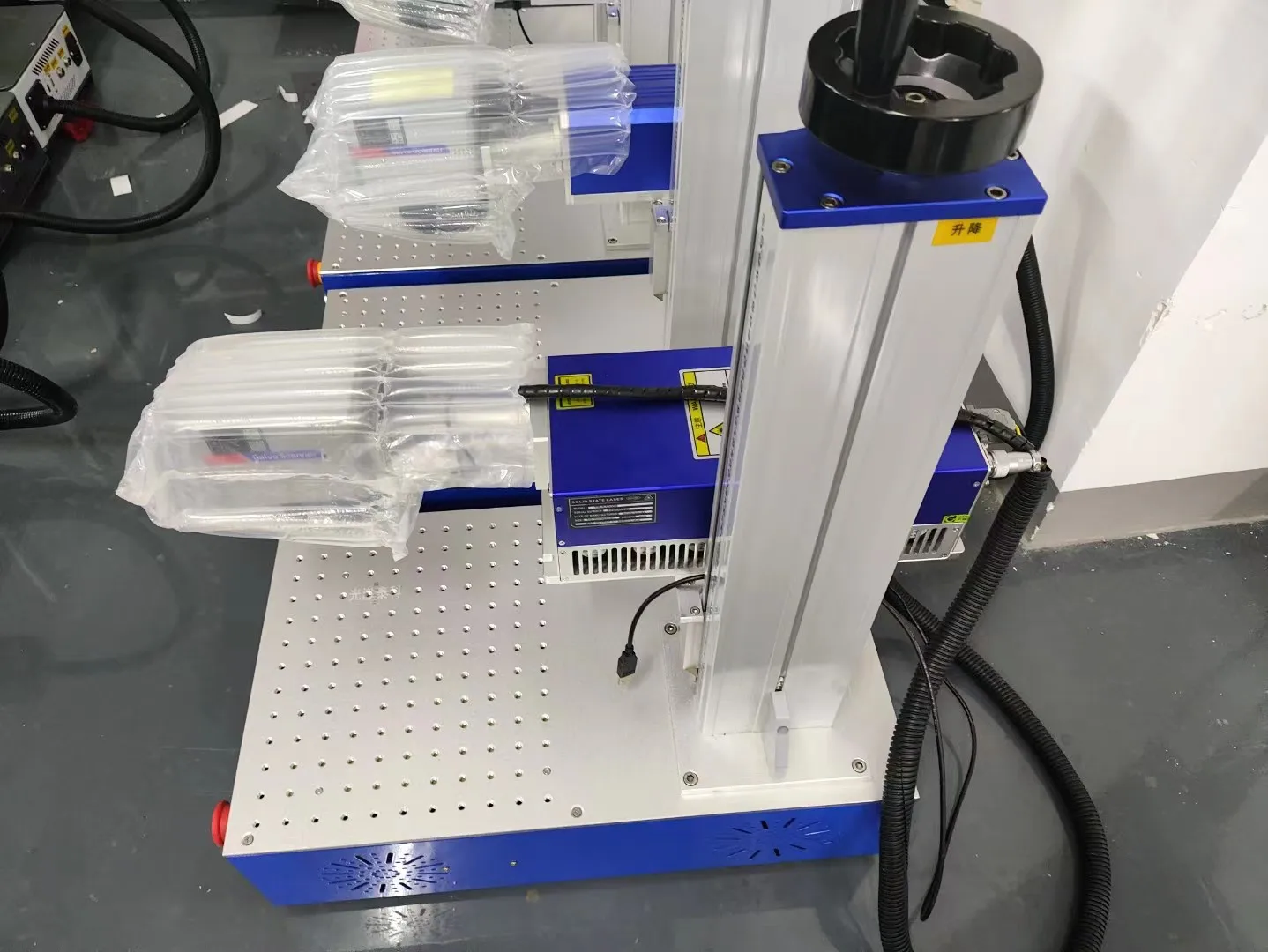

Product packaging

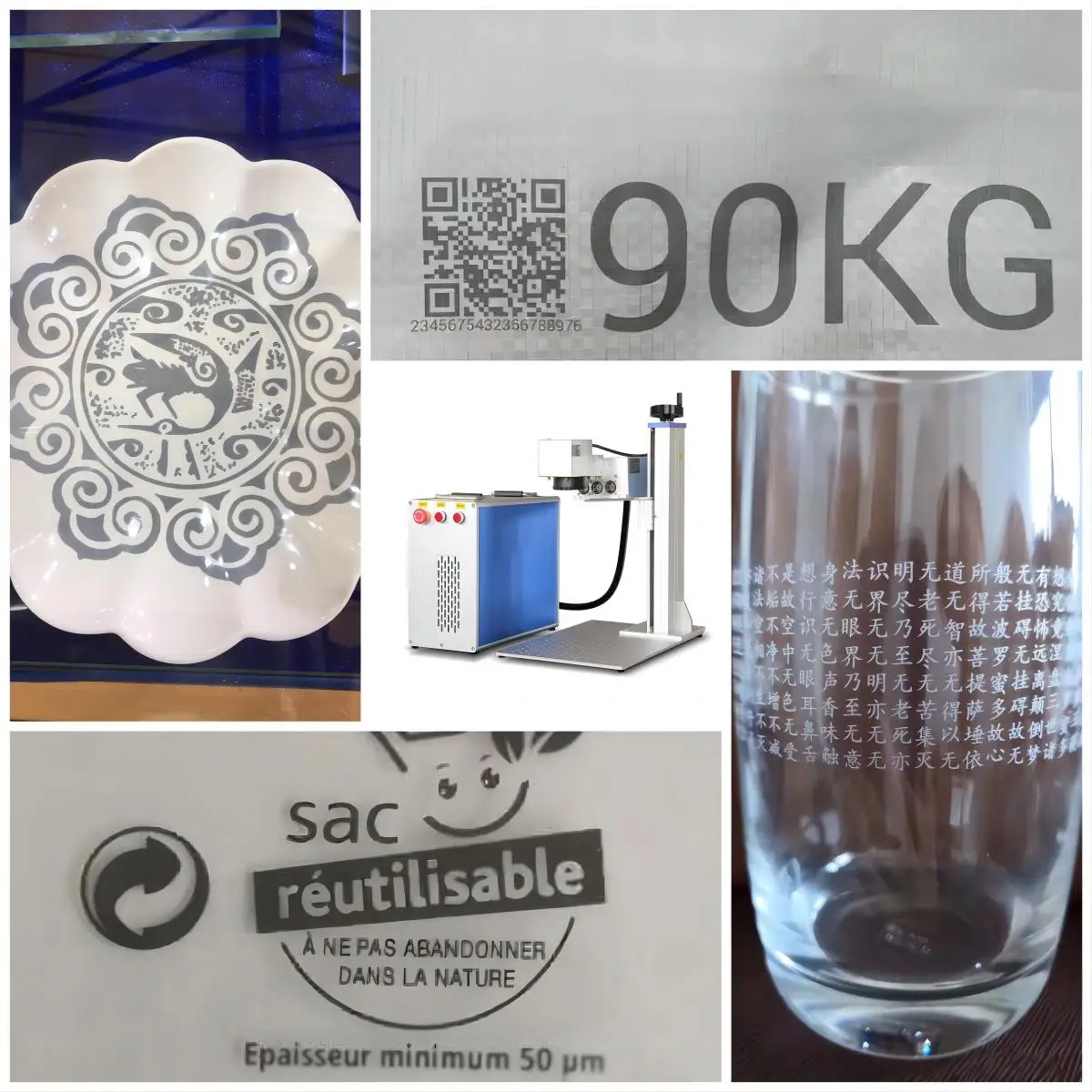

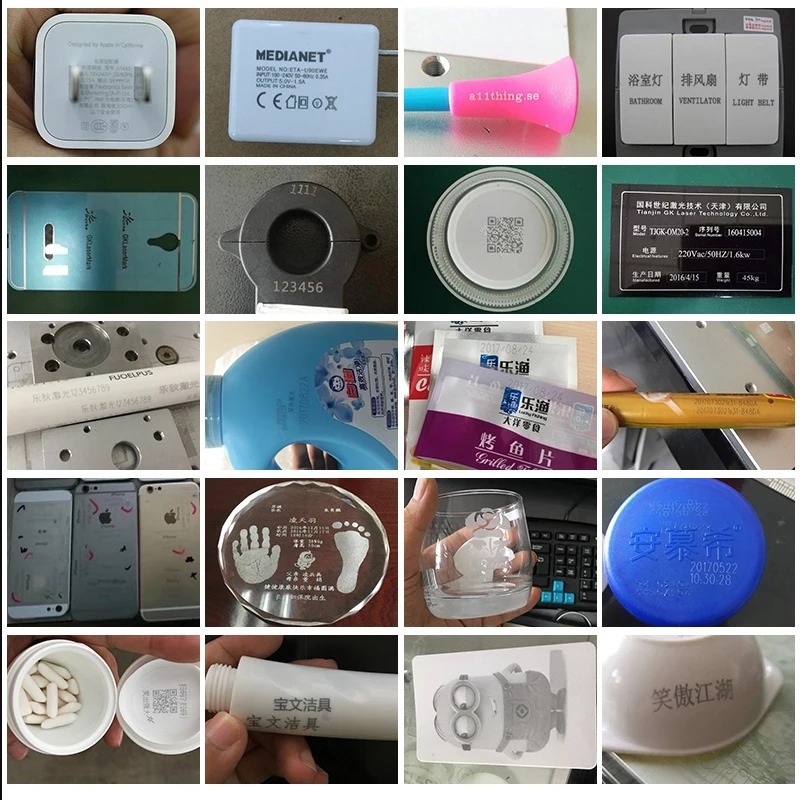

Sample

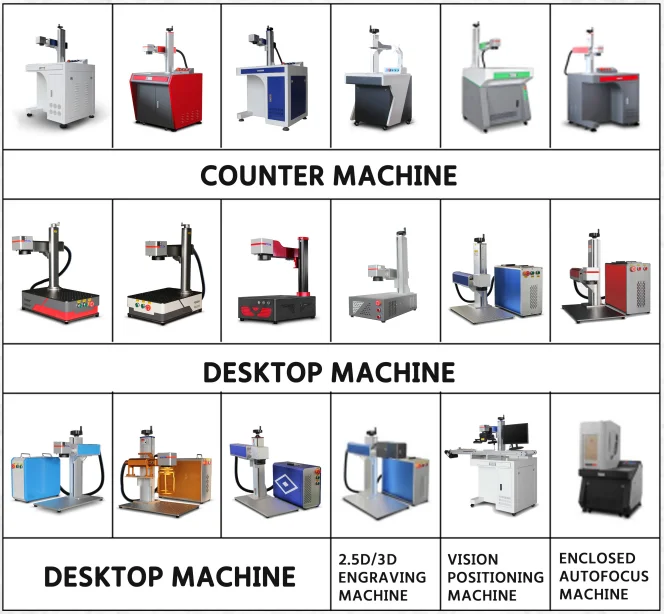

Recommend Products
Company Profile

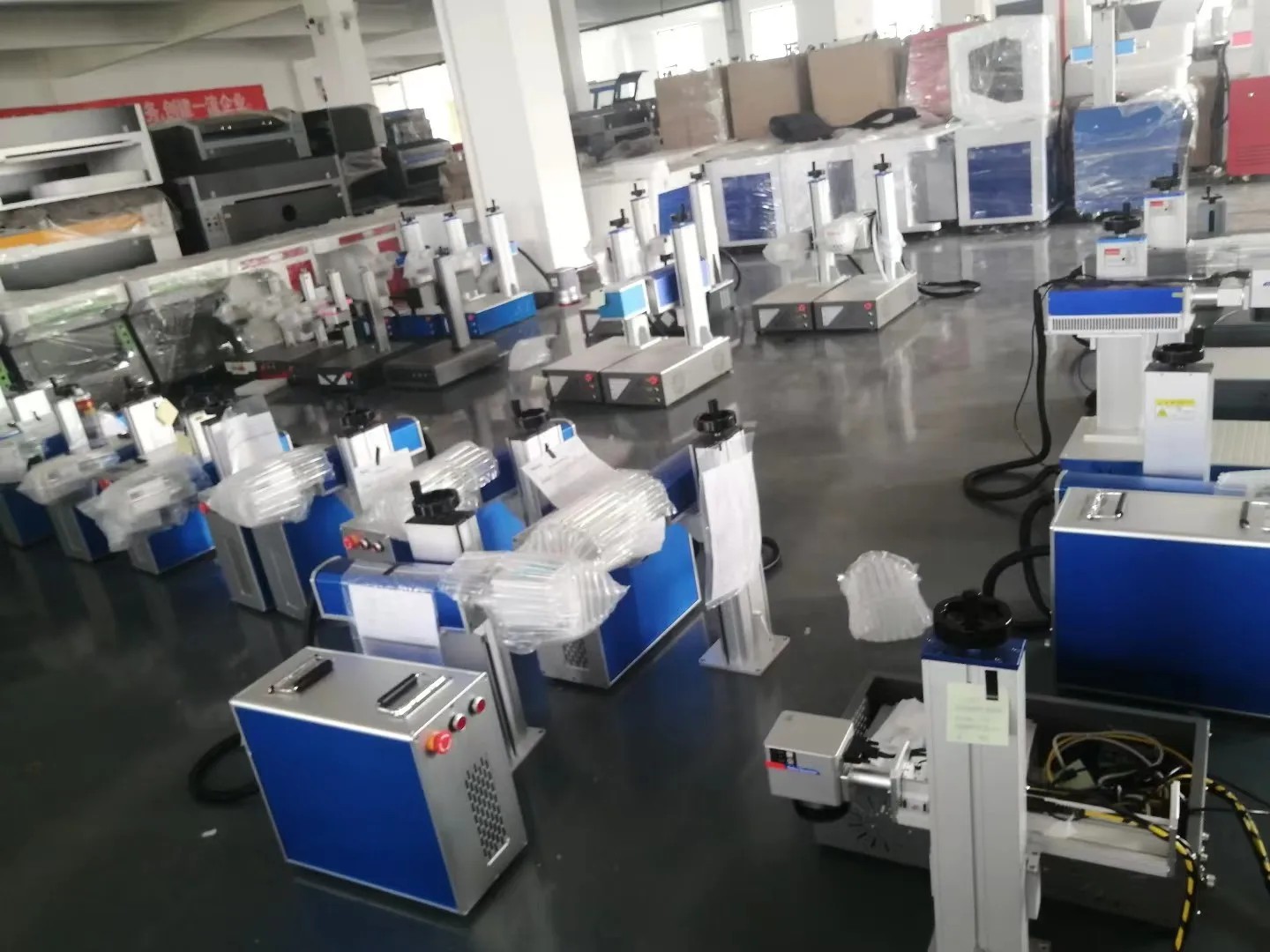

Liaocheng Dongchangfu Ketai（worldslaser） Laser Equipment Co., Ltd which located in Liaocheng China was established in 2007. With more than 10 years' development, now we have grown up to be a professional factory.
Our main products include laser engraving machine, laser cutting machine and laser marking machine and other related products. The main models we produce include: KT- K40, 3020, 3040, 3050, 4060, 5070, 6090, 1060, 1290, 1390, 1490, 1610, 1810, 1812, 1325, 1625, 1530, etc, and can customize machine according to request. Our products are widely applied to advertising, decoration, garment producing, artistic processing and furniture producing industries etc.
All the products gained high reputation from home and abroad with their excellent quality, competitive price and quick after-sale services. Ketai laser has successfully entered into European Union, America, and Middle East markets. We also can provide OEM services for distributors and agents worldwide. If you are interested to be our dealer, please feel free to contact us. We are sincerely looking forward to cooperate with friends all over the world.
FAQ
Q1. What support do I get with my laser machine?
A1: All of our machines come with unlimited, lifetime support.
Q2, Do I need special technicians to run a Ketai laser?
A2: No. We will give you full training on how to use your new laser machine and the software provided, and how to carry out the basic routine maintenance.The training is easy to understand and the laser machine is simple to operate.
Q3, What do I need to get started with a the laser?
A3: The space for the machine to stand, a computer for your laser machine to run off, the sockets for the laser equipment to connect to, and yourself for the training
Q4. How long is the delivery time?
A4: For standard machines, it would be 10-15 days; For nonstandard machines and customized machines according to clients specific requirements, it would be 25 to 35 days.
Q5. How can I get machine's spare parts?
A5:There are two methods. Spare parts can be ordered together with the machine.
Q6. What's the payment method?
A6: You can pay by T/T, L/C, Western Union or Trade Assurance.
