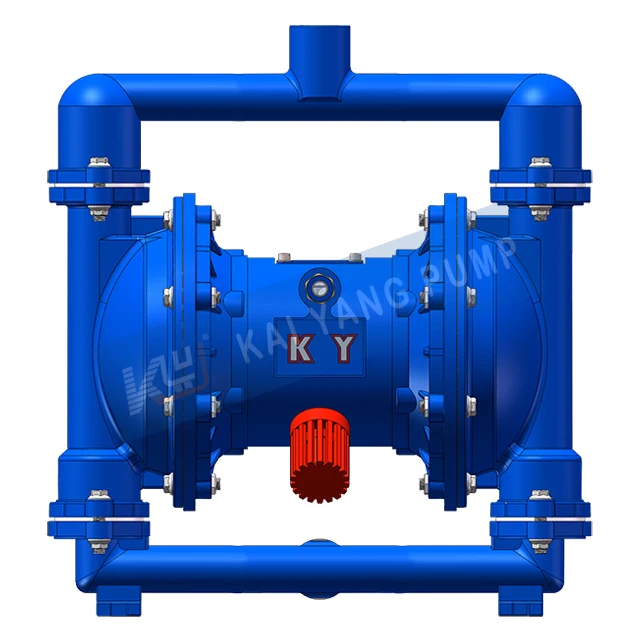

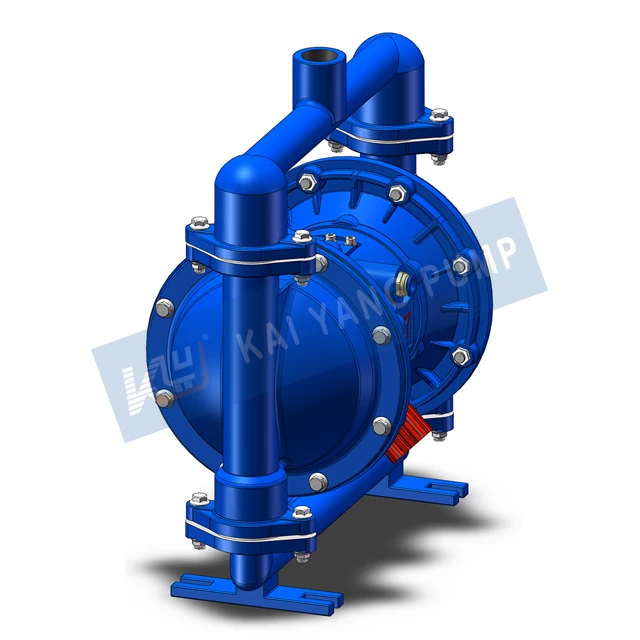

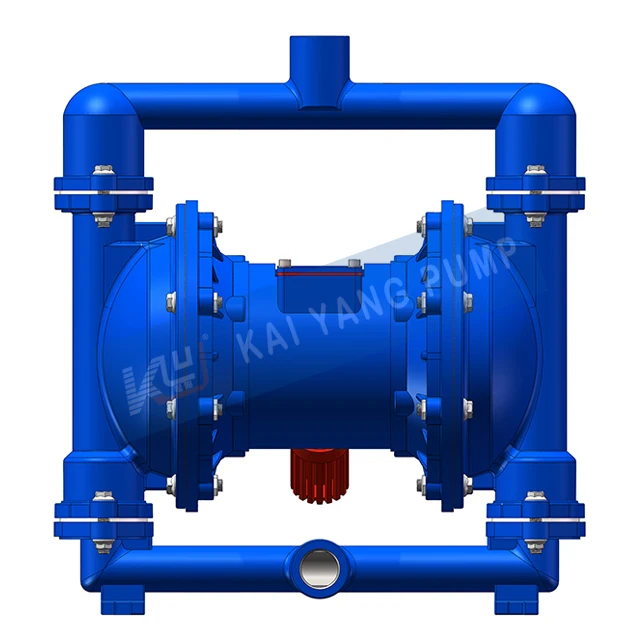

Double Layer Corrosion Protection Film Sediment Air Diaphragm Pneumatic Pump Maximum Particle Diameter Allowed Through Is 5mm
Double Layer Corrosion Protection Film Sediment Air Diaphragm Pneumatic Pump Maximum Particle Diameter Allowed Through Is 5mm
Double Layer Corrosion Protection Film Sediment Air Diaphragm Pneumatic Pump Maximum Particle Diameter Allowed Through Is 5mm
Double Layer Corrosion Protection Film Sediment Air Diaphragm Pneumatic Pump Maximum Particle Diameter Allowed Through Is 5mm
Double Layer Corrosion Protection Film Sediment Air Diaphragm Pneumatic Pump Maximum Particle Diameter Allowed Through Is 5mm

Double Layer Corrosion Protection Film Sediment Air Diaphragm Pneumatic Pump Maximum Particle Diameter Allowed Through Is 5mm

Share on (1601046506897):


Price:$159.00-169.00

Quantity:


Product Overview

Description

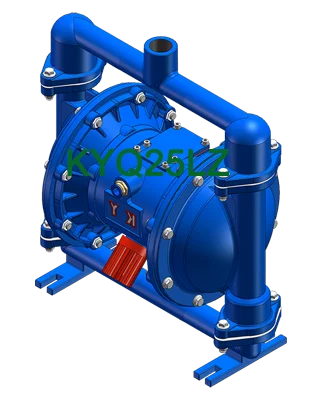

    QBY-K25LZ Pump Parameters












































Pump Body Material:Cast Steel
Air Motor Material:Aluminum Alloy
Pump Weight:About 55 lbs
Air Inlet Size:1/2 in BSP
Fluid Inlet/Outlet Size:1 in BSP
Max.Suction Height:Dry:5m  Wet:8m
Max.Flow:26.4GPM
Max.Working Pressure:109PSI
Max.Permitted Grain:1/8 in

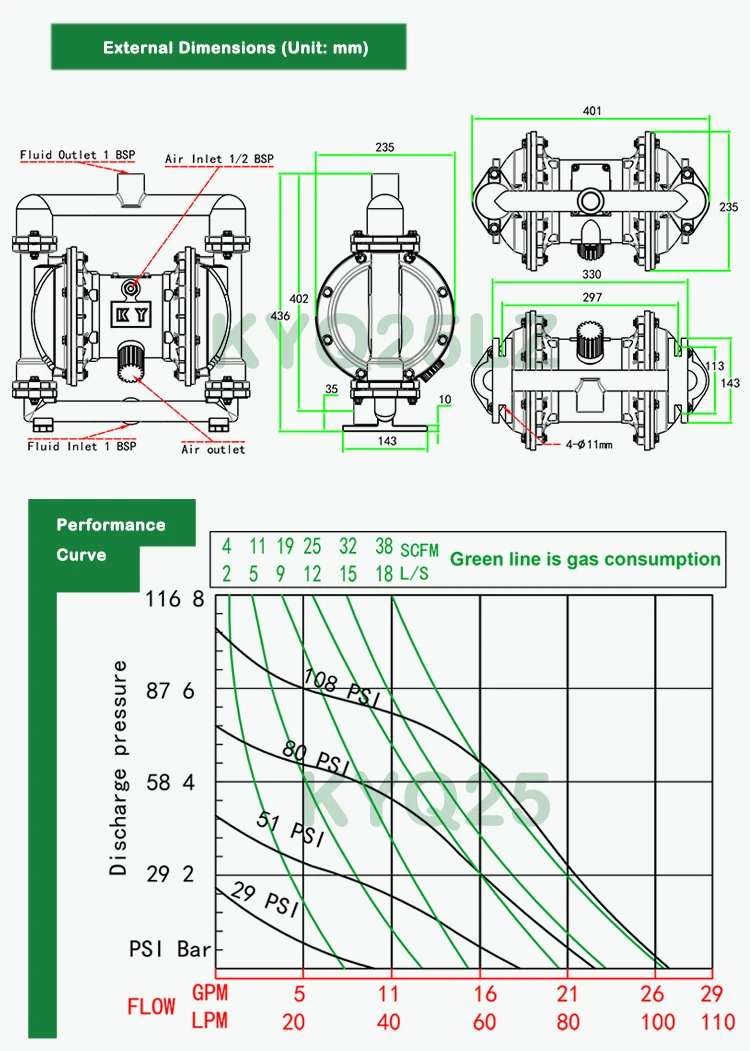

    Performance Curves And Dimensions








    The Meaning Of Pump Model










    Model Selection Table










    Installation Instruction Diagram













3.jpg4-1.jpg4-2.jpg5-1.jpg5-2.jpg5-3.jpg6A.jpg6 B.jpg
