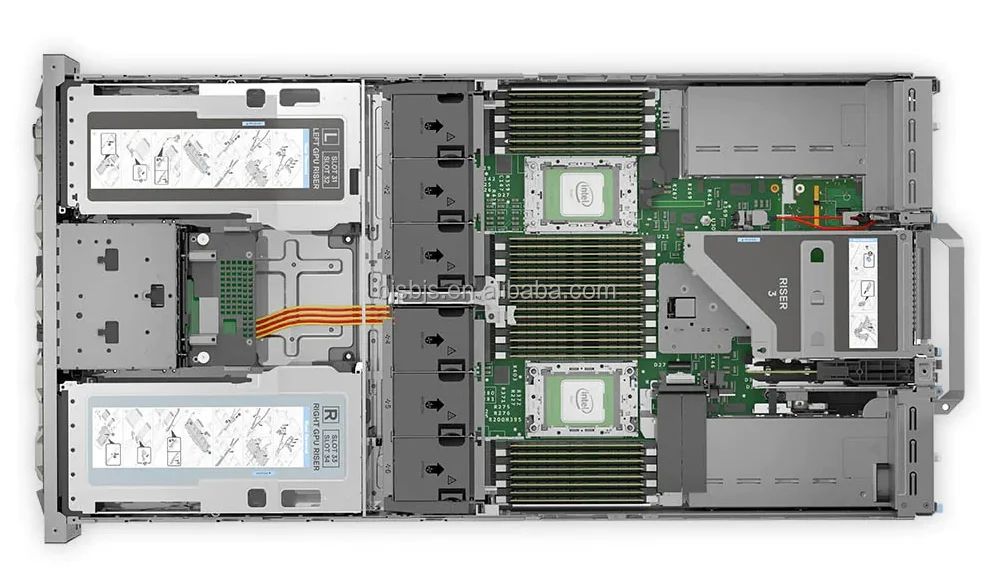

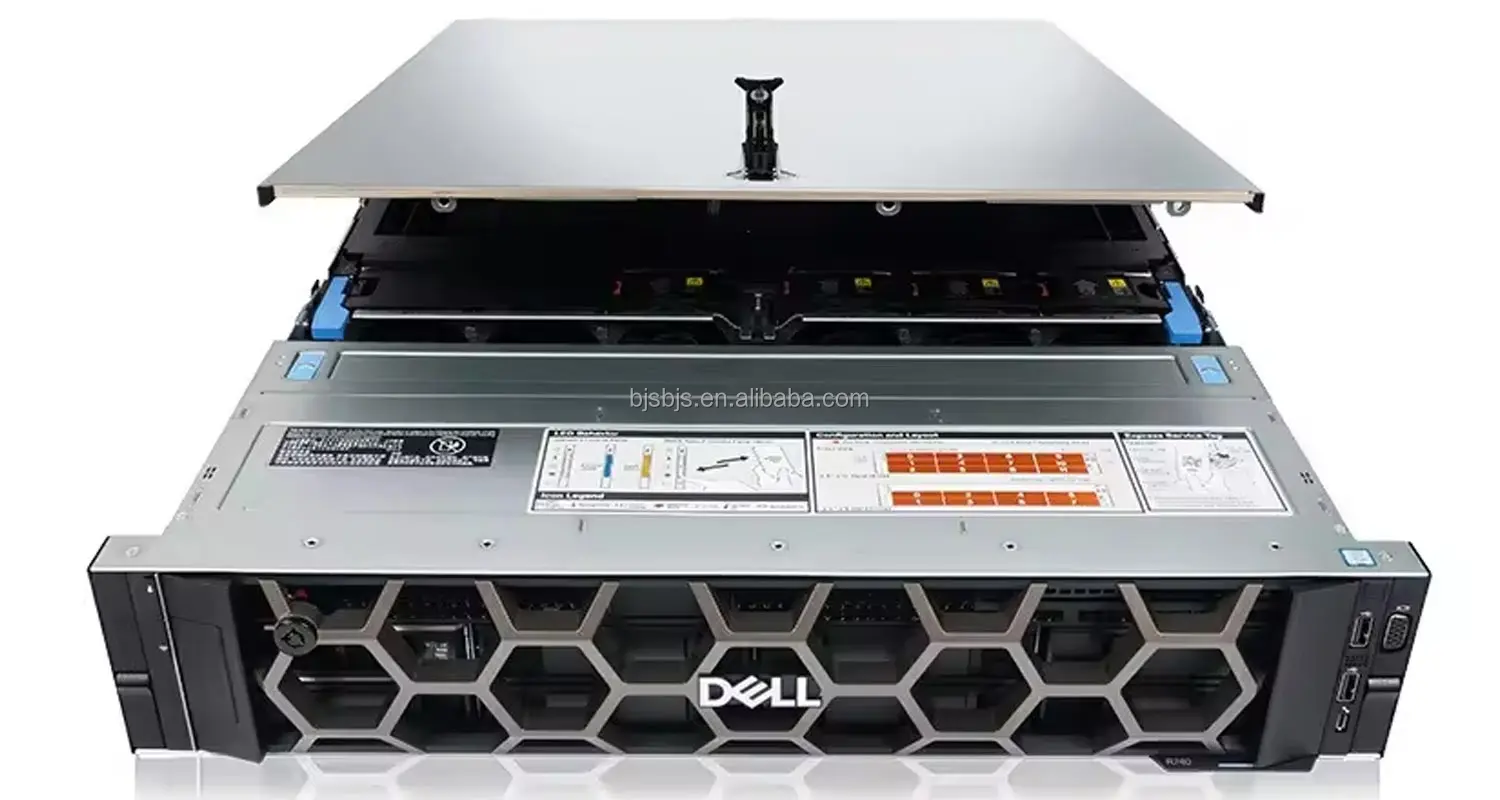

GPU Server DEL R750XA 2U Rack intel xeon Platinum 8358 Ampere A100 80GB High performance computing
- Category: >>>
- Supplier: Beijing Shibei Acceleration Technology Co. Ltd.
Share on (1601046553384):
Product Overview
Description
GPU Server DELL R750XA 2U Rack intel xeon Platinum 8358 NVIDIA Ampere A100 80GB High performance computing
Specifications
Feature | Technical Specifications |
Please note | The configuration can be customized according to your needs, please contact usSkype: +86 13581889391 WeChat: 13581889391 |
Model | DELL EMC PowerEdge R750xa |
Processor | 2 x Intel xeon Platinum 8358 2.6G, 32C/64T, 11.2GT/s, 48M Cache, Turbo, HT (250W) DDR4-3200 Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor |
Memory | 1024GB RDIMM, 3200MT/s, Dual Rank (16 x 64GB) • DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s • Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max • Supports registered ECC DDR4 DIMMs only |
Storage controllers | • Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N • Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSD 240GB or 480GB • External PERC (RAID): PERC H840, HBA355E |
Drive Bays | 3 x 480GB SSD SATA Mix Use 6Gbps 512 2.5in Hot-plug AG Drive, 3 DWPD Front bays: • Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB |
GPU | 4 x NVIDIA Ampere A100 PCIe Up to four single-width 150W or four double-width 300W on the front and two single-width 75W on the back |
Power Supplies | (1+1) 2400 W Platinum AC/240 HVDC • 1100 W Titanium AC/240 HVDC • 1400 W Platinum AC/240 HVDC • 2400 W Platinum AC/240 HVDC |
Cooling Options | Air cooling, optional processor liquid cooling |
Fans | • Standard fan/High performance SLVR fan/High performance GOLD fan • Up to six hot plug fans |
Dimensions | • Height – 86.8 mm (3.41 inches) • Width – 482 mm (18.97 inches) • Depth – 758.3 mm (29.85 inches) - without bezel 772.14 mm (30.39 inches) - with bezel |
Form Factor | 2U rack server |
Embedded Management | • iDRAC9 • iDRAC Service Module • iDRAC Direct • Quick Sync 2 wireless module |
Bezel | Optional LCD bezel or security bezel |
OpenManage Software | • OpenManage Enterprise • OpenManage Power Manager plugin • OpenManage SupportAssist plugin • OpenManage Update Manager plugin |
Mobility | OpenManage Mobile |
Integrations and Connections | OpenManage Integrations • BMC Truesight • Microsoft System Center • Red Hat Ansible Modules • VMware vCenter and vRealize Operations Manager OpenManage Connections • IBM Tivoli Netcool/OMNIbus • IBM Tivoli Network Manager IP Edition • Micro Focus Operations Manager • Nagios Core • Nagios XI |
Security | • Cryptographically signed firmware • Secure Boot • Secure Erase • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 1.2/2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
Embedded NIC | 2 x 10 GbE LOM |
Network Options | 1 x OCP 3.0 (x8 PCIe lanes) |
GPU Options | Up to two double-width 300 W, or four single-width 150 W, or six single-width 75 W accelerators |
Ports | Front Ports • 1 x Dedicated iDRAC Direct micro-USB • 1 x USB 2.0 • 1 x VGA Rear Ports • 1 x USB 2.0 • 1 x Serial (optional) • 1 x USB 3.0 • 2 x RJ-45 • 1 x VGA (optional for liquid cooling configuration) Internal Ports • 1 x USB 3.0 |
PCIe | Up to 8 x PCIe Gen4 slots (up to 6 x16) with support for SNAP I/O modules |
Operating System and Hypervisors | • Canonical Ubuntu Server LTS • Citrix Hypervisor • Microsoft Windows Server with Hyper-V • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • VMware ESXi For specifications and interoperability details |
OEM-ready version available | From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you. For more information, visit |
Products Description
Application Scenario
Recommend Products
All Kinds of dell hpe Product | ||||||||

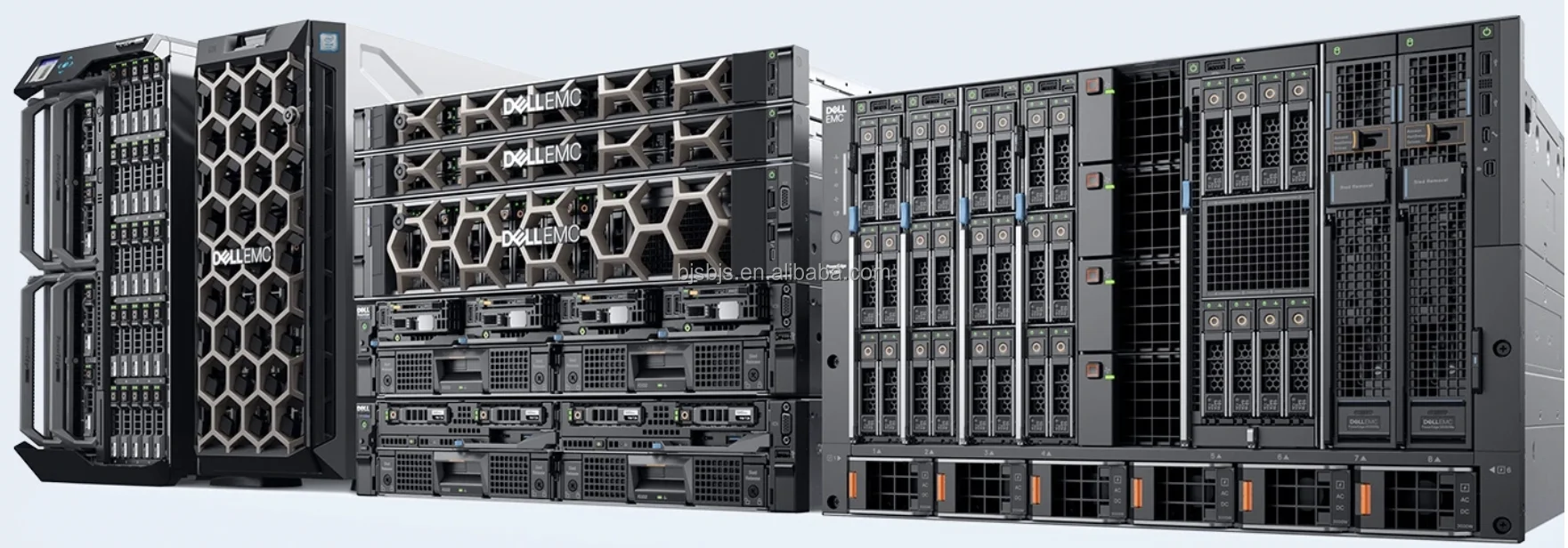

DELL Servers | ||||||||
Dell R240 | Dell R340 | Dell R440 | Dell R540 | Dell R640 | ||||
Dell R740 | Dell R740xd | Dell R740xd2 | Dell R840 | Dell R940 | ||||
Dell R940xa | Dell R450 | Dell R550 | Dell R650 | Dell R650xs | ||||
Dell R750xs | Dell R6515 | Dell R6525 | ||||||
Dell R7515 | Dell R7525 | Dell XR2 | Dell XR11 | Dell XR12 | ||||
Dell T40 | Dell T140 | Dell T340 | Dell T440 | Dell T640 | ||||
Dell T3240 | Dell T3440 | Dell T3640 | Dell T5820 | Dell T7920 | ||||
Dell T3450 | Dell T3650 | Dell T7910 | Dell R3930 | Dell R7920 | ||||
HPE Servers | ||||||||
Hpe DL20G10 | Hpe DL360G10 | Hpe DL380G10 | Hpe DL560G10 | Hpe DL580G10 | ||||
Hpe ML30G10 | Hpe ML110G10 | Hpe ML350G10 | Hpe DL325G10 | Hpe DL385G10 | ||||
Hpe Z1 G6 | Hpe Z2 MINI G5 | Hpe Z2 SFF G5 | Hpe Z2G5 TWR | Hpe Z4G4 | ||||

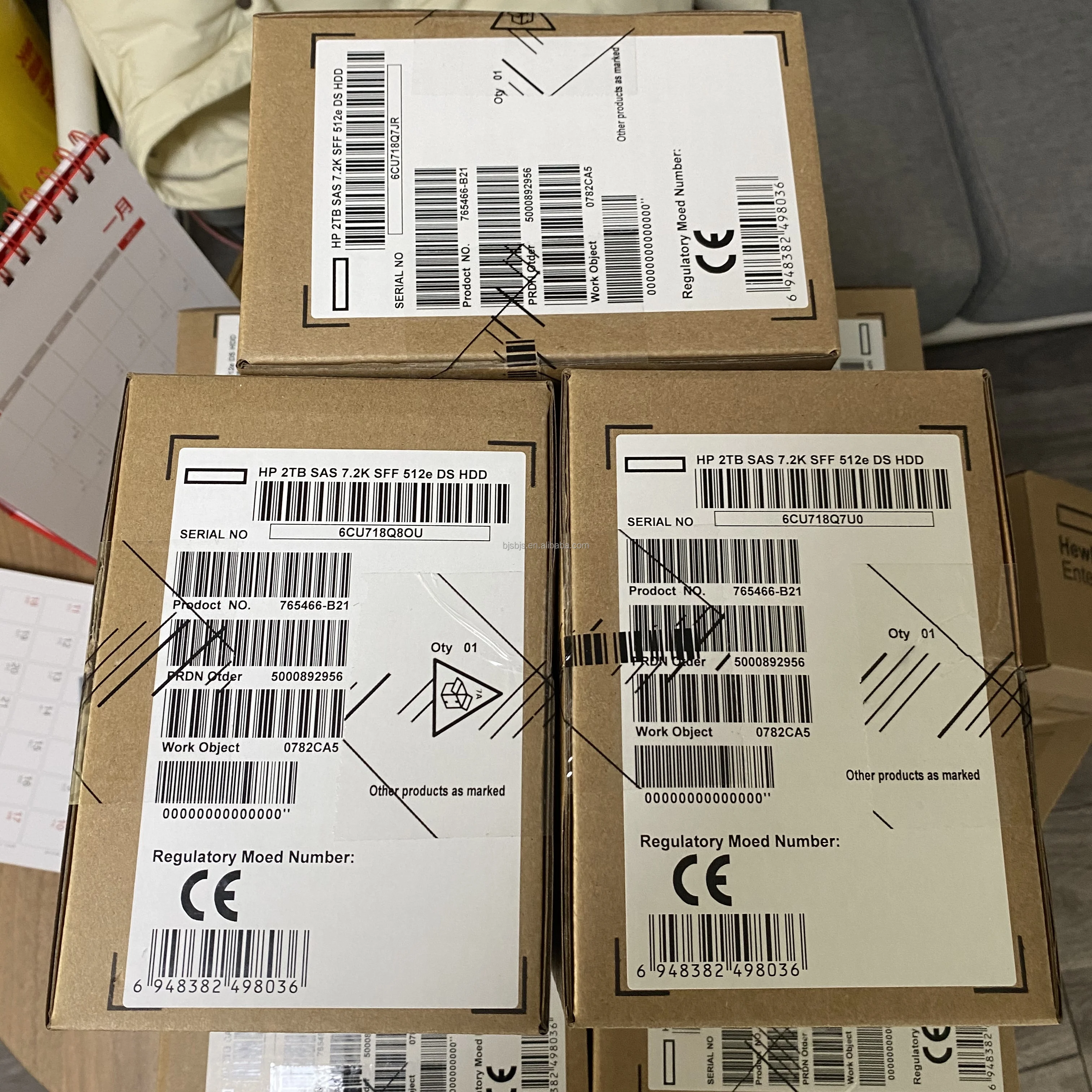

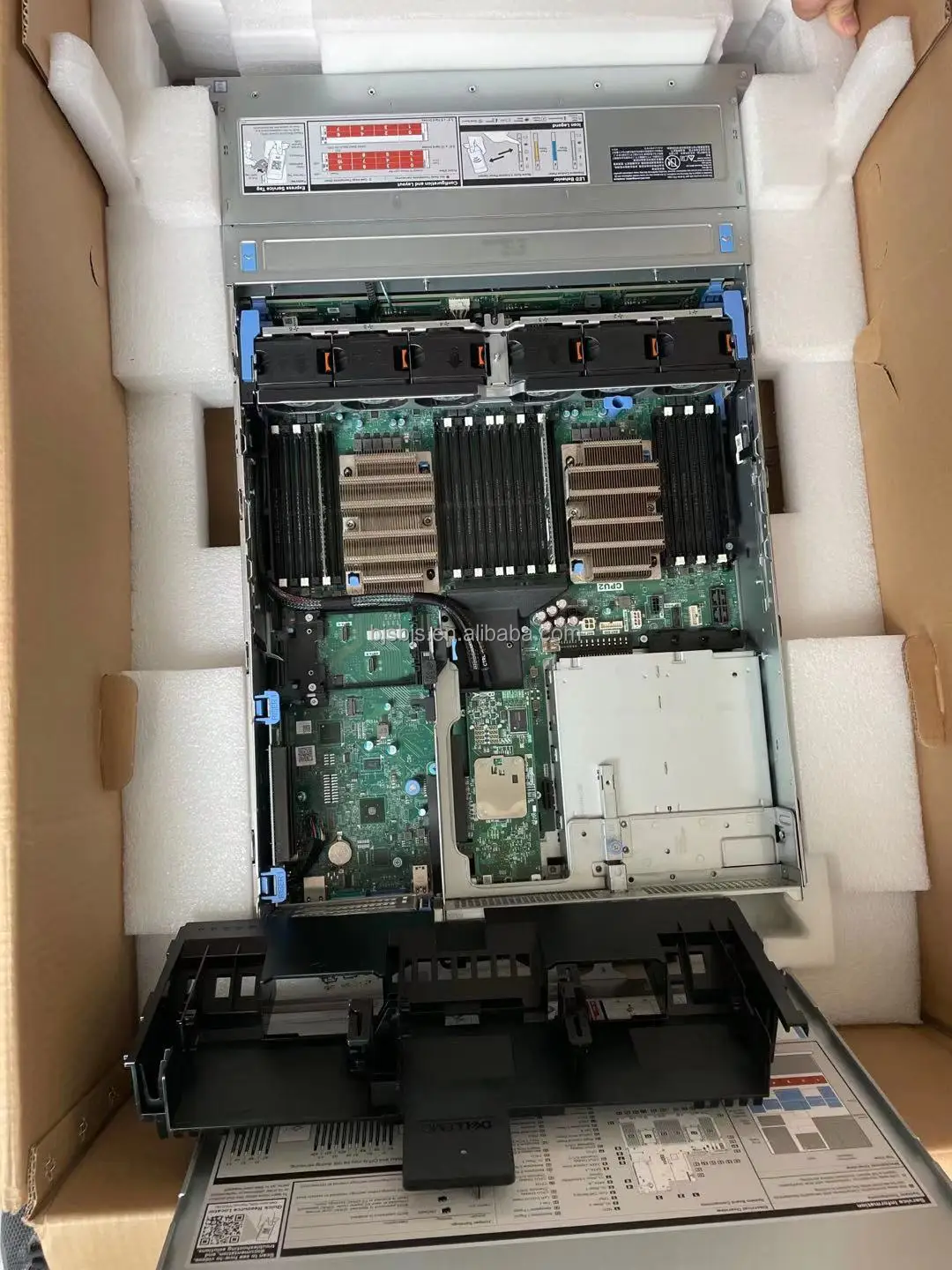

Packaging & Logistics
