Product Overview

Description

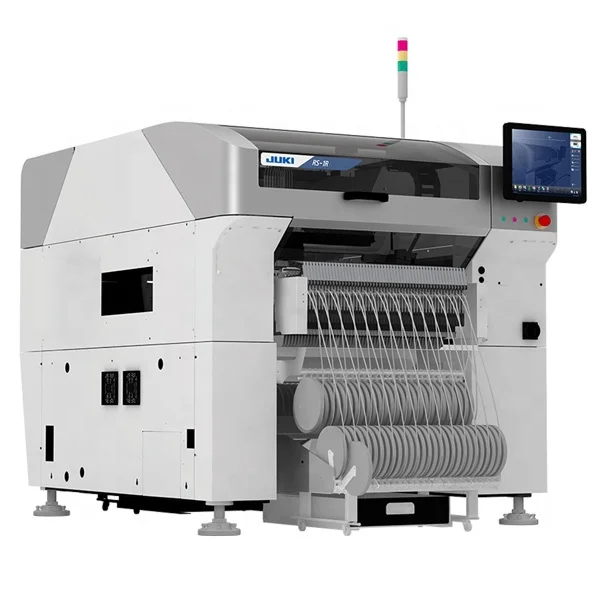

Automatic Juki SMT THT Pick and Place Machine DIP Components and Terminal Insertion Other Processing Line






Product Description






  • Class leading speed, up to 47,000 cph

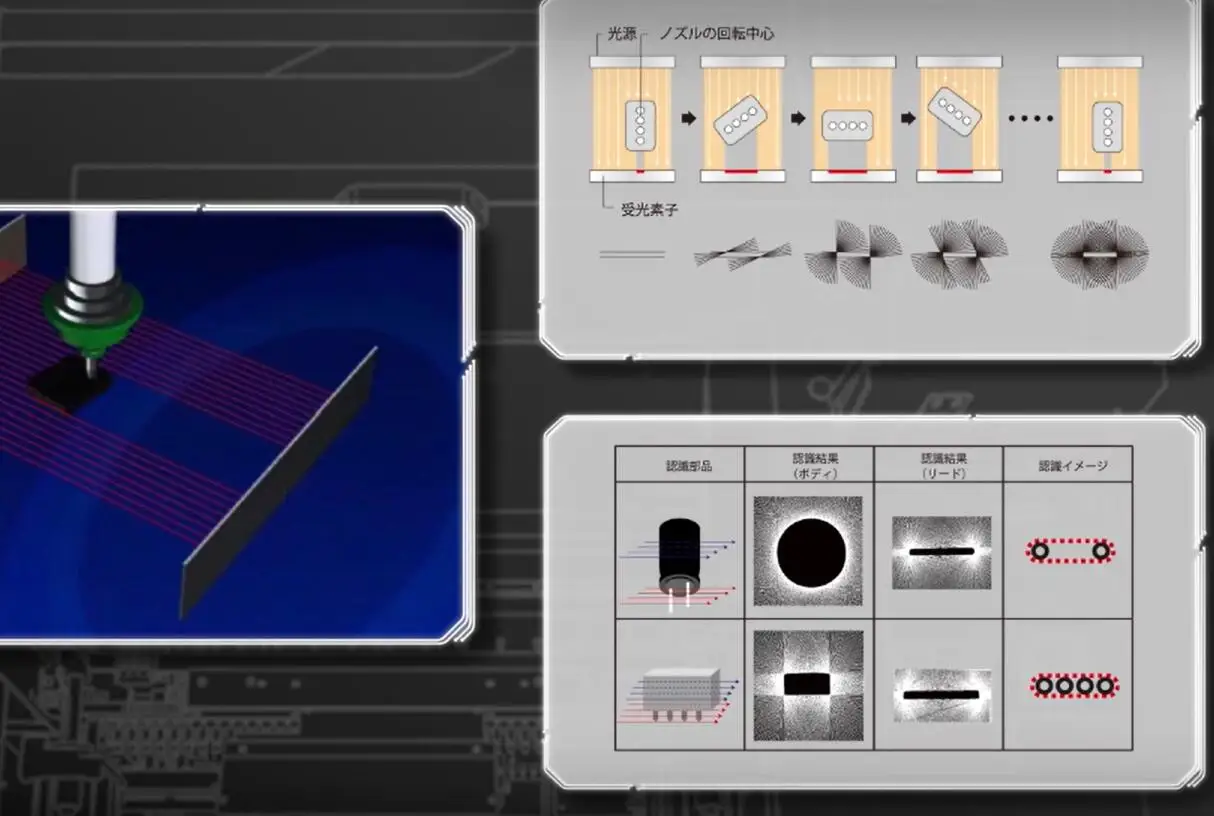

  • Newly developed “Takumi Head” with changing recognition sensor height

  • Optimum line balance and highest throughput

  • Wide component range from 0201 (metric) to large connectors and ICs

  • Optimal for LED placement




































































Fast Smart Modular Mounter
ModelRS-1R
Conveyor specificationstandard150mm conveyor extensions,
upstream and downstream		250mm conveyor extensions,
upstream and downstream
Board sizeminimum50×50mm
maximum1 buffer650×370 mm (Single clamping)
950×370 mm (double clamping)1,100×370 mm (double clamping)1,200×370 mm (double clamping)
3 buffers360×370mm500×370mm600×370mm
Component height25mm
Component size0201*1 ~74mm /150×50mm
Placement speedOptimum47,000CPH
IPC985031,000CPH
Placement accuracy±35μm(Cpk 1)
Vision recognition±30μm
Feeder inputsmax.112*2

*1 For metric 0201 compliance please contact us.
*2 Using RF(RF08AS) feeders









Packaging & Shipping


 packing1.jpgDelivery1.jpg1





Our Services


 1. Local Saled Service Team


 2. Training Operators


 3. Install & Debug Machines








Company Information

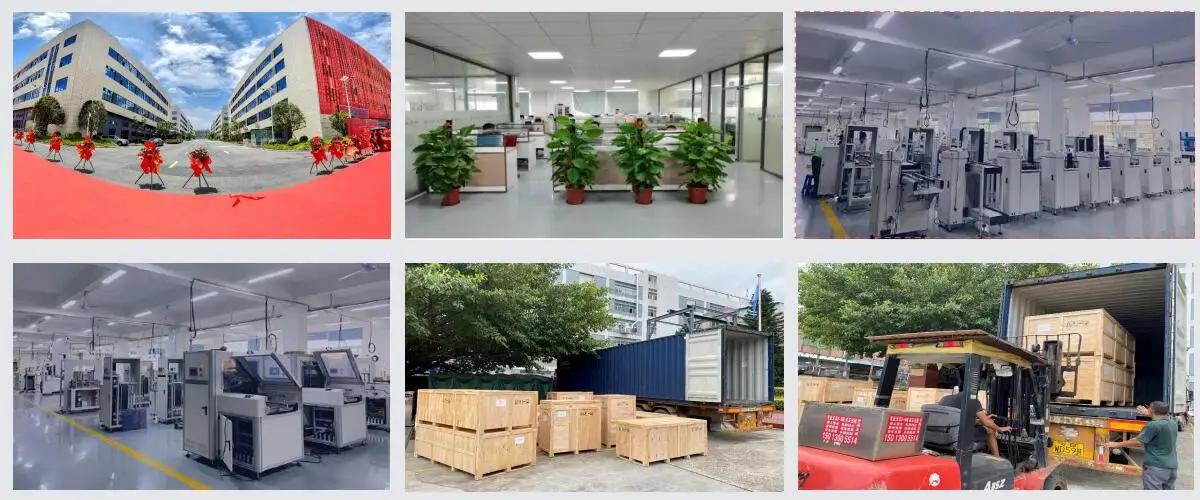

 Company picture.jpg







Shenzhen EASTLONG is the leading manufacturer for smt machines and solution with more than 20 years' experience in China. We provide SMT & DIP producing lines to many Chinese factories including Huawei, VIVO, SKYWORTH, TP-LINK, HIKVISION and so on.



Successful Experience:
EASTLONG's customers from 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.





For SMT factory setup,we can do for you:
1.  We provide fulL SMT solution for you
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT factory setup
5.  We can solve any question about SMT





FAQ





Q: What we can do for you?


A: Total SMT Machines and Solution, professional Technical Support and Service.





Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.

Q: What is your delivery date?
A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?
A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.





Q:  Why choose us?


A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
