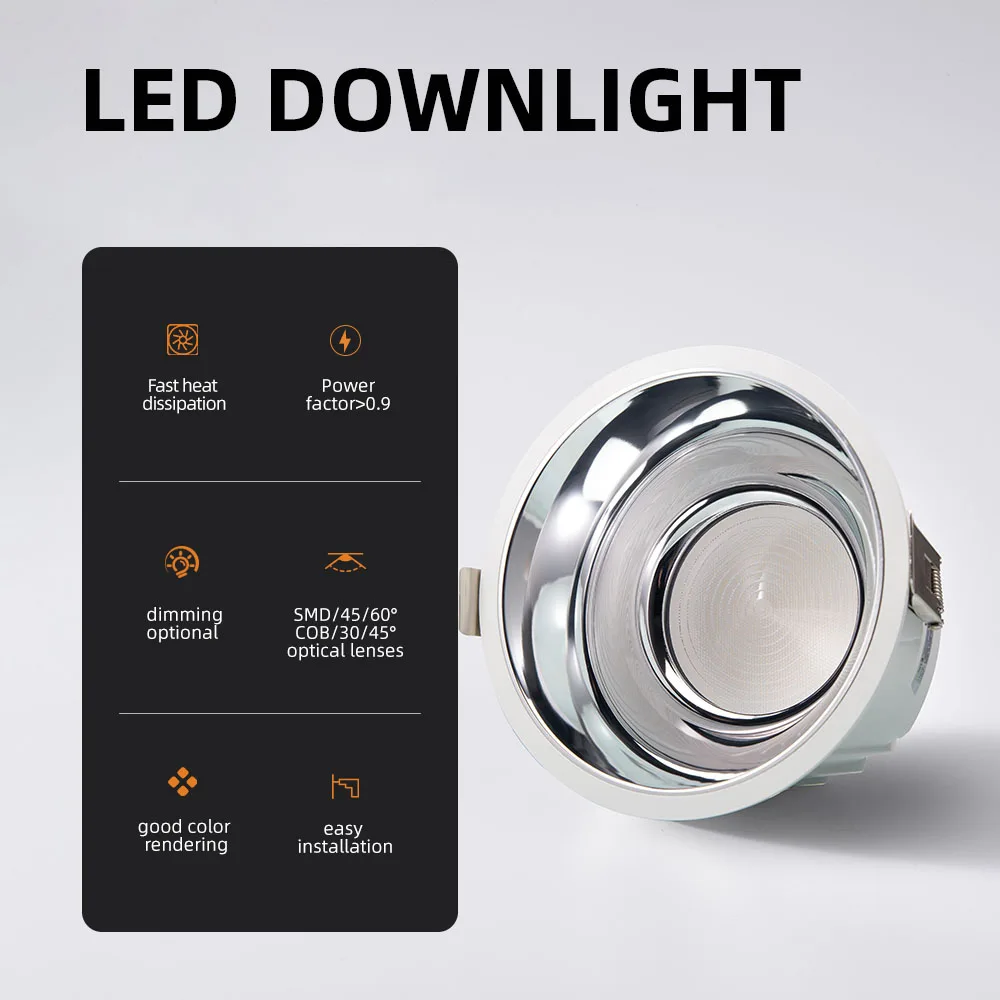

2.5inch LED downlight sMD/9w Cutout75mm input Ac200 240V recessed frameless listed led spotlight downlight
- Category: >>>
- Supplier: Shenzhen Wiscoon Technology Co. Ltd.
Share on (1601046701403):
Product Overview
Description
Products Description
Product details

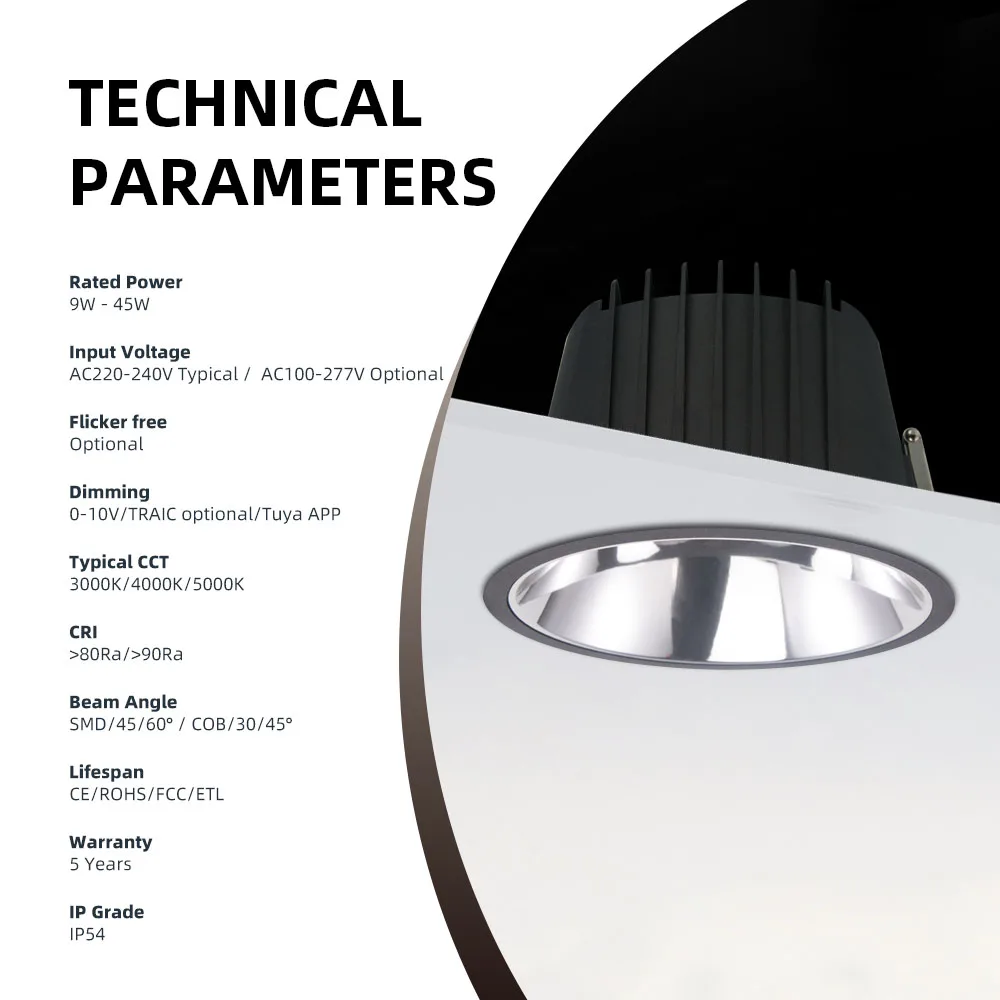

Size | Ф75 | Ф100 | Ф125 | Ф150 | Ф175 |
Model | SYC-2-A-75-9 | SYC-2-A-100-15 | SYC-2-A-125-24 | SYC-2-A-150-35 | SYC-2-A-175-45 |
Rated Power(±5%) | 9W Typical | 15W Typical | 24W Typical | 35W Typical | 45W Typical |
Input Voltage | AC220-240V Typical/AC100-277V Optional | AC220-240V Typical/AC100-277V Optional | AC220-240V Typical/AC100-277V Optional | AC220-240V Typical/AC100-277V Optional | AC220-240V Typical/AC100-277V Optional |
Frenquency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
Power Efficiency | 87% | 87% | 87% | 87% | 87% |
THD | <20% | <20% | <20% | <20% | <20% |
Flicker Free | YES | YES | YES | YES | YES |
Dimming | 0-10V/TRAIC optional/YUYA APP | 0-10V/TRAIC optional/YUYA APP | 0-10V/TRAIC optional/YUYA APP | 0-10V/TRAIC optional/YUYA APP | 0-10V/TRAIC optional/YUYA APP |
Sensor/Emergency | Can be customized | Can be customized | Can be customized | Can be customized | Can be customized |
Driver Brand | Llifud/BOKE/WISCOON | Llifud/BOKE/WISCOON | Llifud/BOKE/WISCOON | Llifud/BOKE/WISCOON | Llifud/BOKE/WISCOON |
Function | Blueteeth/App control can be customized | Blueteeth/App control can be customized | Blueteeth/App control can be customized | ||
LED brand | COB CITIZEN/CREE/SMD Sanan /Wafer | COB CITIZEN/CREE/SMD Sanan /Wafer | COB CITIZEN/CREE/SMD Sanan /Wafer | COB CITIZEN/CREE/SMD Sanan /Wafer | COB CITIZEN/CREE/SMD Sanan /Wafer |
Typical CCT | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
CRI | >80Ra/>90Ra | >80Ra/>90Ra | >80Ra/>90Ra | >80Ra/>90Ra | >80Ra/>90Ra |
CCT Adjustable | Can be customized | Can be customized | Can be customized | Can be customized | Can be customized |
Lumens Efficiency(lm/w) | 75-85lm/w | 75-85lm/w | 75-85lm/w | 75-85lm/w | 75-85lm/w |
Luminous Flux(±5%) | 720lm | 1200lm | 1920lm | 2800lm | 3600lm |
LED Type | LM80 SMD2835/1W or COB LED | LM80 SMD2835/1W or COB LED | LM80 SMD2835/1W or COB LED | LM80 SMD2835/1W or COB LED | LM80 SMD2835/1W or COB LED |
LED QTY | SMD 16PCS/COB 1PCS | SMD 24PCS/COB 1PCS | SMD 36PCS/COB 1PCS | SMD 60PCS/COB 1PCS | SMD 72PCS/COB 1PCS |
Beam Angle | SMD/45/60° COB/30/45° | SMD/45/60° COB/30/45° | SMD/45/60° COB/30/45° | SMD/45/60° COB/30/45° | SMD/45/60° COB/30/45° |
Lens | PC LENs | PC LENs | PC LENs | PC LENs | PC LENs |
Glare Index | UGR<19(Standard) | UGR<19(Standard) | UGR<19(Standard) | UGR<19(Standard) | UGR<19(Standard) |
Materials | Aluminum+PC | Aluminum+PC | Aluminum+PC | Aluminum+PC | Aluminum+PC |
Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
Standards | CE/ROHS/FCC/ETL | CE/ROHS/FCC/ETL | CE/ROHS/FCC/ETL | CE/ROHS/FCC/ETL | CE/ROHS/FCC/ETL |
Warranty | 5years | 5years | 5years | 5years | 5years |
IP Grade | IP54 | IP54 | IP54 | IP54 | IP54 |
Storage Temperature | -30~60℃(-22~140℉) | -30~60℃(-22~140℉) | -30~60℃(-22~140℉) | -30~60℃(-22~140℉) | -30~60℃(-22~140℉) |
Working Temperature | -20~40℃(-4~104℉) | -20~40℃(-4~104℉) | -20~40℃(-4~104℉) | -20~40℃(-4~104℉) | -20~40℃(-4~104℉) |
Operating Humidity | 10% | 10% | 10% | 10% | 10% |
Product Size size*high*open（mm） | Ф100*60mm*open 75mm | Ф145*79mm*open 120mm | Ф190*90mm*open160mm | Ф235*102mm*open 190mm | |
Product N.W | 0.27KG | 0.55KG | 0.9KG | 1.38KG |
Marketing Campaign
Recommend Products
Our Advantages
Company Profile
Packaging & Shipping
FAQ
FAQ
Q1. Does your product include light sources?
Reply: E27 lampholder lamp product not including bulb. If you have special requirements, the product can be equipped with a light
bulb.
For all LED lamps with light sources.
Q2. Are you factory?
Reply:Yes,We are .SML,is the factory for table lamp and mosquito killer manufacturer start from 2008,
We are specialized in research & development, production and marketing in lighting products focus on exporting over 14years .
Q3. Do you accept sample order?
Reply: sure, we accept sample order. Sample time is 3-7days.
Q4:Can you printing our LOGO and make our own colorbox design ?
Reply: Sure, please send us your LOGO files and we will be make the sill-screen for it , and also if your order quantity for more
than 1000pcs/item ,we can make the special designed packing for you .as we are very professional in OEM.
Q5 :Do you provide New designs for LED desk lamp or mosquito killer in OEM and ODM service?
Reply: Sure, we are the factory with more than 14 years rich experience in development,we have our own designer and engineer ,as
we have more than 30 new items/year .welcome the new designs to have the coorperation.
Q6. Do you have any MOQ limit for led light order?
Reply: Yes, .MOQ is 100pcs for SML packing design box as our usual.
MOQ :1000pcs for OEM (customer Logo) Package.
Q7. How long will it take for normal order?
Reply: 15-30 days upon deposit payment .
Q8. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty for all of our products.
Q9. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q10. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B :Secondly, during the guarantee period, if it is the problems from us.we will send new lights with new order for small quantity.
But we never meet the quality problems from customer still now. We will be responsible for all cargoes to customer.
Reply: E27 lampholder lamp product not including bulb. If you have special requirements, the product can be equipped with a light
bulb.
For all LED lamps with light sources.
Q2. Are you factory?
Reply:Yes,We are .SML,is the factory for table lamp and mosquito killer manufacturer start from 2008,
We are specialized in research & development, production and marketing in lighting products focus on exporting over 14years .
Q3. Do you accept sample order?
Reply: sure, we accept sample order. Sample time is 3-7days.
Q4:Can you printing our LOGO and make our own colorbox design ?
Reply: Sure, please send us your LOGO files and we will be make the sill-screen for it , and also if your order quantity for more
than 1000pcs/item ,we can make the special designed packing for you .as we are very professional in OEM.
Q5 :Do you provide New designs for LED desk lamp or mosquito killer in OEM and ODM service?
Reply: Sure, we are the factory with more than 14 years rich experience in development,we have our own designer and engineer ,as
we have more than 30 new items/year .welcome the new designs to have the coorperation.
Q6. Do you have any MOQ limit for led light order?
Reply: Yes, .MOQ is 100pcs for SML packing design box as our usual.
MOQ :1000pcs for OEM (customer Logo) Package.
Q7. How long will it take for normal order?
Reply: 15-30 days upon deposit payment .
Q8. Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty for all of our products.
Q9. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q10. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B :Secondly, during the guarantee period, if it is the problems from us.we will send new lights with new order for small quantity.
But we never meet the quality problems from customer still now. We will be responsible for all cargoes to customer.
