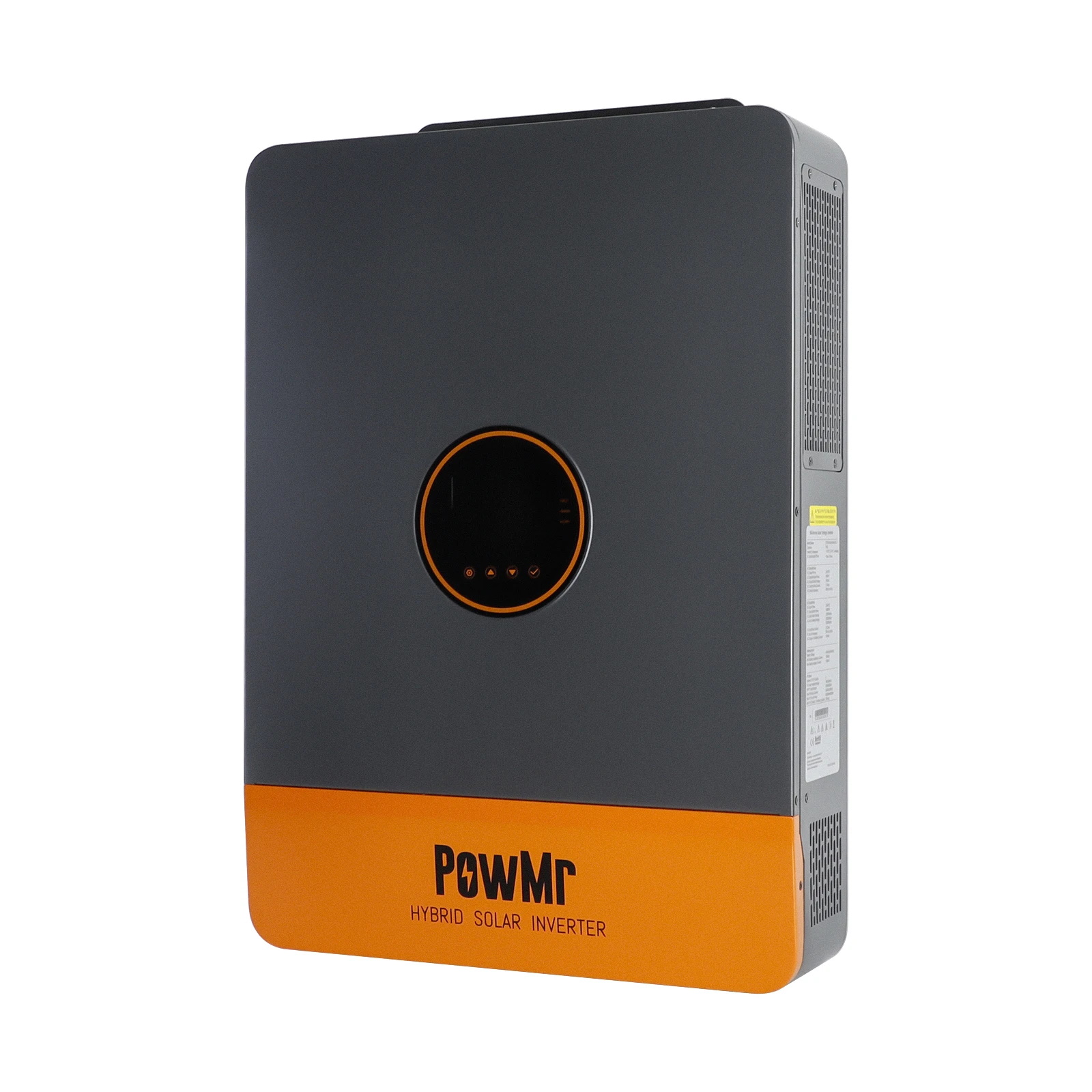

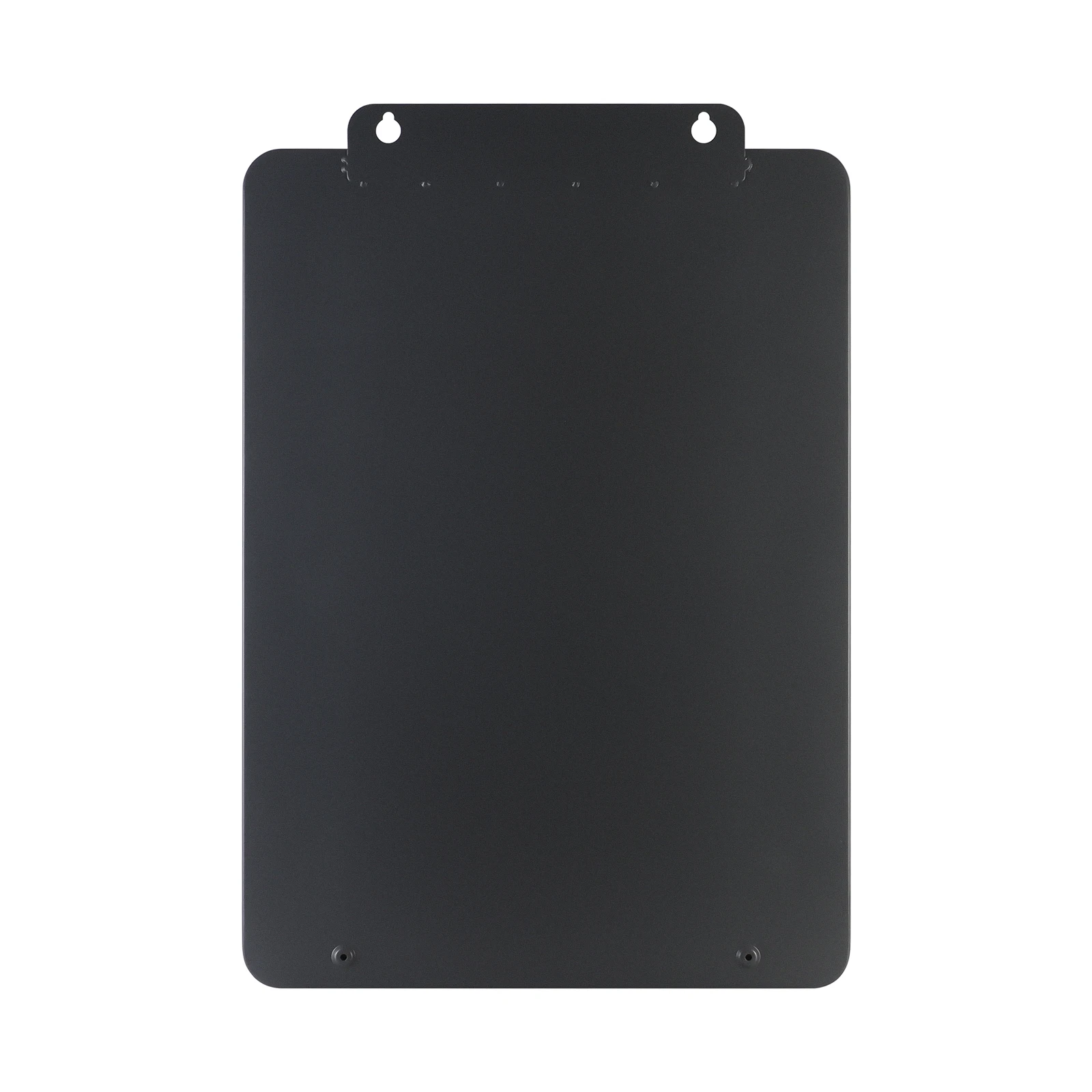

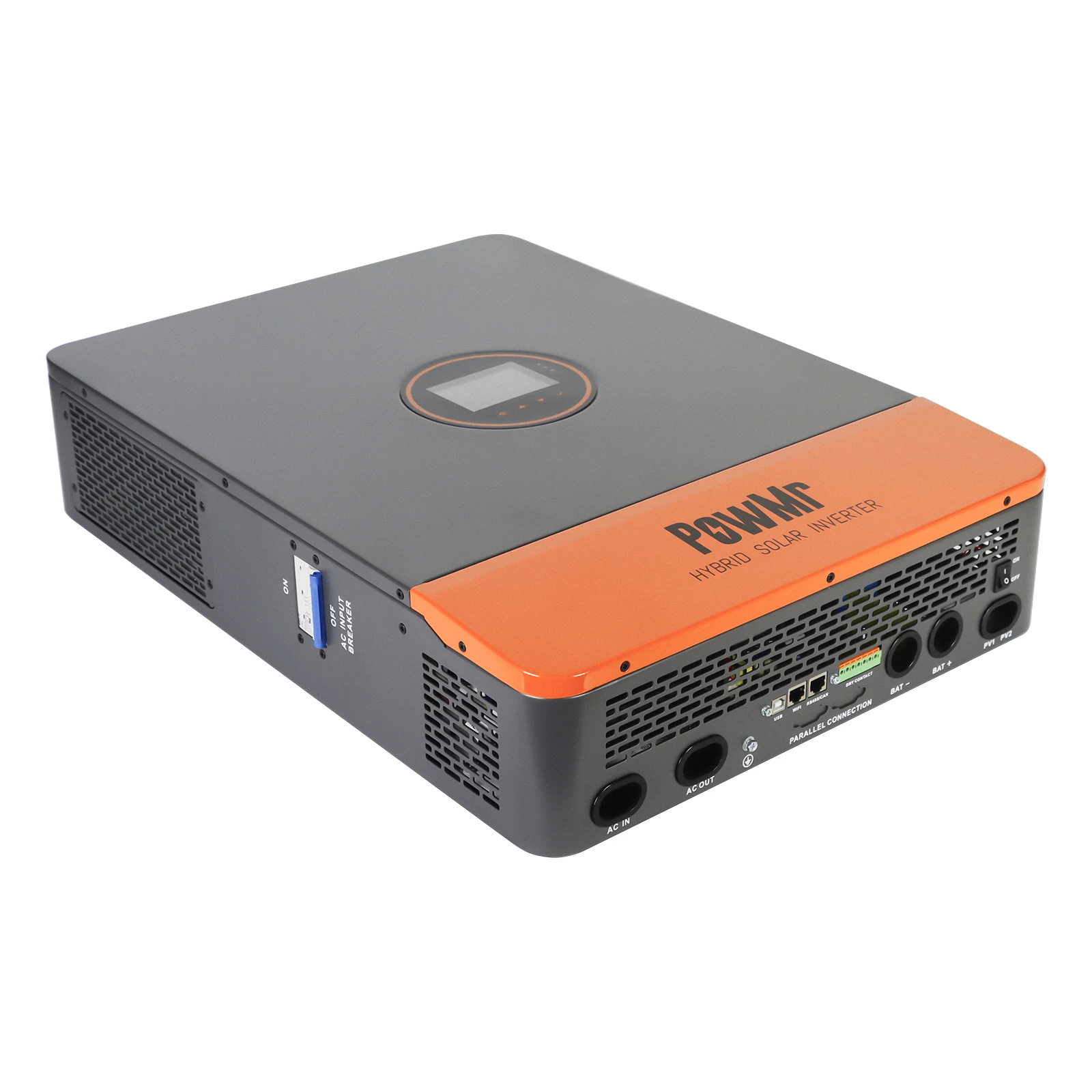

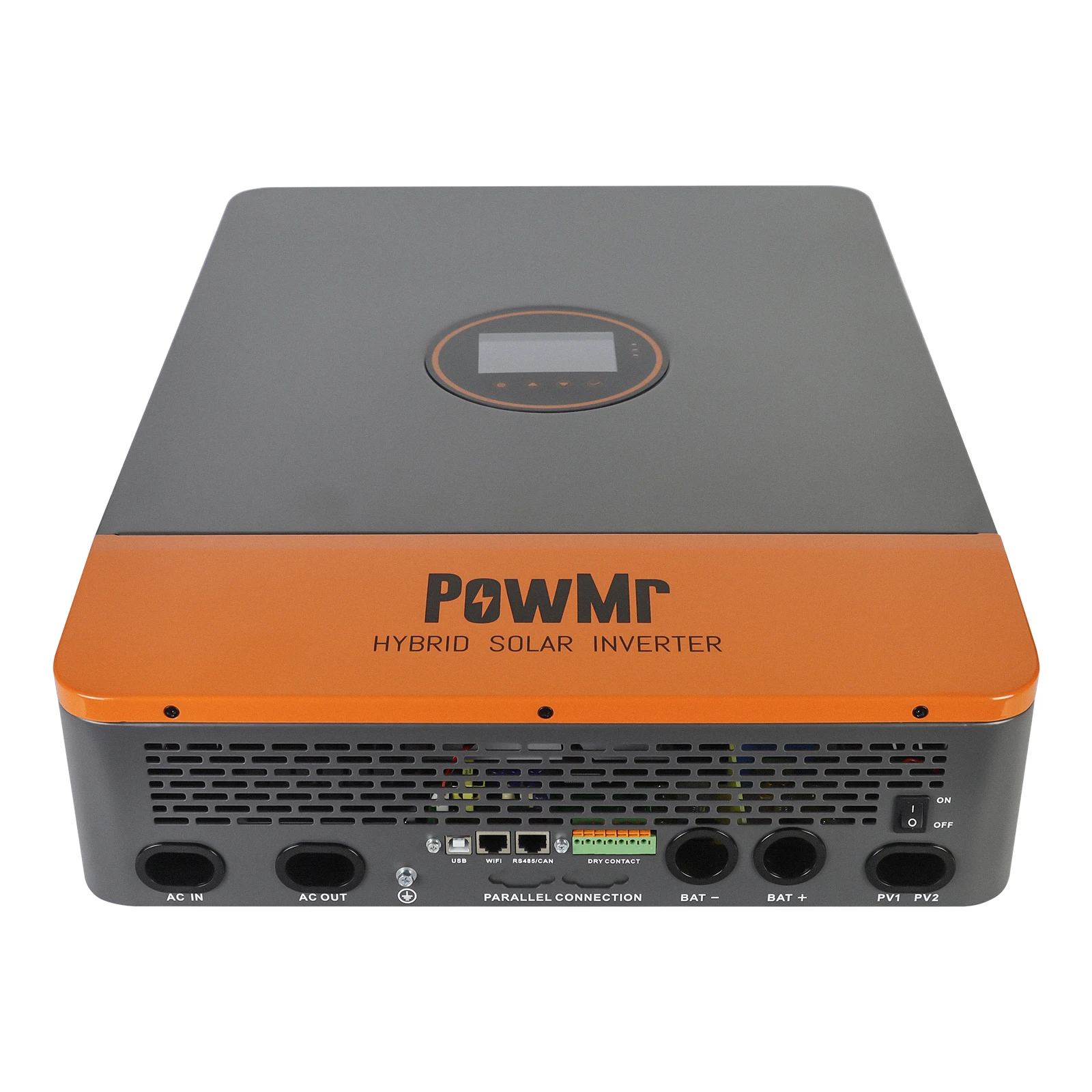

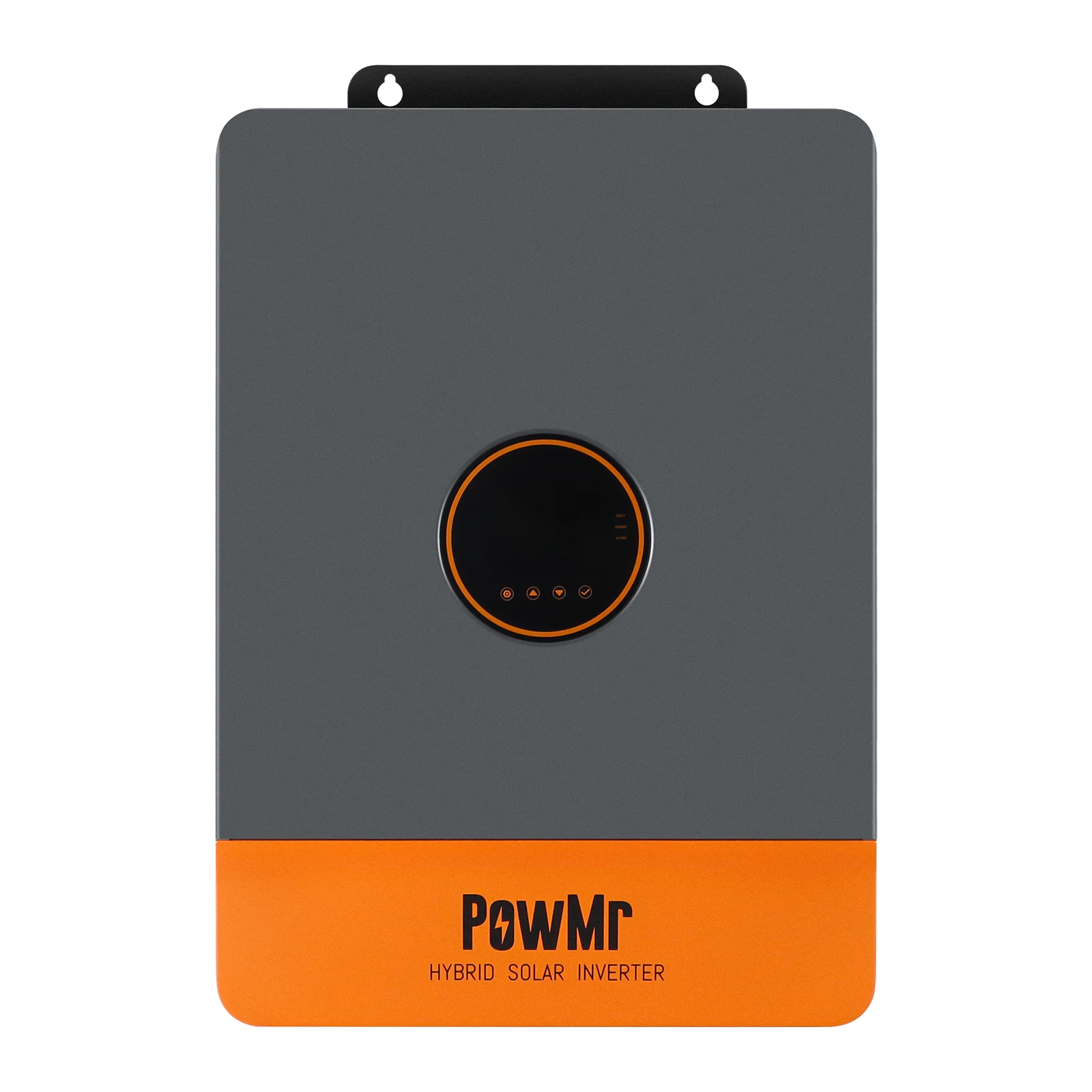

PowMr 8KW 12KW 48V Hybrid Solar Inverter 230V/400V Three Phase On/Off grid Pure Sine Wave Hybrid Solar Inverter
- Category: >>>
- Supplier: Shenzhen Hehejin Industrial Co. Ltd.
Share on (1601046705957):
Product Overview
Description
Product Description
Feature
⚫ Supports lead acid battery and li-ion battery connections.
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
⚫ Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
⚫ Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
⚫ With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation
⚫ 360° protection with complete short circuit protection, over current protection, over under voltage
⚫ With a dual activation function when the li-ion battery is dormant; either mains/photovoltaic power supply access can trigger the activation of the li-ion battery.
⚫ Support three-phase pure sine wave output (350~415V)
⚫ Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.
⚫ Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.
⚫ Dual MPPT with 99.9% efficiency and maximum 22A current in a single circuit, perfectly adapted to high
power modules.
⚫ 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains/PV charging.
⚫ With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.
⚫ Energy saving mode function to reduce no-load energy losses.
⚫ With two output modes of utility bypass and inverter output, with uninterrupted power supply function.
⚫ LCD large screen dynamic flow diagram design, easy to understand the system data and operation
status.
⚫ 360° protection with complete short circuit protection, over current protection, over under voltage
protection, overload protection, backfill protection, etc.
⚫ Support CAN, USB, and RS485 communication.
Specification
POW-SunSmart 8KL3 | POW-SunSmart 12KL3 | |||
INVERTER OUTPUT | ||||
Rated Output Power | 8,000W | 12000W | ||
Max. Peak Power | 16,000W | 24000W | ||
Rated Output Voltage | 230/400Vac (three-phase) | |||
Capacity of Motor Load | 5HP | 6HP | ||
Rated Frequency | 50/60Hz | |||
Output Waveform | pure sine wave | |||
Switching Time | 10ms | |||
BATTERY | ||||
Battery Types | Li-ion / Lead-Acid / User Defined | |||
Rated Battery Voltage | 48Vdc | |||
Voltage Range | 40-60Vdc | |||
Max. PV Charging Current | 180A | 260A | ||
Max. Utility / Generator Charging Current | 100A | 120A | ||
Max. Hybrid Charging Current | 180A | 260A | ||
PV INPUT | ||||
No. of MPPT | 2 | |||
Max. Input Power | 6000W/6000W | 9000W/9000W | ||
Max. Input Current | 22/22A | |||
Max. Open-circuit Voltage | 800Vdc/800Vdc | |||
MPPT Operating Voltage Range | 200-650Vdc/200-650Vdc | |||
UTILITY / GENERATOR INPUT | ||||
Input Voltage Range | phase voltage 170~280V, line voltage 305~485V | |||
Input Frequency Range | 50Hz / 60Hz | |||
Bypass Overload Current | 63A | |||
EFFICIENCY | ||||
MPPT Tracking Efficiency | 99.9% | |||
Max. Battery Inverter Efficiency | ≥92% | |||
European Efficiency | 97.2% | 97.5% | ||
GENERAL | ||||
Dimensions | 620*445*130mm | |||
Weight | 27kg | |||
Protection Degree | IP20，indoor only | |||
COMMUNICATION | ||||
Internal Interface | RS485 / CAN / USB / Dry contact | |||
External Module (optional) | Wi-Fi / GPRS | |||
CERTIFICATION | ||||
Safety | IEC62109-1, IEC62109-2, UL1741 | |||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | |||
RoHS | Yes | |||
