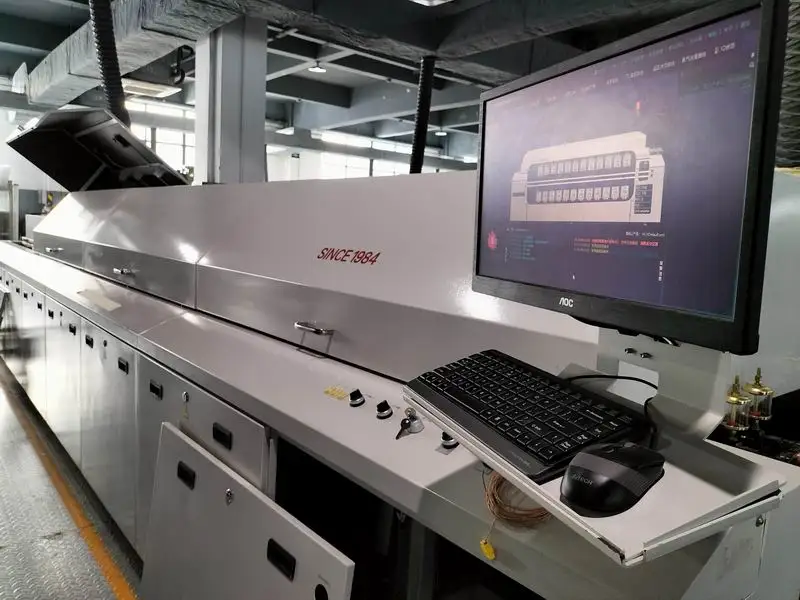

Industry Furnace SMT Reflow Oven with PLC Components for PCB Welding for Solder Reflow

Product Overview

Description

Industry Furnace SMT Reflow Oven for PCB Welding with PLC Components

Specification:

1> Heating part

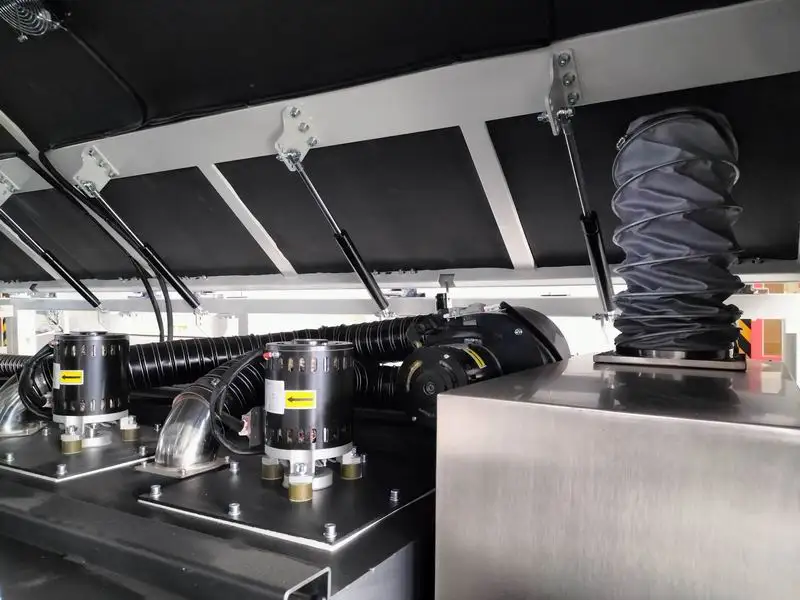

-Pressurized forced hot air system, directly connected to high temperature motor drive, rear heating tube design, longer life

-Furnace hot air frequency conversion to adjust wind speed, thermal shock is controllable

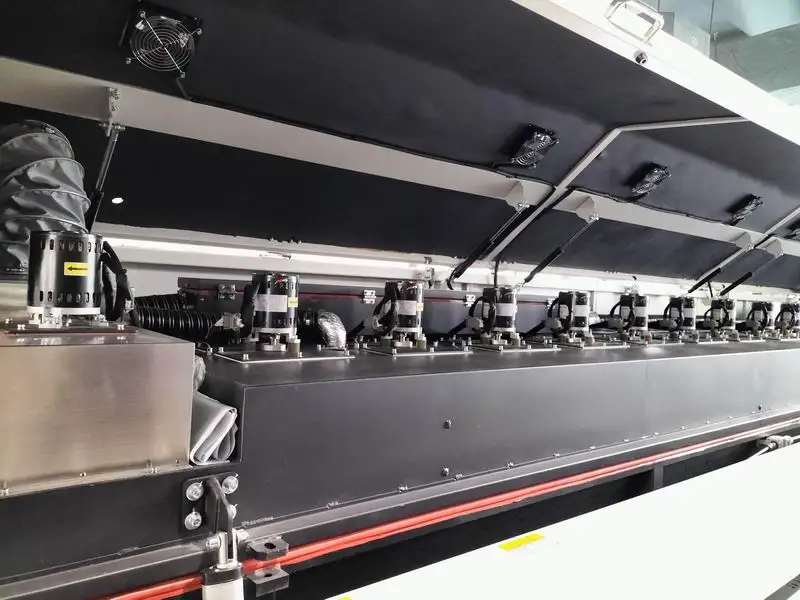

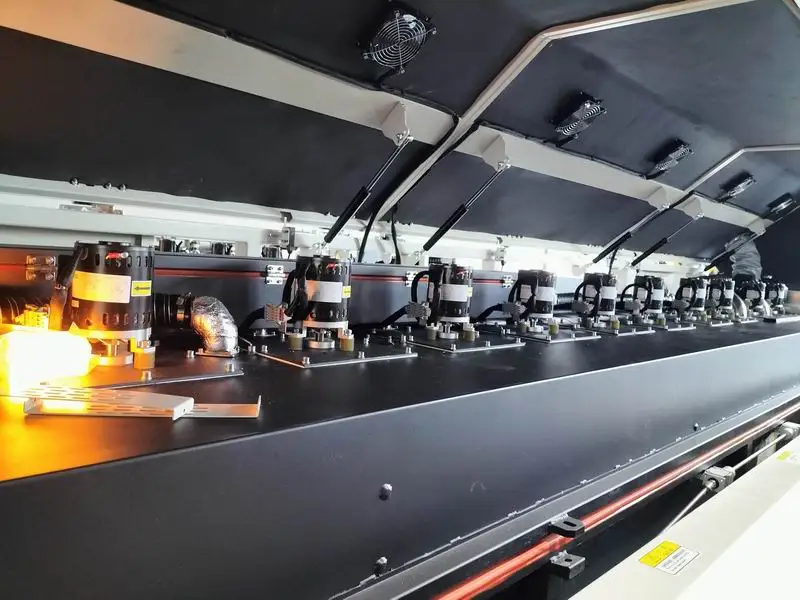

-12 heating temperature zones, 24 heating modules (upper 12/lower 12)

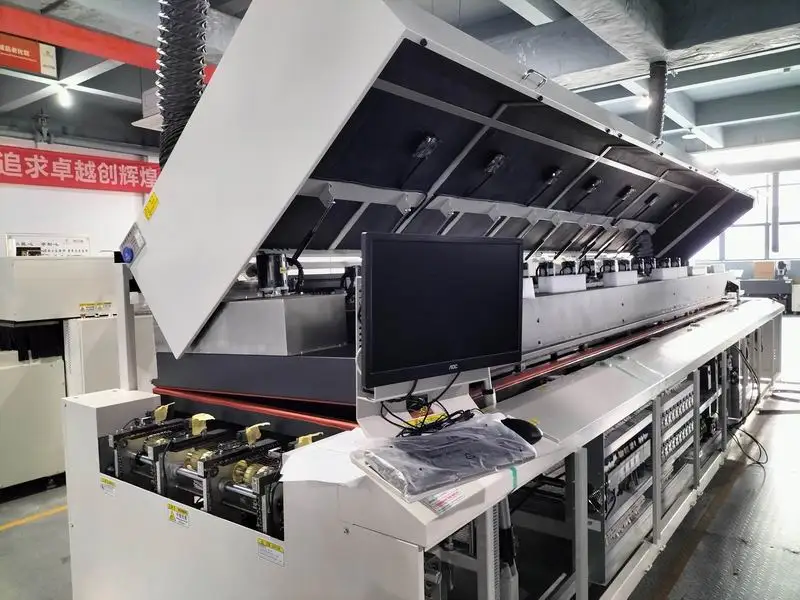

-Automatic furnace opening mode: convenient for maintenance and cleaning inside the furnace

-Temperature control range: room temperature -320℃

-Temperature control accuracy: ±1℃ (static)

-Substrate lateral temperature deviation: ±1℃

-Temperature performance indicators comply with IPC industry standards

2>Cooling part

-Pressurized forced air cooling (dual cooling zone, drawer type rectifier board)

-Cooling zone temperature display

3>Control part

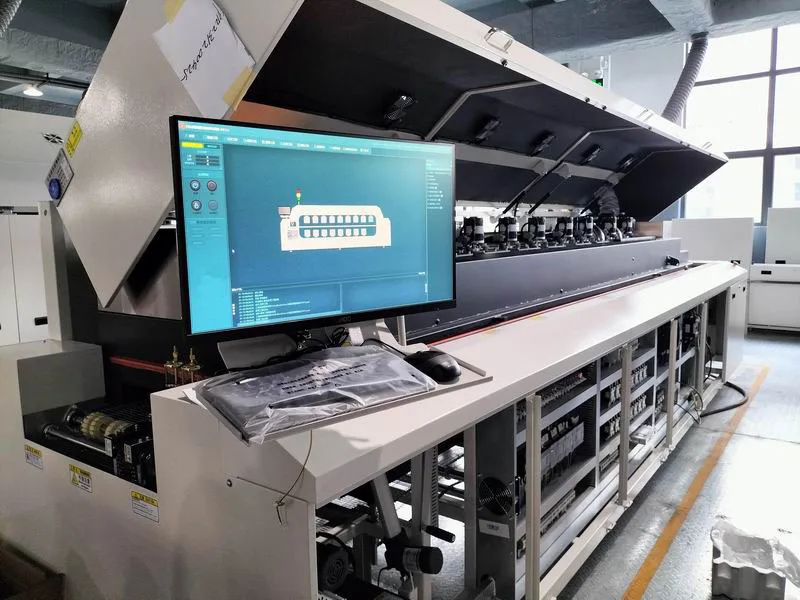

-PC+PLC control system, Windows operation interface, free online switching between Chinese, English, Traditional and Simplified, LCD display

-Segmented heating function

-Hot air motor abnormal alarm -Temperature curve analysis, storage, and recall function

4>Transmission part

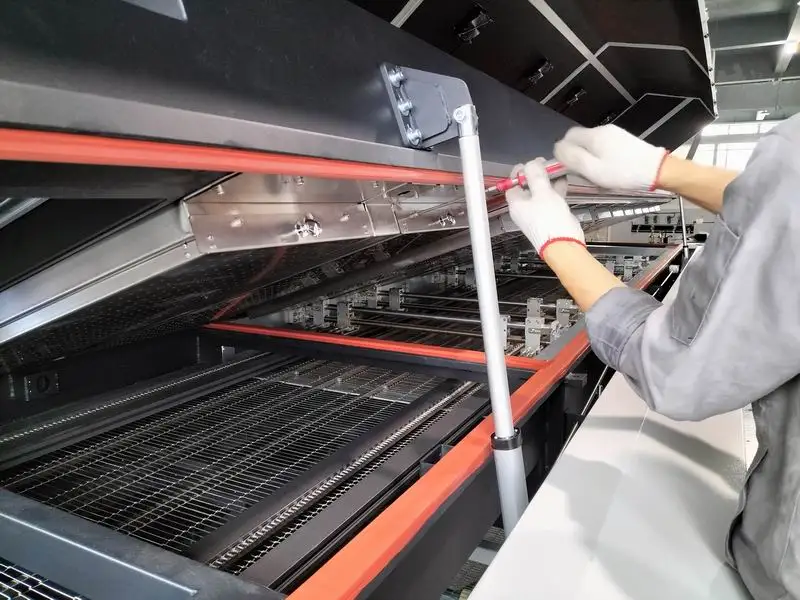

-Synchronous transmission of anti-jamming plate chain and W440mm mesh belt

-Transmission speed: 0.3M-1.5M/Min, accuracy ±2mm/min

-Transmission height and direction: 900±20mm, left to right

-PCB width: min50mm~max400mm

-Substrate element height: Max30mm on the upper layer, Max20mm on the lower layer

-Electric/manual guide rail width adjustment

-Two-section double-sided guide rail (guide rail: special aluminum alloy material, super hard treatment to reduce wear and deformation)

5>Protection system

-Temperature out of tolerance, transmission speed out of tolerance, board drop alarm -Built-in computer and transmission UPS

-Chain automatic lubrication function (adjustable drip time)

-Computer self-diagnosis

-Operator password management, operation record

-Delayed shutdown function

6>Straight discharge device after flux filtering

-Inlet and outlet forced exhaust device

-The diameter of the inlet and outlet exhaust pipes is 145mm, and the required air volume is ≥20m³/min

7>Machine specifications

-Body size: L6490*W1372*H1450mm

-Power supply: AC35W380V50/60HZ, maximum leakage current 180ma-200ma

-Starting power: 37KW (segment start)/89KW (overall start)



   S712A Technical parameters

Number of heating zones	upper 12 / lower 12
Heating zone length	4300mm
Number of cooling zones	2
Input voltage	380V three-phase, 50 / 60HZ
Dimensions(L*W*H)	6495*1610*1515mm
Weight	About3200 kg
Temperature control range	25-320 ℃
Power-up time	1-5 minutes
Profile switching time	1-15 minutes
Transmission way	mesh belt transmission, chain transmission
Transmission speed	300-1500mm / min
High-speed rail	900mm ± 20mm
Net height	900mm ± 20mm
Allowed board width	50-400mm (nitrogen furnace)
Operating platform	Windows 7



1. We'll have a good check and a test before shipping out.

2. We provide you the friendly English User manual or the operating videos for free;

3. 24 hours technical support by email or Skype or Trade Manager or Calling.

4. 1 year machine parts free warranty;

5. Engineers available to service machinery overseas.

Shenzhen EASTLONG Technology Co.,Ltd.is the professional manufacturer which focus on R&D, manufacturing and servicing One-stop SMT/DIP production equipment solution and One-stop LCD Module Automation equipment solution.

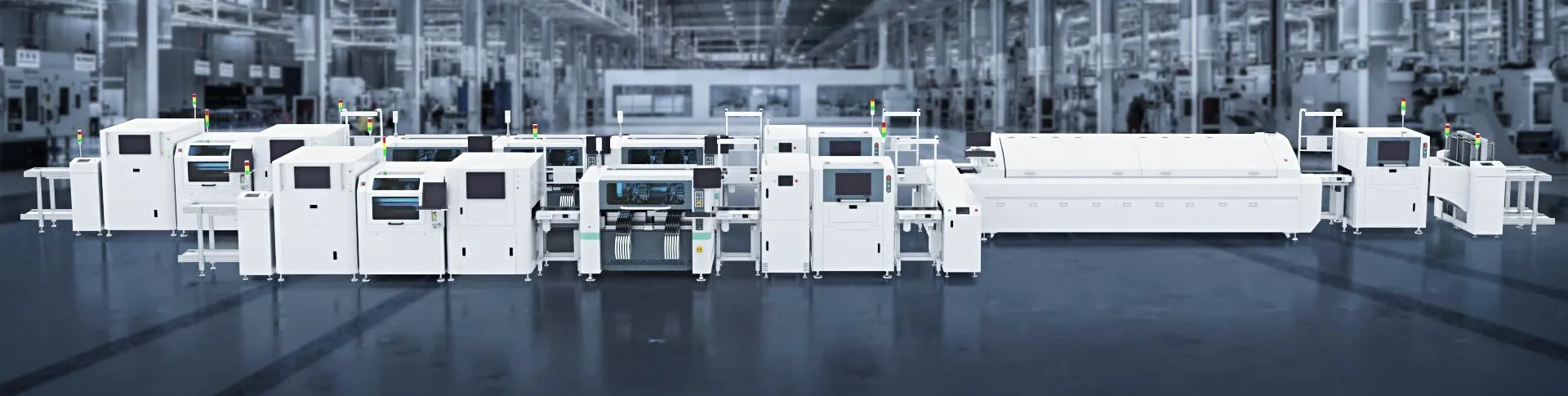

We provide SMT & DIP producing lines to many Chinese factories including Huawei, VIVO, SKYWORTH, TP-LINK, HIKVISION and so on.

Successful Experience:
EASTLONG's customers from 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.



For SMT & LCD factory setup,we can do for you:
1.  We provide fulL One-stop SMT/DIP production equipment solution and One-stop LCD Module Automation equipment solution.
2.  We provide core technology with our equipments
3.  We provide the most professional tech service
4.  We have wealthy experience on SMT & LCD factory setup
5.  We can solve any question about SMT & LCD Producing line.





1) This is the first time I use this kind of machine, is it easy to operate?

 There is english manual or guide video that show you how to use machine.

 If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.



2) If machine have any problem after I receive it, how can I do ?

 Free parts send to you in machine warranty period.

 If the part is less than 0.5KG, we pay the postage.

 If it exceeds 0.5KG, you need to pay the postage.



3) MOQ ?

 1 set machine, mixed order is also welcomed.



4) How can I buy this machine from you? ( Very easy and flexible !)

 A. Consult us about this product on line or by e-mail.

 B. Negotiate and confirm the final price , shipping , payment methods and other terms.

 C. Send you the proforma invoice and confirm your order.

 D. Make the payment according to the method put on proforma invoice.

 E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

 And 100% quality check before shipping.

 F.Send your order by air or by sea.
