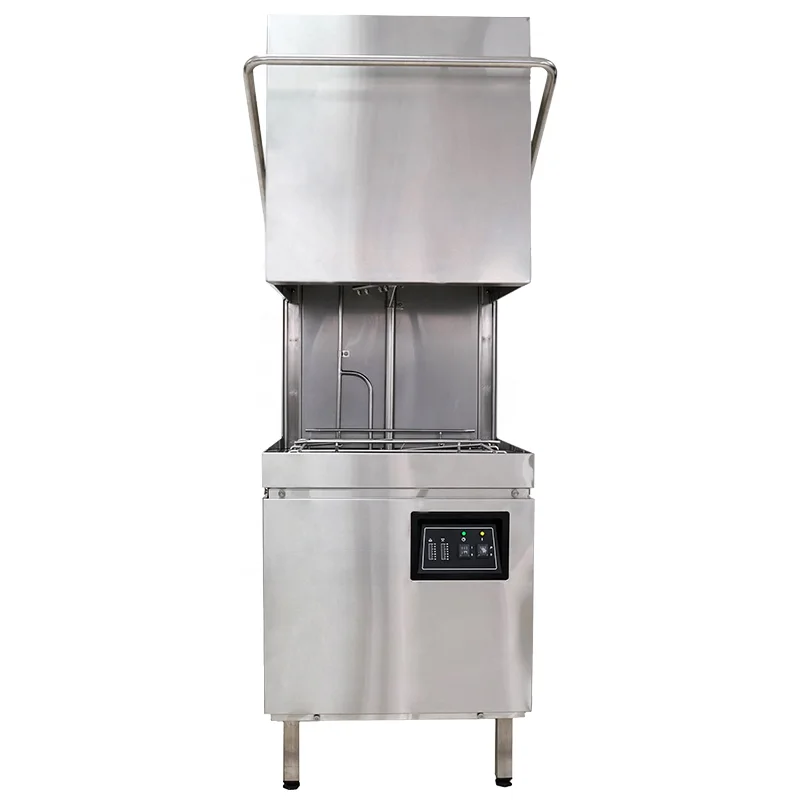

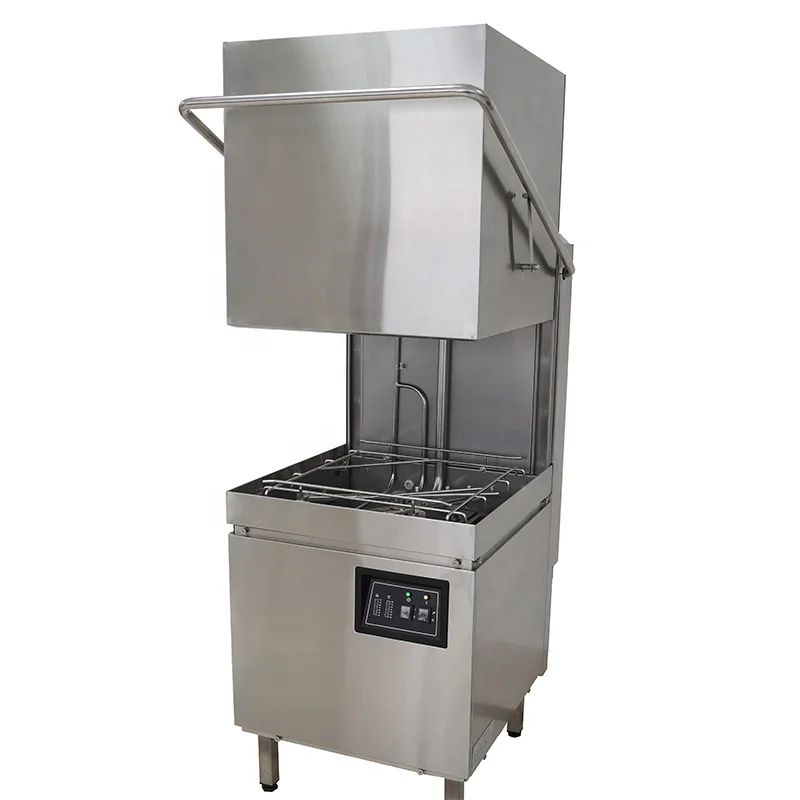

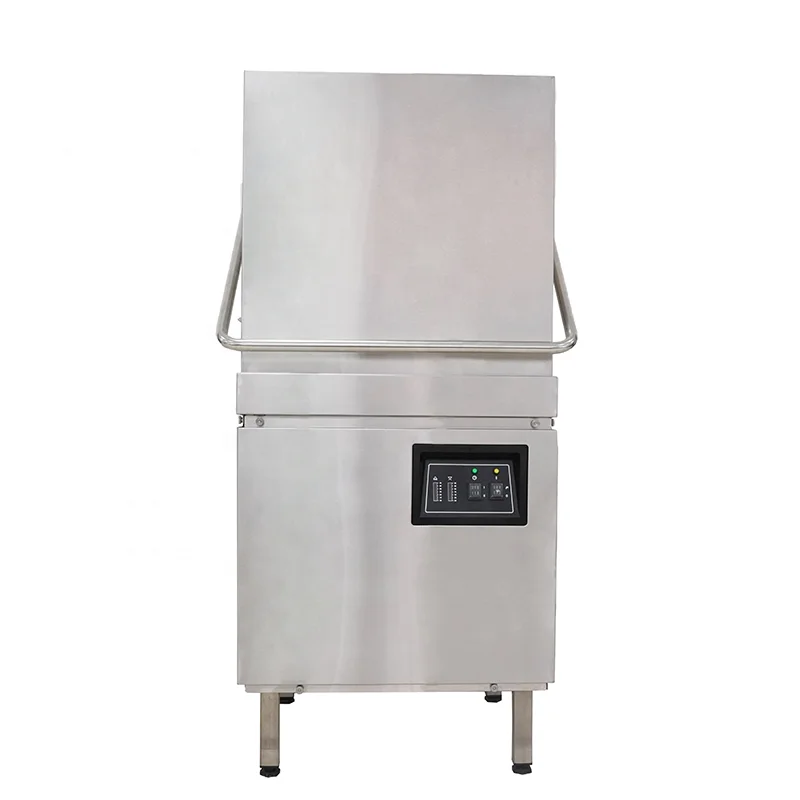

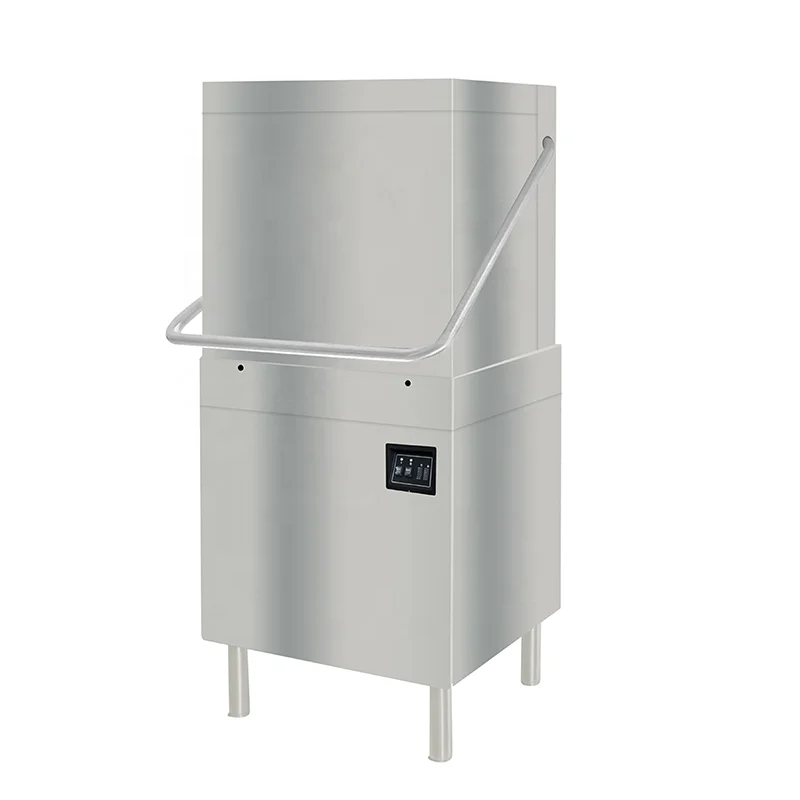

Commercial Industrial Kitchen Dishwasher Automatic Utensil Washer Hood Type Dish Washing Machines
- Category: >>>
- Supplier: Shanghai Changjian Hotel Equipment Co. Ltd.Shanghai Ltd.
Share on (1601046789703):
Product Overview
Description
Product Images
Product Details
Inatallation and Connerction Requirements
a)Separate power supply all - pole disconnection and water source switch manual valves must be installed.For cutting off the power and water supply of the machine respectively
b)The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
b)The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
c)External piping connected to the machine is installed on site
Name | Commercial hood type dishwasher |
Model | AS-900 |
Requirements | 380V/50Hz/3N |
Incoming water temperature(℃） | 10 |
Tank heater(KW) | 3 |
Booster heater(KW) | 9 |
Wash pump(KW) | 0.75 |
Total connected load(KW) | 12.75 |
Total amps required(A) | 22.3 |
Cross section of cable(mm²） | 6 |
Rated current of circult breaker(A) | 40 |
Heating | Electric |

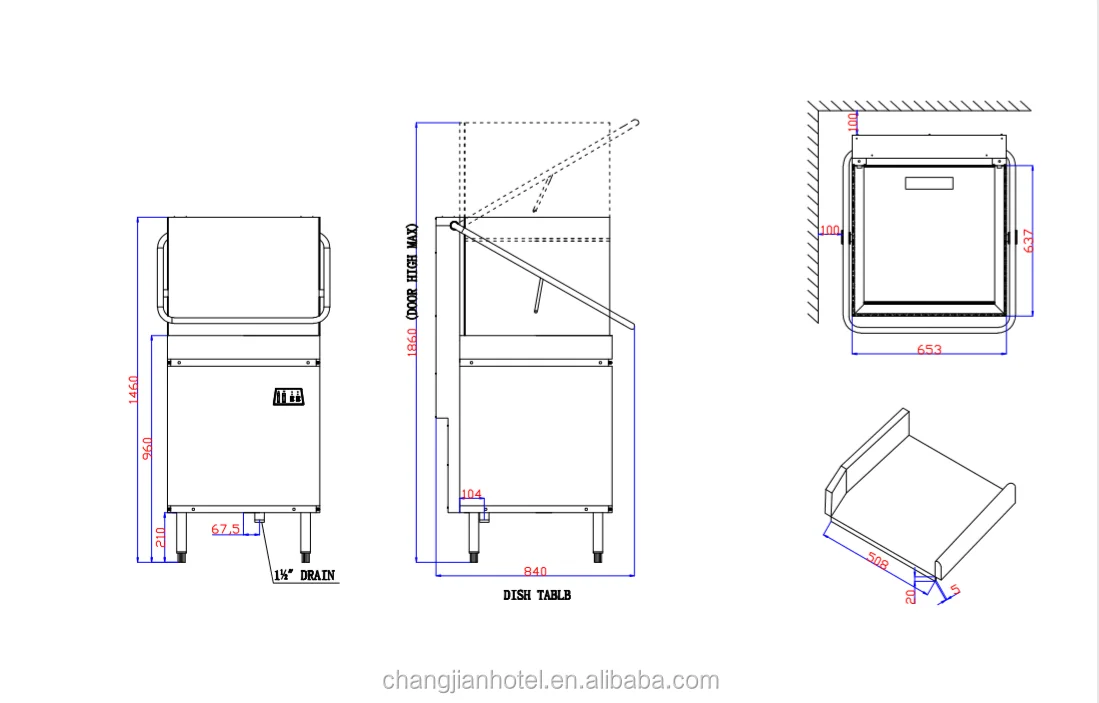

External dimension(mm) | 730*840*1460 |
Clearance height(mm) | 372 |
Max capacity(rack/hour) | 60 |
Water consumption(liter/rack) | 1.5 |
Wash tank capacity(l) | 32 |
Booster capacity(l) | 14 |
Wash temperature(℃） | 60-65 |
Rinse temperature(℃） | 82-90 |
Diameter of water inlet hose(in) | 3/4 |
Diameter of drain pipi(in) | DN40 |
Incoming water pressure(Kg/cm²） | 1.5KG |
Incoming water hardness(g/l) | 0.034-0.103 |
Product Application
Company Information

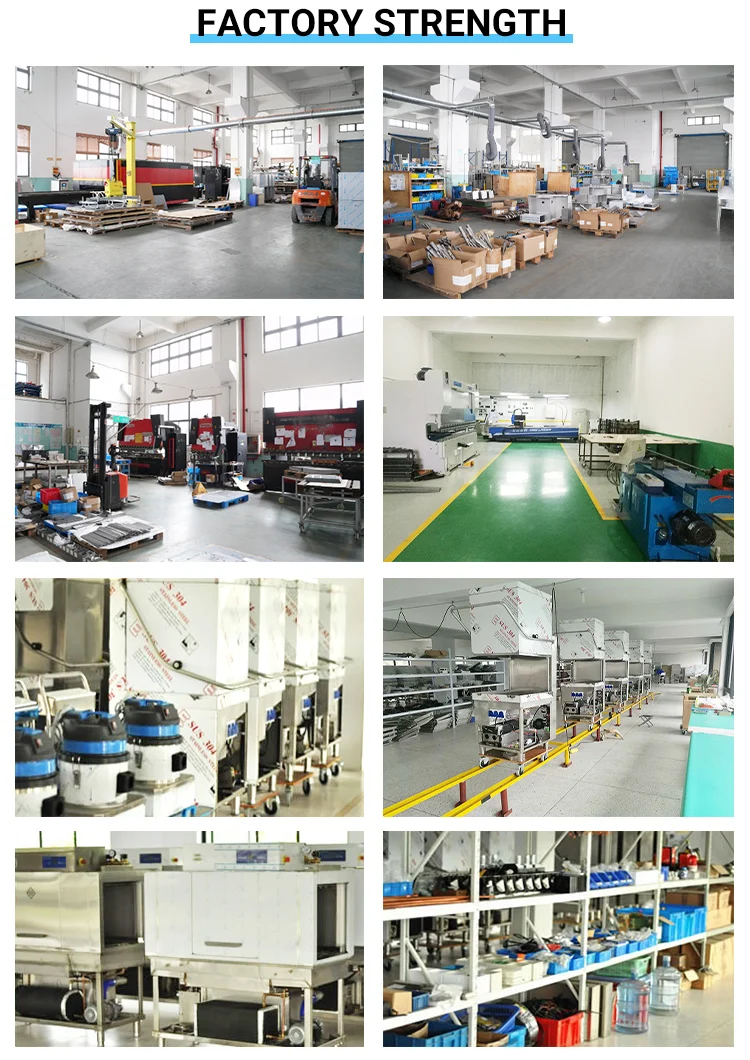

Our Factory
Certifications
Exhibition
FAQ
1.Q: Are you a factory or trading company?
A: We are a factory& trading company. From the earliest factory, we have developed into an international trading company with many cooperative factories, selling all kinds of high-quality chemical dosing system equipment. kitchen equipment and washing machine.
3. Q: What is the delivery time?a
A: It depends on the order quantity and racking types. General speaking, within 15-25 days, for ordinary order quantity of heavy duty storage rack of industrial warehouse storage.
5.Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
6. Q:Can we do OEM ?
A:Yes,we can do OEM.
A: We are a factory& trading company. From the earliest factory, we have developed into an international trading company with many cooperative factories, selling all kinds of high-quality chemical dosing system equipment. kitchen equipment and washing machine.
2. Q: What is the raw material of your products?
A: As general, the raw material of steel is 201#,430#,304#. Other steels also available to clients’ requirements.
A: As general, the raw material of steel is 201#,430#,304#. Other steels also available to clients’ requirements.
3. Q: What is the delivery time?a
A: It depends on the order quantity and racking types. General speaking, within 15-25 days, for ordinary order quantity of heavy duty storage rack of industrial warehouse storage.
4.Q: Which port will be used as loading port?
A: SHANGHAl port, the closest port to us.
A: SHANGHAl port, the closest port to us.
5.Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
6. Q:Can we do OEM ?
A:Yes,we can do OEM.
