Product Overview
Description
Product Description

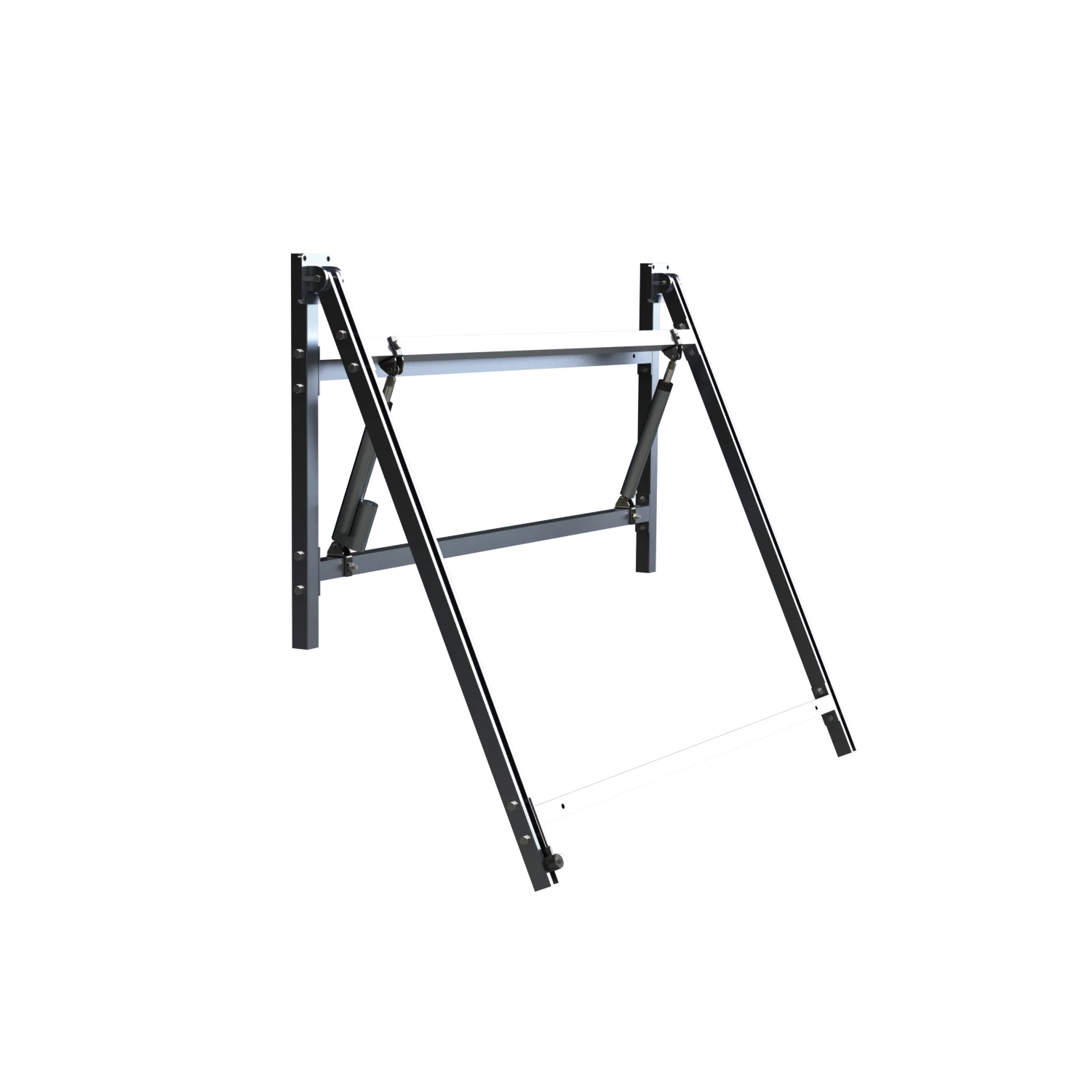

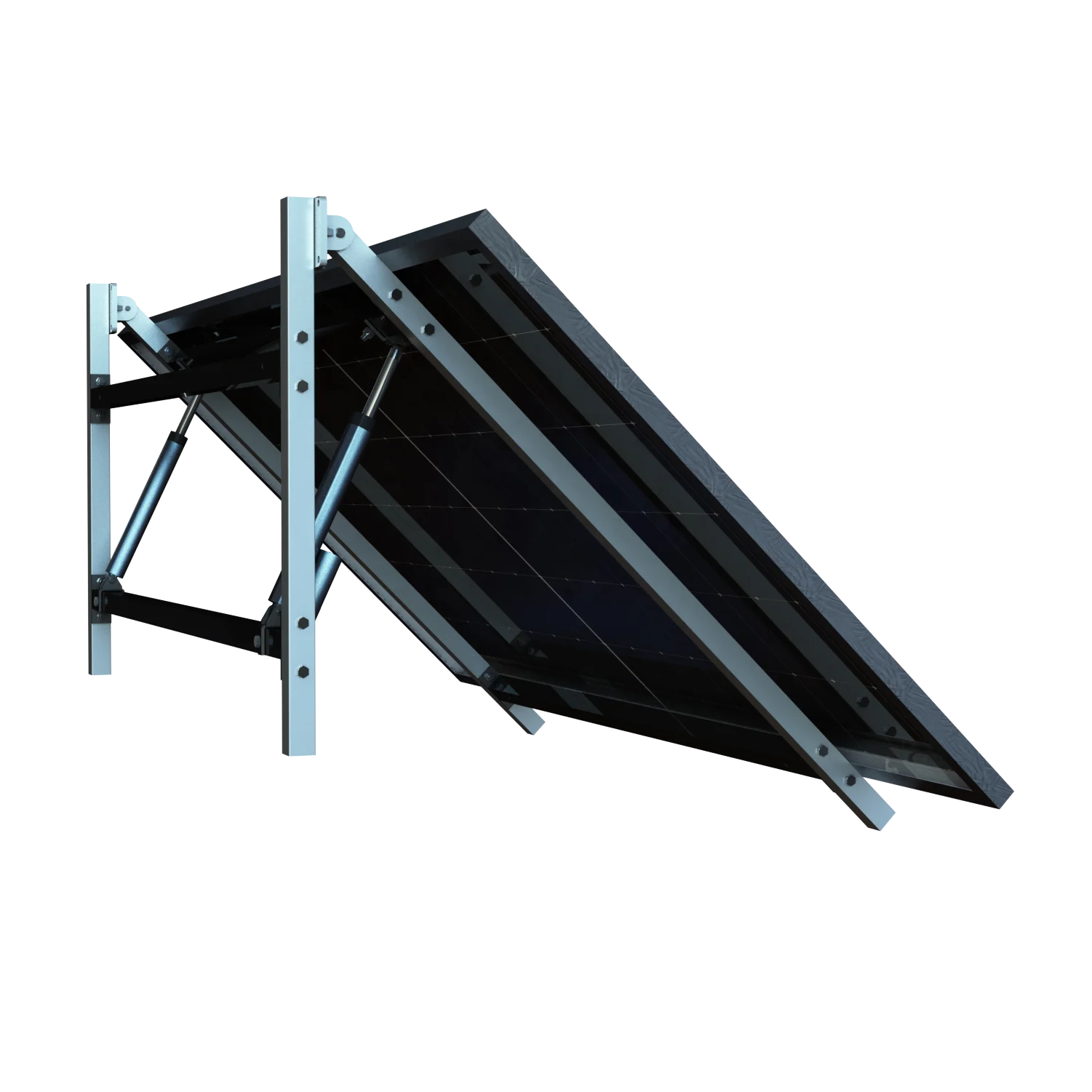

Solar Bracket With Solar Tracker For Balcony

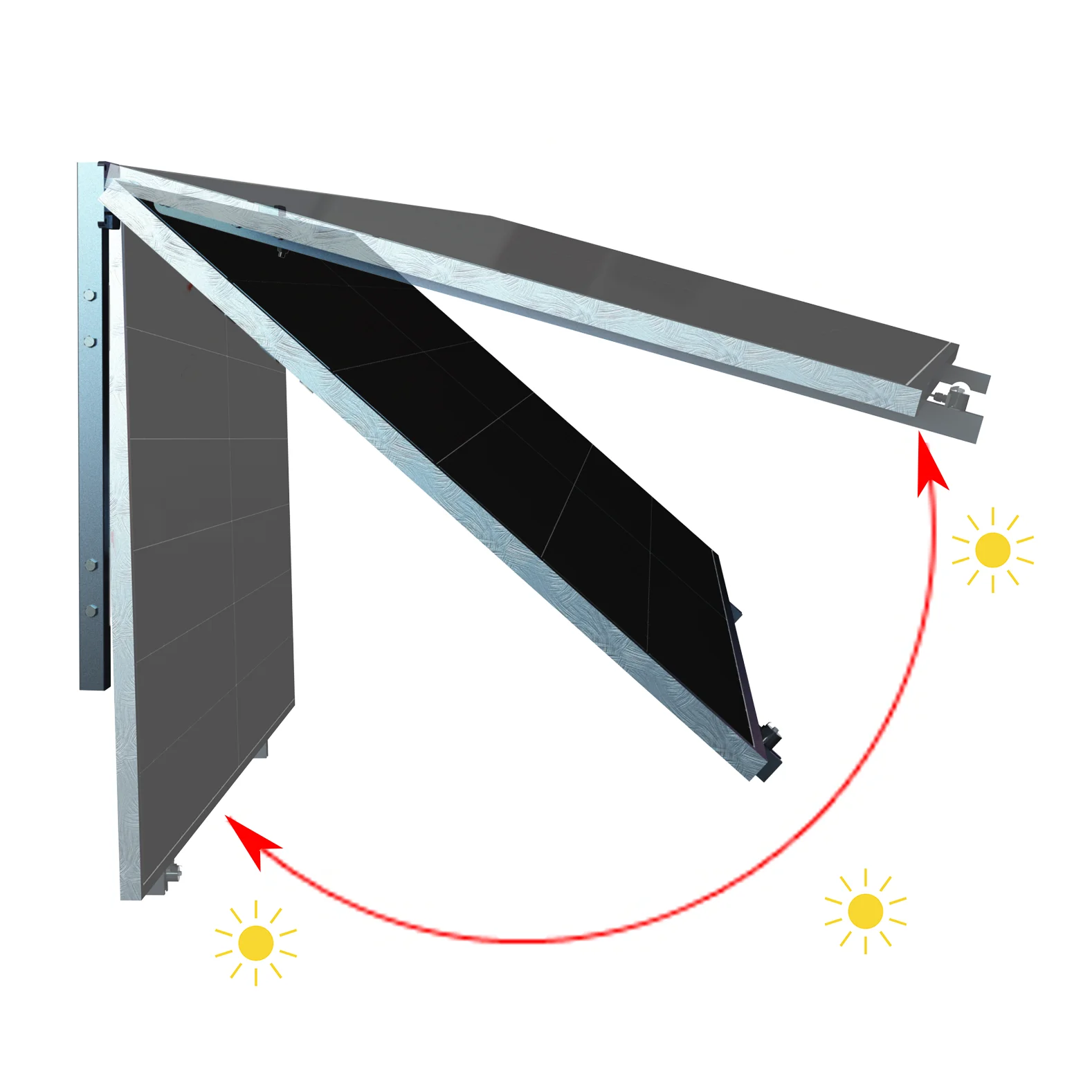

The new design of solar bracket for balcony with solar tracker was mounted on balcony or roof, it equipped with solar tracker, which can push and pull the solar panels swivel by the axis, and tracking the sun automatically in real time to make the sunlight perpendicular to the solar panel as much as possible, to achieve the maximum light intensity and improve the efficiency of power generation.
Light Sensor
The bracket tracking the sun with light sensors, which will detect the light intensity of different area of the solar panels, and
find the right angle to receive the most light, so to improve the generation rate.
find the right angle to receive the most light, so to improve the generation rate.
Note: The light sensor only works when there is sufficient sun light, when there is not adequate sunlight, and not worth to
track, the tracker will not moving until sunshine again.
track, the tracker will not moving until sunshine again.
Q235 Bracket
The main parts of bracket was made from Q235, which is strong enough to firmly hold the big solar panels of 2384*1303*35mm.

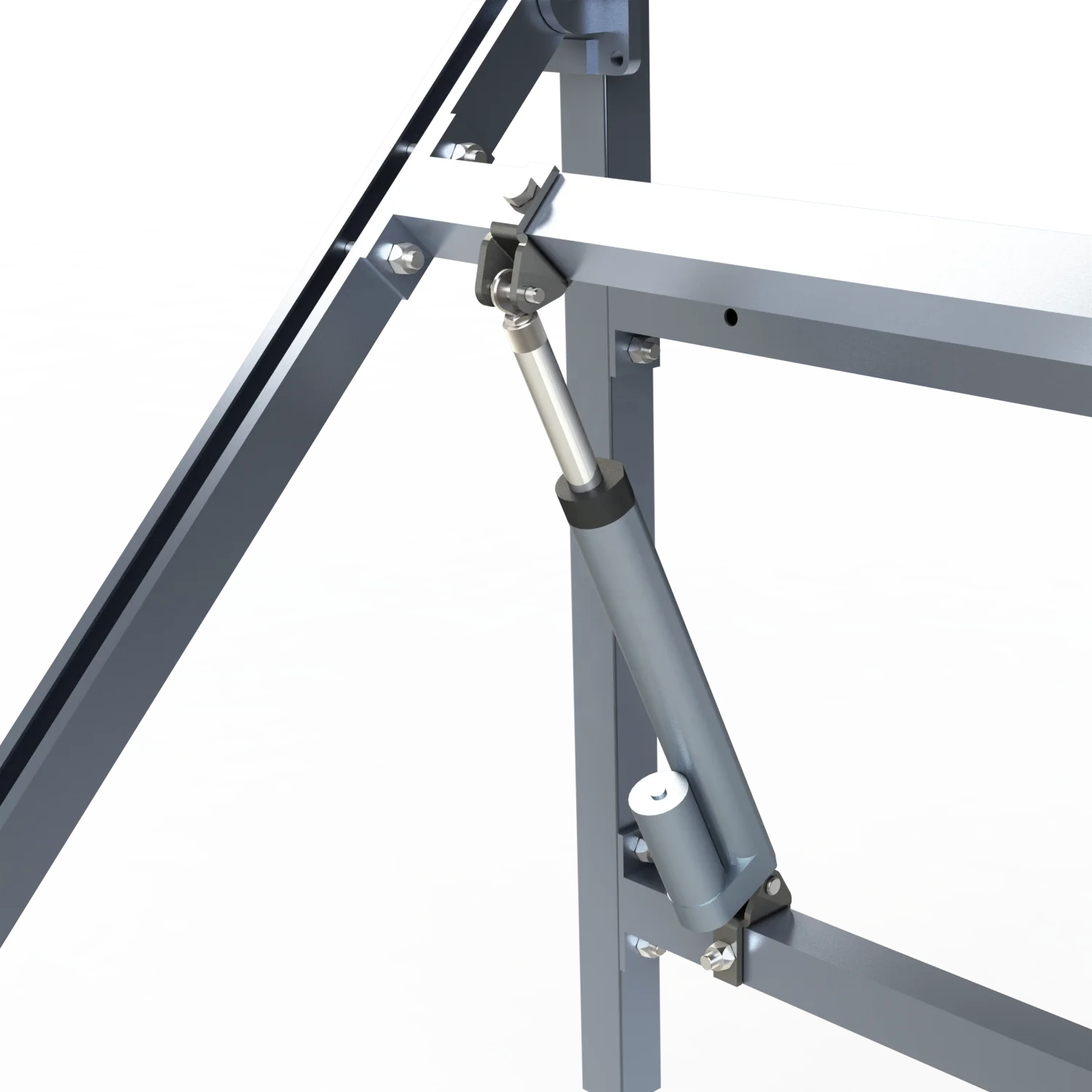

Big Thrust Linear Actuator
The linear actuator brings the panels up and down moving, the pitch angle is 0° to 80°, the maximum pushing thrust is 2000N,
guarantee the solar tracker works well even in windy weather.
guarantee the solar tracker works well even in windy weather.

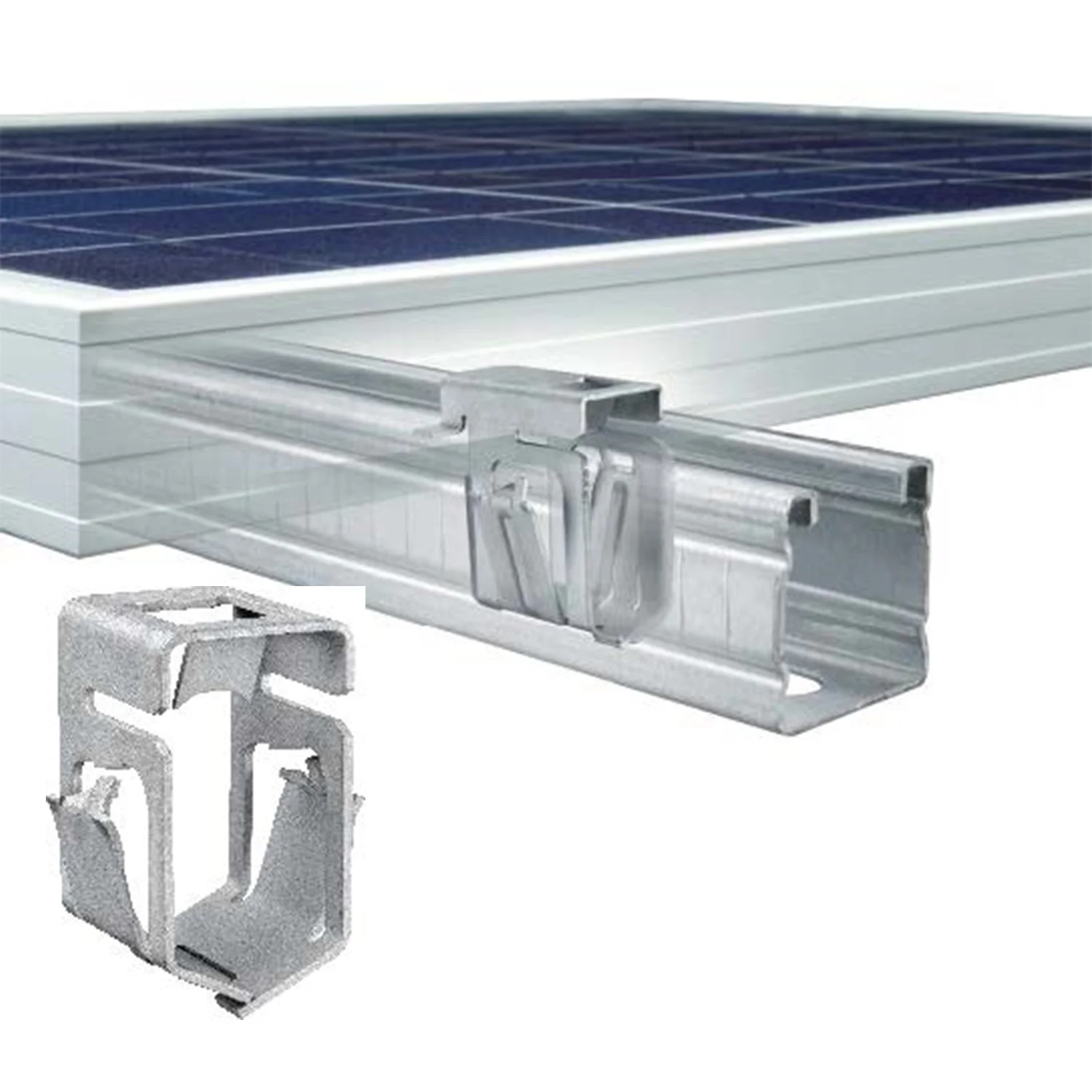

Fast Lock Clip
The solar panels were mounted on the purlins with fast lock clip, no need tools and screws, only 30 seconds for one solar panel, easy work and save time and labor.
Specification
item | value |
Place of Origin | China |
Liaoning | |
Brand Name | BOFU |
Model Number | BOFU-SBT-001 |
Wind Load | 17m/s |
Snow Load | 1.6KN/m2 |
Warranty | 3 |
Product name | Solar Tracking Bracket/Rack For Balcony |
Feature | Solar Tracking |
Drive Motor | Linear Actuator |
Tracking Method | Light Sensor |
Material | Q235 |
Power Supply | AC 110-230V |
Drive Power (W) | <0.1KWH/day |
PV size (PV not include) | ≤2384*1303*35 |
Tracking Angle | 0°-80° |
Application | Home/Gargen |
