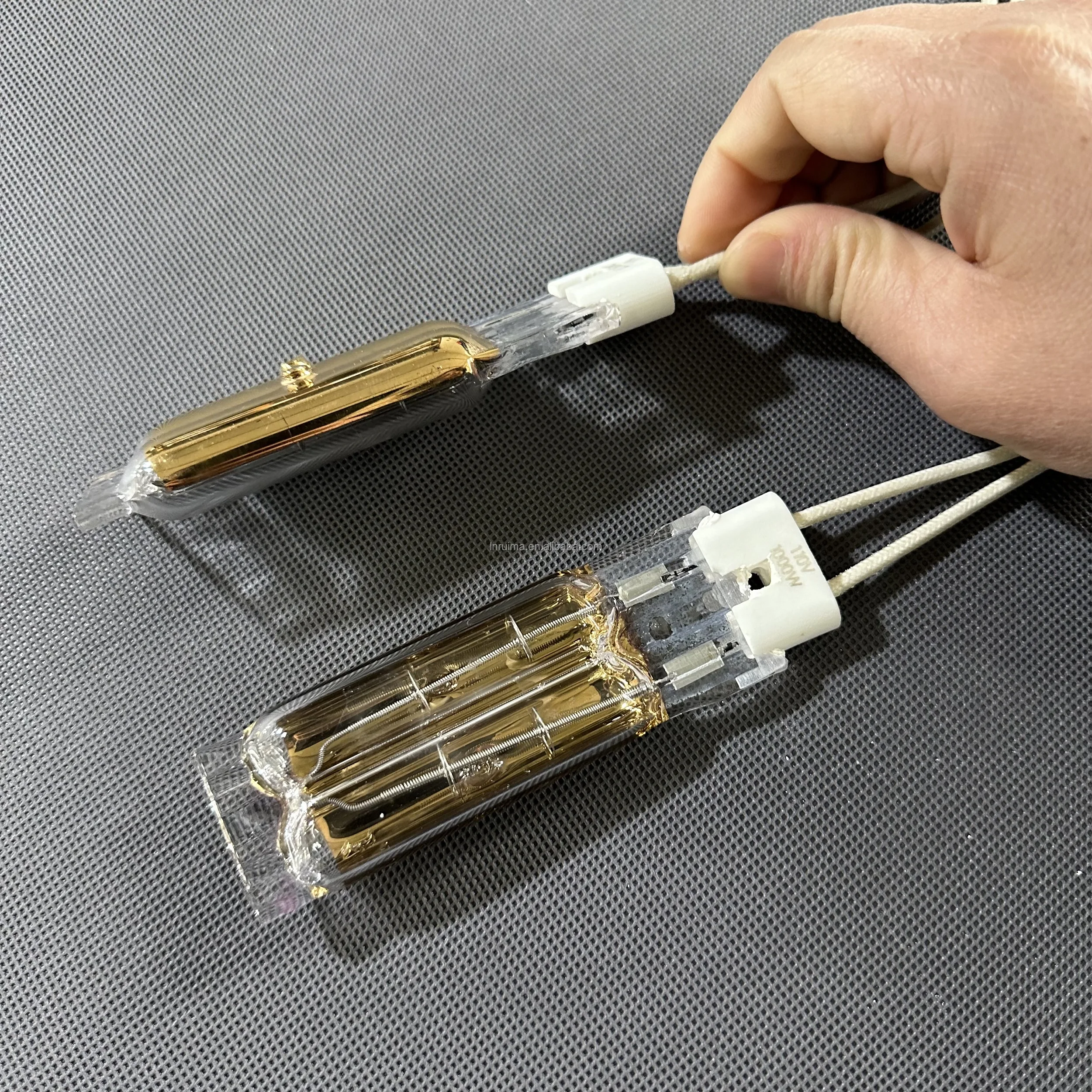

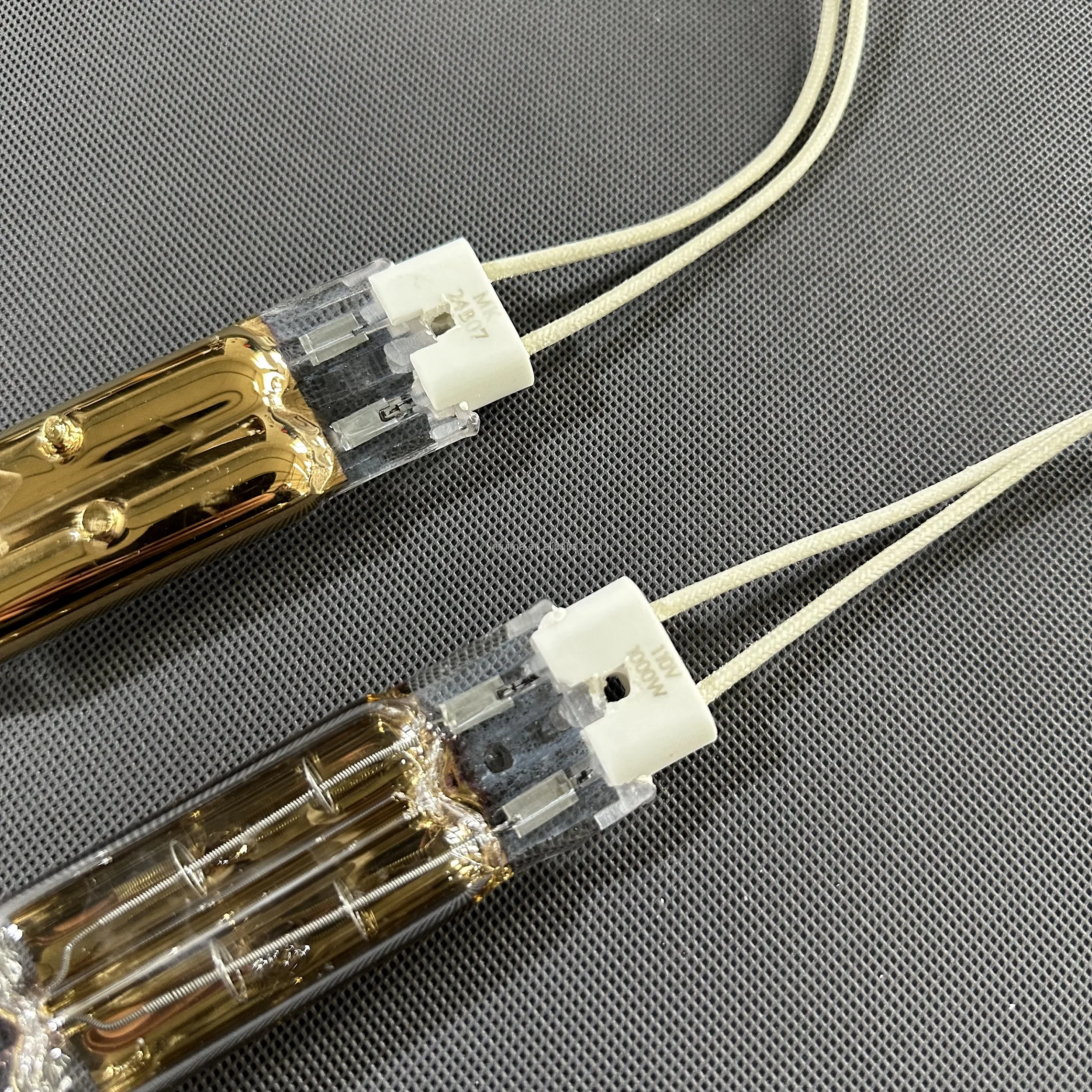

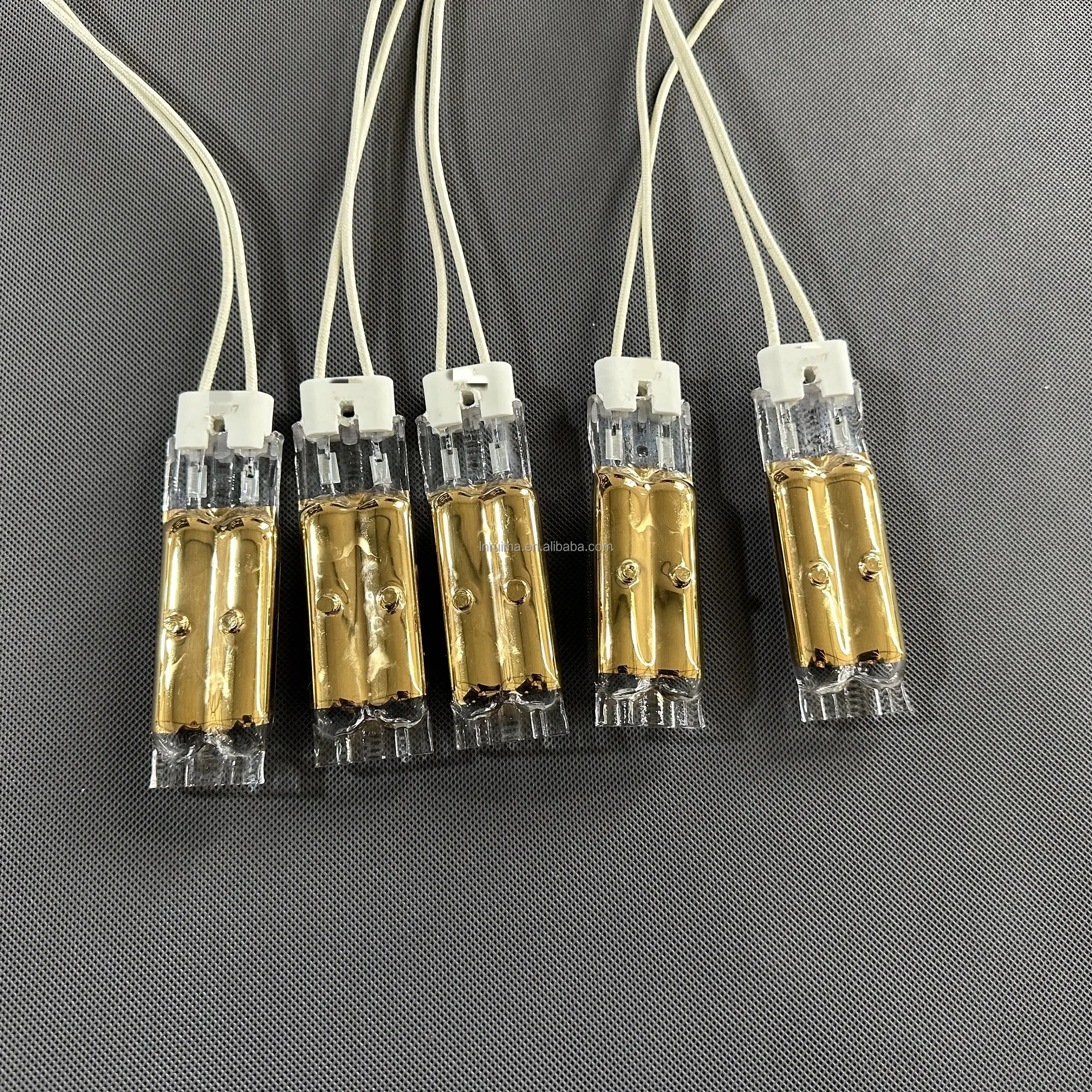

REMA mini Twin tube gold reflector infrared heater lamp for semiconductor
REMA mini Twin tube gold reflector infrared heater lamp for semiconductor
REMA mini Twin tube gold reflector infrared heater lamp for semiconductor
REMA mini Twin tube gold reflector infrared heater lamp for semiconductor
REMA mini Twin tube gold reflector infrared heater lamp for semiconductor
REMA mini Twin tube gold reflector infrared heater lamp for semiconductor
REMA mini Twin tube gold reflector infrared heater lamp for semiconductor

REMA mini Twin tube gold reflector infrared heater lamp for semiconductor

Share on (1601046894037):


Price:$48.00 - $50.00

Quantity:


Product Overview

Description



PRODUCTS DESCRIPTION






Name：
Twin-tube Short Wave Half Gold iR Lamp
Voltage ：
24-600V
Wattage ：
100-5000W
Heated length ：
100-3000mm
Response time：
1-2 S
Wavelength：
1.1-1.8um
Tube diameter：
23*11、33*16mm
Filament temperature：
1100--2900 °C
Application：Automotive manufacturing, textiles, plastics, spraying, paper making, printing, inks, adhesives, solar
photovoltaics, etc


Characteristics:
1.High-efficiency energy source.
2.Non-contact heating.
3.Intelligent heat and control temperature precisely.
4.Clean heat source.
5.Quick on/off response.
6.Long life and constant energy emission.
7.Heating in vacuum.






1.Robust ceramic socket with various specifications to choose.

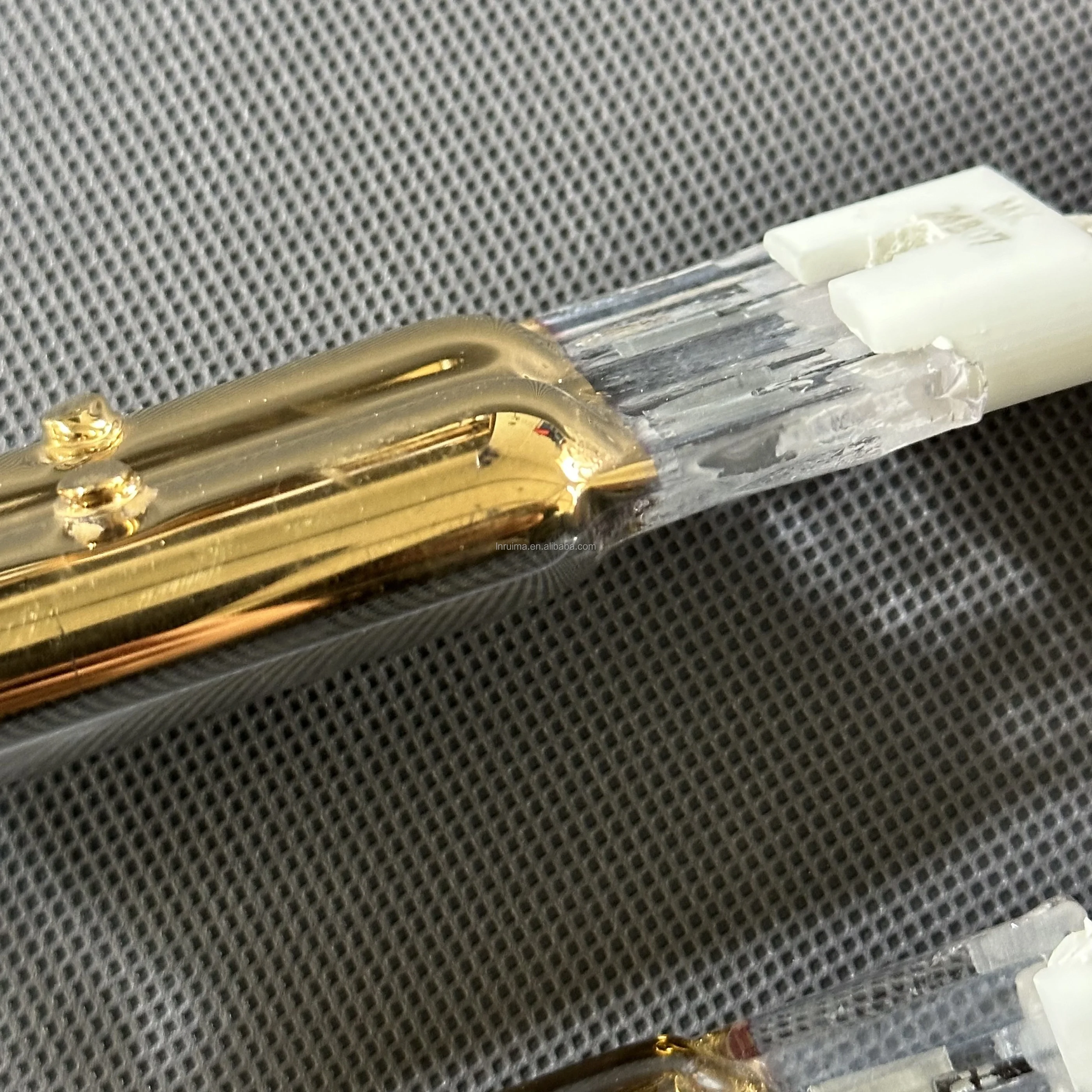

2.More than 95% reflection efficiency of the gold coating , it is currently the highest reflective efficiency coating lamp.







3.Quartz twin-tube has high mechanical strength and stability with twice the power , the IR lamp longest length can be up to 5m


HOT SALE SIZE ALSO HAVE


Model No.
Vol
Watt
Diameter
Total length
Heat length
Reflector
Lamp Base
RMDS001
115
600
23*11
150
80
C/W/G
B
RMDS002
220
1500
23*11
300
200
C/W
B
RMDS003
220/380/480
3000
23*11
600
500
C/W/G
C
RMDS004
230
500
23*11
400
300
C/W/G
B
RMDS005
230
2000
23*11
900
800
C/W/G
B
RMDS006
440
4500
23*11
450
380
C/W
B/C
RMDS007
380
2500
33*16
820
750
C/W
B/C
RMDS008
230
750
23*11
267
206
C/W/G
B
RMDS009
400
9000
33*16
1700
1600
C/W
C
RMDS010
600
7500
33*16
3500
3400
C/W/G
A


OEM/ODM


With thousands of specification IR lamps,infrared short wave lamp (SW), infrared medium wave lamp (MW), infrared fast medium wave lamp (Fast MW) and infrared special lamp, more than 30 years processing experience, skilled and experienced technical team, make our products more excellent , welcome to customize it according to your requirements .

How to customized ?

Pls provide this informations:



Name
*****
Tube diameter
⊘8、10、12、23×11、33*16.....
Voltage
220V、380V、.....
Lamp Reflector
Gold/ white/ clear
Wattage
1000W、2000W、.......
Lamp ceramic
SK15、R7s、.....
Total length
*****
Wire length
******
Heated length
*****


According to different use methods, a variety of filament structures are specially designed to enhance the flexibility of area selection heating and connection of external wiring.
Single tube infrared short-wave radiator: Two-hole infrared mid-wave radiator:




According to our experience, the characteristics of the irradiated objects (heating /drying/ physiotherapy/ disinfection) are different, and the spectrum energy absorption caused by infrared radiation are also different.

When selecting infrared radiation products ,we recommend that customers pay special attention to the following data in order to select suitable products:

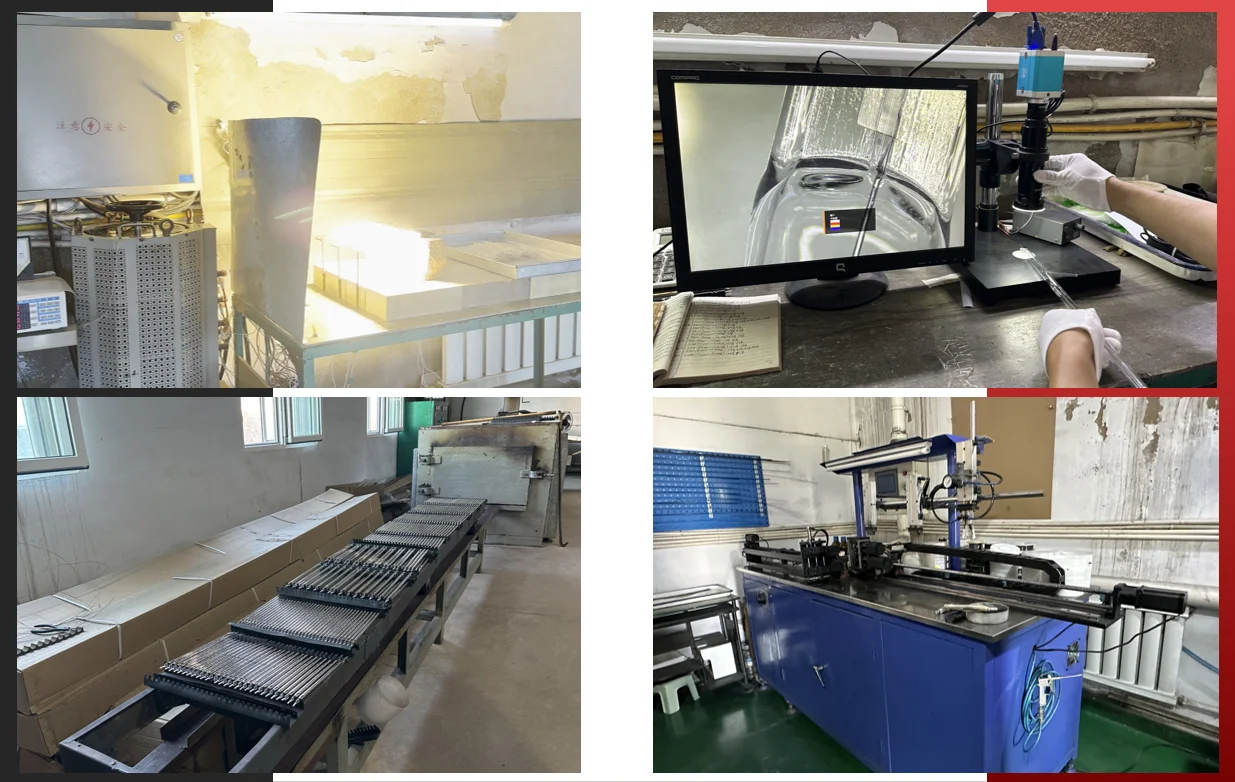

OUR FACTORY

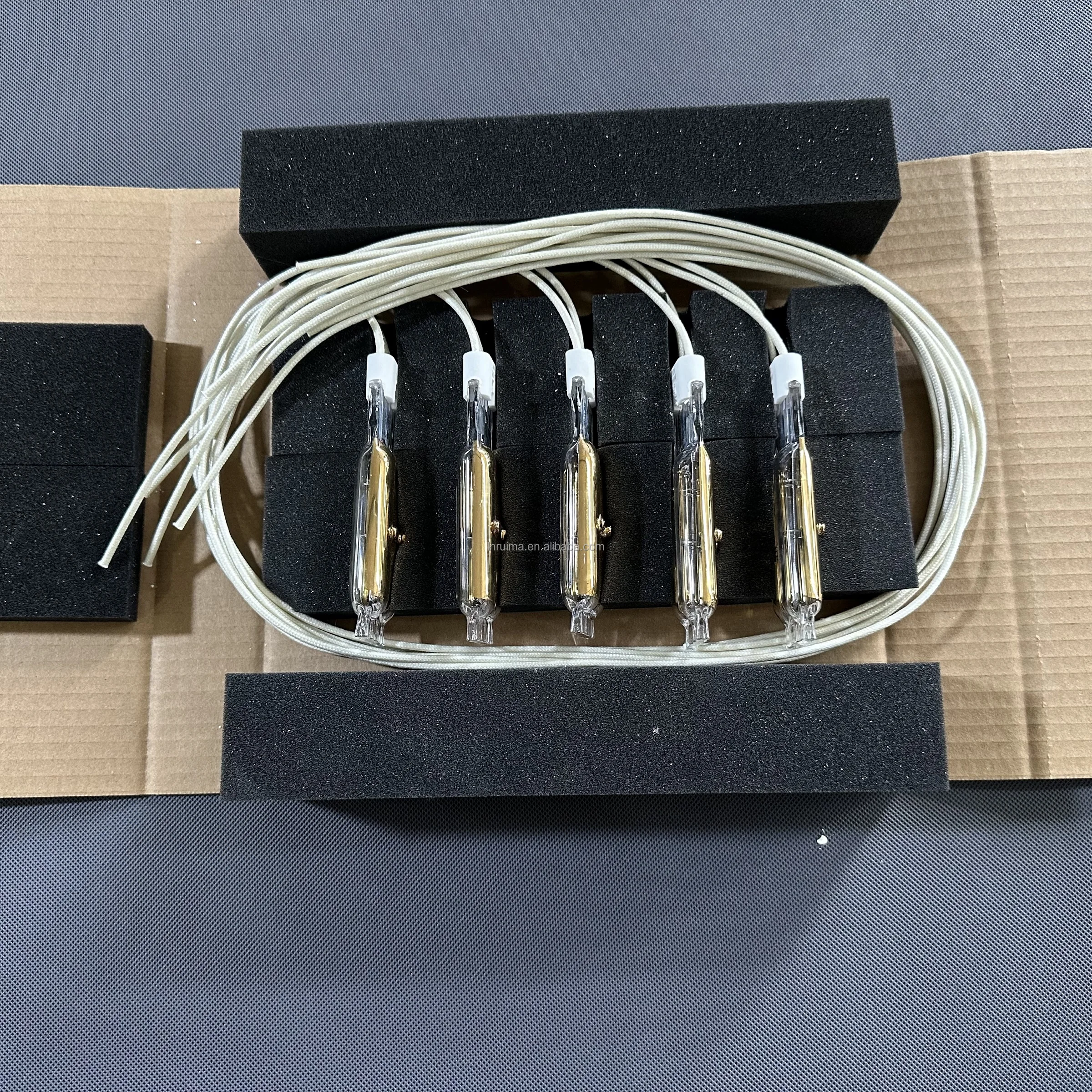

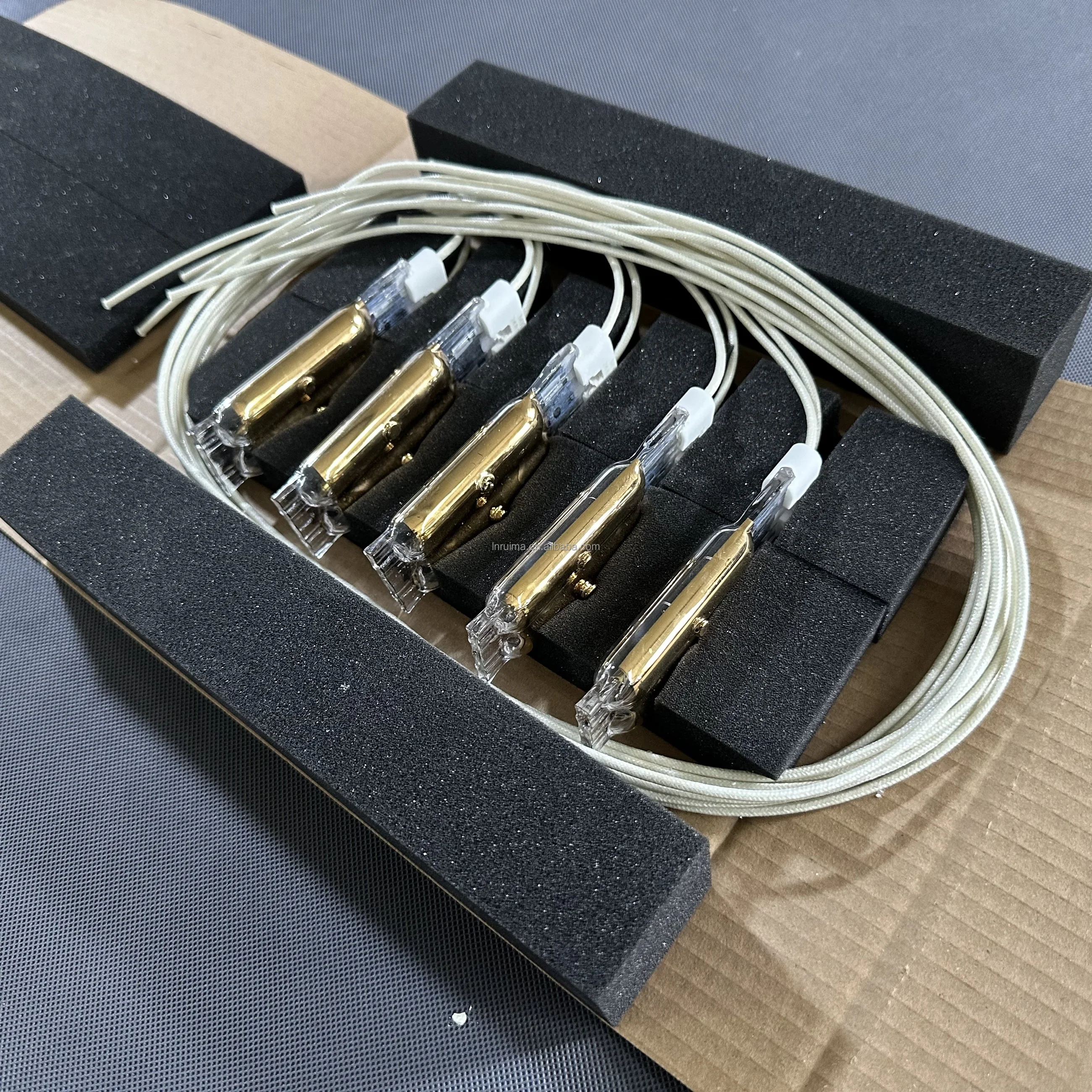

PRODUCT PACKAGING




AFTER-SALE GUARANTEE


1. professional customer service
2.Complete package
3. Damaged replacement & After-sales service
We promise that we can change or refund the products if there is any quality problem.


FAQ


Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Can I customize the printing of the packing and print our logo on the ir lamps?
A: Yes.we provide OEM and ODM service. our advantage is customized according to your request

Q3. Do you have any MOQ limit?
A: Low MOQ,1pc for sample checking is available.

Q4:What about the lead time?
A:Sample needs 3-5 workdays, mass production time needs 10-20 workdays for order quantity more than 1000PCS.

Q5:What certificates you have? what is the life time of the ir lamps?
A: CE,SGS,ISO ,QC already passed, each lamp with life more than 5000hrs

Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL UPS, FedEx or TNT. It usually takes 3-5 workdays to arrive. Airline and sea shipping also optional.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.

Q8:How to order?
1.Tell us the model or the size you want to order, I will estimate shipping cost for you soon. 2.lf no problem about price. I will send you Pl for your confirm. We can accept PAYPAL.WESTERN UNION.T/T .L/C and so on 3.Producing and shipping will be arranged soon after order confirmed 4.photos will be taken for you to confirm and deliver the goods soon. 5.Tracking number , BL or AWB will be provided, and tracking frequently for you!

Q9 .What should I do if the product has a problem?
Please contact your customer manager immediately. we will solve it until you are satisfied.

Welcome to visit our factory. welcome to your inquiry any time, we will reply you within 2hours.
