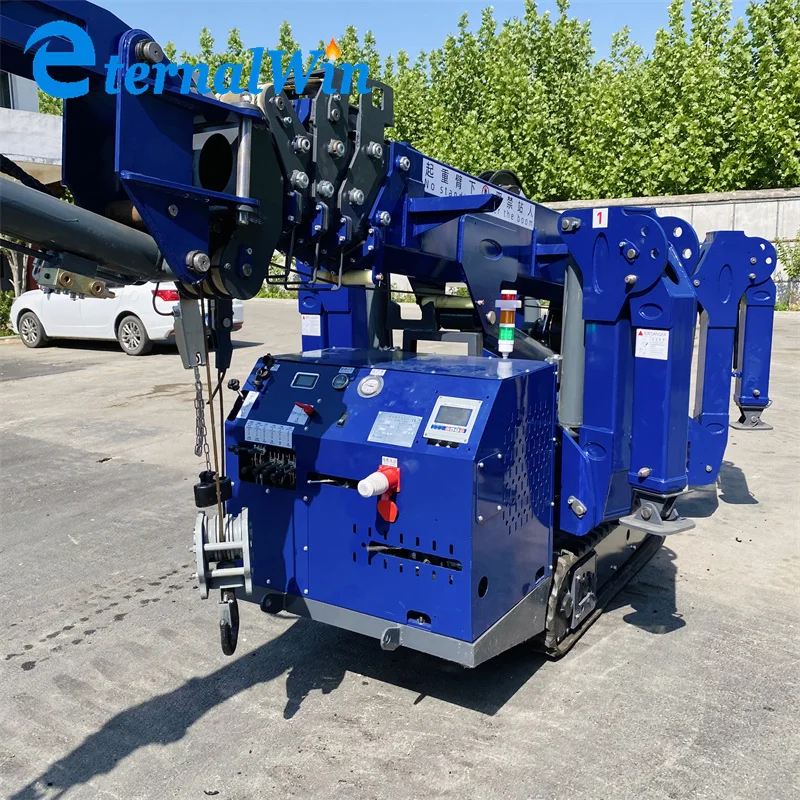

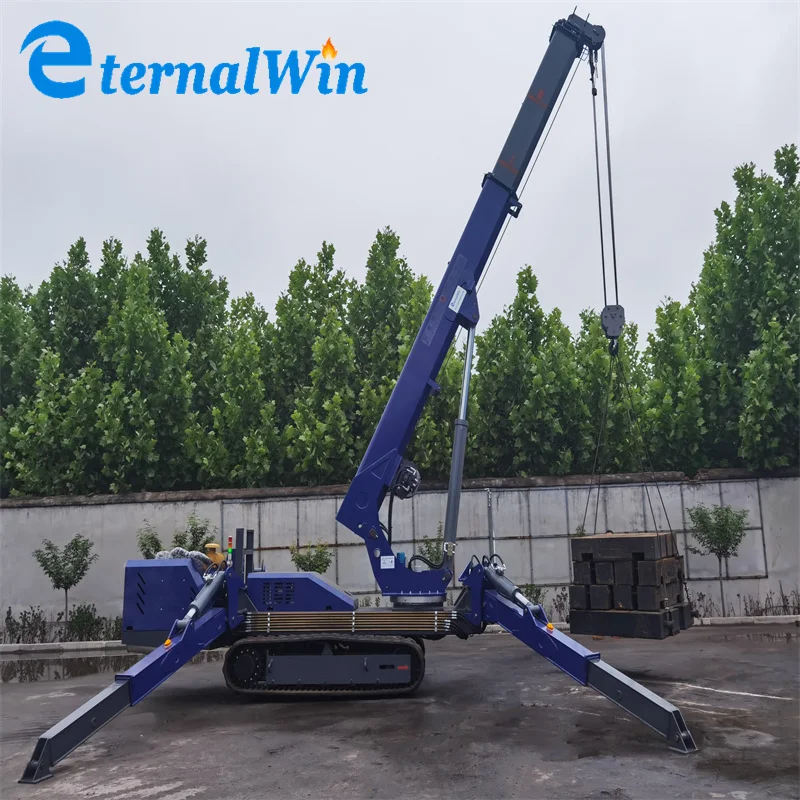

Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale
Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale
Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale
Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale
Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale
Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale
Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale

Best Quality Diesel Engine Drive Spider Crane Electric Movable Small Spider Crane Mini Crane For Sale

Share on (1601046960028):


Price:$17,500.00 - $21,500.00

Quantity:


Product Overview

Description



Products Description ···








Product Features
1. 380V power supply can achieve no noise, environmental protection and quiet.
2. Easy to transport forklift, crane with plug position.
3. Interlock system: after the boom is reset, the outriggers can be operated and travel to protect the safety of the crane.
4. U-shape boom: reasonable structure, 1 welding seam, large contact area between booms, high strength and long life.
5. Outrigger by remote control: can be controlled at close range to avoid accidents when the outriggers cannot be seen during operations in complex environments.
6. Moment limiter: accurately display the weight of the object to be hoisted. When hoisting, make sure to have a "number" in mind to protect the safety of the boom.
7. Proportional remote control, proportional solenoid valve：can control the hoist from a long distance and can make the hoisted weight move gradually. It is especially suitable for mechanical installation and used in places with high position accuracy requirements.
8. One-key leveling of outriggers: can be operated individually according to the surrounding environment, or the computer can be used to control 4 outriggers at the same time to achieve one-key leveling, so that the car body is always in a horizontal state.


Detailed Application
Spider Crane are suitable for cargo handling in the transportation industry, material movement in the construction industry, and heavy equipment assembly in the manufacturing industry. It is especially effective for operation in narrow spaces. It can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop, electric power construction or municipal construction.


Construction site use
Power maintenance company use
Used by machine parts company


Product Parameter


EW3.0 Spider Crane Technical Parameter
Model: EW3.0 Spider Crane
Specification: 3t×1.3m
Maximum lifting torque: 53kN·m
Maximum ground lifting height: 9.7m
Lifting speed of hook: 5.5m/min (4 times)
Wire rope specifications: φ8×55
Boom form: five-section boom
Maximum Boom length: 9m
Luffing angle: 0-75°
Rotation angle: 360°full rotation
Outrigger form:First stage:automatic;second stage:manually adjusted
Maximum extension distance:(Front)3170×(Horizontal)3600×(Back)4050
Walking mode:Hydraulic motor drives the reducer to travel
Walking speed: 0-2.5km/h
Walking device: crawler synthetic rubber
Climbing ability: 33%
Working pressure: 18MPa
Hydraulic oil tank volume:38L
Overall size: 2940×950×1600 (mm)
Machine weight: 2300kg


EW5.0 Spider Crane Technical Parameter
Model: EW5.0 Spider Crane
Specification: 5t×1.8m
Maximum operating radius: 16m
Maximum ground lifting height: 16.9m
Lifting speed of hook:10m/min (4 times)
Wire rope diameter and length: Φ10mm×80m
Boom form: five-section boom
Boom length: 16.6m
Boom angle: 0-80°
Rotation angle: 360°continuous rotation
Maximum extension distance:
(front) 5170* (horizontal) 5807* (rear) 5423mm
Outrigger form: frog style
Walking mode:hydraulic walking
Walking speed: 0-3km/h
Walking device: crawler synthetic rubber
Climbing ability: 32%
Ground pressure: 41.3kPa
Hydraulic oil tank volume:38L
Overall size: 5000×1370×1980 (mm)
Machine weight: 5500kg


EW8.0 Spider Crane Technical Parameter
Model: EW8.0 Spider Crane
Specification: 8t×2.5m
Maximum operating radius: 15.7m
Maximum ground lifting height: 17.8m
Lifting speed of hook:10m/min (4 ropes)
Wire rope diameter and length: Φ12mm×120m
Boom form: Five-section boom
Boom length: 4.65m-16.4m
Boom angle/time: 0-80°/24.5sec
Rotation angle: 0-360°continuous rotation
Outrigger form: Manually adjustment for 1 section. Automatic for the 2,3 section
Maximum extension amplitude:
(front) 5510* (horizontal) 5670* (rear) 5030mm
Walking mode:Hydraulic motor
Walking speed: 0-1.5km/h
Staring Method:electrical starting
Climbing ability: 20°
Ground Pressure:49kPa
Ground Length×Width:1720×320mm
Overall size: 5033×1560×2278 (mm)
Machine weight: 6500kg


EW12.0 Spider Crane Technical Parameter
Model: EW12.0 Spider Crane
Specification: 12t
Maximum operating radius: 19.8m
Maximum ground lifting height: 21m
Lifting speed of hook:11m/min (4 times)
Wire rope diameter and length: Φ14mm×80m
Boom form: six-section boom
Boom length: 5.7m-19.8m
Boom angle/time: 0-78°/13sec
Rotation angle/speed: 0-360°continuous rotation/38sec
Outrigger form: Manually unscrew + hydraulic expansion + automatic support (two sections)
Maximum extension amplitude:
Left and right (7400mm) before and after (8190mm)
Walking mode:Hydraulic motor drive
Walking speed: 0-2.5km/h
Staring Method:electrical starting
Climbing ability: 20°(36%)
Startup performance: -5°C-40°C
Caterpillar size:3200×400mm
Overall size: 5700×1800×2400 (mm)
Machine weight: 11500kg


Optional: Wireless remote control; Force limiter; Rubber track; Match with oil and electricity dual power


Company Profile










Factory Display

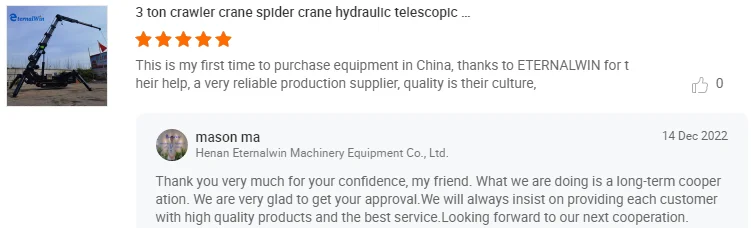

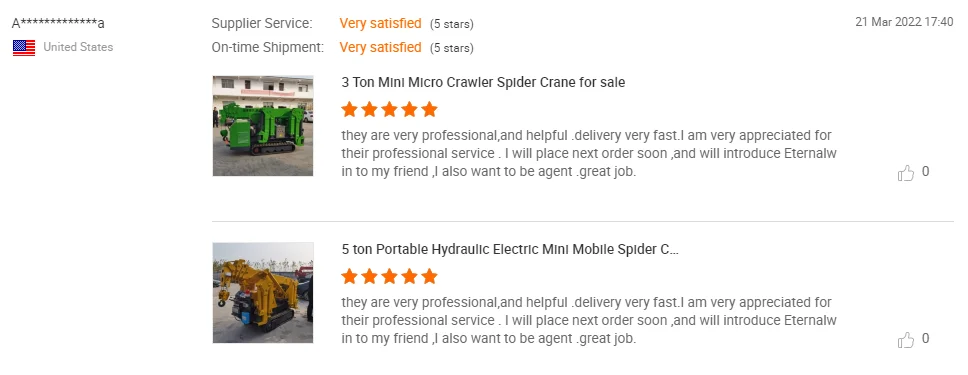

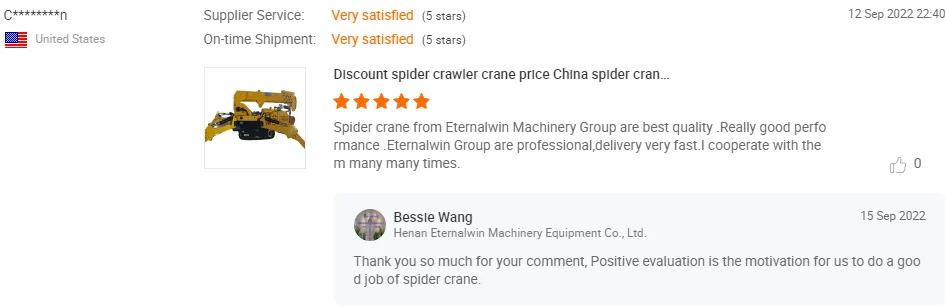

Customer Feedback

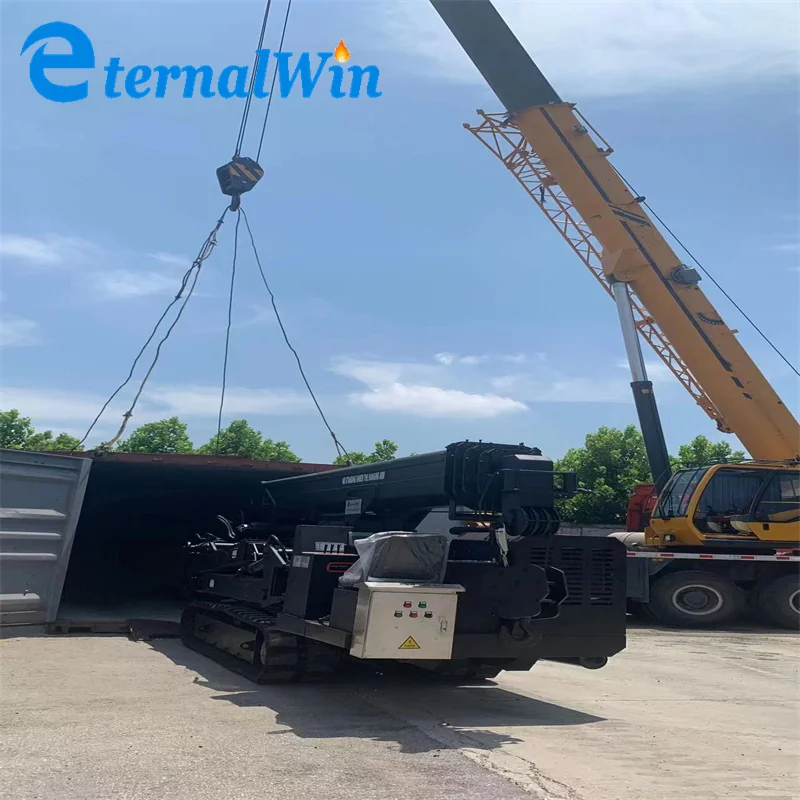

Packing and shipping




FAQ


1. What after-sale service do you provide?
We have professional sales team and technical team for all customer. We can serve 24 hours a day for you.
2. What payment methods do you support?
We have many kinds of payment for your reference ,such as Western Union, Paypal, L/C, T/T and so on.
3. How to delivery the goods?
We often shipment goods by sea,which is cheaper than by air. It depends on your specific requirement.
4. What is your warranty service about machine?
Our machine has one year warranty time, and our engineering team available for oversea service with crane installation, inspection and commissioning.
5. What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
6.Why should I choose your products?
We can provide high quality and low price products for you.
