Automatic Plaster Spraying Machine with High Efficiency Electric Power Source and New Core Components Pump Motor Engine
- Category: >>>
- Supplier: Wuxi Andersen International Trade Co. Ltd.Wuxi Ltd.
Share on (1601046979560):
Product Overview
Description
Products Description
Name | automatic spray painting equipment M6 |
Voltage | 380V 50HZ 3Phase |
Main Electric Engine Power | 5.5KW |
Air compressor power | 3kw |
Max Vertical conveying | 60M |
Max Horizontal conveying | 30M |
Hopper volume | 150 L |
Max Working Pressure | 50 bar |
Max Aggregate Size | 3mm |
Max Flow | 0-30L/min |
After Warranty Service | Video technical support, Online support, Spare parts |
After-sales Service Provided | Video technical support, Free spare parts, Online support |
Certification | CE |

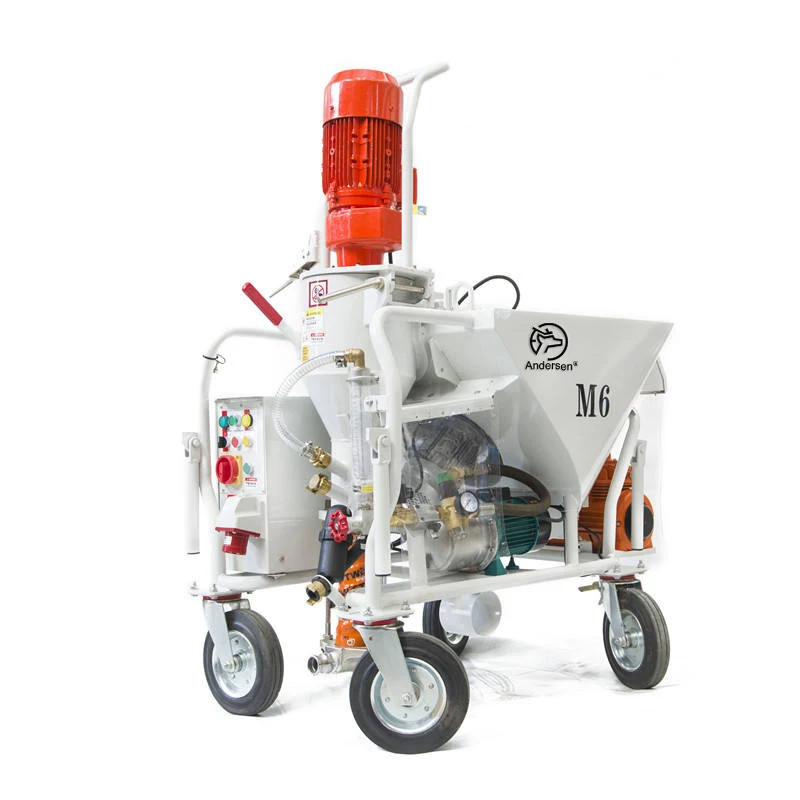

Andersen M6
1、It integrates the mixer, self-suction pump, micro-air compressor and
It has the functions of automatic feeding, Add water by the quantity, and remote control It integrates mixing, pumping and
spraying functions, pressure sensing technology control for automatic continuous working mortar spray equipment
It has the functions of automatic feeding, Add water by the quantity, and remote control It integrates mixing, pumping and
spraying functions, pressure sensing technology control for automatic continuous working mortar spray equipment
Andersen M6
2、Germany original imported 5.5kw electric engine Germany original imported electric engine, 5.5kw power, 30I large flow 30%
improve the speed, high efficiency and stable performance
improve the speed, high efficiency and stable performance
3、Automatic water One-key start and stop Adjust well the water level,
automatically add water, start and stop with one key, save time and effo
automatically add water, start and stop with one key, save time and effo
Andersen M6

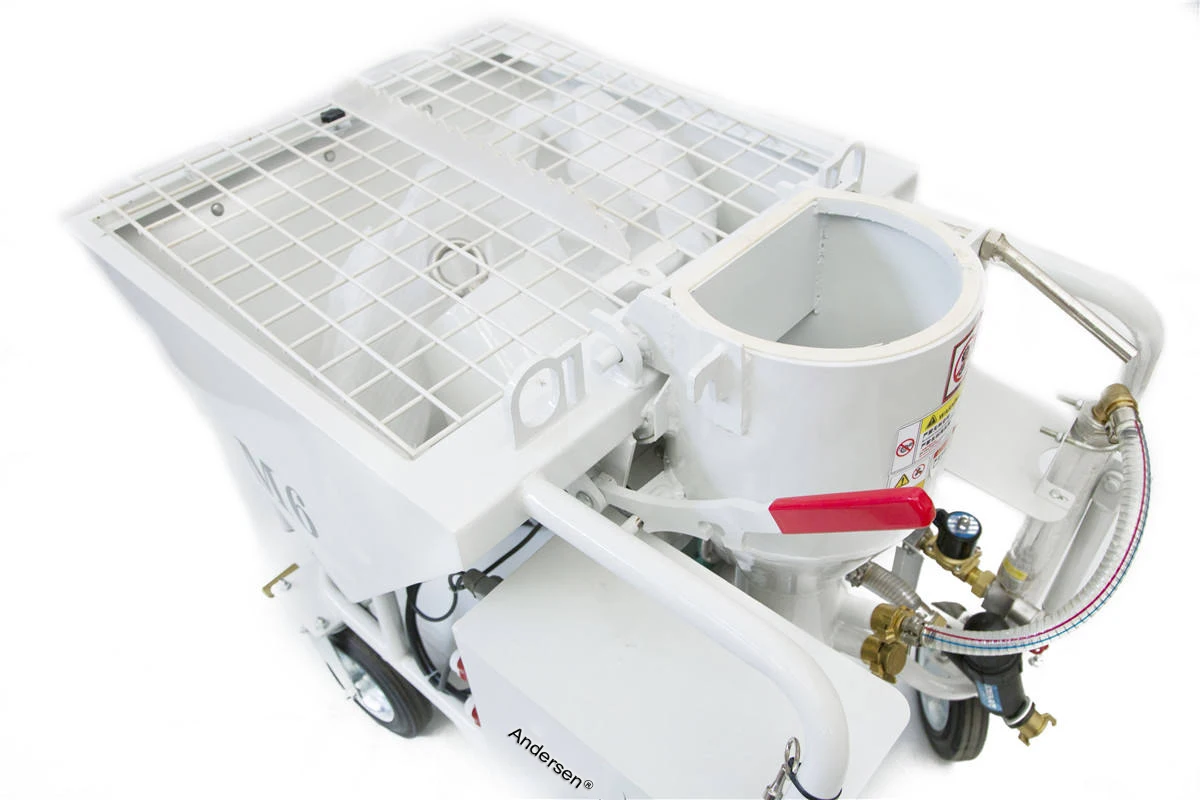

4、Automatic feeding system With independent premixed mortar storage area, pre mixing pumping zone separation in the storage area,
dry mixed mortar can be added to the equipment at any time. The equipment sends the dry mortar to the mixing bunker through the
feeding wheel. In this way, the mixed wet materials and the wet materials are sprayed uniformly, which guarantees the engineering
quality
dry mixed mortar can be added to the equipment at any time. The equipment sends the dry mortar to the mixing bunker through the
feeding wheel. In this way, the mixed wet materials and the wet materials are sprayed uniformly, which guarantees the engineering
quality
Andersen M6 is for automatic gypsum mortar, pre-mixed dry mortar spraying equipment
AT-M6 is spraying construction machinery with automatic feeding, metering water supply, remote control, set mixing, pump, spraying function in one, pressure sensing technology control, for the automatic uninterrupted, continuous operation of the mortar.
It has stable performance, mixed slurry uniform, excellent efficacy. Dry and wet area separation, modular design, compact structure, easy operation, easy maintenance and cleaning, light weight, small size, easy move,
Andersen M6 is the ideal equipment for pre-mixed dry mortar construction. Applicable to gypsum-based mortar, cement mortar, polymer mortar, self-leveling mortar and so on.
Most important feature is a special structure of the high wear resistance which is the mixing shaft technology leader in the
forefront of international counterparts. It is built of steel frame which makes itself durable.
Application Material:
Multi-function spraying machine ,suitable for pumping all ready-mixed dry mixing mortar, such as self-leveling mortar, plaster mortar, lime plaster mortar, cement mortar, lime and cement mortar, polymer mortar, plaster cement mortar, clay mortar, insulation materials, grouting mortar, fireproof mortar,floor mortar, seaweed mud, thermal mortar, putty, bottom coating, wall painting, masonry mortar, etc
Application:
It is pumping and spraying equipment which is for automatic gypsum mortar, pre-mixed dry mortar It is also spraying construction machinery with automatic feeding, metering water supply, remote control, set mixing, pump, spraying function in one, pressure sensing technology control, for the automatic uninterrupted, continuous operation of the mortar. It has stable performance, mixed slurry uniform, excellent efficacy.Dry and wet area separation, modular design, compact structure, easy operation, easy maintenance and cleaning, light weight, small size, easy move, is the ideal equipment for pre-mixed dry mortar construction.
Advantages:
1.Painting uniformly and uniformly 2.High construction efficiency 3.Good spraying effect 4.High paint efficiency 5.Low paint bounce 6.Reasonable structure design
Feature:
①5.5KW Super Power Electric
Engine ②Intelligent Switch control box ③115L large capacity hopper ④Automatic water supply pump
AT-M6 is spraying construction machinery with automatic feeding, metering water supply, remote control, set mixing, pump, spraying function in one, pressure sensing technology control, for the automatic uninterrupted, continuous operation of the mortar.
It has stable performance, mixed slurry uniform, excellent efficacy. Dry and wet area separation, modular design, compact structure, easy operation, easy maintenance and cleaning, light weight, small size, easy move,
Andersen M6 is the ideal equipment for pre-mixed dry mortar construction. Applicable to gypsum-based mortar, cement mortar, polymer mortar, self-leveling mortar and so on.
Most important feature is a special structure of the high wear resistance which is the mixing shaft technology leader in the
forefront of international counterparts. It is built of steel frame which makes itself durable.
Application Material:
Multi-function spraying machine ,suitable for pumping all ready-mixed dry mixing mortar, such as self-leveling mortar, plaster mortar, lime plaster mortar, cement mortar, lime and cement mortar, polymer mortar, plaster cement mortar, clay mortar, insulation materials, grouting mortar, fireproof mortar,floor mortar, seaweed mud, thermal mortar, putty, bottom coating, wall painting, masonry mortar, etc
Application:
It is pumping and spraying equipment which is for automatic gypsum mortar, pre-mixed dry mortar It is also spraying construction machinery with automatic feeding, metering water supply, remote control, set mixing, pump, spraying function in one, pressure sensing technology control, for the automatic uninterrupted, continuous operation of the mortar. It has stable performance, mixed slurry uniform, excellent efficacy.Dry and wet area separation, modular design, compact structure, easy operation, easy maintenance and cleaning, light weight, small size, easy move, is the ideal equipment for pre-mixed dry mortar construction.
Advantages:
1.Painting uniformly and uniformly 2.High construction efficiency 3.Good spraying effect 4.High paint efficiency 5.Low paint bounce 6.Reasonable structure design
Feature:
①5.5KW Super Power Electric
Engine ②Intelligent Switch control box ③115L large capacity hopper ④Automatic water supply pump
