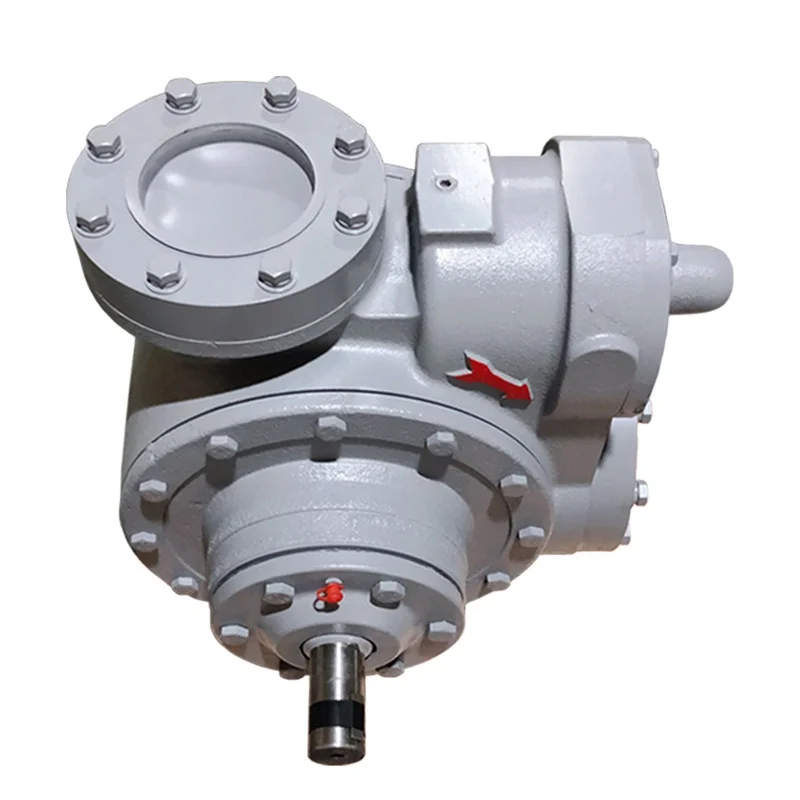

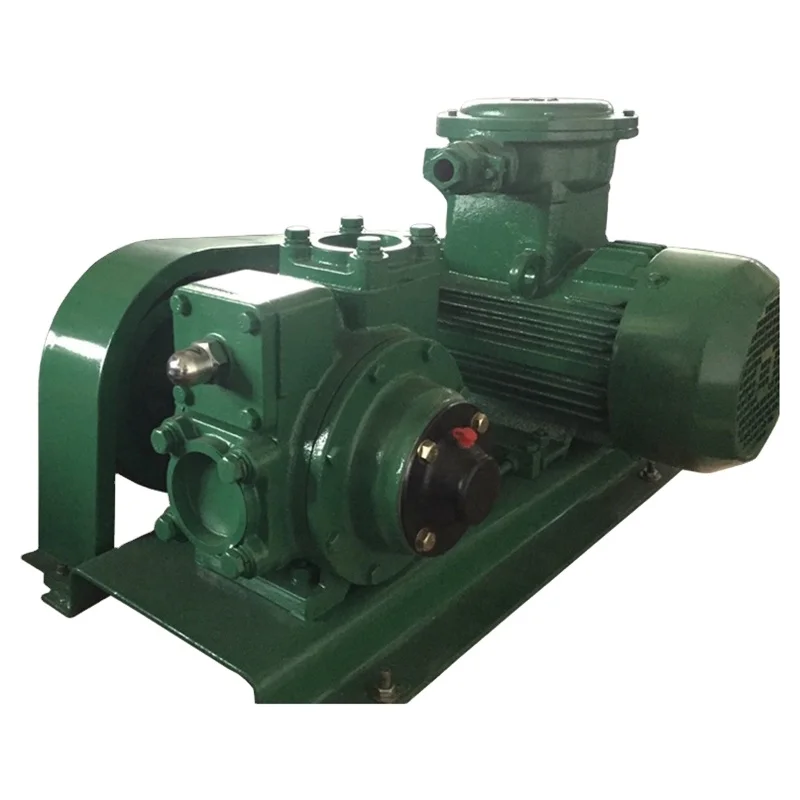

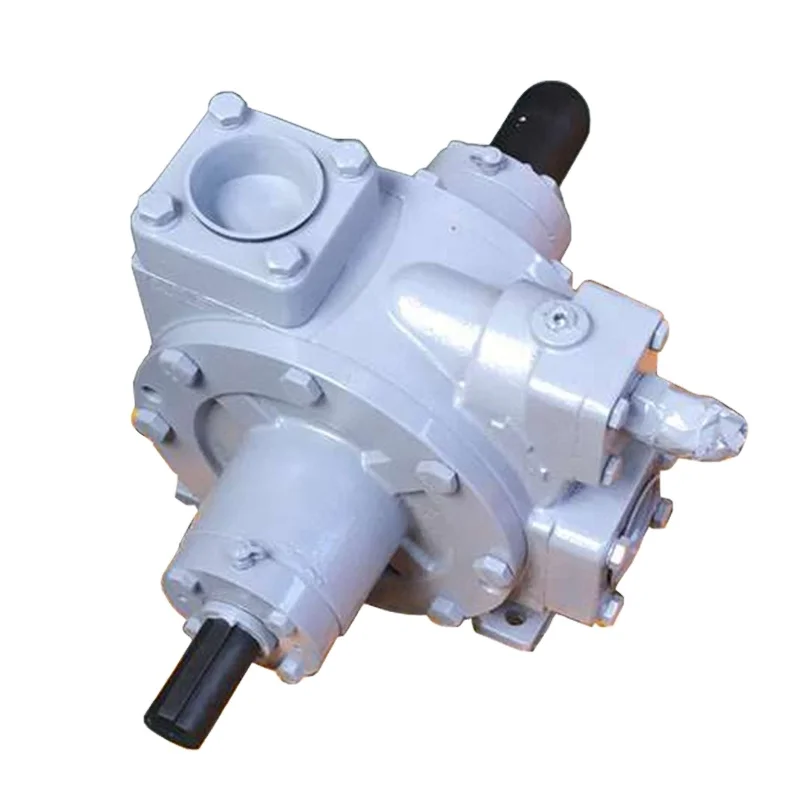

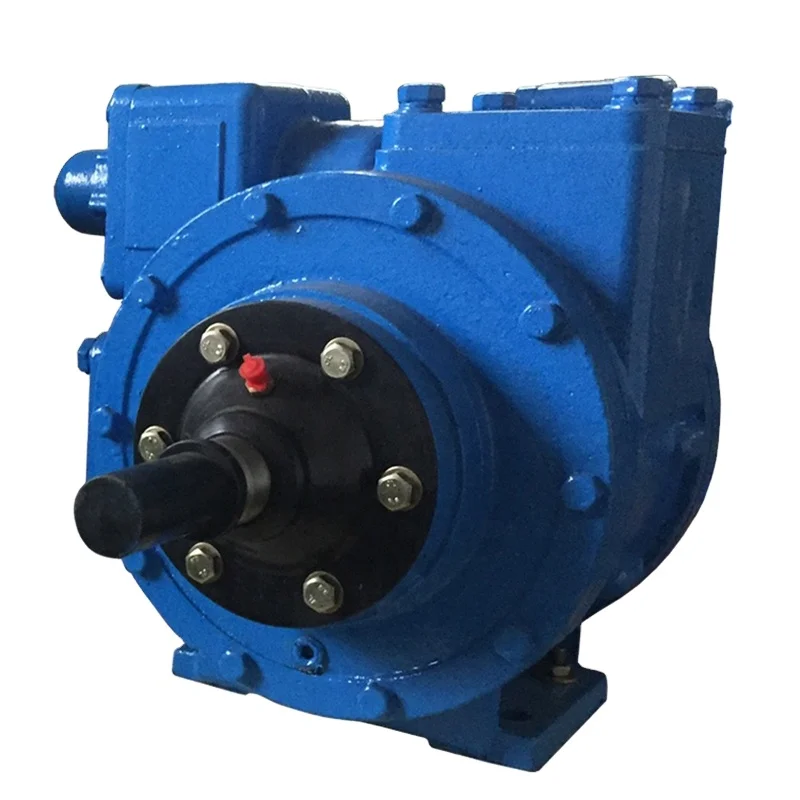

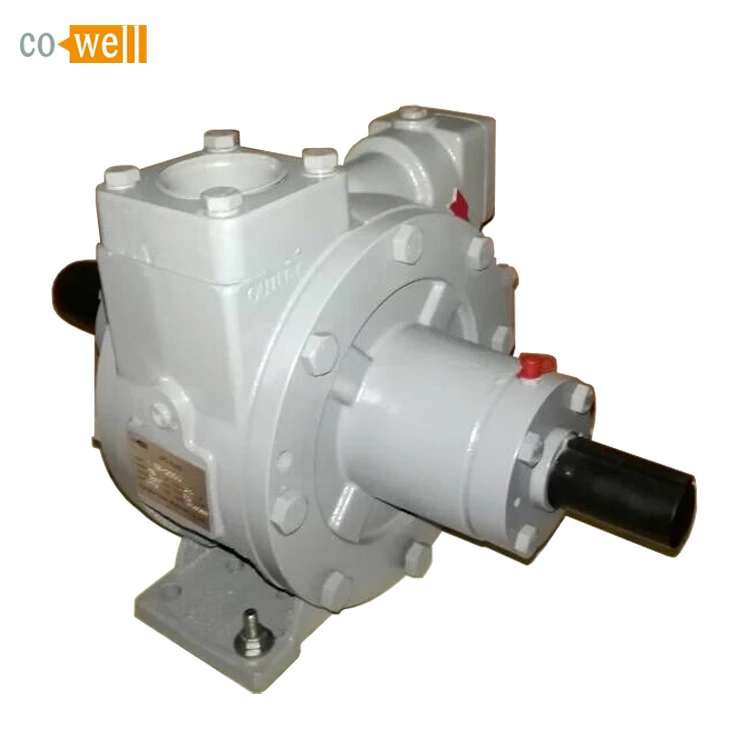

Cowell YB-65 Pump


Durable pumps for fast and quiet operation.


Sliding vane design provides sustained performance and trouble free operation, high reliability.


Adjustable relief valve protects pump from excessive pressure.


T-type strainers are available to protect pumping system from damage caused by welding slag and foreign matter in the piping and tanks.


Description:


YB Self-priming rotary vane pump with internal by-pass valve.

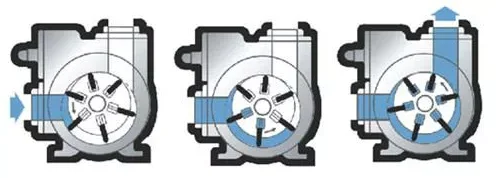

The pumps use a rotor with sliding vanes to draw the liquid.


The material of construction is nodular iron with sliding vanes built in a special self lubricating material.


Due to its efficiency the pumps can handle viscous and also volatile liquids and require less horsepower than other equivalent pumps.


Application:


Fuel oil delivery truck,Fleet refueling,Lube oil,Aviation refuelers,Transport of Petro Chemicals, gasoline, biofuels, solvents and any more.













































































 Technical Specification



 Model



 YB-50



 YB-65


 YB-80

 YB-100



 Size



 50mm/2"



 65mm/2 1/2"


 80mm/3"

 100mm/4"



 Pump Speed



 400~640RPM



 400~640RPM


 400~640RPM

 500RPM



 Max. Flow Rate



 150~300L/Min



 300~500L/Min


 600~1000L/Min

 1500~1900L/Min



 Vacuum



 0.5Bar



 Working Pressure



 5Bar


 Motor Power 2.2KW 4KW 7.5KW  18.5KW
 Dimension 44×35×35cm 46×34×37cm 49×42×42cm 58×55×61cm
 Net Weight 31KG 40KG 68KG 160KG
 Gross Weight 34KG 47KG 74KG 178KG
 Package 1pc/Wooden Case
