High Speed 0.9s Automatic Servo Motor Remote Control Roadway Safety Adjustable Electronic Car Parking Barrier Gate
- Category: >>>
- Supplier: Shenzhen Realpark Co. Ltd.
Share on (1601047250029):
Product Overview
Description
Products Description
High Speed 0.9s Automatic Servo Motor Remote Control Roadway Safety Adjustable Electronic Car Parking Barrier Gate | ||
Product number | RPH08-PLUS-SERVO | |
Power supply | ||
Operating temperature | -40℃ to +80℃ | |
Environment humidity | 5% to 95% | |
Card Reading Signal | Switch Value | |
Rated/Peak Current | 10A/30A | |
Human-machine interface | 4-digit LED, 4-digit button | |
Hardware Protection | Over-current | |
Input signal | gate opening, closing, stop, | |
Output signal | open position, closed position dry contact | |

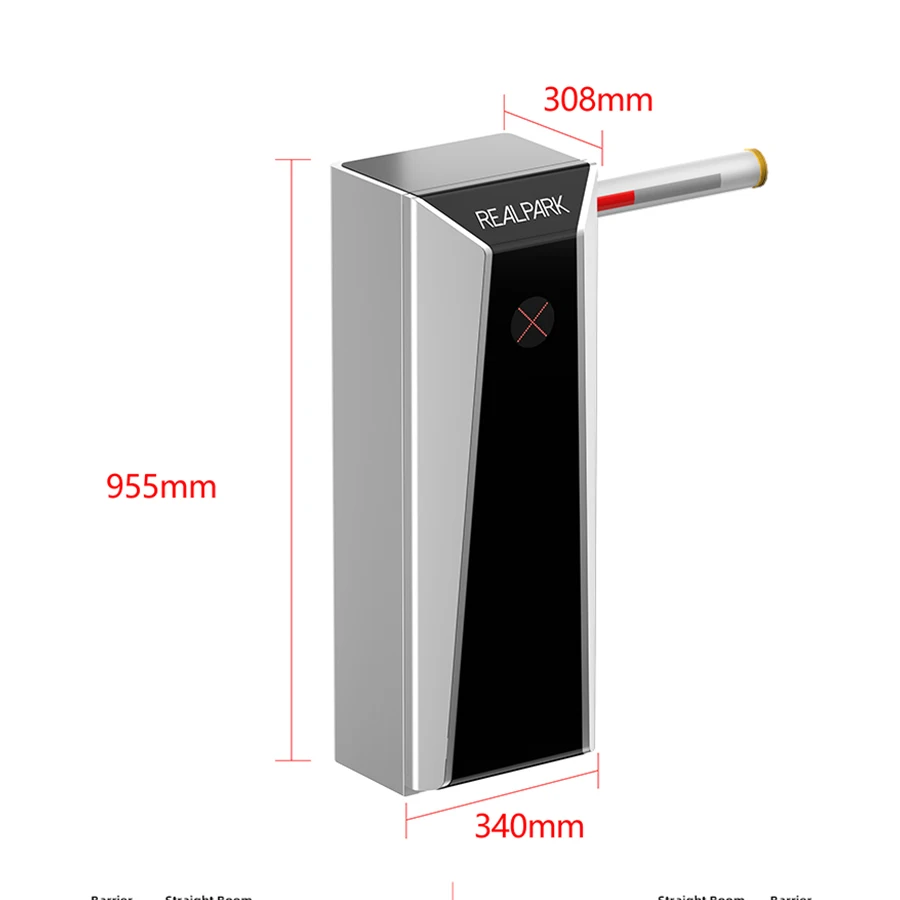

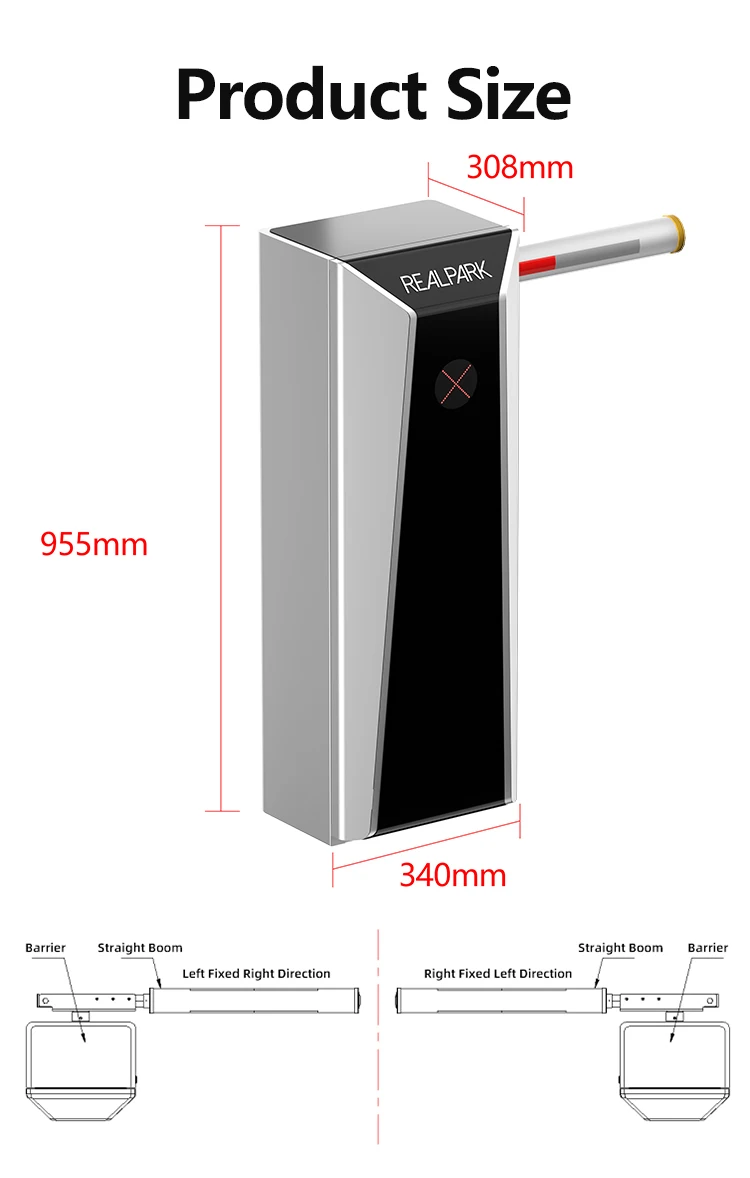

Product size | 340*308*954mm | |
RPH08-PLUS-Servo DC Servo gate master consists of the following: 1. Chassis, movement, electronic control group2. Chassis door, door lock, indicator light group 3. Gate rod group | ||
Features:
① DC servo motor, small size, large torque; elliptical straight rod [1-4 meters] standard rod length
can quickly and smoothly rise and fall;
② Small and exquisite appearance, small footprint, simple and fashionable, high-end and calm color matching;
③ Adopt DC servo control technology to achieve precise and adjustable switching speed, reduce jitter,
② Small and exquisite appearance, small footprint, simple and fashionable, high-end and calm color matching;
③ Adopt DC servo control technology to achieve precise and adjustable switching speed, reduce jitter,
and make the gate rod run more smoothly and smoothly;
④ Adopts DC servo motor, which can achieve acceleration/deceleration buffering in control,
④ Adopts DC servo motor, which can achieve acceleration/deceleration buffering in control,
low voltage 24V DC, and is not affected by local voltage instability;
⑤ Aluminum alloy die-casting technology, reliable mechanical strength, beautiful appearance,
⑤ Aluminum alloy die-casting technology, reliable mechanical strength, beautiful appearance,
better heat dissipation, smooth operation, more durable, and million-level barrier-free operation;

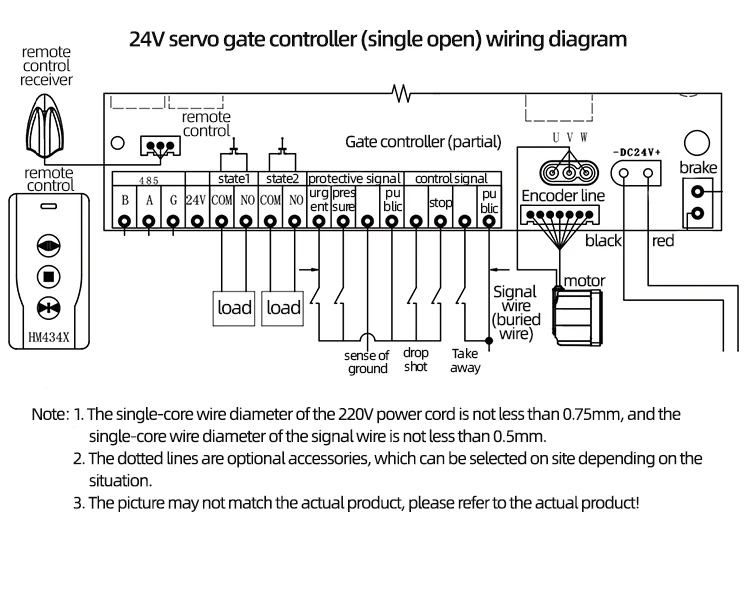

⑥ Highly integrated, industrial-grade controller, supports opening, closing, stopping, ground sensing,
⑥ Highly integrated, industrial-grade controller, supports opening, closing, stopping, ground sensing,
and anti-smash input signal interfaces; supports dry contact output in open and closed positions; c
omes with digital tube display and button module, making debugging simple and convenient;
⑦ Intelligent digital function menu makes it easy for on-site personnel to load various function parameters
⑦ Intelligent digital function menu makes it easy for on-site personnel to load various function parameters
and facilitate personnel maintenance;
⑧ With a remote control interface, a remote control transmitter can be configured to control the raising,
⑧ With a remote control interface, a remote control transmitter can be configured to control the raising,
lowering and stopping of the electric brake lever;
⑨ It has an infrared detection interface and can be used with radar detectors to
⑨ It has an infrared detection interface and can be used with radar detectors to
achieve anti-smash protection [requires additional switching power supply];
⑩ Supports gate opening counting function and unattended automatic closing function;
⑩ Supports gate opening counting function and unattended automatic closing function;
Supports RS232 or RS485 remote communication [customization required];
⑪ Add a traffic indicator light. When the light is in place, the top cover light will light up red;
⑪ Add a traffic indicator light. When the light is in place, the top cover light will light up red;
when the light is in place, the top cover light will light up green.
ABOUT US
Shenzhen Realpark Co., Ltd. is a comprehensive high-tech enterprise integrating security and Internet of things industries. It is also a professional R& D manufacturer and solution provider of intelligent parking lot and pedestrian channel equipment.
The intelligent license plate recognition system and solution developed by the company have the characteristics of simple installation and commissioning and convenient operation. It can be unattended in the whole process , which not only improves the traffic efficiency of vehicles , but also saves unnecessary labor expenses. The face recognition system independently developed and produced by Realpark has the functions of high recognition rate, query and super adult face database , and is suitable for special environments such as night and low temperature; The products are widely used in attendance management, passenger entry and exit management, scenic spot visitor management, community access control, commercial places, office places and other scenarios.
Realpark has strong R& D capability and high-quality and high- level technical service team to provide personalized customization and OEM services.
Our products are exported to the United States, Canada, Europe, Africa and Southeast Asia.
Realpark has strong R& D capability and high-quality and high- level technical service team to provide personalized customization and OEM services.
Our products are exported to the United States, Canada, Europe, Africa and Southeast Asia.
Welcome new and regular customers to cooperate with us for joint growth and mutual success.
OUR FACTORY
OUR EXHIBITION
OUR TEAM
FAQ
Q1: What are Car parking barriers?
Car Park Barriers are used to control access at the entrance to car parking, service yards and restricted areas.
To choose the best option for your facility just consider a few factors including the space available,
how often access is required and the mix of traffic in the area.
Q2: What are the considerations when selecting a car parking barrier?
When selecting a car parking barrier, it is recommended that you consider the following:
• Has the car parking barrier been full-scale crash tested?
• What is the area and quantity of the place used ?
(provide photos of the construction site, and we can provide reasonable road gate scheme drawings)
• Environmental conditions of use (Low temperature or high temperature, etc.)
• DC brushless motor or AC brushless motor?
• What type of barrier gate?
• What type of barrier pole?
• What color do you need?
Q3: How does the car parking barrier system works?
In the car park barrier system the barriers are installed at the entry and exit points of the car park.
These barriers gives control and a more secure area where people can be assured that their car is safe.
Q4: Why do you need a parking lot barrier?
It is used to manage the entry and exit specifications of the parking lot.
Q5: How many types of Realpark car park barriers arms?
There are 90° Folding Arm, 180° Folding Arm, Single Fence Arm and 2 Fence Arm.
The folding arm blocks both people and cars.
The fence can only block cars.
Q6: How many colors of Realpark car parking barriers?
There are yellow, black, red, gray, brown for option.
Q7: Why choose Realpark Car parking barriers?
Parking barrier adopts die-casting aluminium alloy motor and extraordinary structural design,
it offers not only a long-life cycle, high reliability and quality,but also reduces the difficulty of
equipment maintenance. It is an ideal choice for vehicle entrance control management.
Function:
• High-performance swing barrier
• Modularized structure design
• Fast opening speed and low noise
• SUS304 stainless steel
• Unti-bumping
• Swing-out Boom Holder
• Clutch Key
• Exactitude Aluminum Alloydie-casting Motor
Q8: How to get sample？
We must receive your sample payment and shipping before we can send the samples to you.
To choose the best option for your facility just consider a few factors including the space available,
how often access is required and the mix of traffic in the area.
Q2: What are the considerations when selecting a car parking barrier?
When selecting a car parking barrier, it is recommended that you consider the following:
• Has the car parking barrier been full-scale crash tested?
• What is the area and quantity of the place used ?
(provide photos of the construction site, and we can provide reasonable road gate scheme drawings)
• Environmental conditions of use (Low temperature or high temperature, etc.)
• DC brushless motor or AC brushless motor?
• What type of barrier gate?
• What type of barrier pole?
• What color do you need?
Q3: How does the car parking barrier system works?
In the car park barrier system the barriers are installed at the entry and exit points of the car park.
These barriers gives control and a more secure area where people can be assured that their car is safe.
Q4: Why do you need a parking lot barrier?
It is used to manage the entry and exit specifications of the parking lot.
Q5: How many types of Realpark car park barriers arms?
There are 90° Folding Arm, 180° Folding Arm, Single Fence Arm and 2 Fence Arm.
The folding arm blocks both people and cars.
The fence can only block cars.
Q6: How many colors of Realpark car parking barriers?
There are yellow, black, red, gray, brown for option.
Q7: Why choose Realpark Car parking barriers?
Parking barrier adopts die-casting aluminium alloy motor and extraordinary structural design,
it offers not only a long-life cycle, high reliability and quality,but also reduces the difficulty of
equipment maintenance. It is an ideal choice for vehicle entrance control management.
Function:
• High-performance swing barrier
• Modularized structure design
• Fast opening speed and low noise
• SUS304 stainless steel
• Unti-bumping
• Swing-out Boom Holder
• Clutch Key
• Exactitude Aluminum Alloydie-casting Motor
Q8: How to get sample？
We must receive your sample payment and shipping before we can send the samples to you.
After the customer confirms the order, we will reduce the sample cost.
However, if you are our frequent customer, we can send the sample to you and then deduct it
from your account in the next transaction.
Q9: What services can we support?
• Factory Price Direct Selling
• OEM/ODM
• Fast Delivery (Samples 3-7 days, more QTY order priority production)
Q10: What payment method we support?
• Alibaba Trade Assurance Order, T/T Transfer, Western Union, MoneyGram, Credit Card, L/C
• Standard products: 30% deposit, 70% balance payment before shipment.
• Customized products: 50% deposit, 50% balance payment before shipment.
• Contract amount more than USD$15000: 50% deposit, 50% balance payment before shipment.
• Customized products: 50% deposit, 50% balance payment before shipment.
• Contract amount more than USD$15000: 50% deposit, 50% balance payment before shipment.
Q11: How to ship?\t
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.\t
By air or by sea, quantity over 10 sets better to choose by sea to reduce cost.\t
Any other more questions, welcome to send inquiry or contact our customer service online Alibaba.
