Product Overview
Description
Description

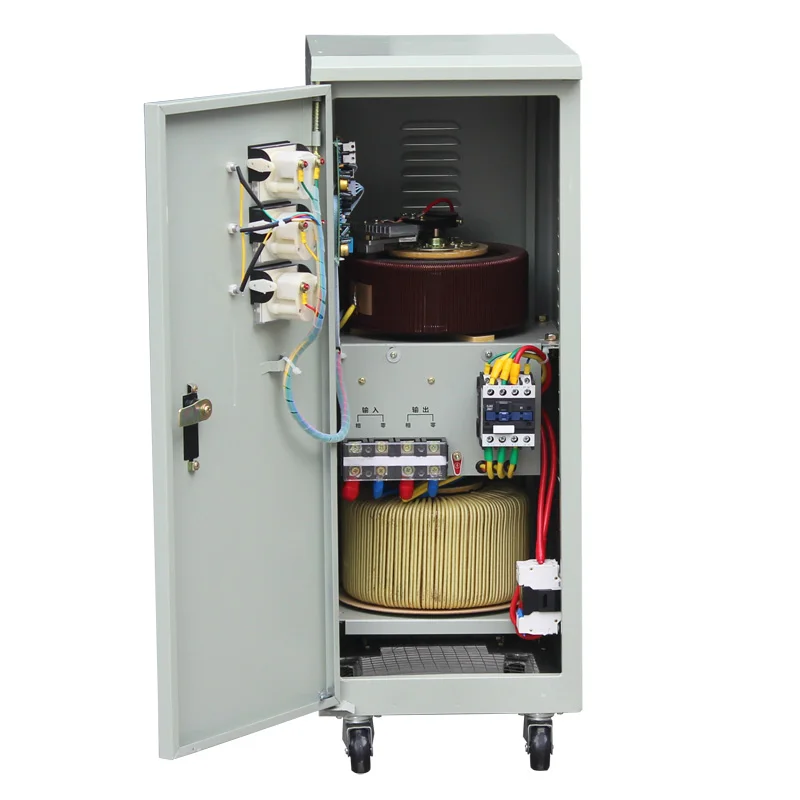

SVC/TND single-phase high accuracy full-automatic AC voltage stabilizer is one kind of our dominant products,made up of contact auto voltage regulator,servo motor,automatic control circuil,etc.When the power network voltage fluctuates or the load varies,automaticsampling control circuit will send signal to drive the servo motor which can adjust the position of carbon brush of outo voltage regulator,then,the output voltage will be adjusted to rated value and get a steady start.
Features
1.Reasonable Price, Best Quality
2.Reliable Performance
3.Long-term With Simple Operation
4.Servo motor drive
5.Full Automatic Timely
6.High accuracy
Specifications
Power Range | 15KVA |
Input Voltage | Ordinary 150-250V, or optional larger range |
Output Voltage | Ordinary 220V and 110V (Power: 500VA-3000VA), 220V (Power: 5KVA-60KVA) or be customized |
Output Accuracy | 220V±3%, 110V±6% |
Coil Material | Ordinary aluminum and copper mixed, full copper can be customized |
Display | Ordinary pointer display, LED or LCD display screen can be customized |
Frequency | 50Hz/60Hz |
Adjusting Time | <1s ( when input voltage has a change of 10%) |
Adjusting Speed | >15V/s |
Waveform Distortion | No additional waveform distortion |
Efficiency | >90% |
Ambient Temperature | -5 ~ +40°C |
Relative Humidity | ≤90% |
Dielectric Strength | 1500V/min |
Insulation Resistance | ≥5MΩ |
