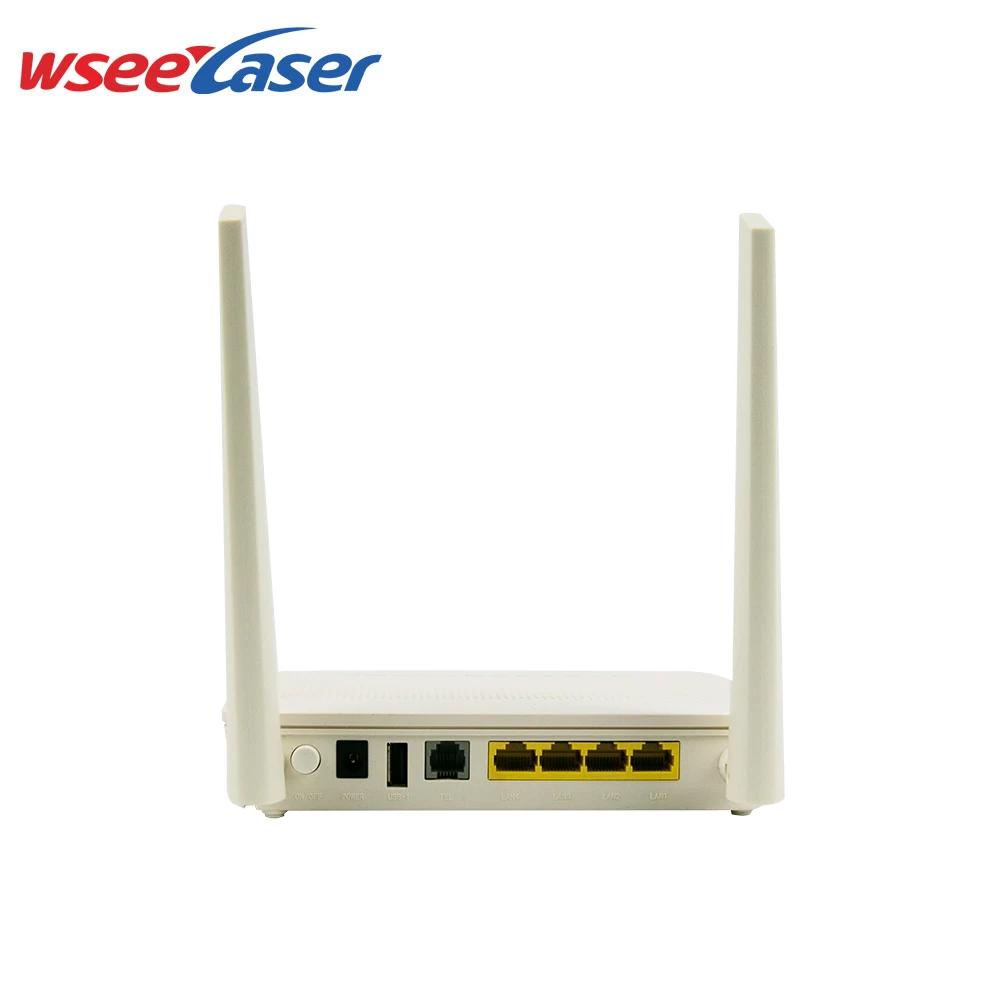

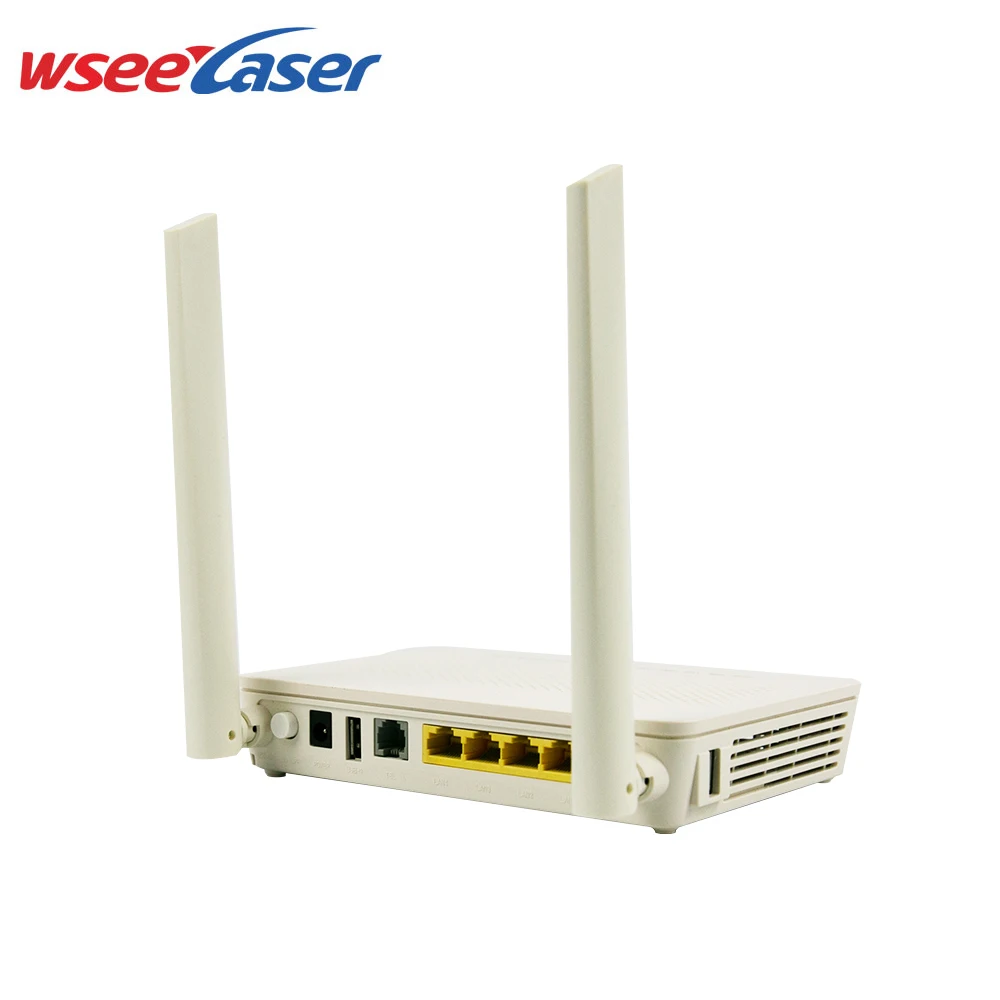

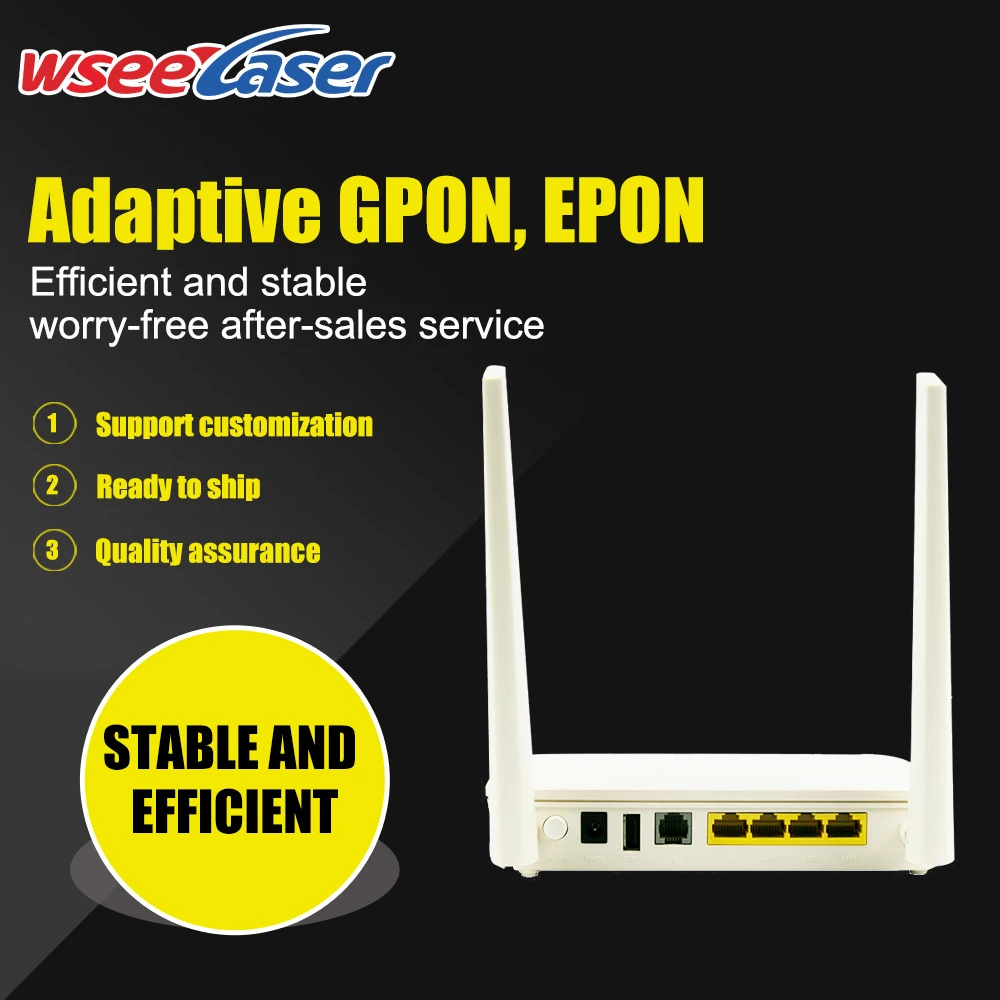

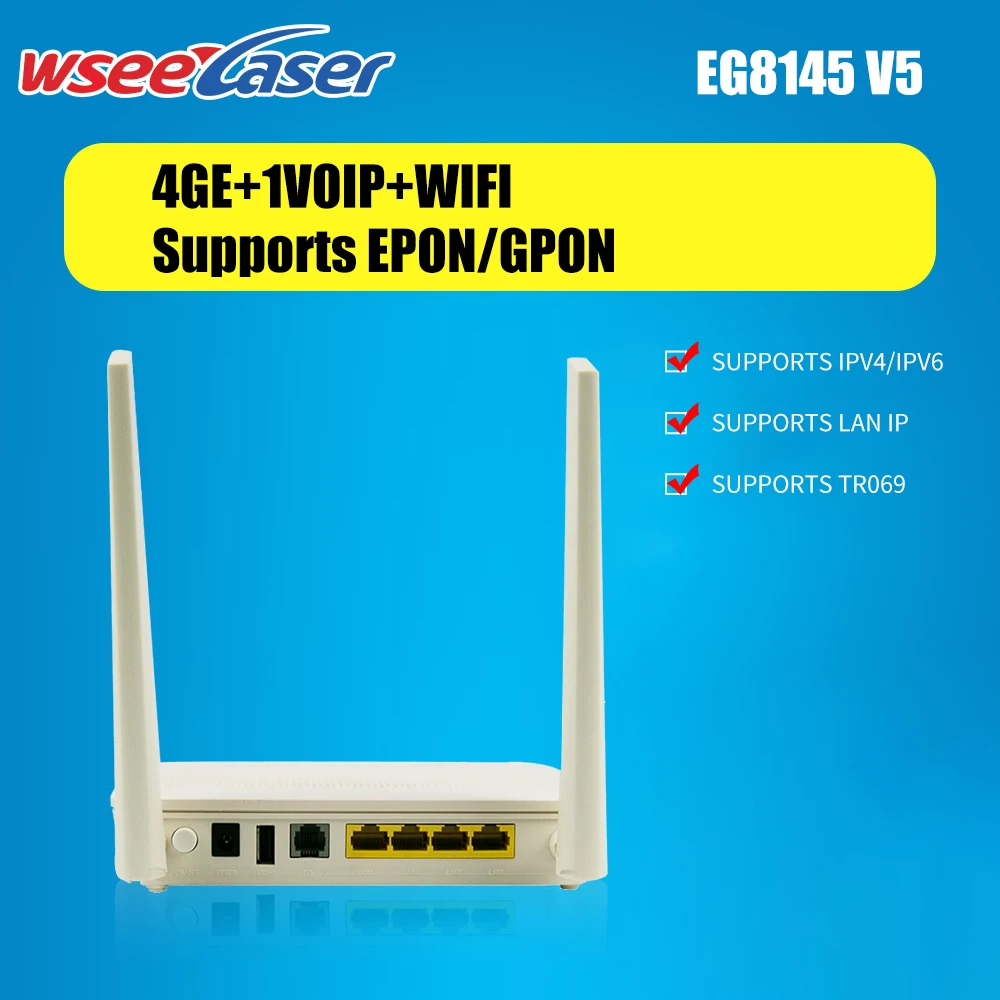

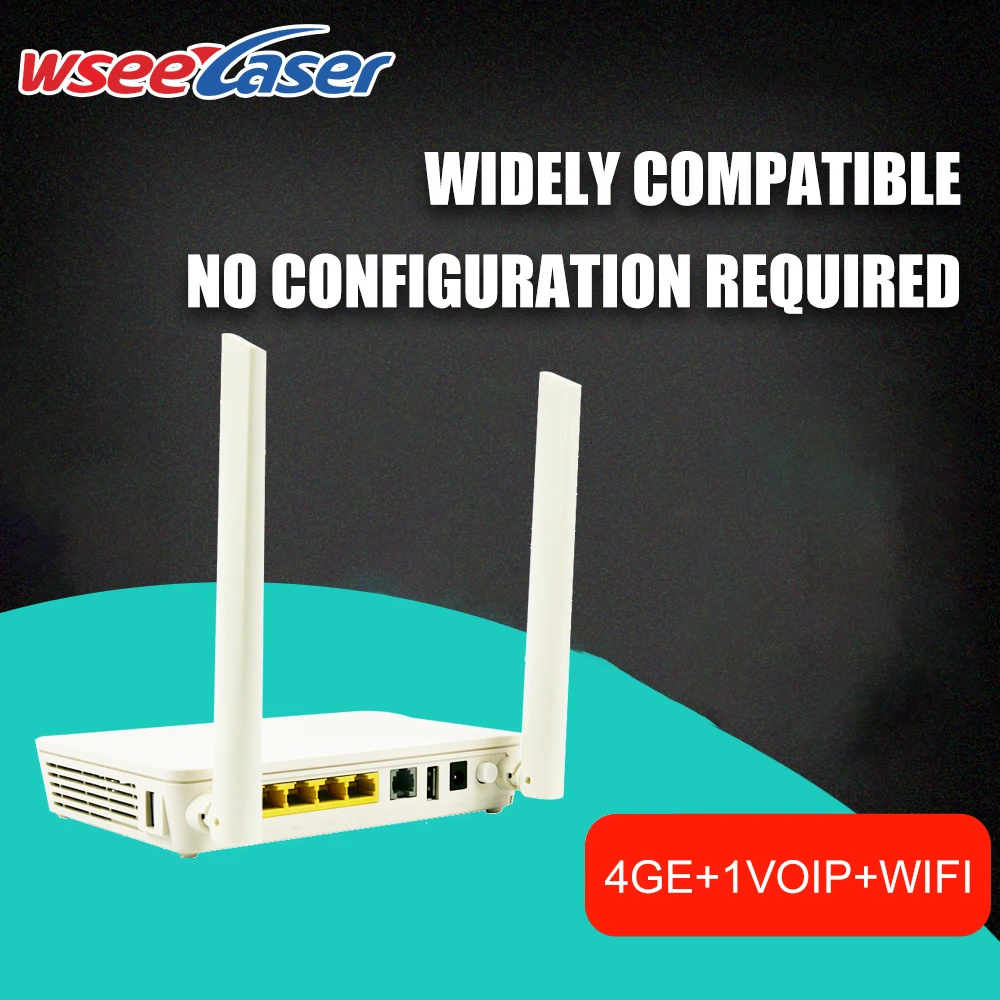

New WSEE 2024 EG8145V5 Gpon Epon Xpon 4GE 2.4G 5G wifi for ONT ONU
- Category: >>>
- Supplier: Shandong Wanshuo Optoelectronic Equipment Co Ltd.
Share on (1601047425644):
Product Overview
Description
Product Description
Specification
Item | Type | Technical parameters |
PON | Interface Type | SC/UPC |
receiver sensitivity | ≤-27dBm | |
luminous power | +0.5~+5dBm | |
transmission distance | 20KM | |
operating wavelength | TX: 1310nm RX: 1490nm | |
LAN | Interface Type | 4 Gigabit RJ45 ports |
transfer mode | 4*10/100/1000Mbps Adaptive | |
Wi-Fi | protocols | IEEE802.11a/b/g/n/ac |
2.4G operating frequency | 2.400-2.4835 GHz | |
5G operating frequency | 5.150-5.825 GHz | |
Number of antennas | 2 x 5dB high gain antennas | |
the rest | Multi-SSID support | |
Power supply related | connector | DC005 φ2.1mm |
input voltage | 12V1.5A | |
Rated power consumption | ≤8W | |
Environment-related | operating temperature | 0~+50°C |
Operating humidity | 10~85% (non-condensing) | |
Storage temperature | -30~+60°C | |
Size Weight | Product Size | 175*120*30mm |
Package Size | 267*175*39mm | |
Net Weight | ≤0.3KG | |
total weight | ≤0.5KG |
