Product Overview
Description

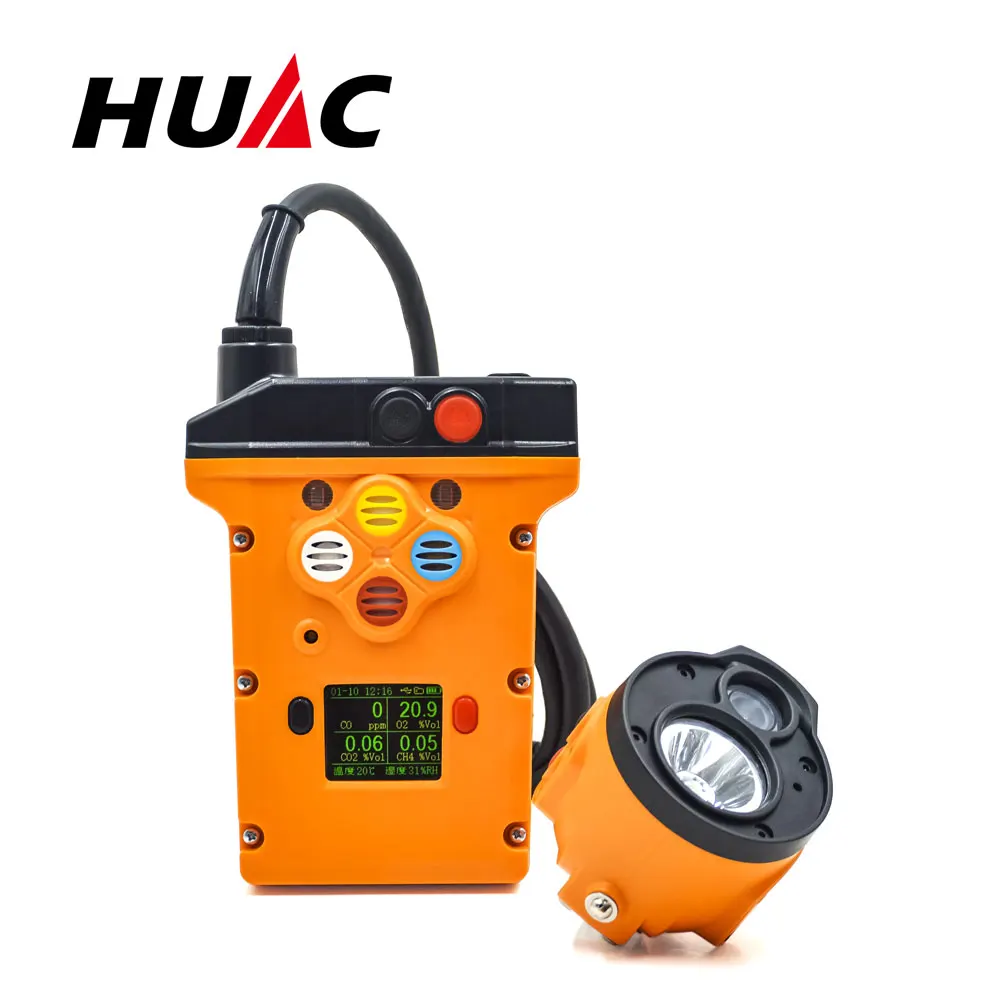

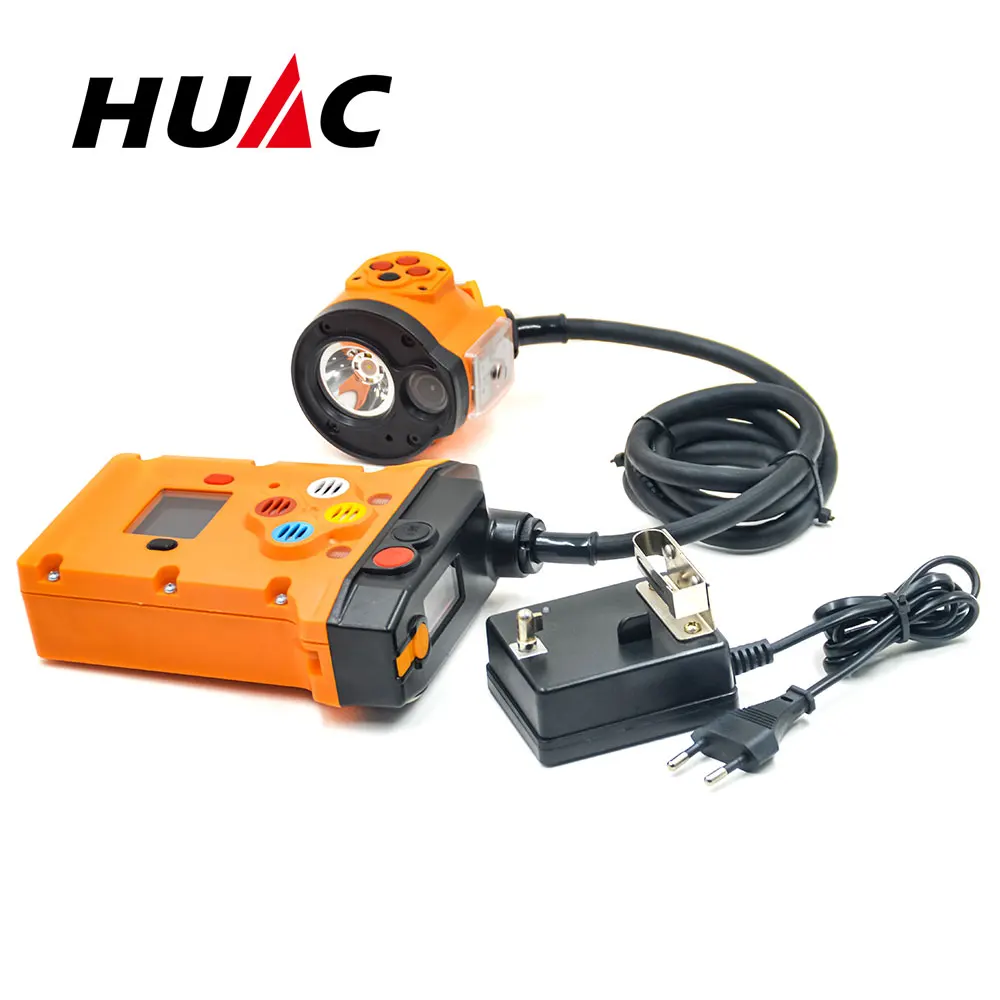

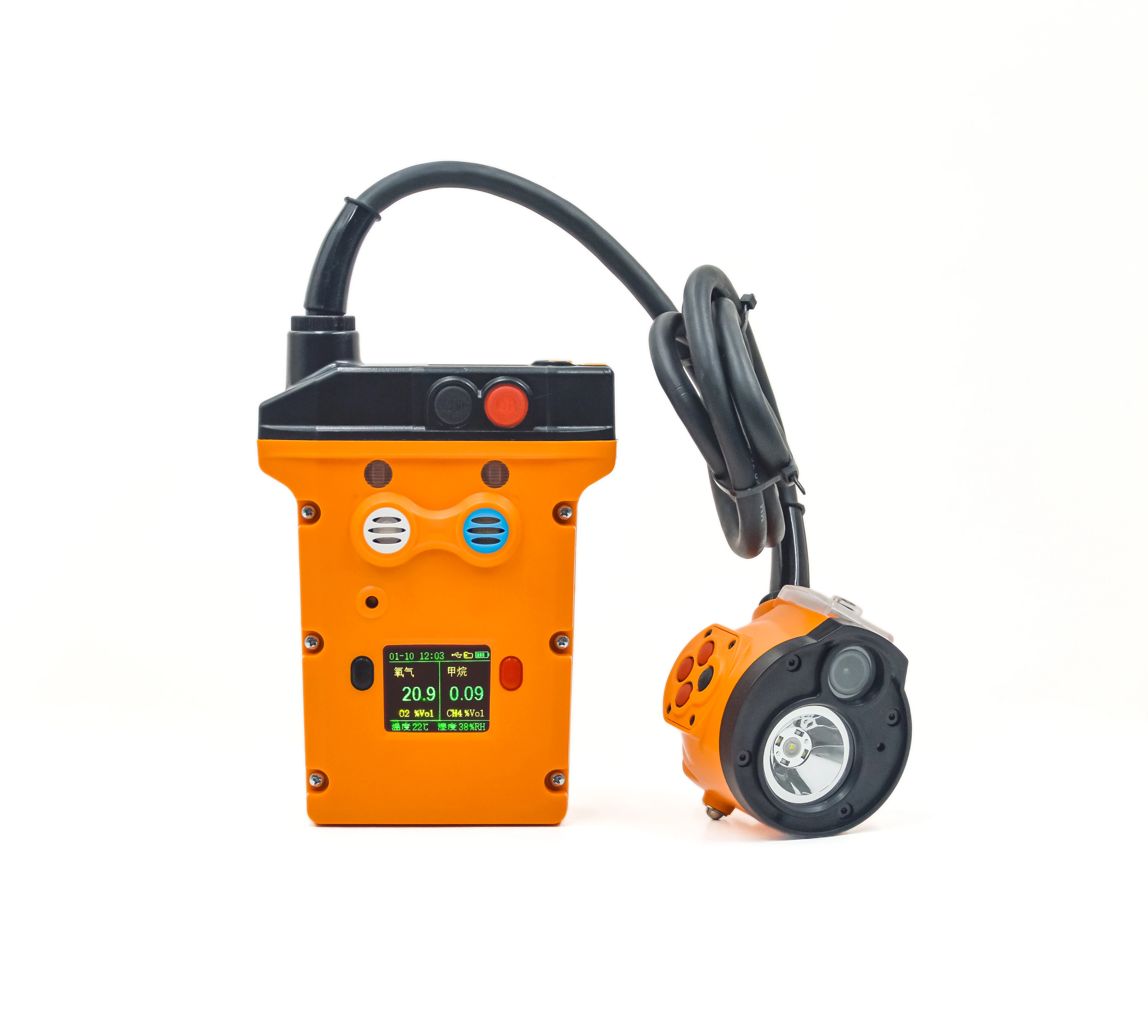

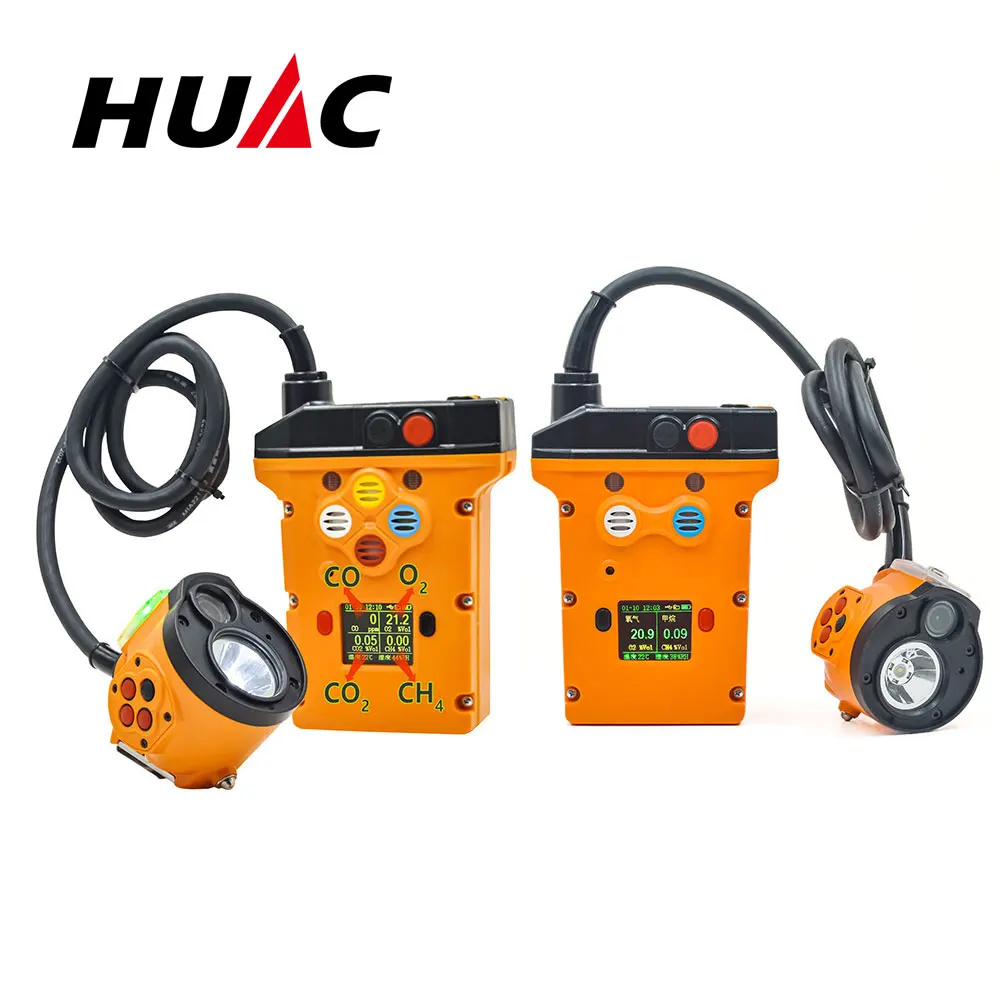

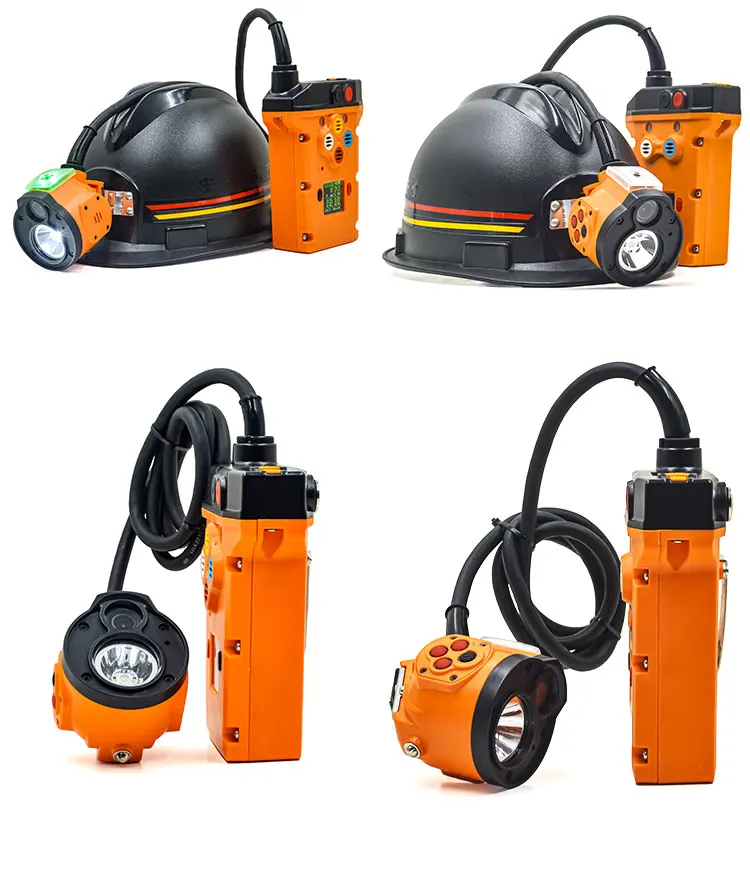

Scarab-D series multi-parameter monitoring information mining lamp is apersonnel mobile information platform in the form of mining lamp, usingmodular, intelligent design concept, in addition to the basic attributes ofmining lamp, but also has a wealth of modular multimedia information processing capabilities and convenient secondary development and expan-sion capabilities.With communication, 5G, 4G, WiFi, Bluetooth, video, in-tercom,photography, voice, video, explosion-proof,signal stroboscopicfunction, methane, carbon dioxide, hydrogen sulfide, oxygen and othergas detection and alarm functions. It can be used by relevant staff, man-agement personnel, professionals, mobile staff, mine prevention person-nel, etc., and can also be used for fixed use in the above places. The explosion-proof type of the instrument is intrinsically safe for mining, whichhas the characteristics of simple and clear operation, small size, conve-nient carrying and high precision
Hunan Huachuang Lighting Electrical Appliance Co., Ltd
has been a professional manufacturer of mining lighting equipment for 20 years. Our main products include: mining lamps,headlights, explosion-proof lighting lamps, digital gas alarm lamps, tunnel lamps, mining charging racks (charging cabinets), and mining command and communication systems; Production and sales of injection molded shells and die-casting shells. The product is explosion-proof and has complete coal safety certification.

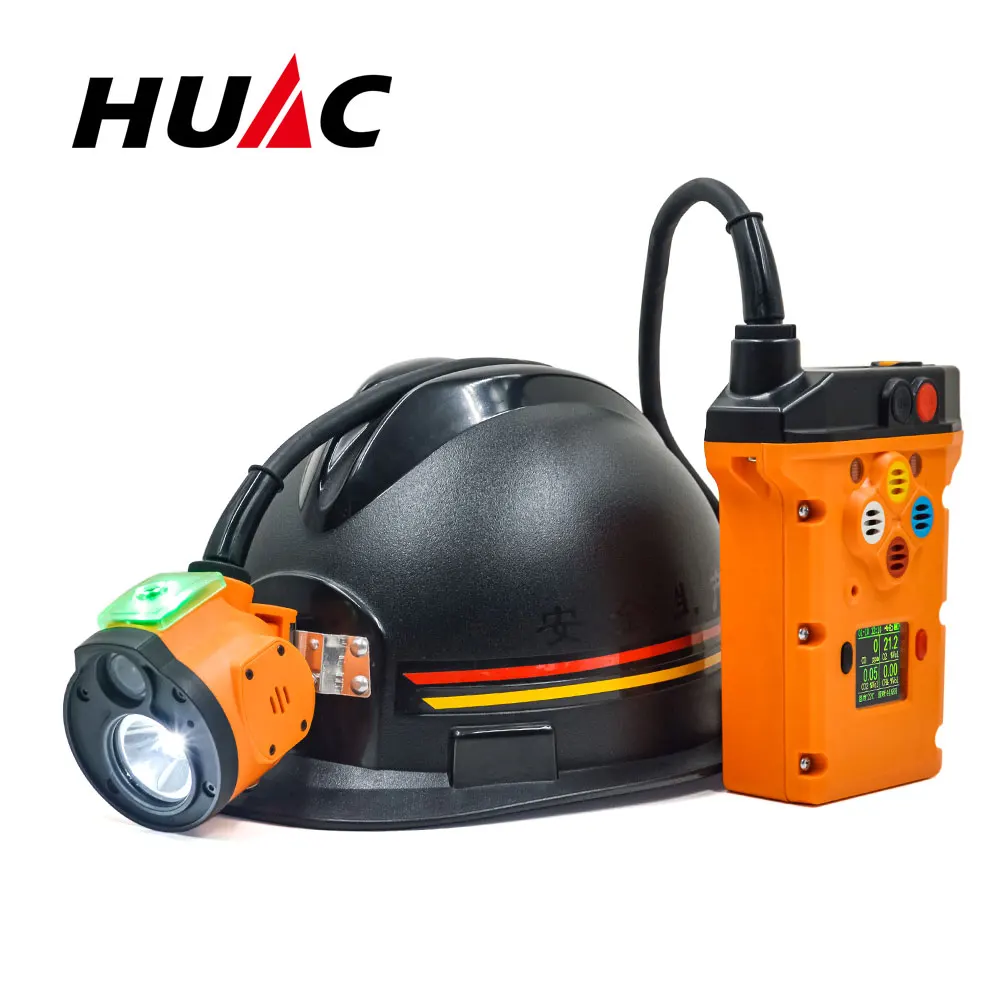

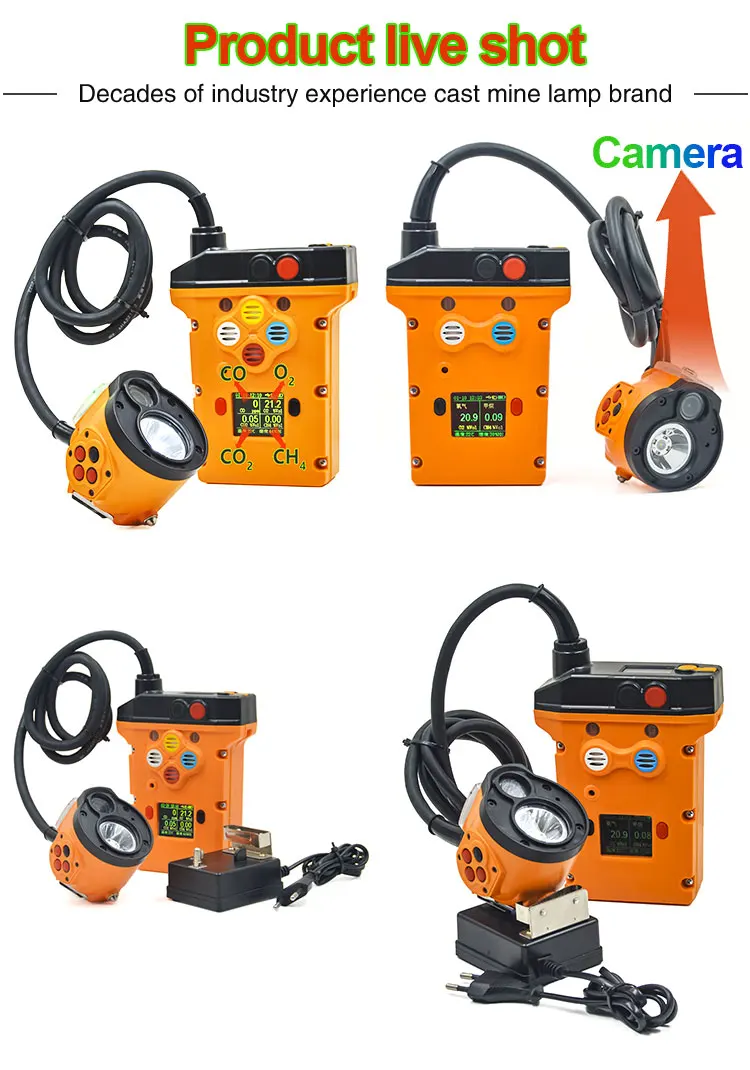

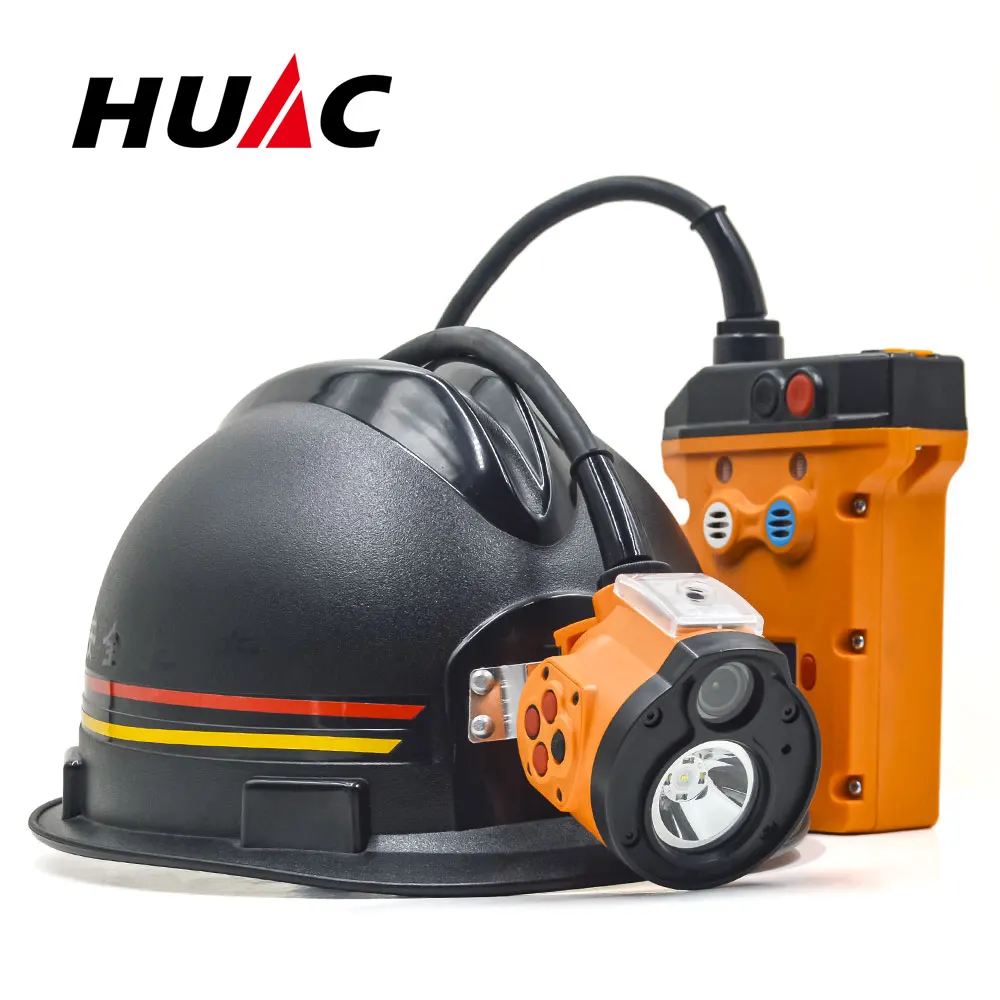

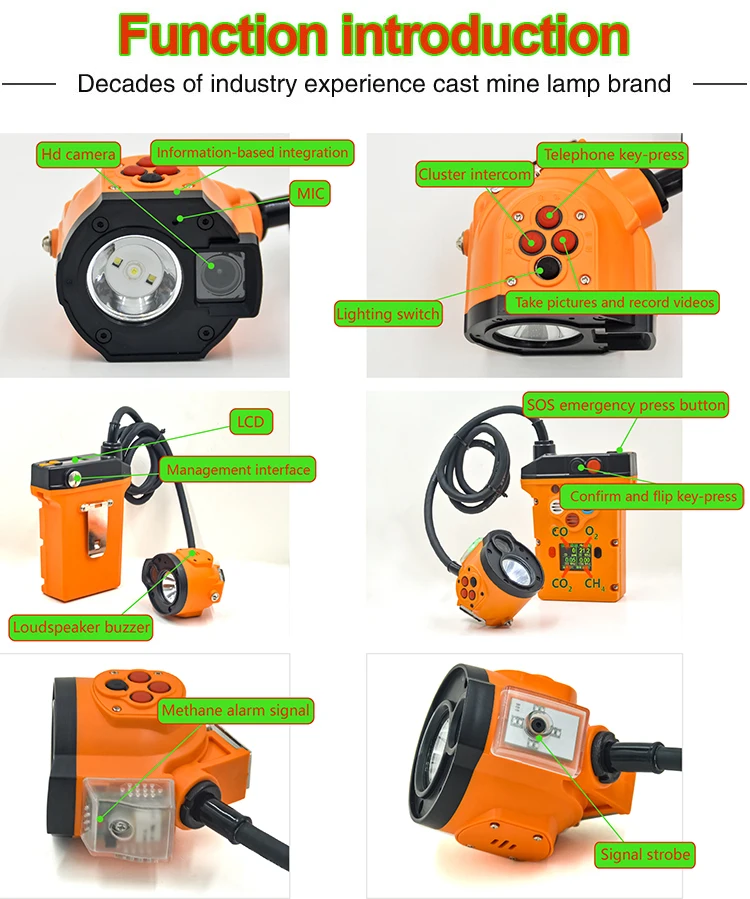

Lamp head integrated camera
The main and auxiliary light sources of the lamp head can be freely switched, and the camera can be configured for video recording and intercom

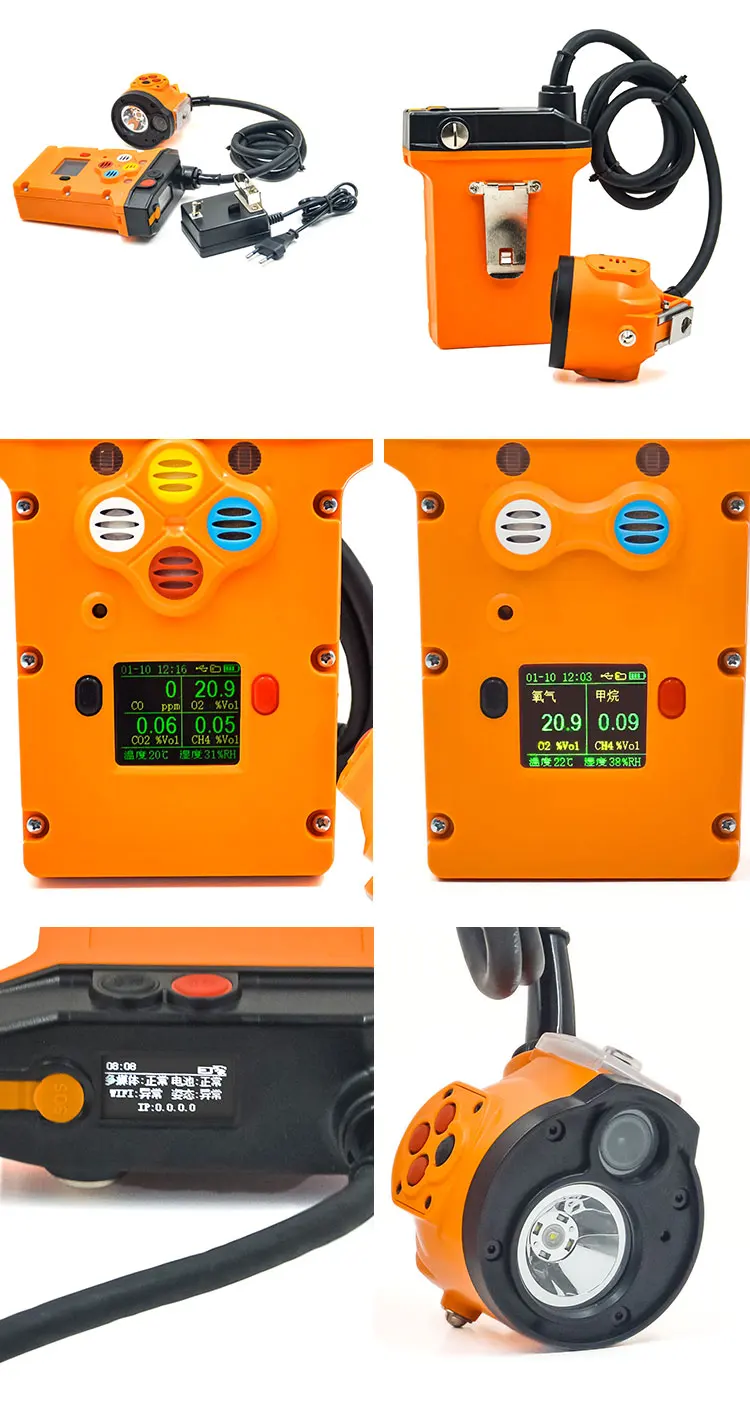

Configure gas detection module
Can detect the concentration of CO, H ₂ S, CO ₂, CH ₄, O ₂ and give an audible and visual alarm

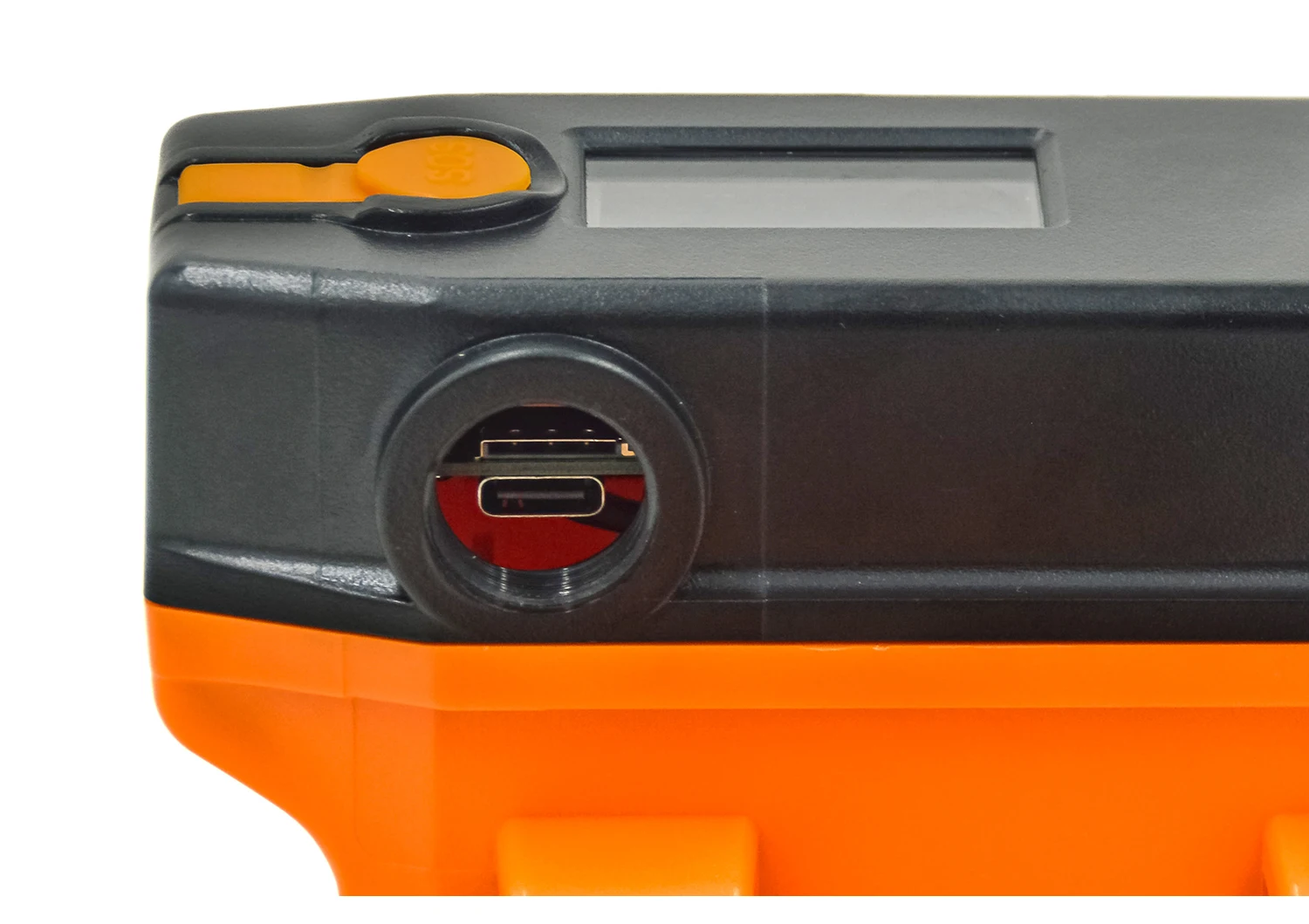

USB interface and expansion module interface
USB interface, can export or import files. The expansion module interface can be developed for the second time.
Signal strobe
It can emit flashing green light, which can be observed by companions in the distance..ABS sealed housing, waterproof grade IP65
Scarab-D series multi-parameter monitoring information mining lamp | ||
Part parameters of mining lamp | ||
Rated voltage | 3.7V | |
Protection level | IP65 | |
Charge voltage | 5.5-6.5v | |
Rated capacity | 10AH | |
Main light source working current | 0.2A | |
Auxilary light source working current | ||
Active working time | ≥11h | |
Light intensity | ≥1cd | |
Battery cycle life | ≥500 circulate | |
Full lamp working current (full function on) LCD display Transmitted p | ||
Video recording and lighting turn on the working current | Video recording current250ma;Voice intercom current 250ma） | |
Gas monitoring range | CH：0.00～4.00 %VOL ； O2：0.0～25.0 %VOL； CO：0～1000 ppm ； H2S：0.0～100.0 ppm； | |
Multi-parameter gas monitoring response time | CH ≤20s ；O ≤35s； CO ≤45s；≤45s； | |
Total lamp weight | ≈900g | |
Multimedia function parameter type | Communication parameter type | ||||||
Lighting | Main light/auxiliary light, button switch | Bluetooth | |||||
Wi-Fi6 | 2.4G 802.11b/g/n/ac/ax | Wireless standard | Bluetooth 5.1 ，125kbps，500kbps,1Mbps，2Mbps | ||||
Bluetooth | BLE 5.1 | Data rate | Bluetooth 5.1：2Mbps，1Mbps，500kbps，125kbps | ||||
Trumpet | Ø23，1w | Peak current | TX：4.8mA(0dBm) / RX:4.6mA | ||||
LCD | OLED white, 64*128 resolution | Transmitted power | -20 ~ 8dBm It can be set as a 4dB step | ||||
Transmitter | sensitivity -45±3db | Receive sensitivity | low energy mode | ||||
Camera specifications | 1080P，25Frames，H265/H264 | Wi-Fi | |||||
RFID | ISO18000-6C | Wireless standard | IEEE802.11b/g/n/ax，Wi-Fi Compatible | ||||
Battery BMS | √ | Frequency range | 2.400GHz~2.4835GHz（2.4GHz ） | ||||
LCD display | √ | 802.11b/11Mbps： 20dBm±2dB@EVM≤-9dB 802.11g/54Mbps： 14dBm±2dB@EVM≤-26dB 802.11n/MCS7： 14dBm±2dB @EVM≤-28dB 802.11ax/MCS9： 14dBm±2dB@EVM≤-32dB 802.11ax/MCS11： 14dBm±2dB@EVM≤-35dB | |||||
SOS | √ | ||||||
Dispatch intercom | √ | ||||||
Real-time video | √ | ||||||
Local photography | √ | 802.11b@8%PER： 1Mbps PER@-92dBm 11Mbps PER@-86dBm 802.11g@10%PER： 6Mbps PER@-89dBm 54Mbps PER@-73dBm 802.11n,20MHz@10%PER： MCS=0 PER@-89dBm MCS=7 PER@-71dBm 802.11n,40MHz@10%PER： MCS=0 PER@-87dBm MCS=7 PER@-67dBm 802.11ax,20MHz@10%PER： MCS=0 PER@-82dBm MCS=9 PER@-68dBm 802.11ax,40MHz@10%PER： MCS=0 PER@-81dBm MCS=9 PER@-65dBm | |||||
Local recording | √ | ||||||
Expansion module bin | √ | ||||||
Gas monitoring and alarm | √ | ||||||
