Tobee Effluent Handling
$12,600
Buna N EPDM Neoprene fluororubber FKM membrane Operated Pneumatic Diaphragm Pump
- Category: >>>
- Supplier: Shanghai Flolink Pump Co. Ltd.
Share on (1601047506404):
Product Overview
Description
Company Profile
Company Profile:
Shanghai Flolink Pump Co., LTD. Is a professional pumps supplier, with advanced design technology and many years of research and development experience.

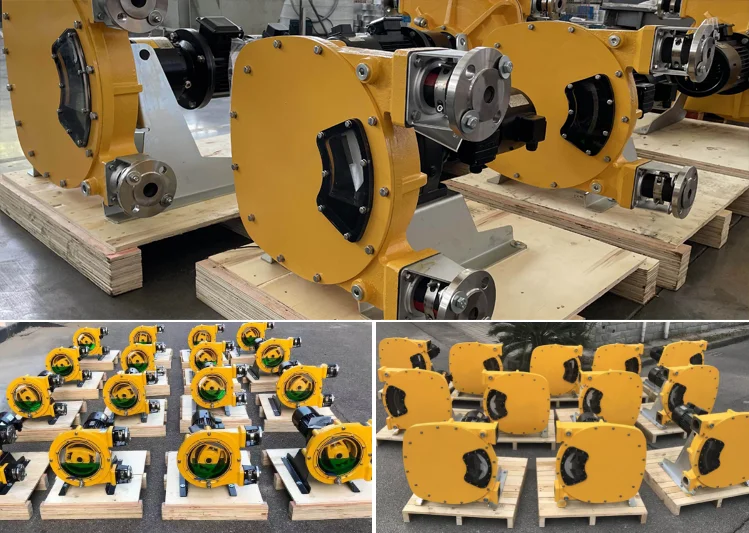

FLOLINK hose pump, with aluminum alloy and cast iron housing, high structural strength, strong and durable. The hose from Italy, which is reliable, durable and has long service life. It performs well in various harsh working conditions. Hose pump widely used in water treatment, electronic industry, beverage industry, chemical industry, pharmaceutical industry, environmental protectionand other industrial fields.
Air Operated Diaphragm pump features
1. Without electricity, explosion-proof, can convey flammable fluid.2. No dynamic seals, even dry runinng without damage.
3. No impeller, low shear, will not damage the material structure of fluid.
4. Submersible, mobile, flexible installation, easy maintenance.
5. Can convey high-thick, high viscocity fluid.
6. Can convey acid, alkali, strong organic solvents and other fluid.
7.Changing the inlet air and pressure to adjust the flow rate and head.
3. No impeller, low shear, will not damage the material structure of fluid.
4. Submersible, mobile, flexible installation, easy maintenance.
5. Can convey high-thick, high viscocity fluid.
6. Can convey acid, alkali, strong organic solvents and other fluid.
7.Changing the inlet air and pressure to adjust the flow rate and head.
Product Category

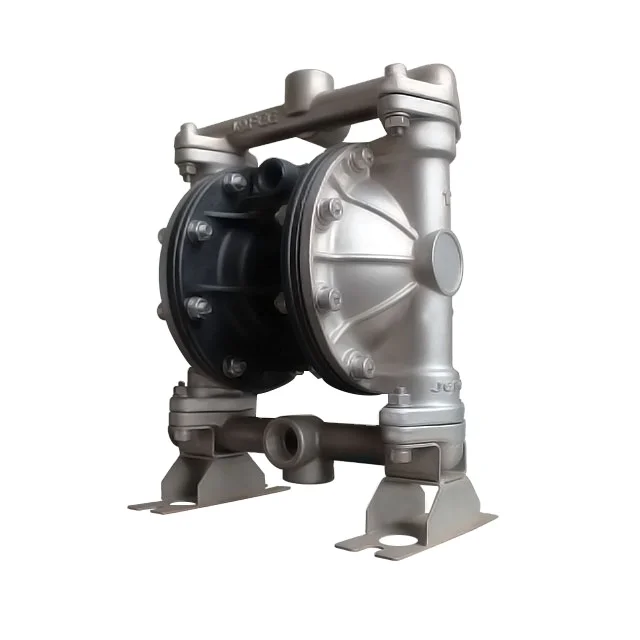

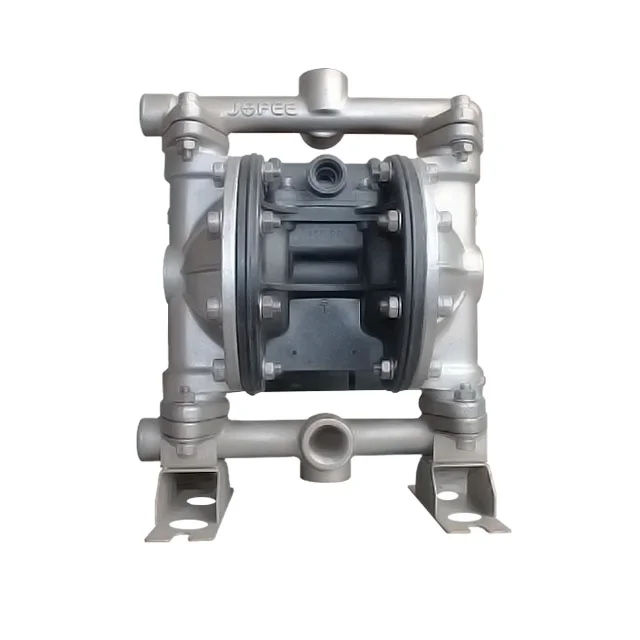

Stainless Steel Pump features
1. High temperature wax casting. Smooth surface and good appearance.
2. Four bolts connection design, good seal and good dry suction.
3. Origin stainless steel color. Adopt pickling and electrolytic processing.
4. Stainless steel 304 /316 pump size from 1/2" to 3".
5. Pump can supply with aluminum center block or PP center block.
6. The bolts material is SS304.

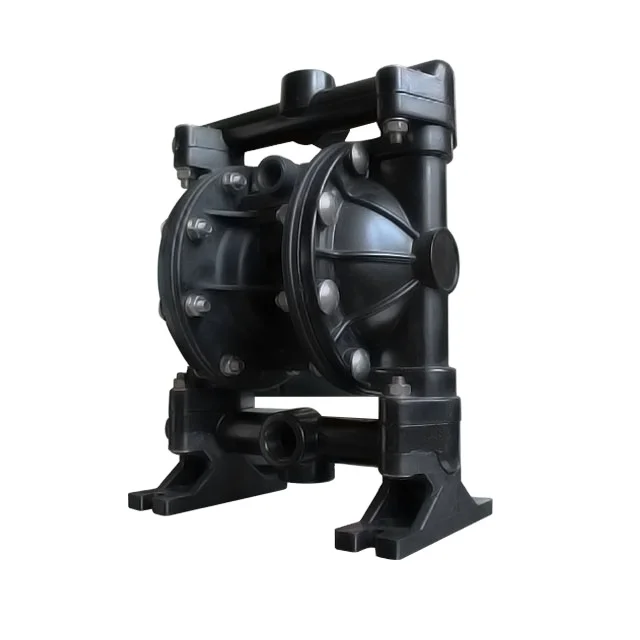

Aluminum Pump features
1. Pump adopt precision casting, smooth surface and good appearance.
2. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
3. Four bolts connection design, good seal and good dry suction.
4. Aluminum pump size from 1/2" to 3".
5. Pump with black EPOXY coating.

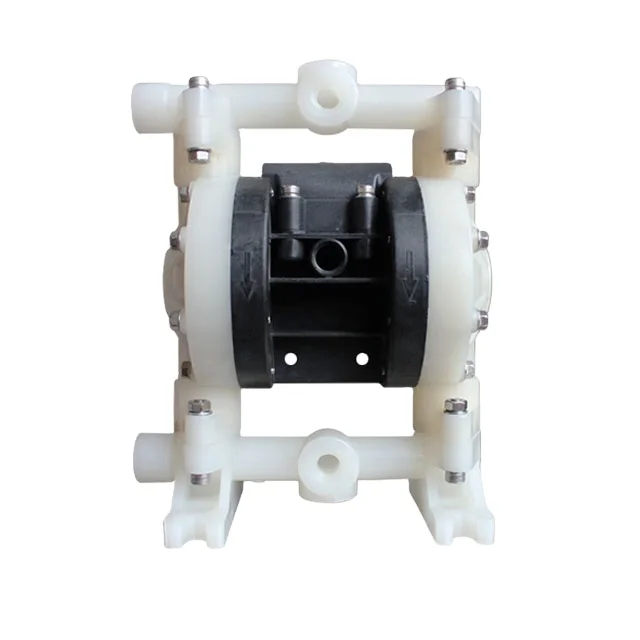

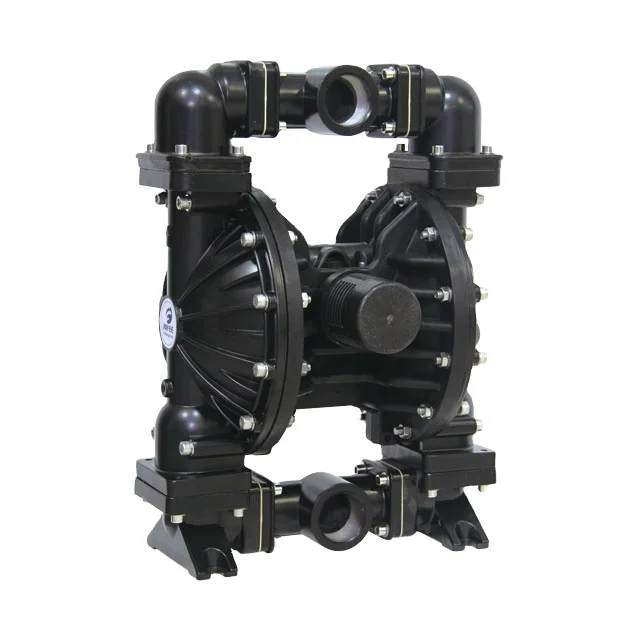

Plastic Pump features
1. PP pump in PP-H material, wearing resistance, chemical resistance much better than PP.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
Performance Data
Model | In/outlet (inch) | Max particle diameter (mm) | Air inlet size (inch) | Max flow rate (l/min) | Max head (m) | Max air pressure(bar) |
MK06/10 | 1/4", 3/8" | 1.6 | 1/4" | 27 | 70 | 7 |
MK15/20 | 1/2", 3/4" | 2.5 | 3/8" | 57 | 84 | 8.4 |
MK25 | 1" | 4 | 1/2" | 157 | 84 | 8.4 |
MK40 | 1 1/2" | 5 | 1/2" | 358 | 84 | 8.4 |
MK50 | 2" | 6 | 1/2" | 587 | 84 | 8.4 |
MK80 | 3" | 9.4 | 3/4" | 1060 | 84 | 8.4 |
Product Parts
PP center block
1. Aluminum center block poor chemical resistance will be corroded.
2. PP center block chemical resistance much better than Aluminum center block.
2. PP center block chemical resistance much better than Aluminum center block.
3. Our PP center block to be one-piece design with long glass fibre, strong and durable. This design PP center block much stronger than three-section design PP center block. Because three-section design PP center block remain need bolts to connect them.
4. Can supply PP center block for the pump from 1/4" to 3".
Diaphragm pump plate
1. Aluminum plate and stainless steel plate adopt one-piece precision casting, can avoid the leakage.
2. Plasitc plate increase thickness, insert with stainless steel casting parts. The whole plastic plate strong and durable. Even
under high working pressure and high temperature, also can working well.
2. Plasitc plate increase thickness, insert with stainless steel casting parts. The whole plastic plate strong and durable. Even
under high working pressure and high temperature, also can working well.
Air valve of PP center block
1. Modular design, simple structure. Few moving parts, easily maintain.
2. Plastic parts material to be improved acetal material, excellent wearing resistance and good self-lubricating.
2. Plastic parts material to be improved acetal material, excellent wearing resistance and good self-lubricating.
3. The whole air valve can directly diassemble from the pump. Repair the air vlave, no need to open the pump.
