Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

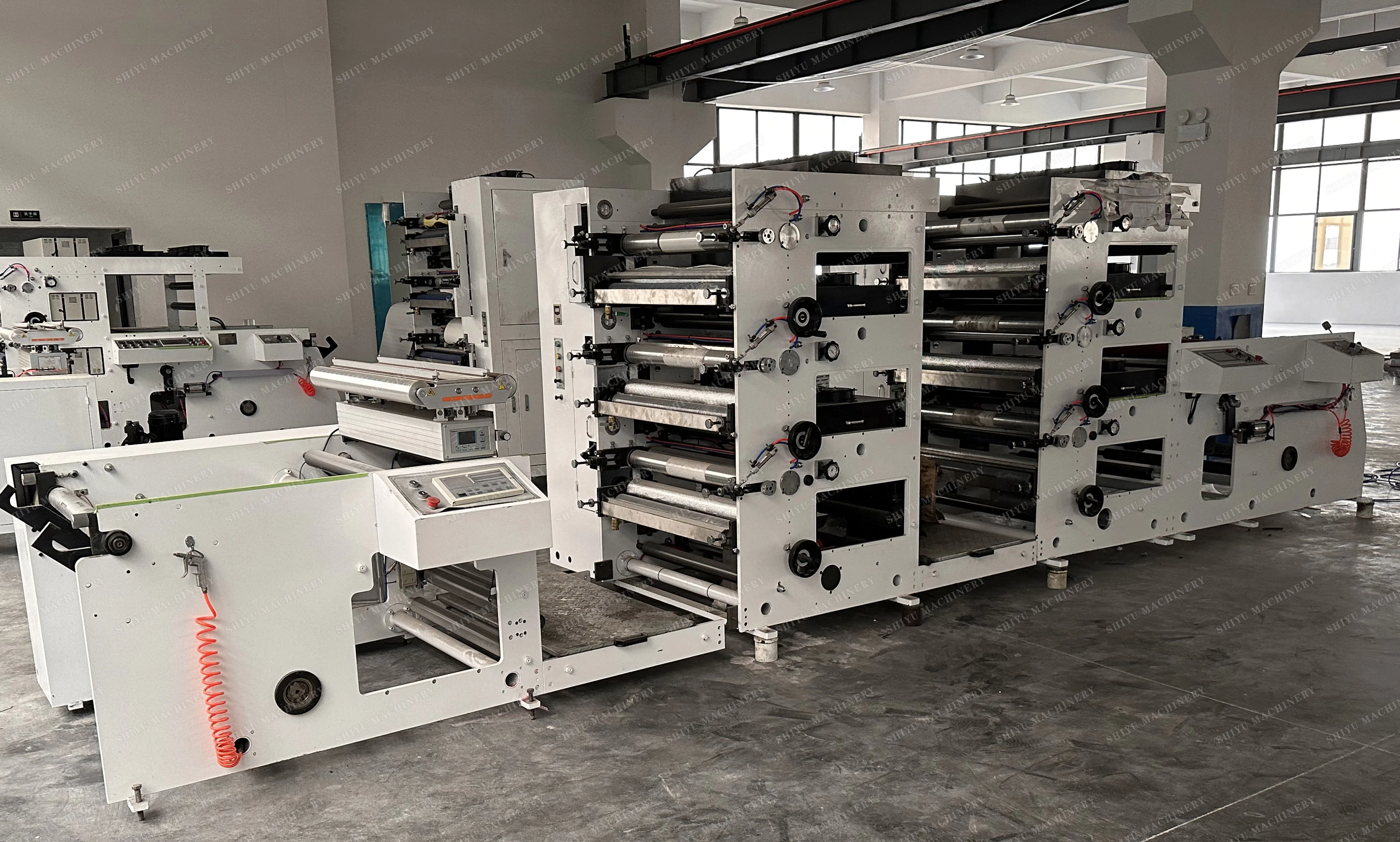

Full automatic multicolor flexo printing machine/flexo printer machine/plastic flexo printing machine
- Category: >>>
- Supplier: Shanghai Shiyu Machinery Group Co. Ltd.
Share on (1601047520355):
Product Overview
Description
Features:
1, Adopts the anilox roller to spread ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi).
3, Each printing unit adopts 360 degree for color registration.
4. Each printing unit has one IR drier.
5. The rubber roller can break away automatically while stopping and running at a low speed in order to avoid ink dried.
6. The main motor is equipped with import stepless regulation of frequency conversion.
7. Unwinding, web guiding, corona treatment, printing, IR drying and rewinding can be finished in one process.
8, An ideal machine to print many kinds of paper rolls before cup making steps.
1, Adopts the anilox roller to spread ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi).
3, Each printing unit adopts 360 degree for color registration.
4. Each printing unit has one IR drier.
5. The rubber roller can break away automatically while stopping and running at a low speed in order to avoid ink dried.
6. The main motor is equipped with import stepless regulation of frequency conversion.
7. Unwinding, web guiding, corona treatment, printing, IR drying and rewinding can be finished in one process.
8, An ideal machine to print many kinds of paper rolls before cup making steps.
model | SY-320 |
Printing speed | 50m/min |
Printing color | 6colors |
Web width | 320mm |
Printing width | 310mm |
Unwinding diameter | 600mm |
Rewinding diameter | 600mm |
Printing length | 175-355mm |
Precision of registration | ±0.10mm |
Dimensions | 6200mm*1850mm*1850mm |
Machine weight | 6000kg |
Details Images

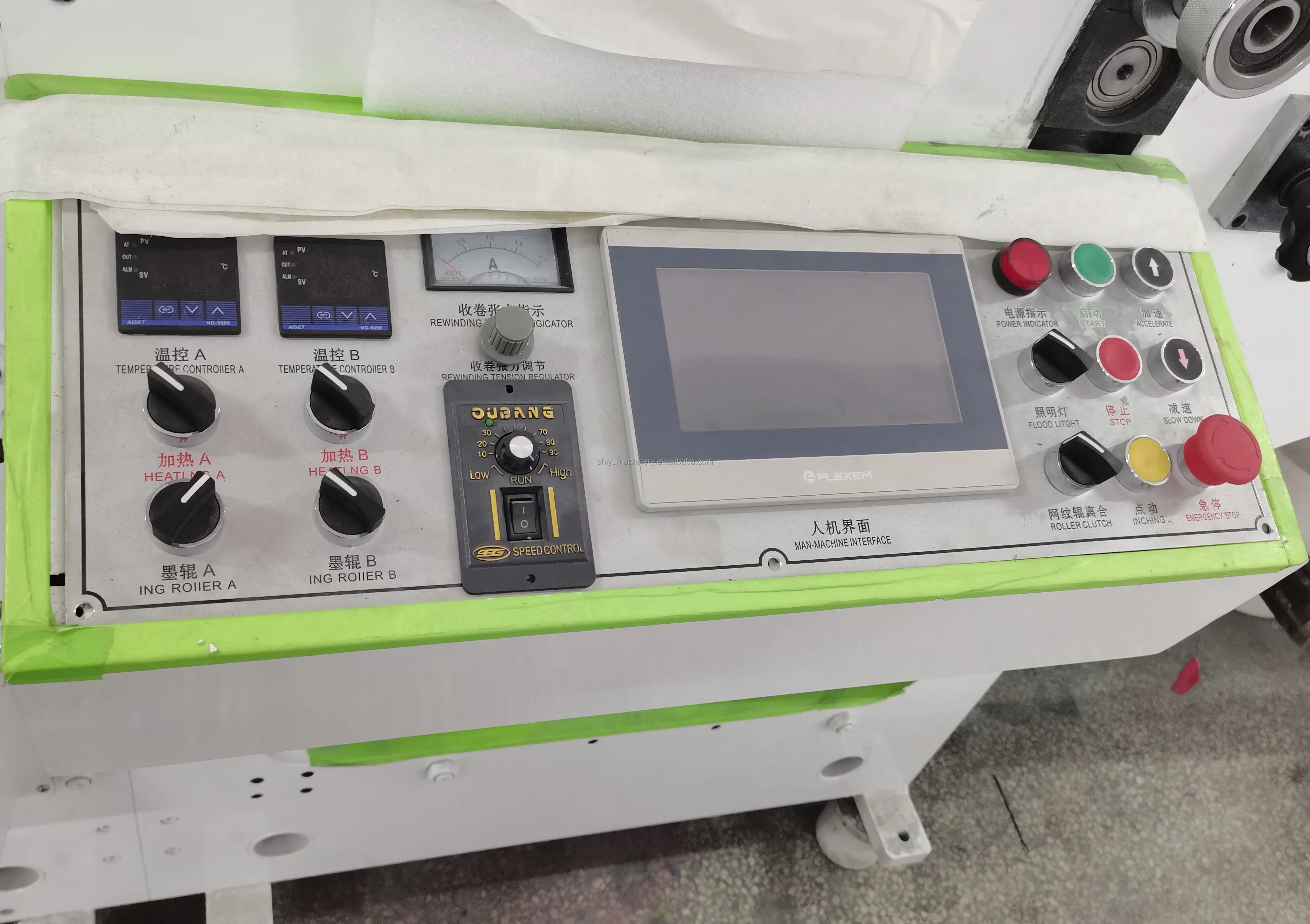

control panel
1).Power Supply, Stop Button, Start Button and Emergency Stop. 2).Temperature Controller for each Heating Oven. 3).Anilox RollerRotation Button for each Printing Station. Length Counter and Speed Controller
4)bottom roller tension control

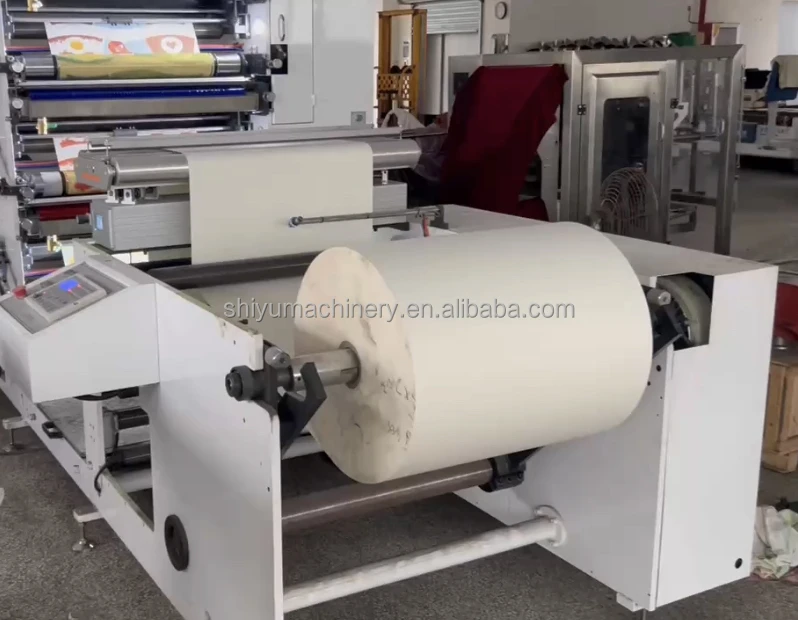

hydraulic lifting system for unwinding and rewinding
Standard Cantilever unwinding station,maximum unwind diameter: 600mm . 76mm (3″) air shaft roller. Electromagnetic power brake. Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding tension.

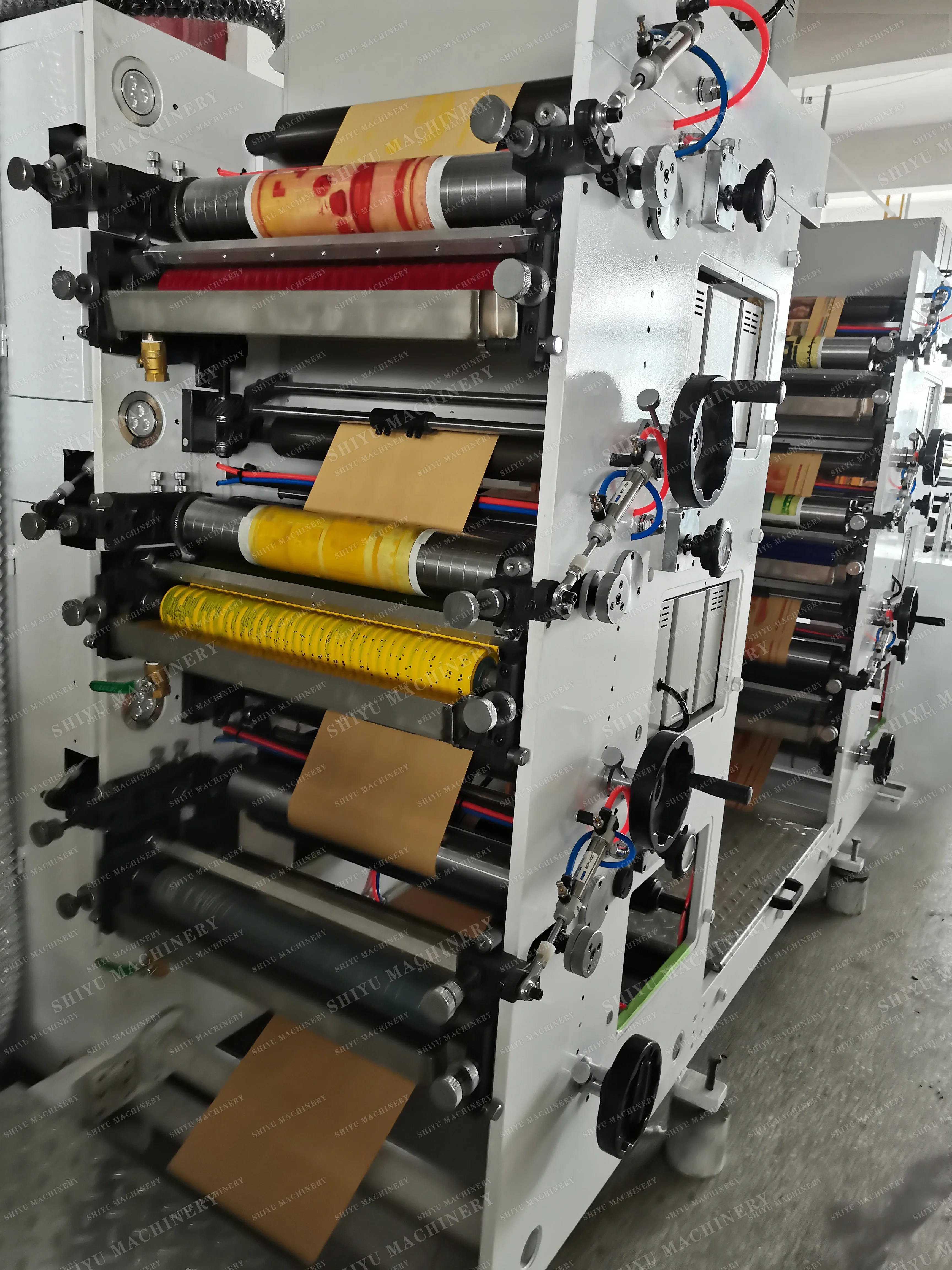

Printing Unit
Printing station comes with ink rubber roller, ceramic anilox cylinder, printing plate cylinder, scrapper blade and ink
container.helical gear.
container.helical gear.
UV dryer system
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven. 2).Infrared Heating Drying Oven is placed on material andafter each printing station.
Web Guide System
Detection mode: Edge checking
Control paper move straightly.
Control paper move straightly.
Winding unit
Max unwind material diameter: 600
With Magnetic brake
Die Cutting Unit
Rotary die cutting. Magnetic cylinder need to be customized according to your label size Flexible dies can be customized according to your demand
Automatic constant tension control
tension is control pulling material tight or loose.machine come with two Set Auto Constant Tension Controller For Unwind and Rewinding.
Printed samples
