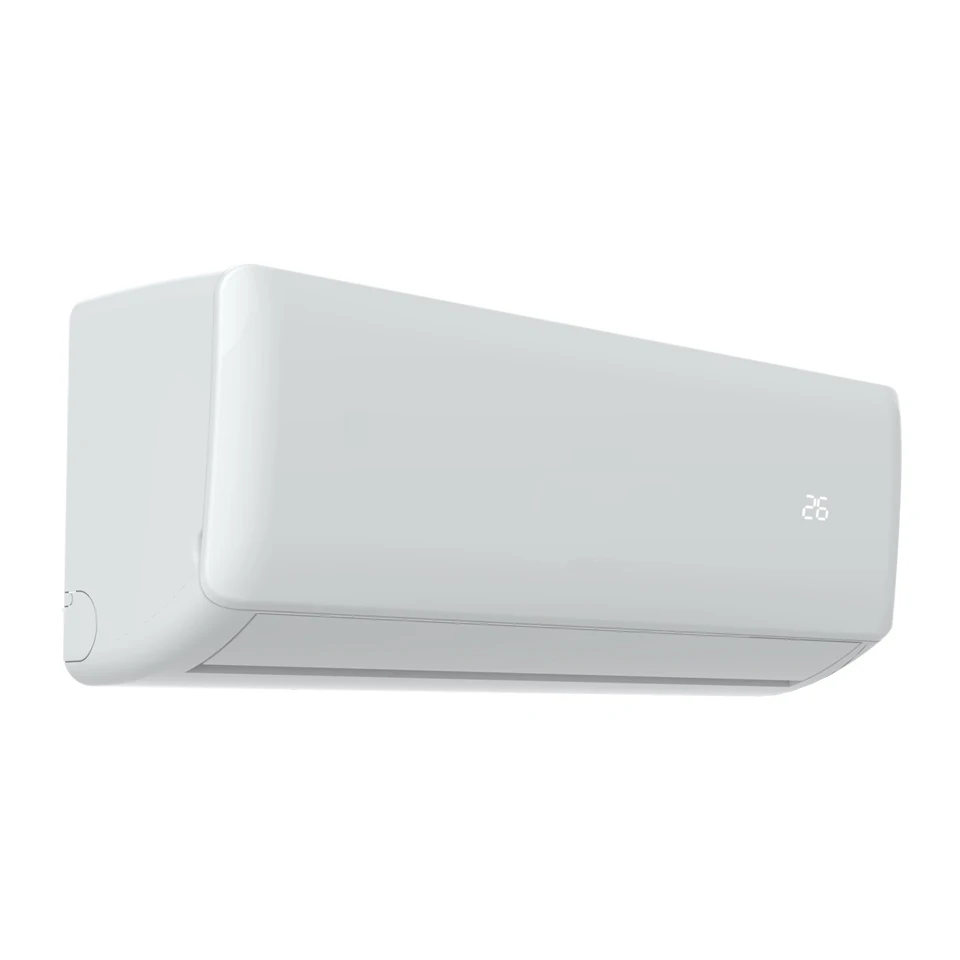

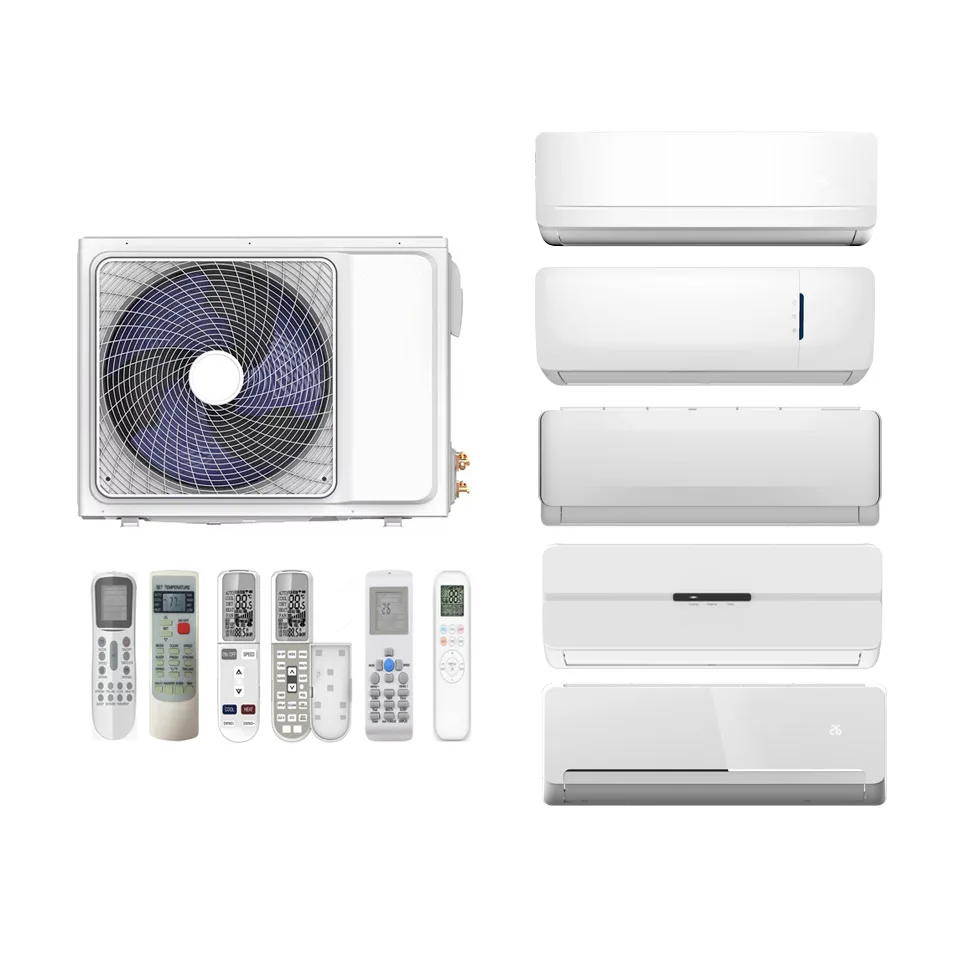

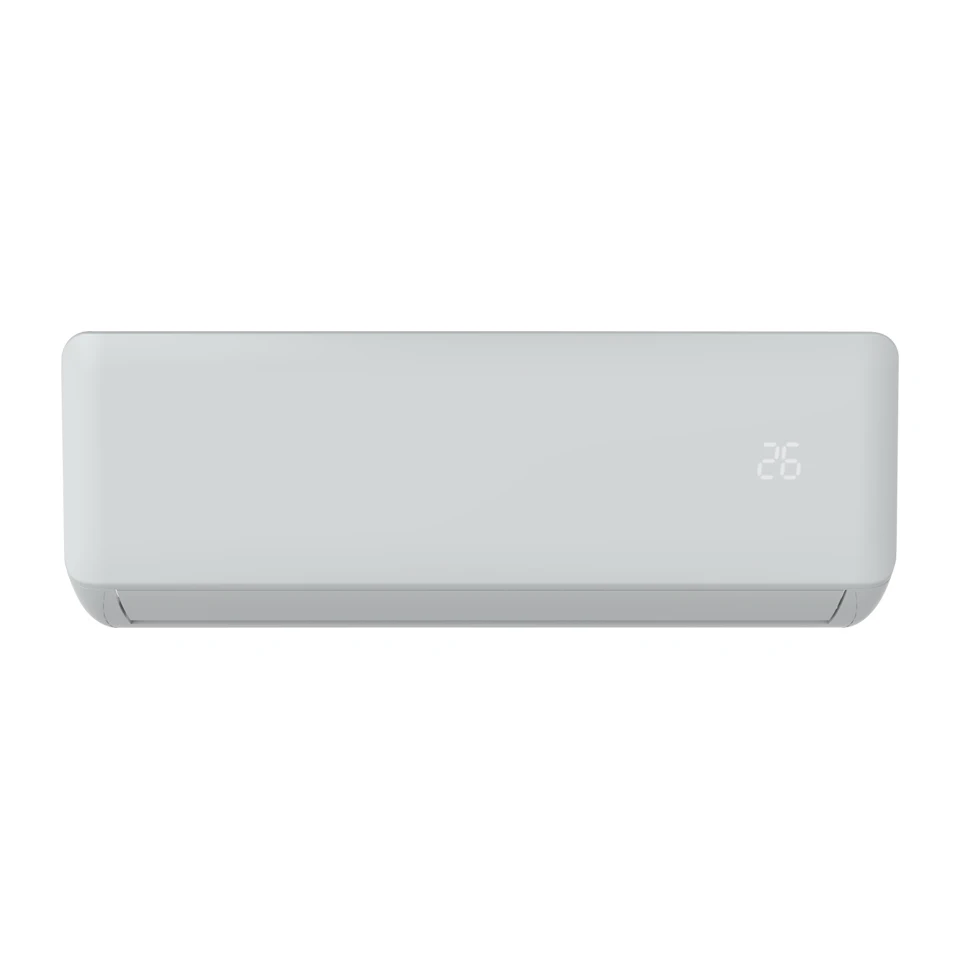

Best Split System Air Conditioners 9000Btu 12000Btu 18000Btu 24000Btu 30000Btu Split Wall Mount Air Conditioning
- Category: >>>
- Supplier: Tiantech Group Co. Ltd.
Share on (1601047602020):
Product Overview
Description
Our Advantages
Product Features
Product Details
Product Specification
Split Air Conditioner ( Wall mounted Air Conditioning, heating and cooling or only cooling) | ||||||||||||
Model | 09K | 12K | 18K | 24K | ||||||||
Rated Capacity | Cooling （W） | 2640 | 3500 | 5300 | 7040 | |||||||
Heating （W） | 2900 | 4000 | 5300 | 8200 | ||||||||
Rated Power Consumption | Cooling （W） | 670 | 1040 | 1630 | 2150 | |||||||
Heating （W） | 670 | 1080 | 1560 | 2450 | ||||||||
Rated Running Current | Cooling （A） | 3.5 | 4.8 | 7.4 | 9.5 | |||||||
Heating （A） | 3.5 | 5.0 | 7.2 | 11 | ||||||||
Max. Input Power （W） | 1500 | 1600 | 2400 | 3400 | ||||||||
Max. Input Current （A） | 7 | 8 | 12 | 16 | ||||||||
EER Cooling （W/W） | .3.8 | 5.5 | CSPF5.0 | 3. 27 | ||||||||
COP Heating （W/W） | 4.2 | 3.5 | HSPF4.0 | 3. 35 | ||||||||
Power supply source （V/Ph/Hz） | 220~240V/50Hz | |||||||||||
Refrigerant | R32 | R32 | R32 | R32 | ||||||||
Refrigerant Charged （g） | 500 | 500 | 1030 | 1300 | ||||||||
Max. Discharge Pressure （Mpa） | 4.3 | 4.3 | 4.3 | 4.3 | ||||||||
Max. Suction Pressure （Mpa） | 2.5 | 2.5 | 2.5 | 2.5 | ||||||||
Air Flow Volume （m3/h） | 560 | 600 | 850 | 1300 | ||||||||
Noise level / Indoor Unit （dB (A)） | 49 | 52 | 58 | 63 | ||||||||
Noise level / Outdoor Unit （dB (A)） | 59 | 60 | 63 | 66 | ||||||||
Indoor unit weight (Net ) （Kg） | 7.5 | 7.5 | 11 | 13 | ||||||||
Outdoor unit weight (Net ) （Kg） | 24 | 24 | 28 | 41 | ||||||||

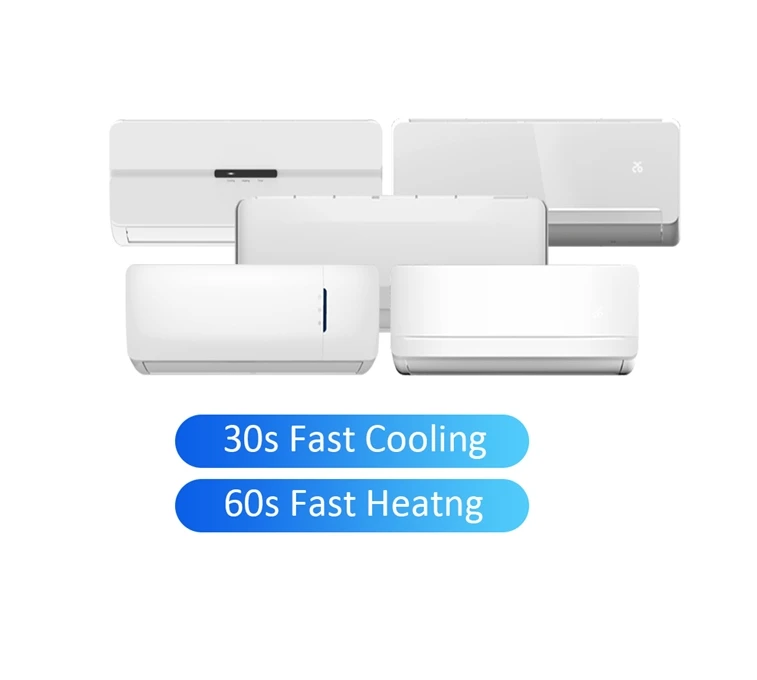

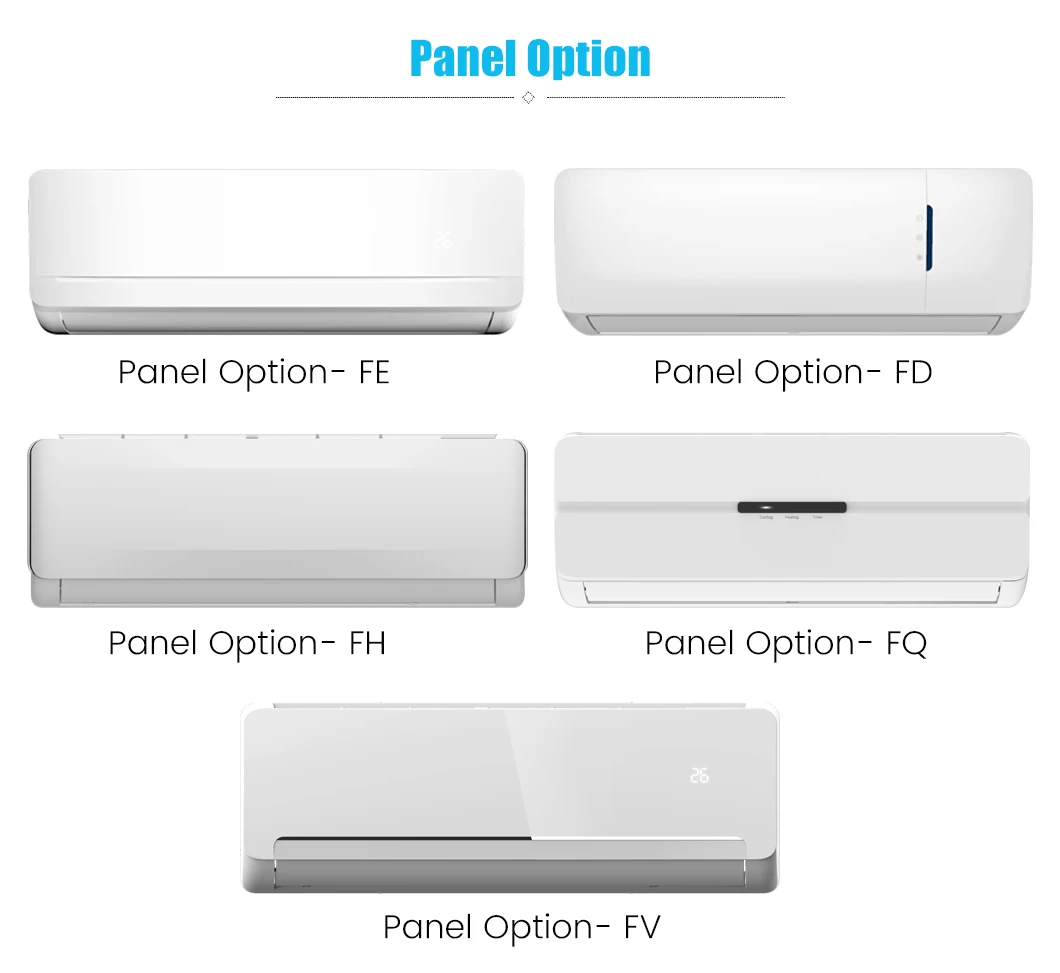

Panel Option

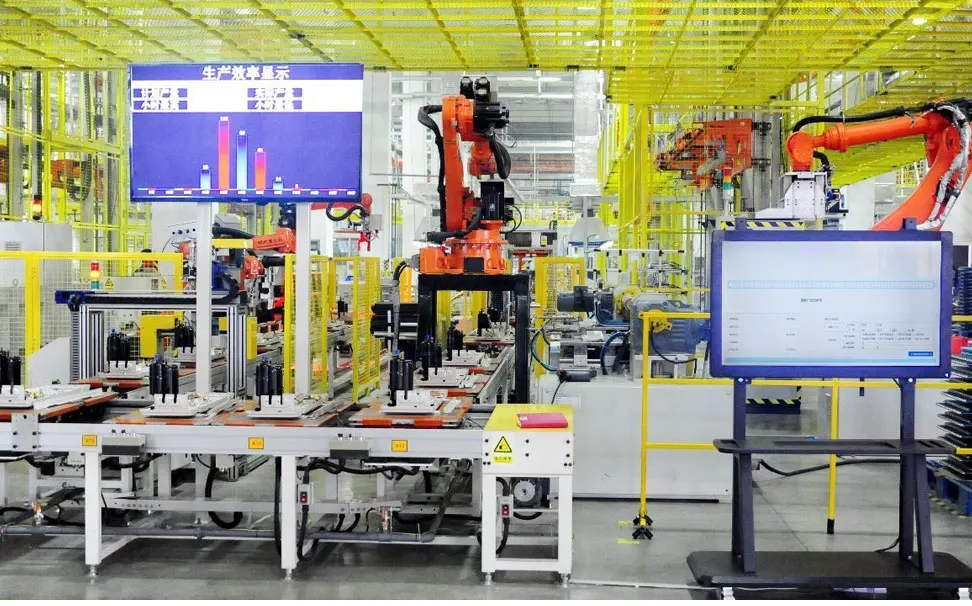

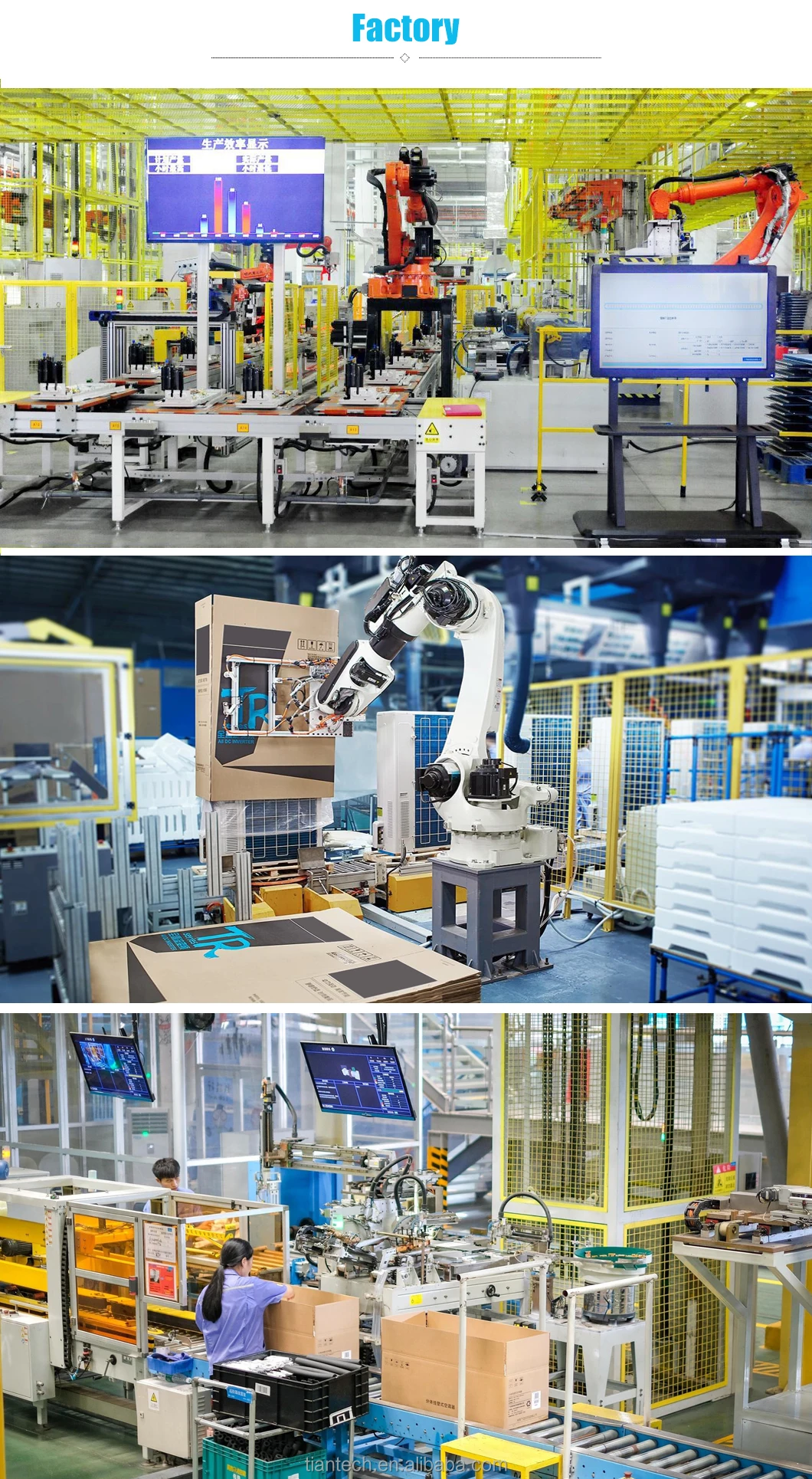

Our Factory
TIANTECH has strong R&D capabilities of Air Conditioner and is at the industry's advanced level in the fields of frequency conversion control, comfort and health technology, and intelligent forward-looking technology. In the future, TIANTECH will follow the trajectory of industrial intelligence upgrading and integrate into homes, striving to allow customers to experience beauty and enjoy smart comfort.
